Kenmore 72213387910 dishwasher Parts

To reset a Kenmore dishwasher like model 72213387910, we cancel the current cycle and let the unit drain: open the door to stop spraying, then press and hold Start for 3 seconds. After draining, the dishwasher powers off and is effectively reset. See the 72213387910 owner's manual.

• Open the door slightly to pause the wash; wait for spraying to stop.
• Open the door fully.
• Press and hold Start for 3 seconds.
• Let the drain pump run until draining finishes.
• When draining is complete, the dishwasher turns off.
• Select a new cycle and press Start, then close the door.

These checks fix most “dead keypad” situations on Kenmore dishwashers.

• Make sure the door is fully closed and latched (a loose latch can block controls).
• Press Start firmly, then close the door right away.
• Reset the home circuit breaker for 1 minute, then restore power.
• If the dishwasher was left on with no cycle selected, wait; it can power off automatically after a few minutes.
• If the control panel shows an error, use the Kenmore 722 series dishwasher error codes guide to match the code to the fix.

Canceling and draining clears the current cycle logic and removes residual water, which helps prevent odor and lets you restart with the correct cycle, options, and detergent.

Last updated: January 2026

On the Kenmore dishwasher model 72213387910, the model number is typically printed on a rating label inside the door area. Open the door and look along the inner frame (often the left or right side) or the top edge of the door opening where the label is easy to spot.

• Along the left inner door frame (vertical edge)
• Along the right inner door frame (vertical edge)
• On the top edge of the door opening (underside lip)
• On the side edge of the door itself (visible when the door is open)
• Just inside the opening on the cabinet frame near the tub

Tip: Use a flashlight and wipe the label gently with a damp cloth if detergent residue makes it hard to read.

The rating label normally includes more than just the model number, so you can confirm you are reading the right sticker.

We use the exact model number to match the correct Kenmore dishwasher parts and troubleshooting info. Even one digit off can point to a different series with different components (like a drain pump, water inlet valve, or door seal).

• Check the 72213387910 owner’s manual for the “parts and features” section and model identification details.

Last updated: January 2026

Common problems on the Kenmore 72213387910 dishwasher include not starting (door not latched or Start not pressed), cycles that run long (cold water supply), odor from a stopped cycle with leftover water, and noise from normal draining or the spray arm hitting dishes. See the 72213387910 owner's manual for model-specific troubleshooting steps.

• Won’t start or run: confirm the door is fully closed and latched, then press Start.
• No power: check the breaker or fuse, and confirm the power cord is connected.
• Cycle takes too long: verify the dishwasher is connected to hot water; heating cold water extends cycle time.
• Odor: cancel and drain residual water, then run an empty cycle as described in the manual.
• Noise: some noise is normal (detergent door opening, drain pump during drain); also make sure the unit is level and dishes are not blocking the spray arms.

If checks above do not resolve the symptom, these parts are often involved:

• Filling problems: dishwasher water inlet valve 5221DD1001E
• Not draining or standing water: dishwasher drain pump ABQ75742501

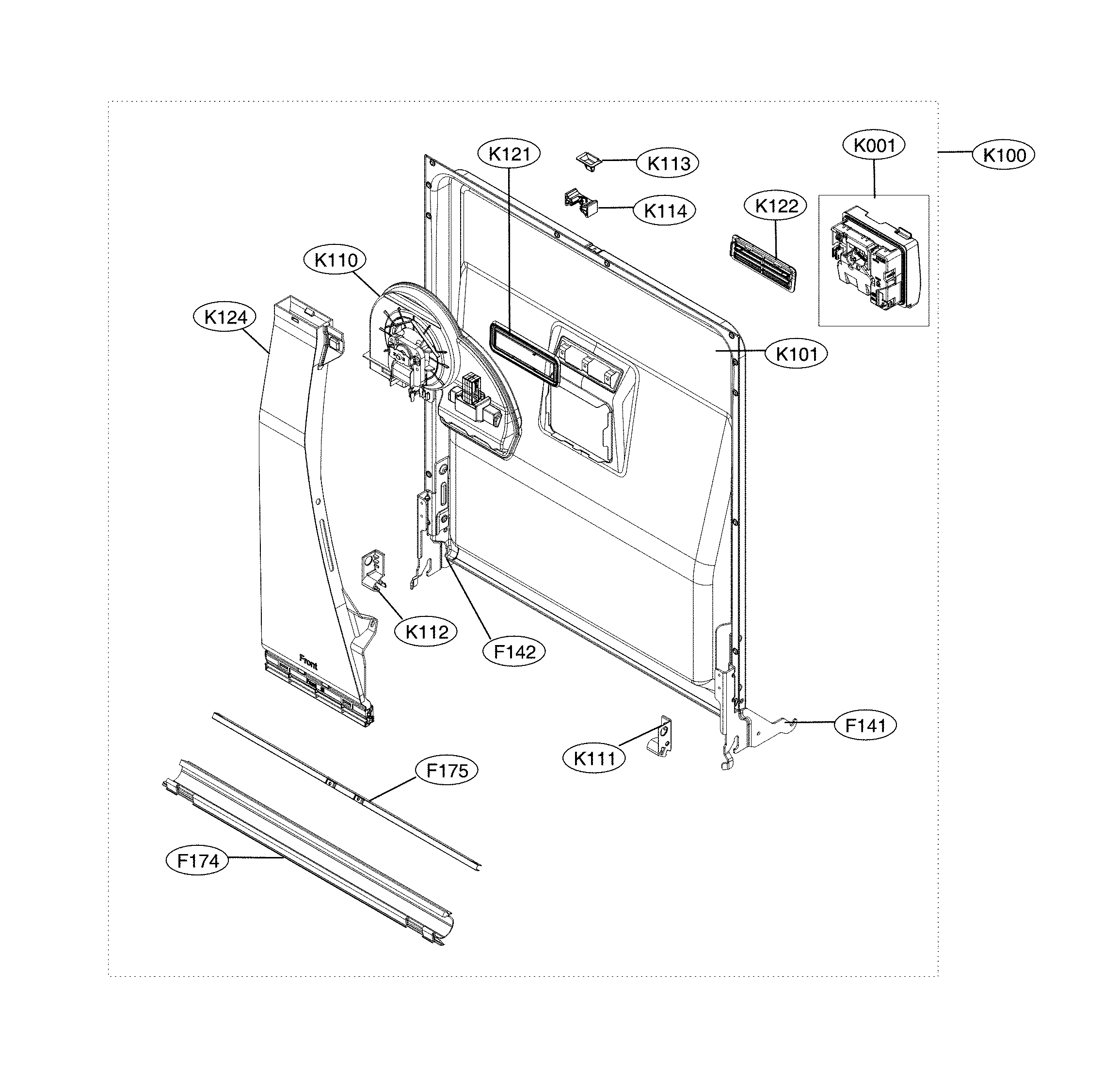

• Leaks at the door: dishwasher door seal 3920DD3002D

Catching simple issues early (door latch, hot water supply, rinse aid level, spray arm clearance) prevents long cycles, odors, and repeat wash problems, and it helps protect components like the drain pump and diverter motor.

Last updated: January 2026

The Kenmore dishwasher model 72213387910 is a standard built-in dishwasher size; most installations for this style fit a 24-inch-wide opening with an overall height around 34 to 35 inches and depth around 24 to 26 inches. For the exact cutout and leveling range, use the 72213387910 owner's manual.

Measure the opening and the dishwasher, then compare before ordering parts or planning an install.

• Opening width: inside cabinet-to-cabinet (most are 24 inches)
• Opening height: floor to underside of countertop (dishwashers level up and down)
• Opening depth: front of cabinet to back wall (allow room for hoses)
• Toe-kick clearance: space at the bottom front
• Door swing clearance: make sure the door can open fully

These are the common ranges we see for built-in Kenmore dishwashers like model 72213387910.

Dishwasher sizing is really about the cabinet cutout and leveling adjustment. Even when the dishwasher is “standard size,” small differences in height and depth affect whether the unit sits flush, seals correctly, and routes the drain hose and water line without kinks.

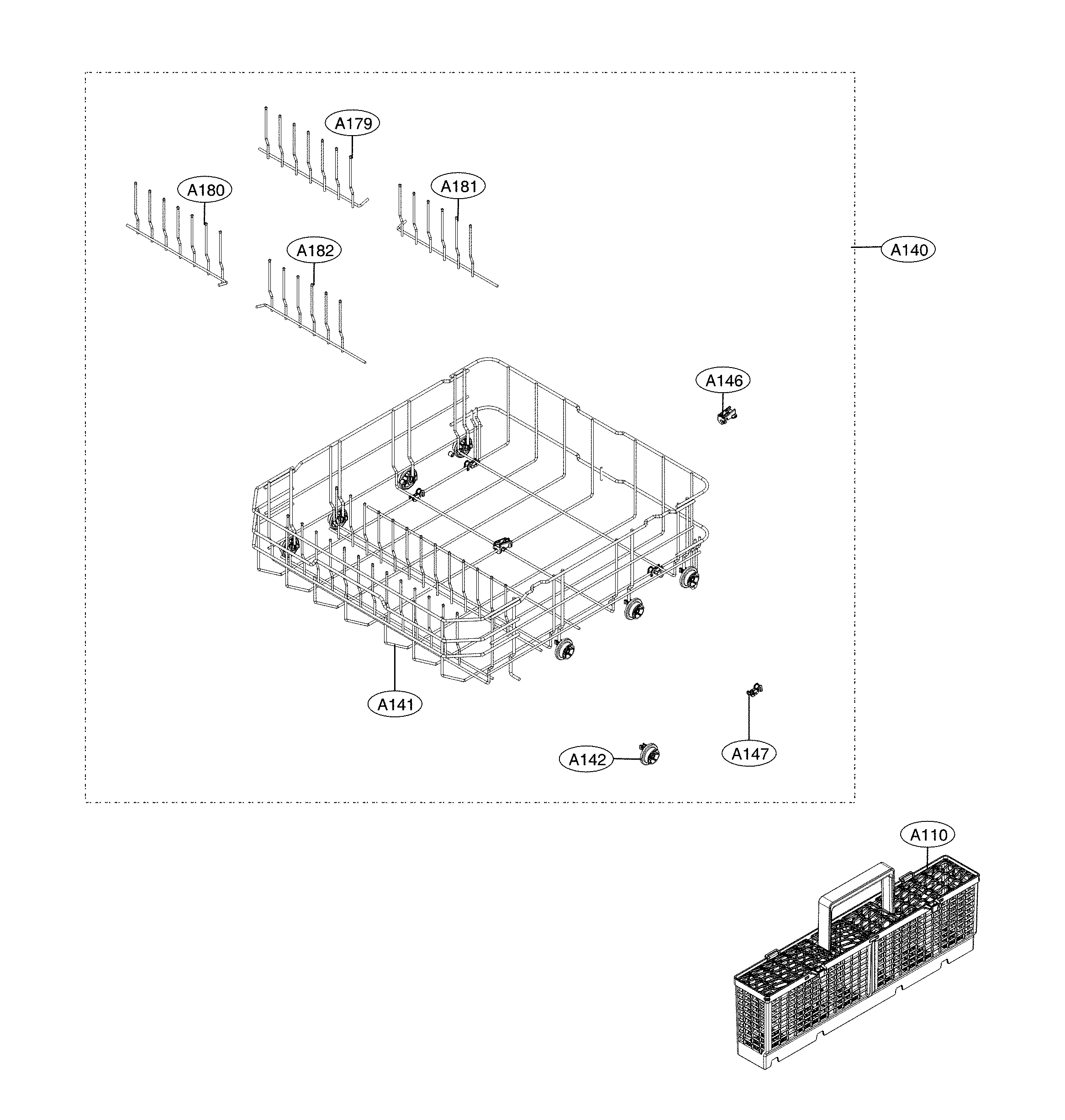

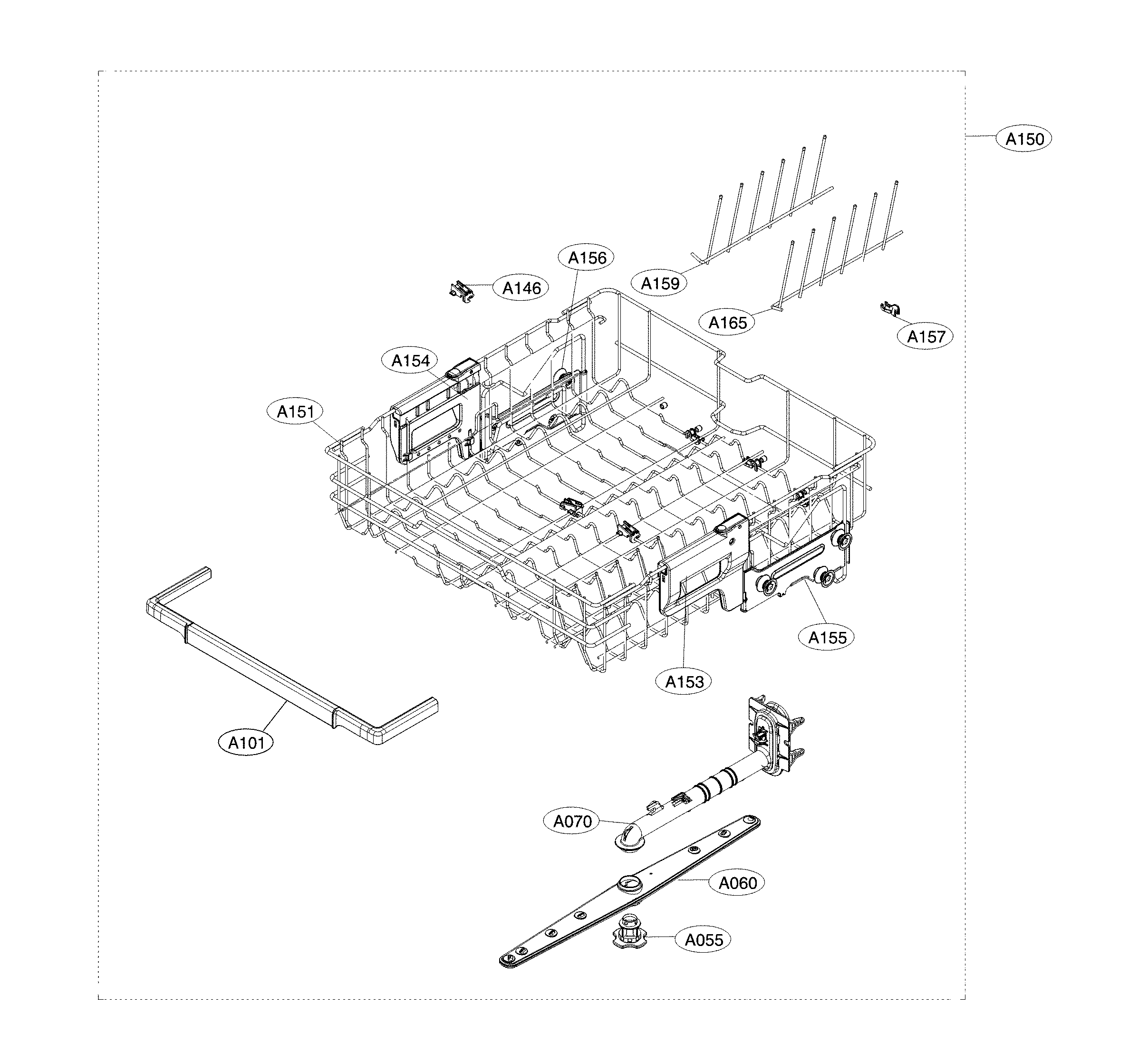

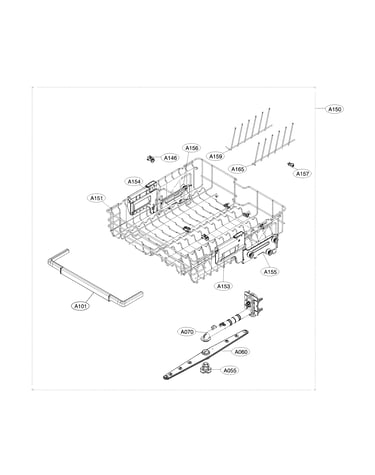

Your 722.1338* series Use & Care Guide describes a height-adjustable top rack, which changes what fits inside the racks (not the cabinet opening).

• Raise the top rack to fit taller items in the bottom rack (up to about 14 inches)
• Lower the top rack to fit taller dishes in the top rack (up to about 12 inches)
• Use fold-down tines to make room for larger cookware

Last updated: January 2026
