Model # 36275478690 Official Kenmore gas range

Here are the diagrams and repair parts for Official Kenmore 36275478690 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

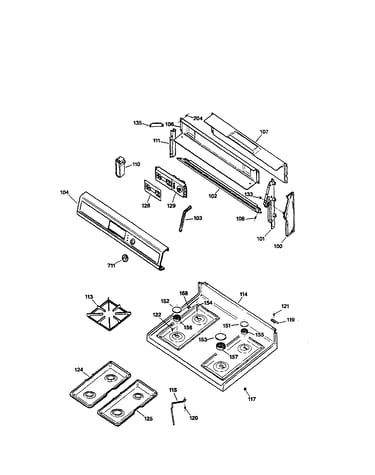

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 207 parts  |

Wb2x9154 WB13K0003
#218

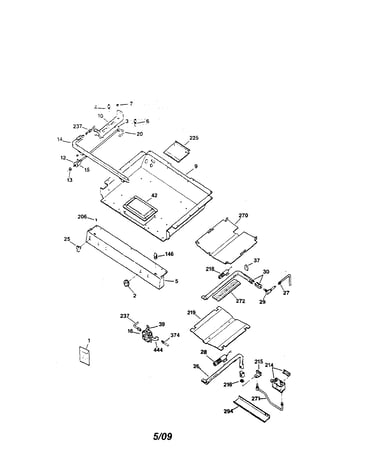

Gas burner diagram

Wb2x9154

Part #WB13K0003

Replaced by #WB2X9154

?
Manufacturer substitution
This part replaces WB13K0003. Substitute parts can look different from the original.
BEST SELLER
$103.27
9% OFF Phone Price : $113.27
In Stock
Igniter WB13K0004
#28

Gas burner diagram

Igniter

Part #WB13K0004

Replaced by #WB2X9154

?
Manufacturer substitution
This part replaces WB13K0004. Substitute parts can look different from the original.
BEST SELLER
$103.27
9% OFF Phone Price : $113.27
In Stock
40a15bulb STD372401
#235

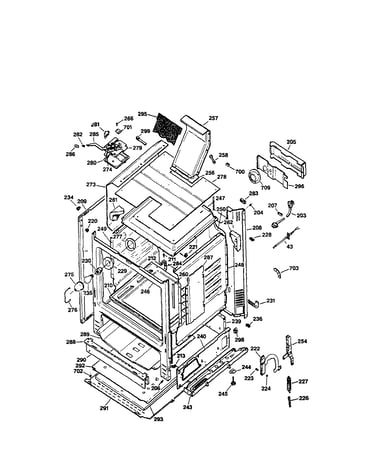

Body diagram

40a15bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$16.08
11% OFF Phone Price : $18.08
In Stock
Pushin Receptacle WB08K0002
#230

Body diagram

Pushin receptacle

Part #WB08K0002

Replaced by #WB08T10026

?
Manufacturer substitution
This part replaces WB08K0002. Substitute parts can look different from the original.
This item is not returnable
$7.88
11% OFF Phone Price : $8.88
In Stock
Wb36x389 WB08K0005
#275

Body diagram

Wb36x389

Part #WB08K0005

Replaced by #WB36X192

?
Manufacturer substitution
This part replaces WB08K0005. Substitute parts can look different from the original.
This item is not returnable
$9.54
9% OFF Phone Price : $10.54
In Stock
Oven Rack WB48K0004
#200

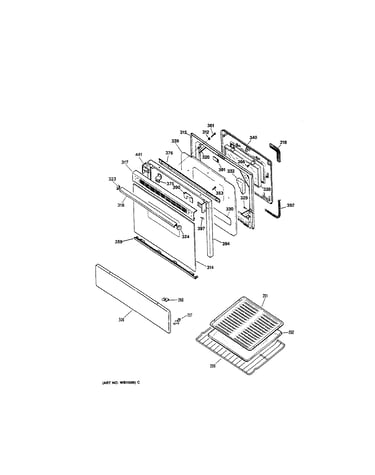

Door/drawer diagram

Oven rack

Part #WB48K0004

Replaced by #WB48T10095

?
Manufacturer substitution
This part replaces WB48K0004. Substitute parts can look different from the original.
$58.91
8% OFF Phone Price : $63.91
In Stock
Door Gasket WB04K0001
#318

Door/drawer diagram

Door gasket

Part #WB04K0001

Replaced by #WB4K1

?
Manufacturer substitution
This part replaces WB04K0001. Substitute parts can look different from the original.
$44.26
10% OFF Phone Price : $49.26
In Stock
Valve Burner Control WB21K0012
#15

Gas burner diagram

Valve burner control

Part #WB21K0012

Replaced by #WB21K12

?
Manufacturer substitution
This part replaces WB21K0012. Substitute parts can look different from the original.
$77.48
6% OFF Phone Price : $82.48
In Stock
Trim B. Door WB07K0379
#359

Door/drawer diagram

Trim b. door

Part #WB07K0379

Replaced by #WB07K10232

?
Manufacturer substitution
This part replaces WB07K0379. Substitute parts can look different from the original.
This item is not returnable
$22.56
18% OFF Phone Price : $27.56
In Stock
Door (black) WB57K0002
#314

Door/drawer diagram

Door (black)

Part #WB57K0002

Replaced by #WB57K2

?
Manufacturer substitution
This part replaces WB57K0002. Substitute parts can look different from the original.
$174.72
5% OFF Phone Price : $184.72
In Stock
