Model # FED367CCTC Official Frigidaire electric range

Here are the diagrams and repair parts for Official Frigidaire FED367CCTC electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

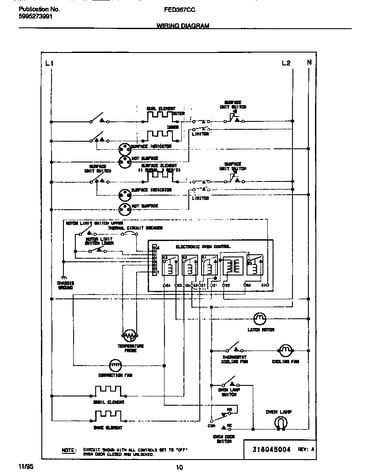

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 122 parts  |
Sensor Probe 5303208888
#37

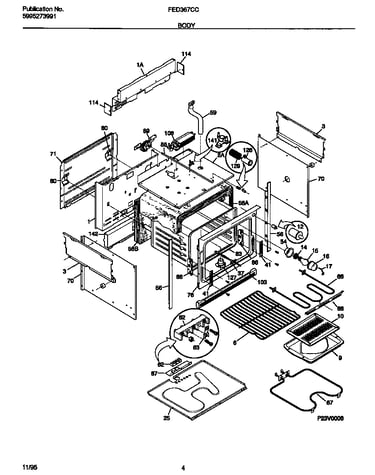

Body diagram

Sensor probe

Part #5303208888

Replaced by #316217002

?
Manufacturer substitution
This part replaces 5303208888. Substitute parts can look different from the original.
BEST SELLER
$45.69 |
10% OFF Phone Price : $50.69
In Stock
Bulb 3201908
#15

Body diagram

Bulb

Part #3201908

Replaced by #316538904

?
Manufacturer substitution
This part replaces 3201908. Substitute parts can look different from the original.
BEST SELLER
$15.31 |
12% OFF Phone Price : $17.31
In Stock
Oven Broiler Element 5303310513
#66

Body diagram

Oven broiler element

Part #5303310513

Replaced by #318255605

?
Manufacturer substitution
This part replaces 5303310513. Substitute parts can look different from the original.
BEST SELLER
$148.55 |
6% OFF Phone Price : $158.55
In Stock
Surface Element 318050403
#15

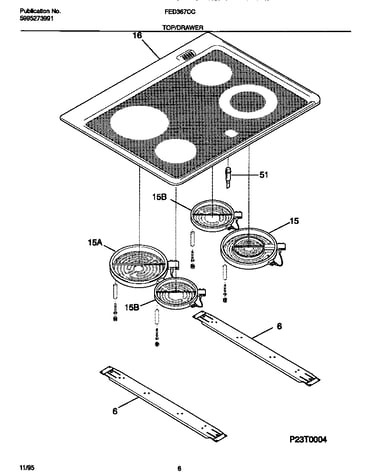

Top/drawer diagram

Surface element

Part #318050403

Replaced by #318198834

?
Manufacturer substitution
This part replaces 318050403. Substitute parts can look different from the original.
BEST SELLER
$119.60 |
8% OFF Phone Price : $129.60
In Stock
Oven Door Seal 5303311152
#12

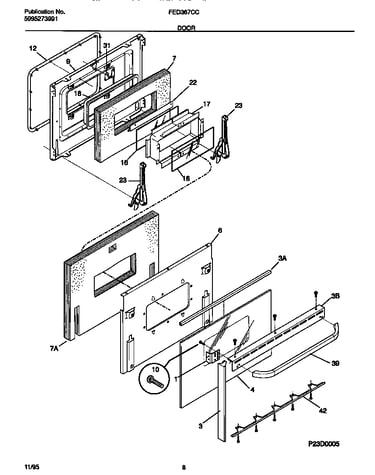

Door diagram

Oven door seal

Part #5303311152

Replaced by #318053103

?
Manufacturer substitution
This part replaces 5303311152. Substitute parts can look different from the original.
$103.39 |
9% OFF Phone Price : $113.39
In Stock
End Cap 5303304668
#18

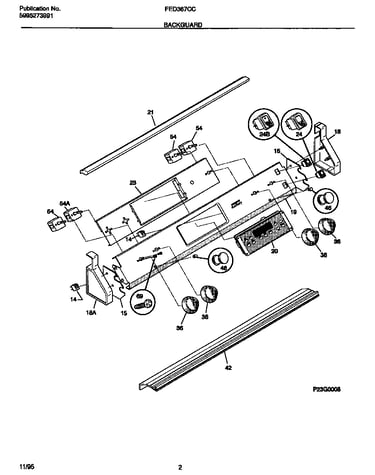

Backguard diagram

End cap

Part #5303304668

Replaced by #318254698

?
Manufacturer substitution
This part replaces 5303304668. Substitute parts can look different from the original.
$102.53 |
9% OFF Phone Price : $112.53
In Stock
End Cap 5303304671
#18

Backguard diagram

End cap

Part #5303304671

Replaced by #318254698

?
Manufacturer substitution
This part replaces 5303304671. Substitute parts can look different from the original.
$102.53 |
9% OFF Phone Price : $112.53
In Stock
Range Surface Element Control Switch 318120501
#54

Backguard diagram

Range surface element control switch

Part #318120501

$179.79 |
5% OFF MSRP : $190.00
In Stock
Adapter Assembly 5303310542
#127A

Body diagram

Adapter assembly

Part #5303310542

Replaced by #318317100

?
Manufacturer substitution
This part replaces 5303310542. Substitute parts can look different from the original.
$61.19 |
8% OFF Phone Price : $66.19
In Stock
Rocker Switch 316076300
#24

Backguard diagram

Rocker switch

Part #316076300

Replaced by #316083100

?
Manufacturer substitution
This part replaces 316076300. Substitute parts can look different from the original.
$71.70 |
7% OFF Phone Price : $76.70
In Stock
