KitchenAid KCMS125EWH0 full size microwave Parts

Here are the diagrams and repair parts for KitchenAid KCMS125EWH0 full size microwave, as well as links to manuals and error code tables, if available.

KitchenAid KCMS125EWH0 full size microwave
By Schematic
By Part

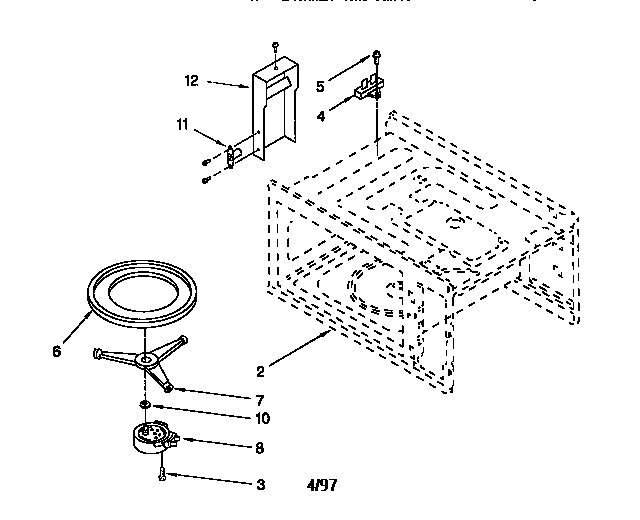

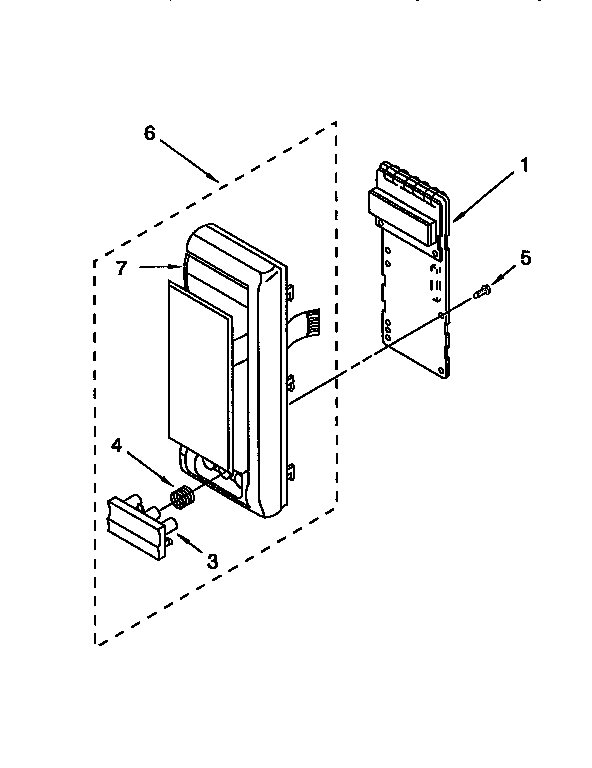

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for KCMS125EWH0 Microwaves

  • Fan Blade for KitchenAid KCMS125EWH0 - Part 4313120

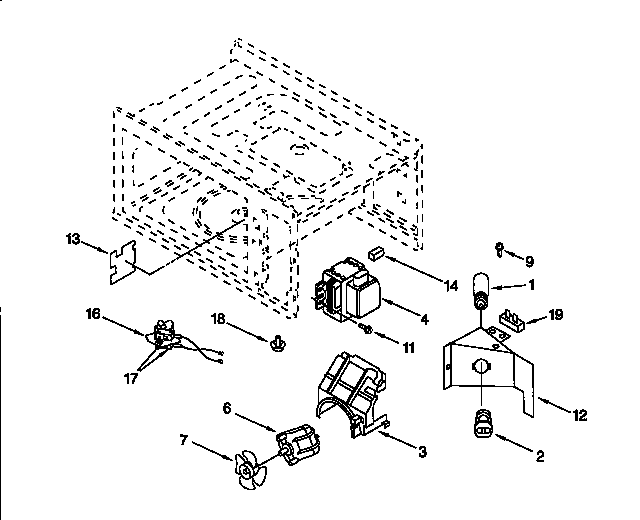

    Magnetron and air flow diagram

    Fan Blade

    Part #4313120

    The manufacturer no longer makes this part, and there's no substitute part

  • Wire Harness for KitchenAid KCMS125EWH0 - Part 4313111

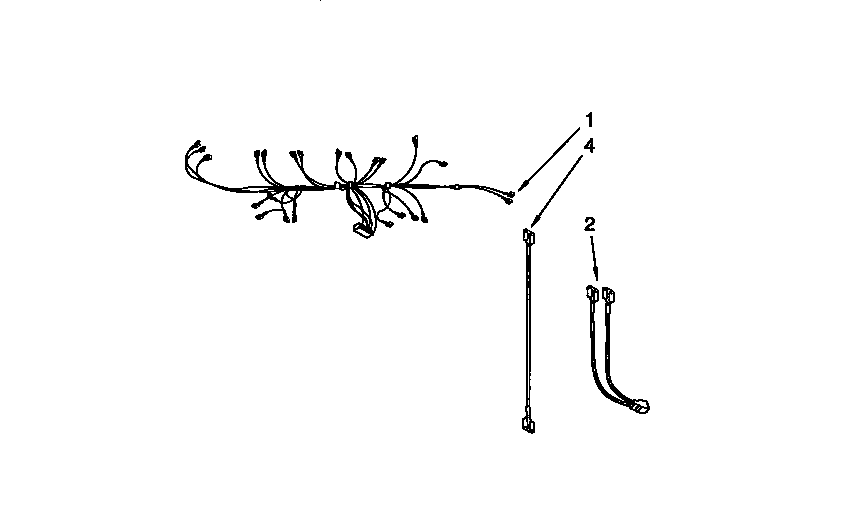

    Wiring harness diagram

    Wire Harness

    Part #4313111

    The manufacturer no longer makes this part, and there's no substitute part

  • Wire (white) for KitchenAid KCMS125EWH0 - Part 242826

    #NI

    All parts diagram

    Wire (white)

    Part #242826

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw for KitchenAid KCMS125EWH0 - Part 4174757

    Screw

    Part #4174757

    The manufacturer no longer makes this part, and there's no substitute part

  • Diode for KitchenAid KCMS125EWH0 - Part 4313101

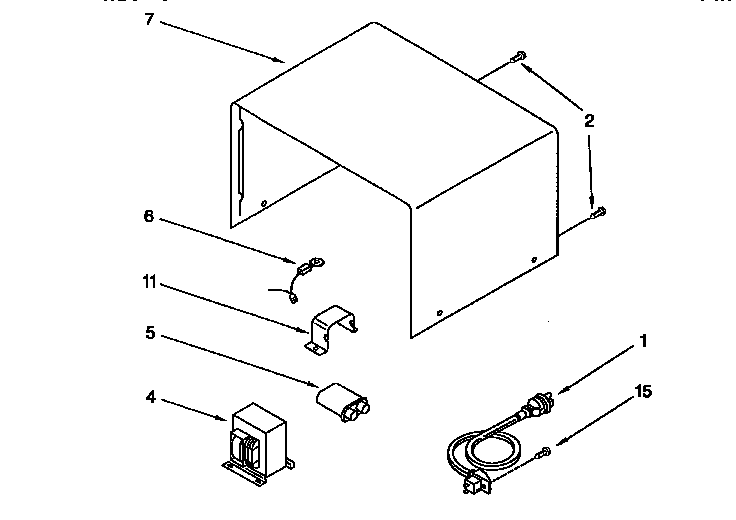

    Cabinet diagram

    Diode

    Part #4313101

    The manufacturer no longer makes this part, and there's no substitute part

  • Wire (green) for KitchenAid KCMS125EWH0 - Part 242823

    #NI

    All parts diagram

    Wire (green)

    Part #242823

    The manufacturer no longer makes this part, and there's no substitute part

  • Door Latch for KitchenAid KCMS125EWH0 - Part 4313137

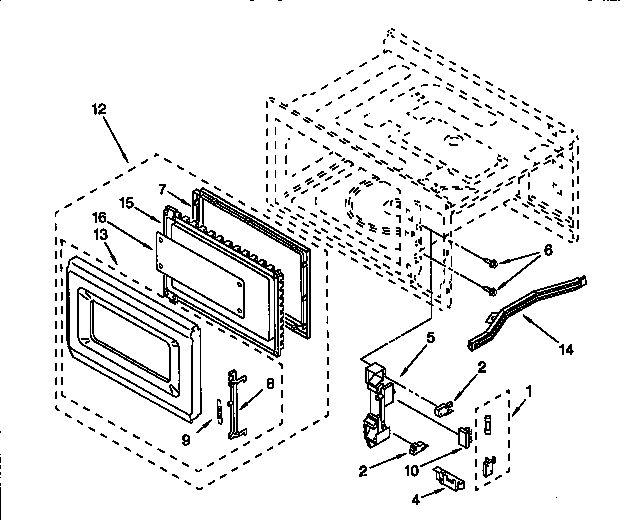

    Door and latch diagram

    Door Latch

    Part #4313137

    The manufacturer no longer makes this part, and there's no substitute part

  • Trim Kit for KitchenAid KCMS125EWH0 - Part 4386635

    #NI

    All parts diagram

    Trim Kit

    Part #4386635

    The manufacturer no longer makes this part, and there's no substitute part

  • Outer Door for KitchenAid KCMS125EWH0 - Part 4313179

    Door and latch diagram

    Outer Door

    Part #4313179

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw for KitchenAid KCMS125EWH0 - Part 4312922

    Cabinet diagram

    Screw

    Part #4312922

    The manufacturer no longer makes this part, and there's no substitute part
