Frigidaire
Gas Cooktop

Model # E46GC66ESS Official Frigidaire gas cooktop

Here are the diagrams and repair parts for Official Frigidaire E46GC66ESS gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

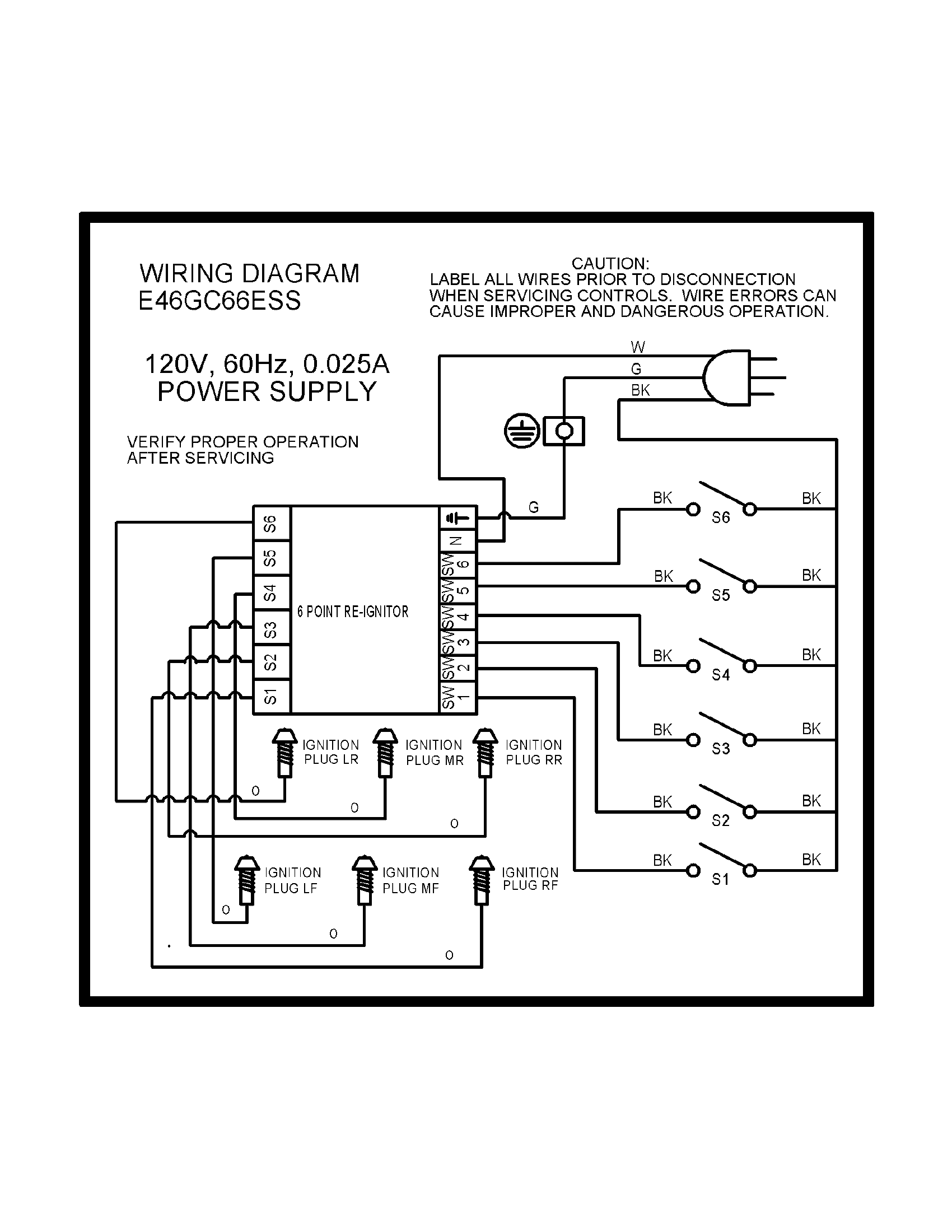

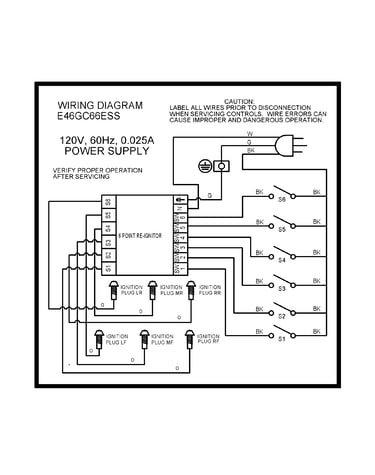

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |

Washer
#NI

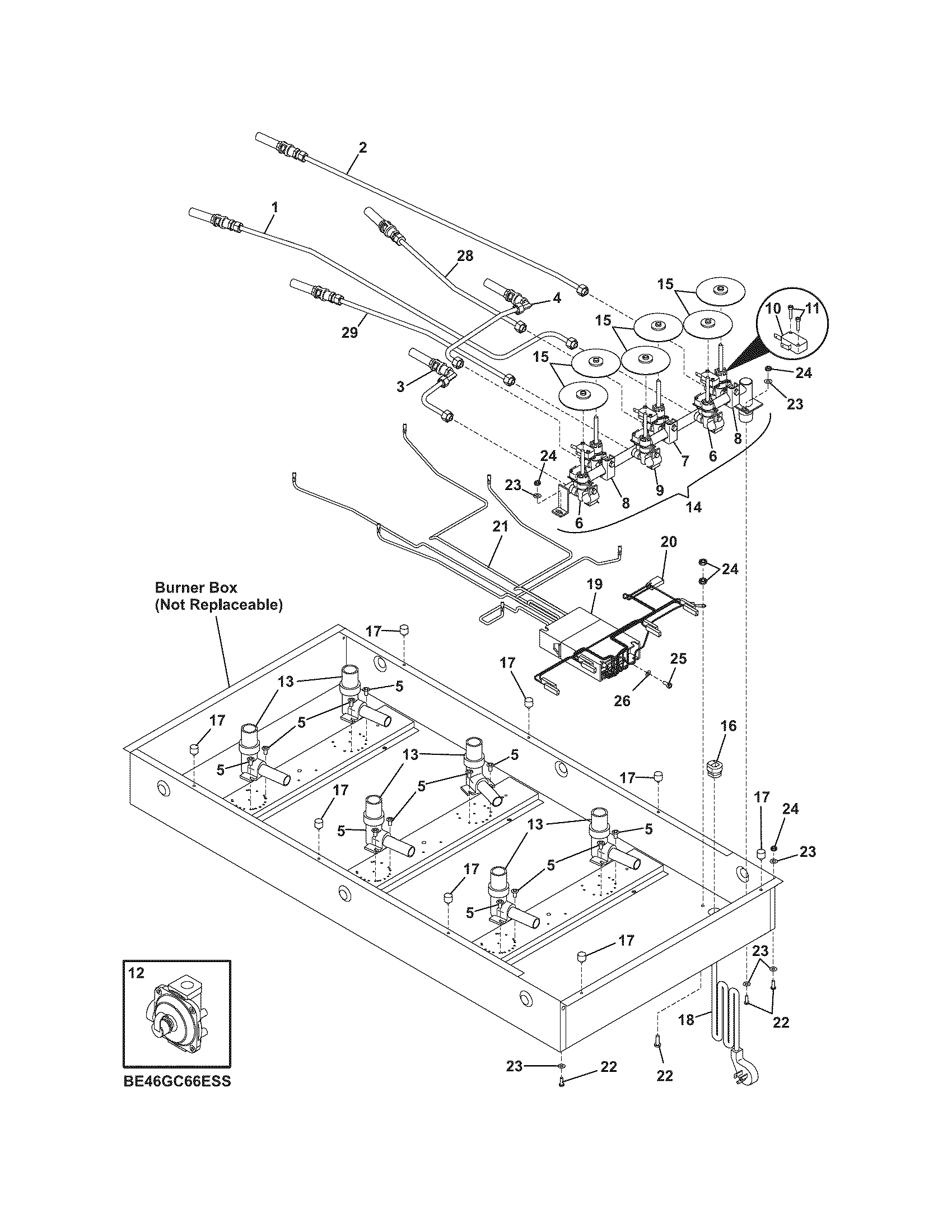

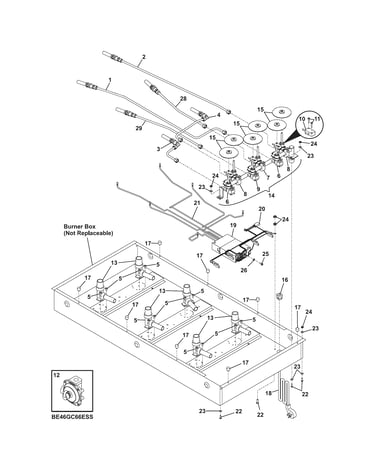

Burner diagram

Washer

Part #5304446027

This item is not returnable
In Stock
Cleaner
#NI

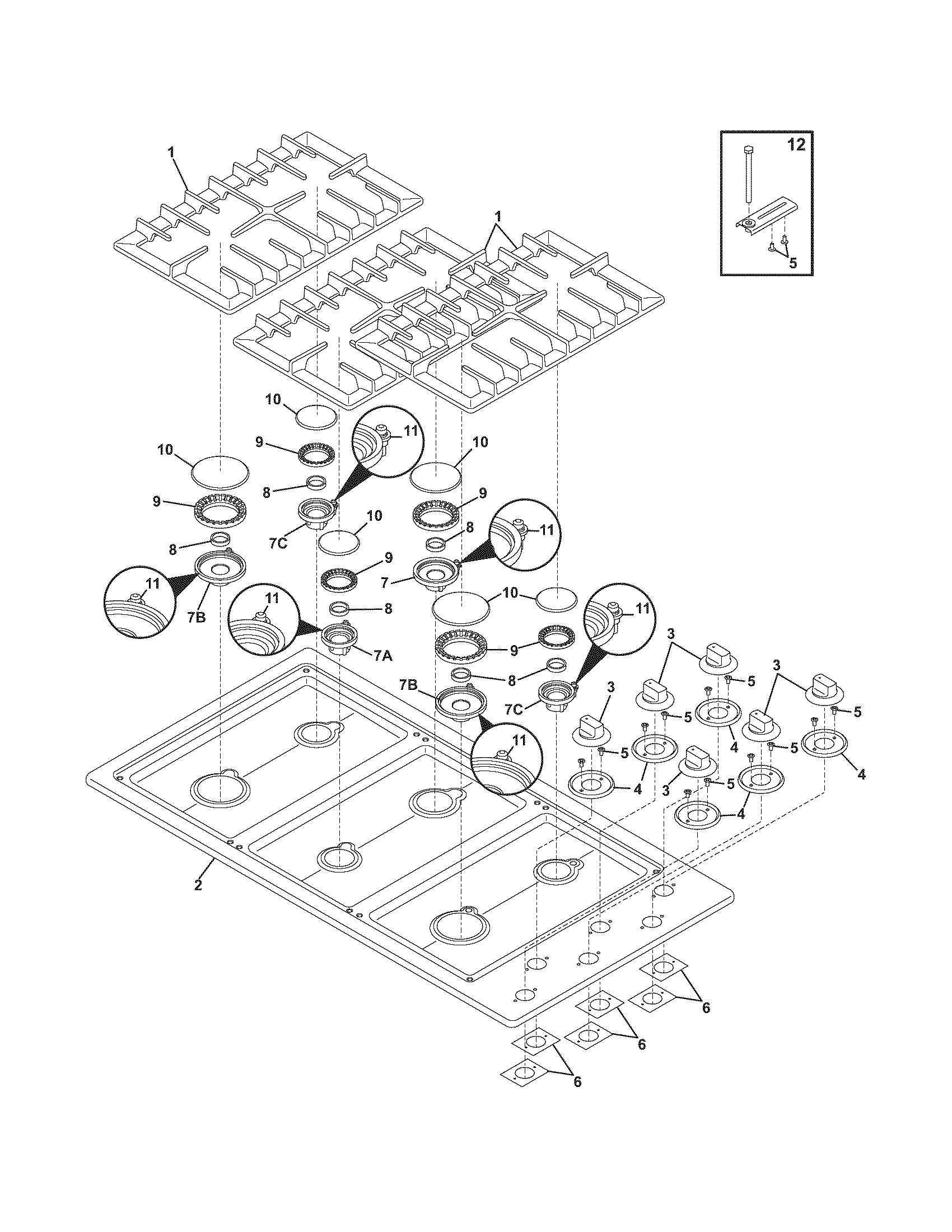

Maintop diagram

Cleaner

Part #5304446032

This item is not returnable
In Stock
Cooktop Burner Head
#7C

Maintop diagram

Cooktop burner head

Part #5304446034

In Stock
Cooktop Spark Module
#19

Burner diagram

Cooktop spark module

Part #5304446143

In Stock
Cooktop Burner Head Brass Nut
#8

Maintop diagram

Cooktop burner head brass nut

Part #5304446028

In Stock
Cooktop Burner Head
#7B

Maintop diagram

Cooktop burner head

Part #5304446012

The manufacturer no longer makes this part, and there's no substitute part

Valve
#9

Burner diagram

Valve

Part #5304446107

The manufacturer no longer makes this part, and there's no substitute part

Top
#2

Maintop diagram

Top

Part #5304446144

The manufacturer no longer makes this part, and there's no substitute part

Bezel
#4

Maintop diagram

Bezel

Part #5304446031

The manufacturer no longer makes this part, and there's no substitute part

Tubing
#29

Burner diagram

Tubing

Part #5304446105

The manufacturer no longer makes this part, and there's no substitute part
