GE GYE22GYNCFS bottom mount refrigerator Parts

On your GE GYE22GYNCFS bottom-mount refrigerator, the bottom grill (base grille or toe grille) typically snaps into the front base area: align the tabs with the slots, press it into place evenly, then reinstall any retaining screws if your grille uses them. Confirm the exact attachment points in the owner's manual.

Before you start

• Unplug the refrigerator or switch off power at the breaker (safer when working near wiring).
• If you need more room, raise the front leveling legs slightly so the grille clears the floor.
• Protect the floor; pulling the refrigerator sideways can damage flooring.
• Keep the power cord and water line from getting pinched when moving the unit.

Steps to reinstall the bottom grill

1. Position the grille: Hold the grille centered at the bottom front of the cabinet.
2. Line up the mounting points: Match grille tabs or hooks to the slots along the base.
3. Snap it in: Press along the left and right ends first, then press across the middle until it sits flush.
4. Reinstall screws (if equipped): Some GE base grilles use Phillips screws; tighten until snug (do not overtighten).
5. Verify fit: Make sure the grille is not rubbing the floor and does not bow outward.

Quick checks if it will not stay on

• Grille is upside down: Flip it and try again; many toe grilles only latch one way.
• Leveling legs too low: Raise the front legs slightly, install the grille, then lower legs back to the floor.
• Tabs not seated: Remove and reinsert, pressing firmly at the corners.
• Refrigerator not fully back: Push straight in, then recheck alignment (avoid rolling over the cord or water line).

Why it matters

A properly installed base grille helps protect components at the bottom front of the refrigerator and supports correct airflow around the machine compartment, which helps cooling performance and efficiency.

Common terms (same part)

What people call it	What it means
Bottom grill	Base grille / toe grille
Kick plate	Lower front cover

Last updated: February 2026

The most common GE refrigerator complaint is not cooling correctly (fresh food warm, freezer warming, or temps swinging). On the GE GYE22GYNCFS bottom-mount refrigerator, many “problems” also trace back to normal fan and compressor behavior, door sealing, or water and ice system issues described in the owner's manual.

Most common issues we see (and what they usually point to)

• Not cooling or weak cooling: airflow blocked, dirty condenser area, door not sealing, or the unit needs time after power loss (allow up to 24 hours to stabilize).
• Strange noises: fans changing speed, refrigerant gurgle, defrost sizzling, ice cubes dropping, or the ice chute motor closing (often normal).
• Ice maker not working: water supply issue, filter issue, or air in the water line after filter changes.
• Dispenser problems (ice or water): air in the line, filter restriction, or dispenser door behavior that can be normal.
• Water leaking or puddles: clogged/iced drain, loose water line, or dispenser drip from air in the line.
• Door not closing or doors look uneven: loading, floor level, or door adjustment needed.

Quick checks before you troubleshoot deeper

1. Confirm the controls are set correctly and vents are not blocked by food.
2. If the refrigerator was just plugged in or power was out, wait 24 hours for temps to reach the set points.
3. Check door closure and gasket contact all the way around.
4. If water drips after dispensing, dispense water for at least 5 minutes to purge air from the system.
5. If doors look misaligned, use a 1/4-inch Allen wrench to adjust the door (access at the bottom of the door with the freezer door open).

Normal vs. needs attention (fast guide)

Symptom	Often normal on GYE22GYNCFS	Usually needs attention
Clicking/popping after plug-in	Cooling parts expanding/contracting	Loud, constant, or worsening noises
Fan noise changes	Fans vary speed for cooling/efficiency	Fan grinding or not running
Water drip after dispensing	Air in line; purge by dispensing	Continuous leaking with no dispensing
Ice chute motor sound	Motor closes chute after dispensing	Chute stuck open or frost buildup

Why it matters

Cooling, door sealing, and airflow problems can quickly lead to food spoilage and frost or moisture issues. Water and ice symptoms often come from simple causes like air in the line or a filter-related restriction, so quick checks save time and prevent repeat problems.

Related DIY help

• GE refrigerator error codes

Last updated: February 2026

On the GE GYE22GYNCFS bottom-mount refrigerator, the bottom grille (base grille/toe grille) typically pulls straight off after you release any retaining screws or clips. Once it is free, pull the grille forward and lift it away from the cabinet.

Before you start

• Unplug the refrigerator or switch off power at the breaker (you will be working near wiring and the condenser area).
• Protect the floor with cardboard or a towel.
• Use a flashlight; the fasteners are usually low and hard to see.
• Keep screws in a cup so they do not roll under the appliance.

How to remove the bottom grille

1. Look along the top edge of the grille for screws (often Phillips-head) or small locking tabs.
2. If you see screws, remove them and set them aside.
3. If you see tabs, press the tabs inward while pulling the grille toward you.
4. Pull the grille straight out; if it catches, shift slightly left and right while pulling.
5. Lift the grille away from the refrigerator.

How to reinstall the grille

• Align the grille with the slots or mounting points.
• Push it straight in until it seats fully.
• Reinstall any screws you removed.

Quick check: screws vs. clips

What you see	What to do	What to avoid
Phillips screws	Remove screws, then pull grille forward	Overtightening screws on reinstall
Plastic tabs/clips	Press tabs, then pull grille forward	Forcing the grille and snapping tabs

Why it matters

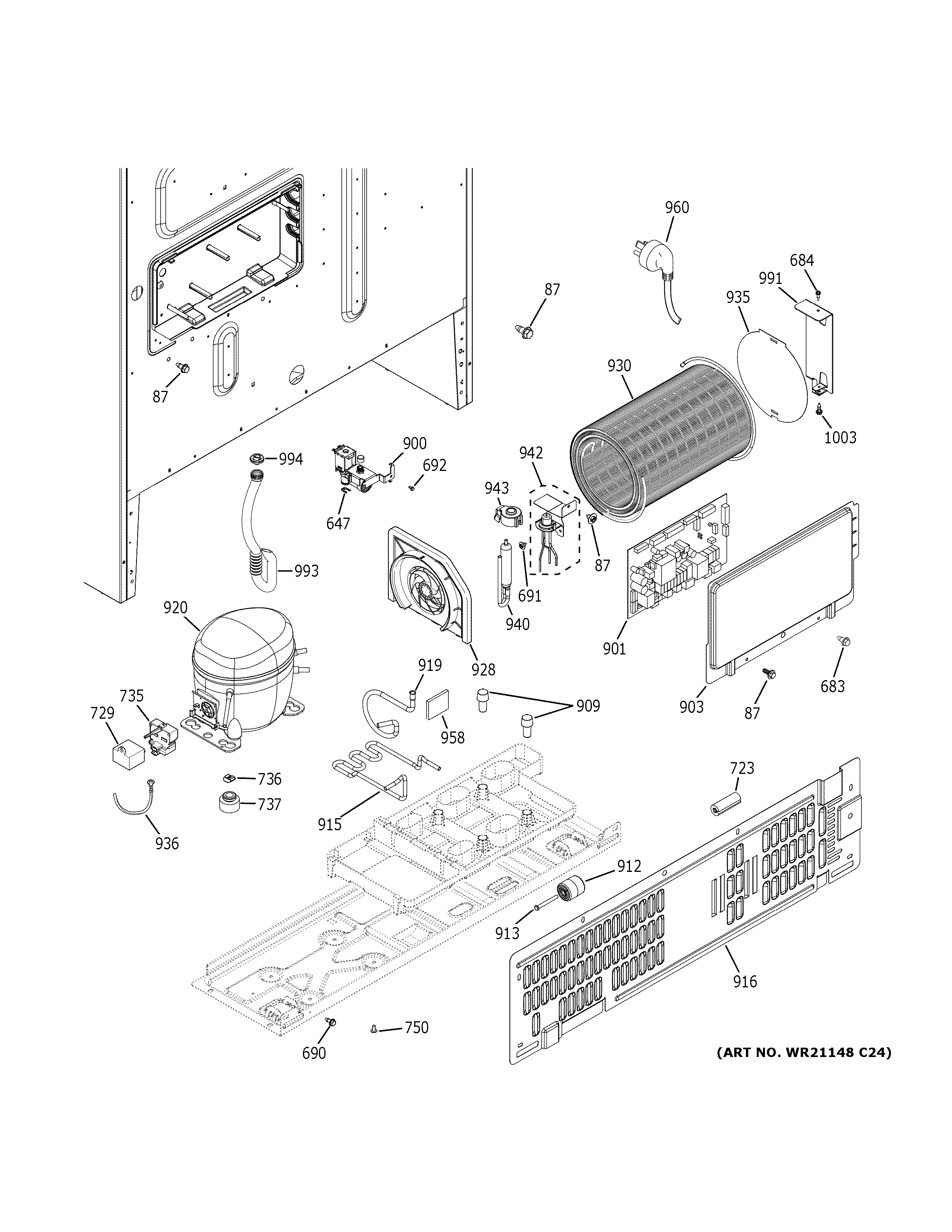

We remove the bottom grille to access the condenser area for cleaning, to inspect for debris, or to reach components near the bottom front. Removing it the right way prevents broken tabs, rattles, and poor grille fit.

For model-specific diagrams and access notes, use the GYE22GYNCFS owner's manual.

Last updated: February 2026

A bottom-freezer refrigerator like the GE GYE22GYNCFS puts fresh food at eye level, but the main disadvantages are less-comfortable freezer access and more strain on the freezer door or drawer system. They also tend to cost more than basic top-freezer models.

Common disadvantages you will notice

• You bend more to reach frozen foods, especially items stored low.
• The freezer compartment is often deeper; items can get buried without bins.
• Heavier freezer door or pull-out drawer can feel harder to open when fully loaded.
• More sealing surfaces and moving hardware at the freezer can mean more upkeep (gaskets, hinges, rails depending on design).
• Bottom-freezer and French door styles typically have a higher purchase price than top-freezer refrigerators.

What to watch for on a bottom-freezer design

These are the issues we see most often when customers troubleshoot bottom-freezer refrigerators:

• Frost or moisture from a door gasket that is not sealing evenly
• Freezer door or drawer not closing smoothly (alignment, obstruction, or worn hardware)
• Temperature swings from frequent freezer openings or overpacked vents
• Ice maker and water dispenser issues (if equipped), including slow fill or dripping

For model-specific features, control settings, and care steps for GE GYE22GYNCFS, use the GYE22GYNCFS owner's manual.

Quick comparison: bottom freezer vs top freezer

Feature	Bottom freezer	Top freezer
Fresh food access	Best (eye level)	More bending for fridge shelves
Freezer access	More bending	Easier access at chest height
Storage style	Deep bin, door or drawer	Door with shelves, simpler layout
Typical cost	Higher	Lower

Why it matters

If you use frozen foods many times a day, the extra bending and heavier freezer access can be a daily annoyance. If you use fresh food more often, the eye-level refrigerator section is the big advantage.

Last updated: February 2026

Order parts for your GE GYE22GYNCFS bottom-mount refrigerator by using the exact model number from the rating label, then selecting the replacement part from the model’s parts list and checking any compatibility notes. Use the GYE22GYNCFS owner's manual to confirm items like filter type and accessory fit.

Steps we recommend

• Find the model and serial number on the refrigerator’s ID tag (write both down).
• Use model number GYE22GYNCFS to locate the correct parts list and diagram.
• Choose the part by its diagram location and description (for example: water filter, door gasket, ice maker).
• Review any notes about revisions, color, left vs right side, or included hardware.
• Place the order; keep your model and serial number handy in case you need help from Sears PartsDirect support.

What to have ready before you order

Having this information prevents wrong-part orders and delays:

• Model number: GYE22GYNCFS
• Serial number (helps match production variations)
• Part description and where it installs (fresh food door, freezer drawer, dispenser)
• Symptom you are fixing (no ice, leaking water, warm refrigerator)
• A photo of the original part and any wire connectors (for electrical parts)

Quick match guide (common refrigerator parts)

Part type	What to match	Why it matters
Refrigerator water filter	Filter type specified for your model	Prevents leaks, low flow, and taste issues
Door gasket	Exact door location and profile	Stops warm air leaks and frost buildup
Ice maker components	Connector style and mounting points	Ensures proper fill and harvest cycles
Shelves/bins/handles	Color, side, and mounting style	Avoids fit and alignment problems

Why it matters

Using the exact model number GYE22GYNCFS and confirming details in the manual helps ensure the part fits correctly, restores cooling and ice production, and reduces returns caused by look-alike parts.
