Whirlpool GGE390LXB02 30" electric freestanding range Parts
Here are the diagrams and repair parts for Whirlpool GGE390LXB02 30" electric freestanding range, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error Codes
By Schematic
By Part
SELECT DIAGRAM

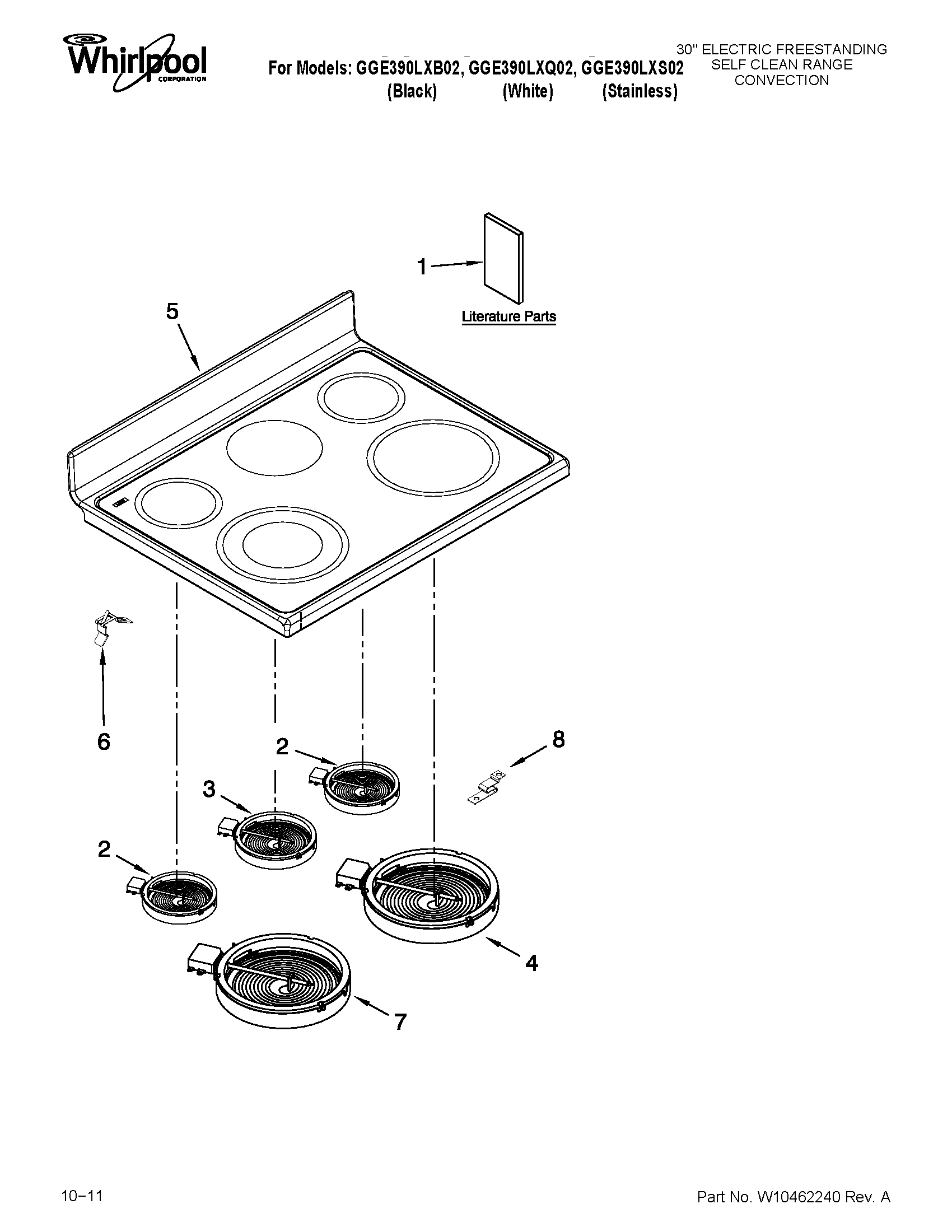

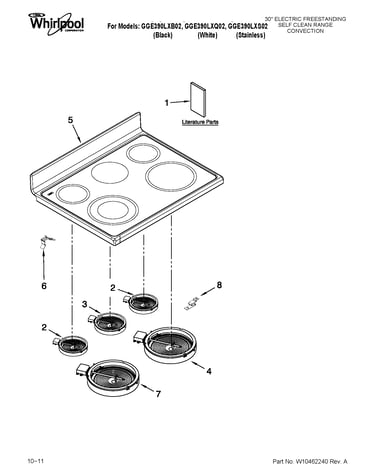

Browse Parts for GGE390LXB02 Ranges

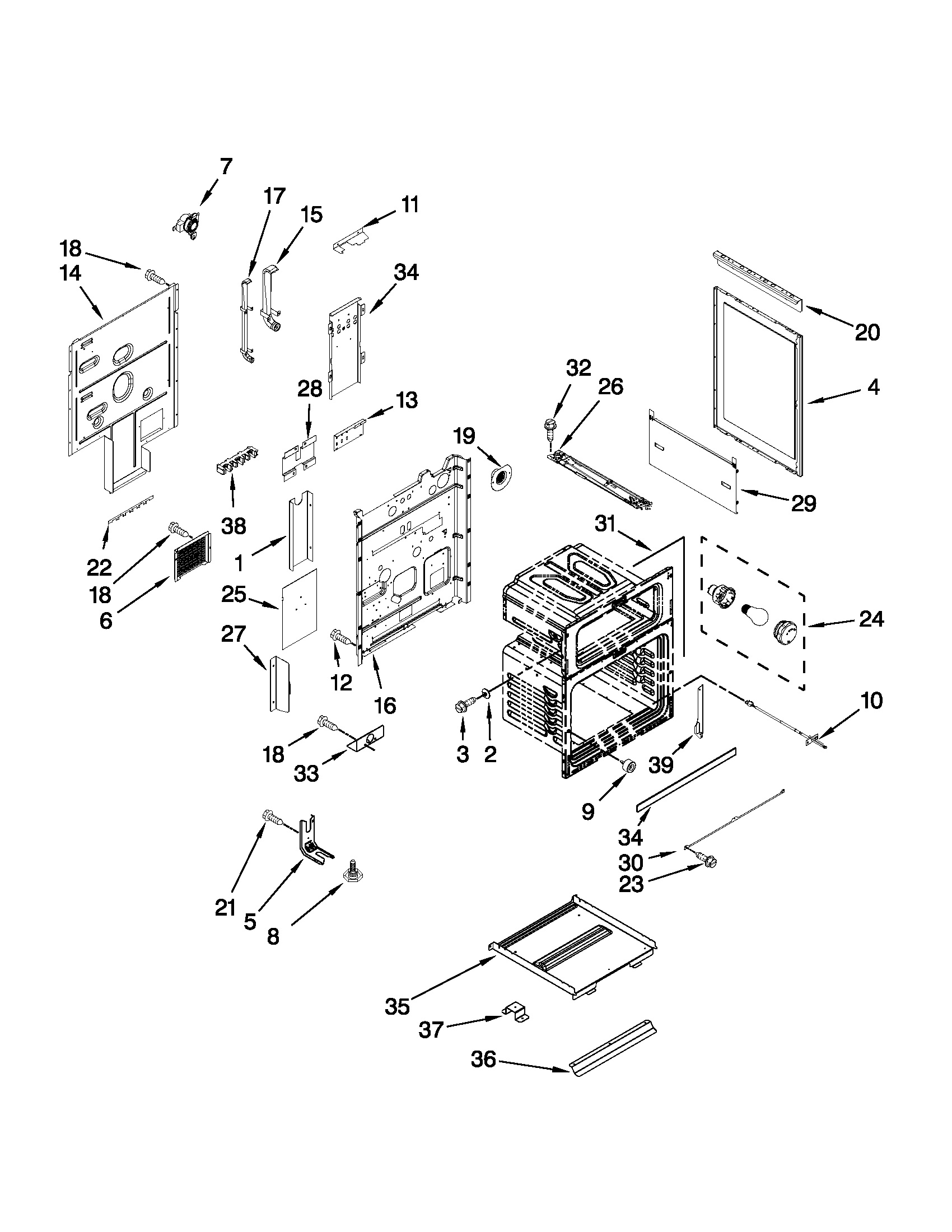

Chassis parts diagram
Terminal Block
Part #7401P039-60Replaced by #WPW10245259
Manufacturer substitutionThis part replaces 7401P039-60. Substitute parts can look different from the original.In Stock$28.7517% OFF Phone Price : $34.75
Qty

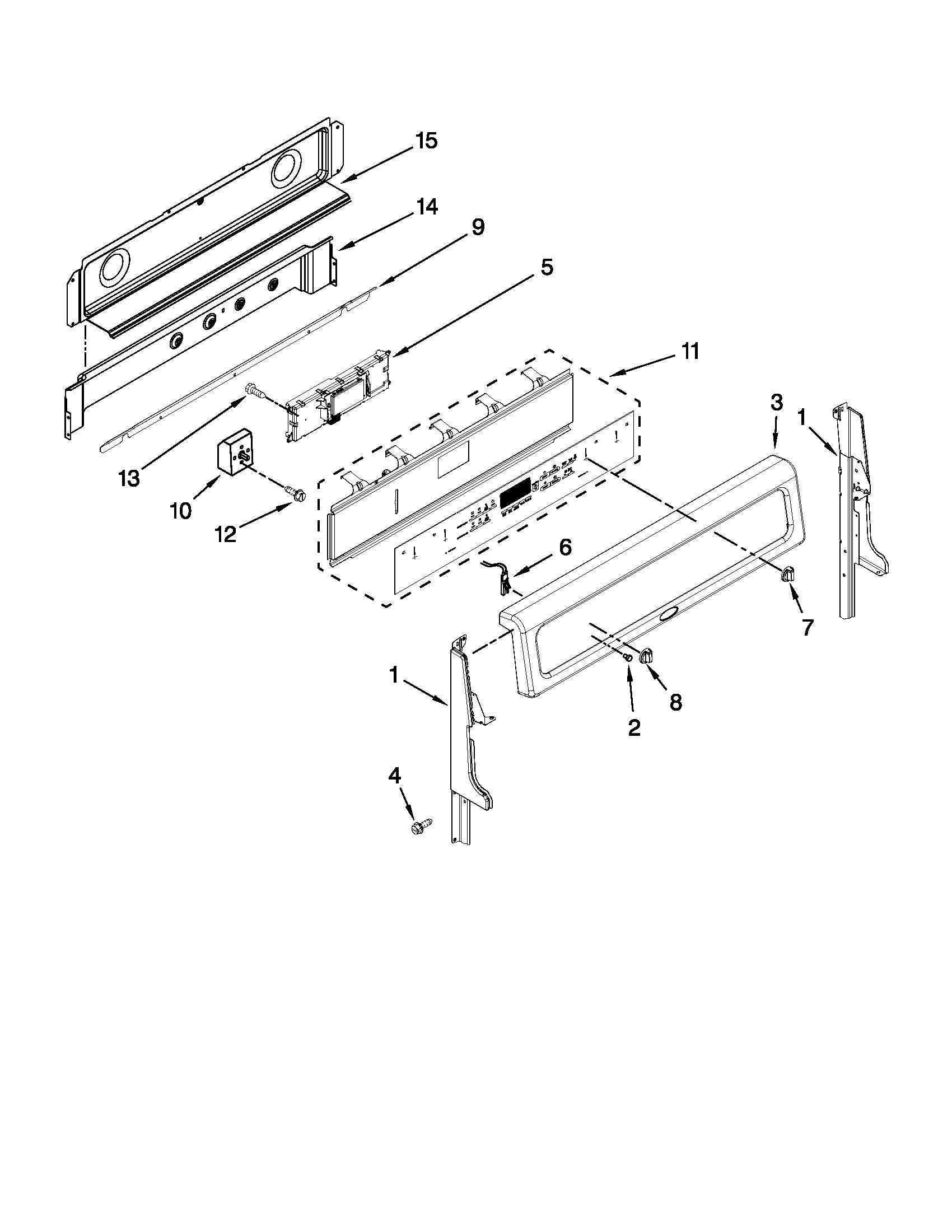

Control panel parts diagram
Switch
Part #7403P373-60Replaced by #WP7403P238-60
Manufacturer substitutionThis part replaces 7403P373-60. Substitute parts can look different from the original.In Stock$52.0310% OFF Phone Price : $58.03QtyControl panel parts diagram
Range Surface Element Control Switch
Part #W10441696Replaced by #WPW10441696
Manufacturer substitutionThis part replaces W10441696. Substitute parts can look different from the original.In Stock$95.6811% OFF Phone Price : $107.68QtyOptional parts (not included) diagram
Cooktop Scraper
In Stock$7.41QtyChassis parts diagram
Door Latch
Part #W10370650Replaced by #W10883049

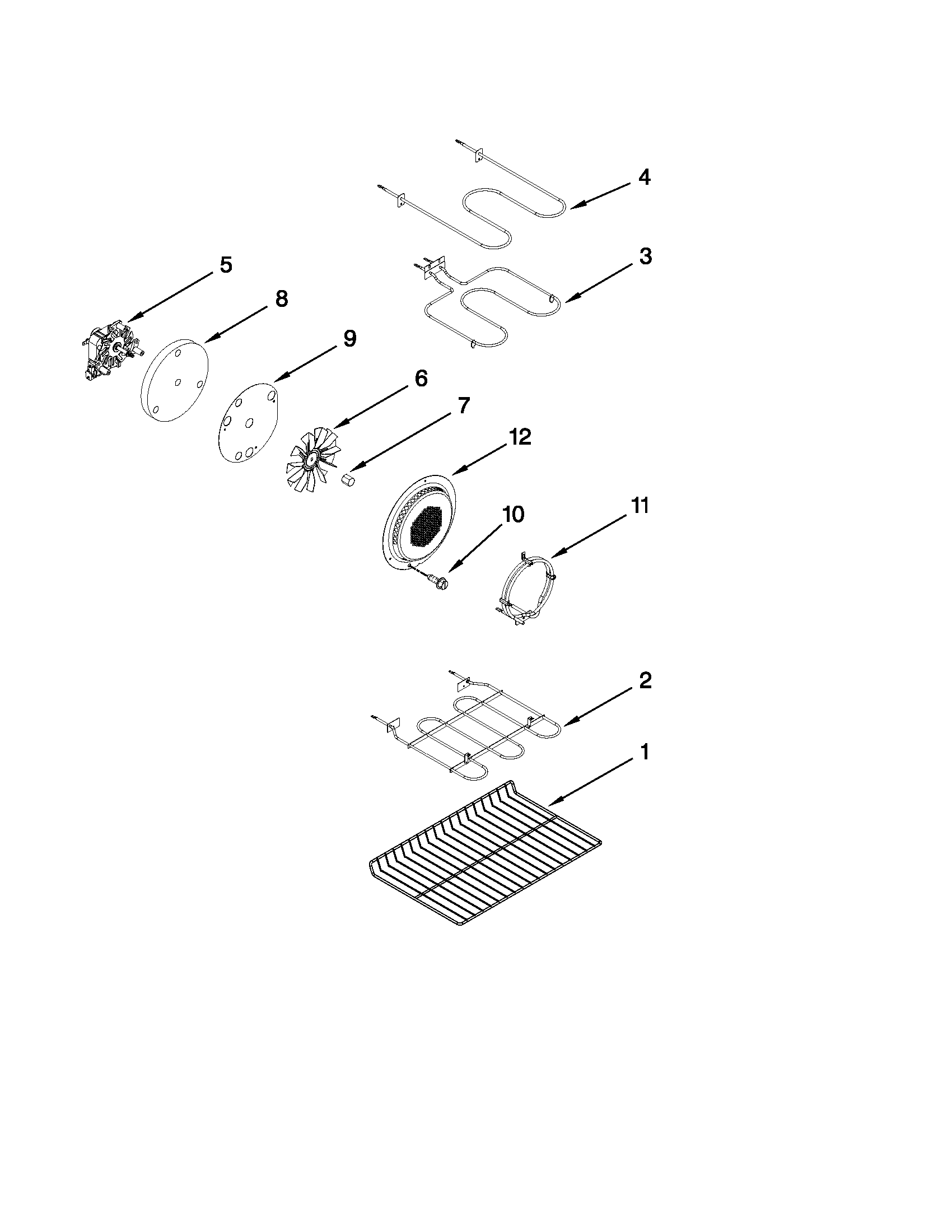

Manufacturer substitutionThis part replaces W10370650. Substitute parts can look different from the original.In Stock$199.026% OFF Phone Price : $211.02QtyInternal oven parts diagram
Blade
Part #W10116351Replaced by #W10758272

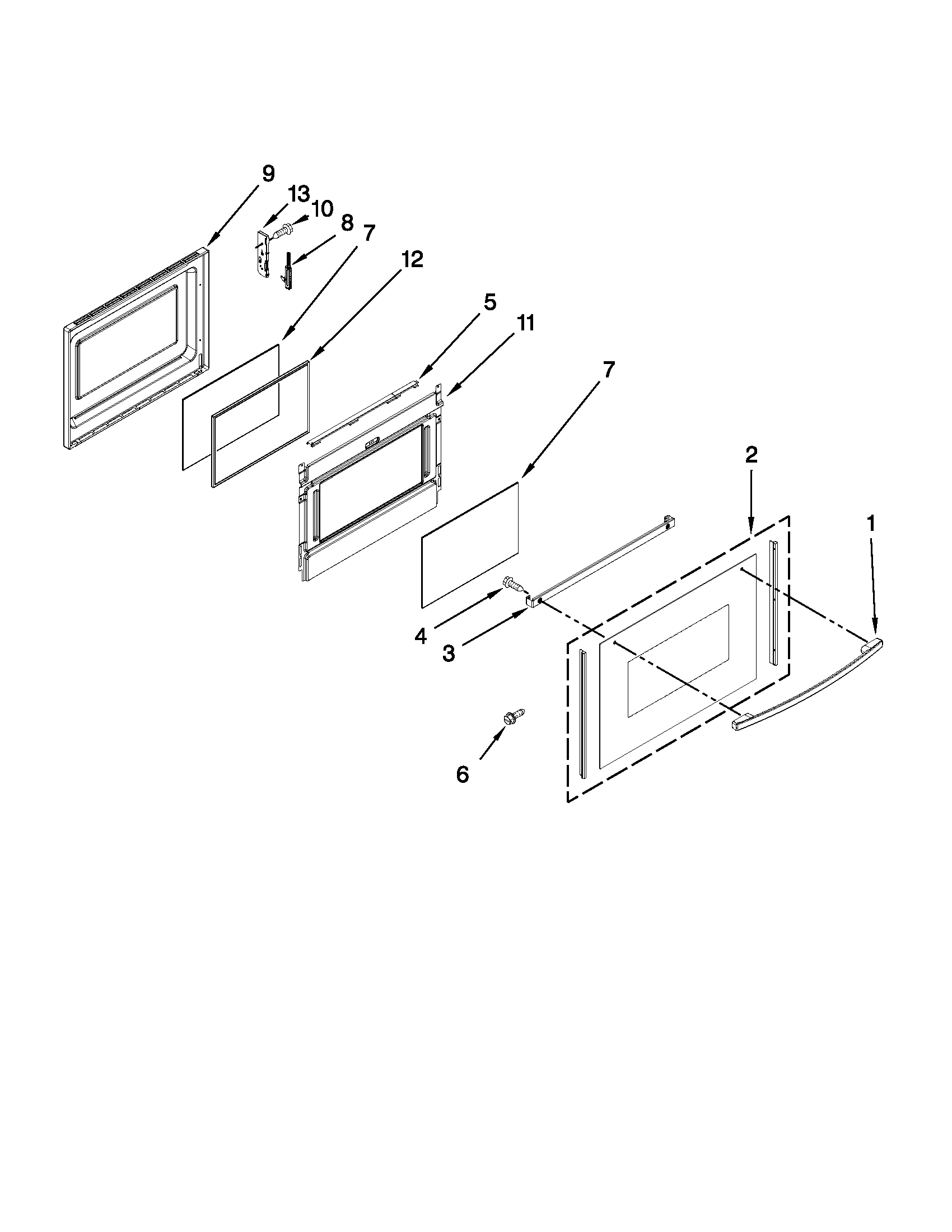

Manufacturer substitutionThis part replaces W10116351. Substitute parts can look different from the original.This item is not returnableIn Stock$8.3111% OFF Phone Price : $9.31QtyLower door parts diagram

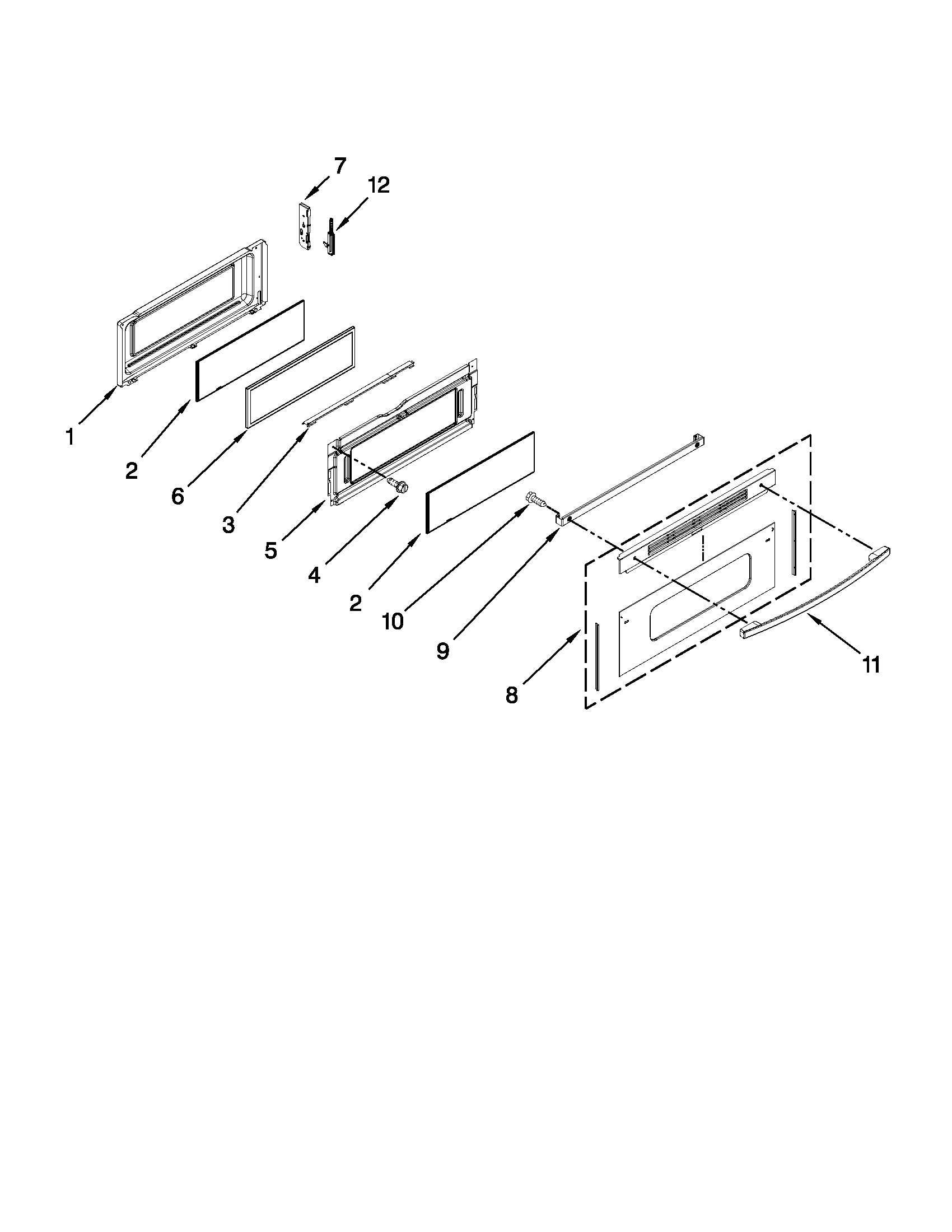

Range Oven Door Inner Glass
Part #9757706Replaced by #WP9757706
Manufacturer substitutionThis part replaces 9757706. Substitute parts can look different from the original.In Stock$66.568% OFF Phone Price : $72.56QtyOptional parts (not included) diagram
Stand Mixer Screw, #10-24 X 1/4-in
Part #WP4159193This item is not returnableIn Stock$6.0014% OFF Phone Price : $7.00QtyLower door parts diagram
Door Hinge
Part #W10335433Replaced by #WPW10335433
Manufacturer substitutionThis part replaces W10335433. Substitute parts can look different from the original.In Stock$17.0885% OFF Was : $110.85QtyInternal oven parts diagram
Range Broil Element
Part #W10249977Replaced by #W11716849
Manufacturer substitutionThis part replaces W10249977. Substitute parts can look different from the original.In Stock$110.48Qty
