Kenmore 6284527990 electric range Parts
Here are the diagrams and repair parts for Kenmore 6284527990 electric range, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for6284527990 Ranges

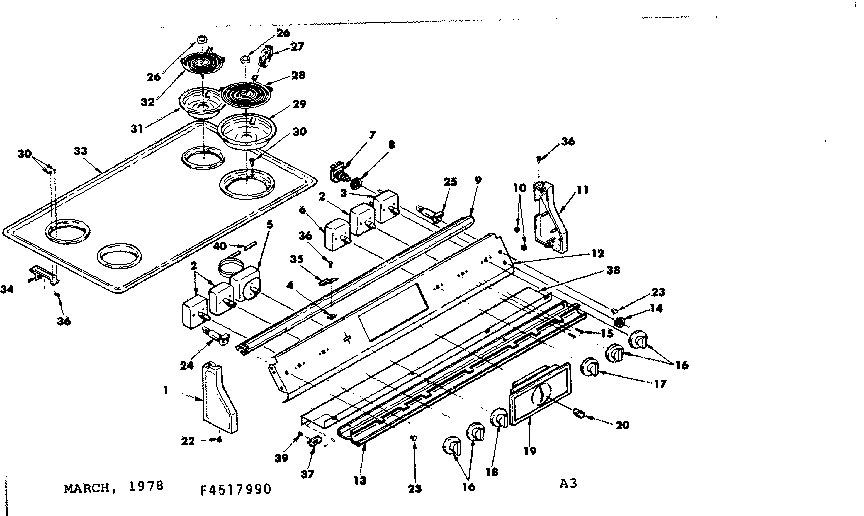

Control panel and cooktop assemblies diagram
Nut
Part #GM274796Replaced by #08015925
Manufacturer substitutionThis part replaces GM274796. Substitute parts can look different from the original.In Stock$25.22
Qty
Control panel and cooktop assemblies diagram
Medallion
Part #1167679Replaced by #5301167679
Manufacturer substitutionThis part replaces 1167679. Substitute parts can look different from the original.In Stock$38.36QtyControl panel and cooktop assemblies diagram
Hinge
Part #1317482Replaced by #5308003325
Manufacturer substitutionThis part replaces 1317482. Substitute parts can look different from the original.In Stock$55.99QtyBody assembly diagram
Broil Unit
Part #1311770
The manufacturer no longer makes this part, and there's no substitute part

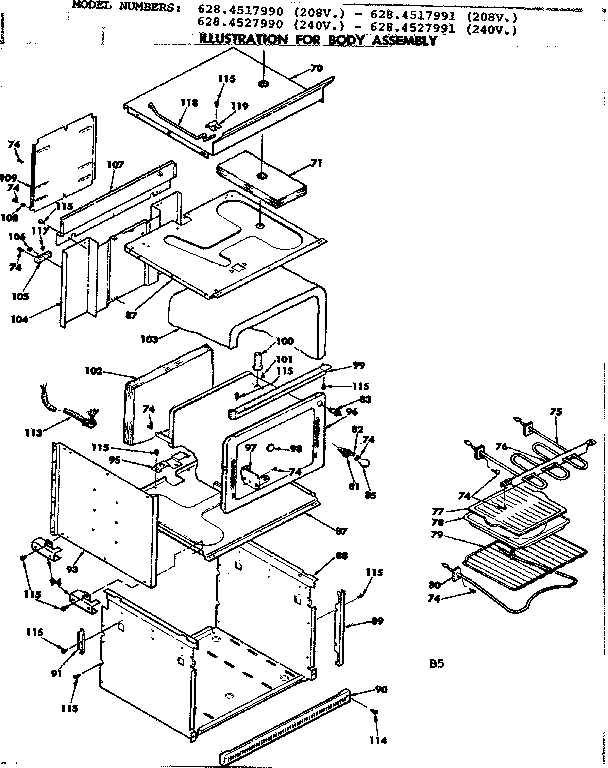

Body assembly diagram
Insulation
Part #1314863Replaced by #3008673
Manufacturer substitutionThis part replaces 1314863. Substitute parts can look different from the original.In Stock$53.06QtyControl panel and cooktop assemblies diagram
Hex Nut
Part #1186512Replaced by #3051832
Manufacturer substitutionThis part replaces 1186512. Substitute parts can look different from the original.In Stock$28.24QtyOptional porcelain pan and ring 8067110 diagram
Pan Ring Kit
Part #8067110
The manufacturer no longer makes this part, and there's no substitute part
Control panel and cooktop assemblies diagram
Thermostat Knob
Part #1316585
The manufacturer no longer makes this part, and there's no substitute part
Body assembly diagram
Conduit Assembly
Part #1312073
The manufacturer no longer makes this part, and there's no substitute part

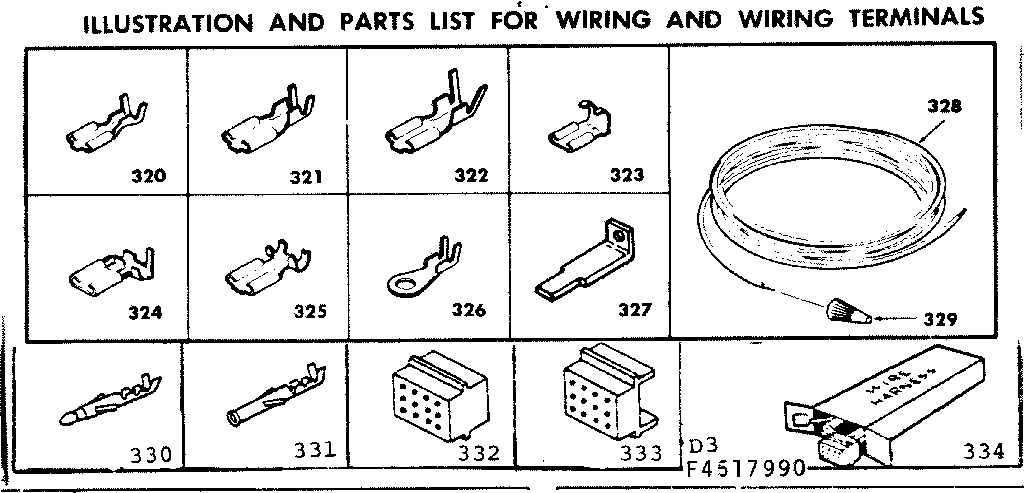

Wiring and wiring terminals diagram
Wire-16g
Part #1166565
The manufacturer no longer makes this part, and there's no substitute part
