Craftsman
Electric Leaf Blower

Model # 257796382 Official Craftsman blower

Here are the diagrams and repair parts for Official Craftsman 257796382 blower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |
Carton 534500001

#NI

All parts diagram

Carton

Part #534500001

Replaced by #534500001

?
Manufacturer substitution
This part replaces 534500001. Substitute parts can look different from the original.
This item is not returnable
$4.99
In Stock
Blower Vacuum Bag 534339907
#32

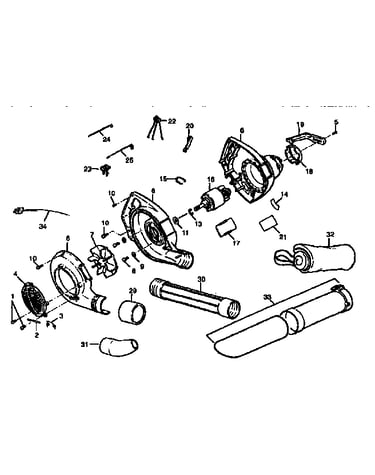

Blower housing diagram

Blower vacuum bag

Part #534339907

Replaced by #530402533

?
Manufacturer substitution
This part replaces 534339907. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$35.29 |
12% OFF Phone Price : $40.29
In Stock
Nozzle,30ocu 534373405
#31

Blower housing diagram

Nozzle,30ocu

Part #534373405

The manufacturer no longer makes this part, and there's no substitute part

Spring,rtn O 534475900
#3

Blower housing diagram

Spring,rtn o

Part #534475900

The manufacturer no longer makes this part, and there's no substitute part

Armture Asy 534992401
#5

Motor assembly diagram

Armture asy

Part #534992401

The manufacturer no longer makes this part, and there's no substitute part

Brush Assy,c 534227800
#10

Motor assembly diagram

Brush assy,c

Part #534227800

The manufacturer no longer makes this part, and there's no substitute part

Bridge 534345406
#23

Blower housing diagram

Bridge

Part #534345406

The manufacturer no longer makes this part, and there's no substitute part

Impeller Plug 534398315
#7

Blower housing diagram

Impeller plug

Part #534398315

The manufacturer no longer makes this part, and there's no substitute part

Label,799880 534806000

#NI

All parts diagram

Label,799880

Part #534806000

The manufacturer no longer makes this part, and there's no substitute part

Hinged Cover 534543305
#4

Blower housing diagram

Hinged cover

Part #534543305

The manufacturer no longer makes this part, and there's no substitute part
