Maytag MER6875BAF17 30" electric range Parts
Here are the diagrams and repair parts for Maytag MER6875BAF17 30" electric range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

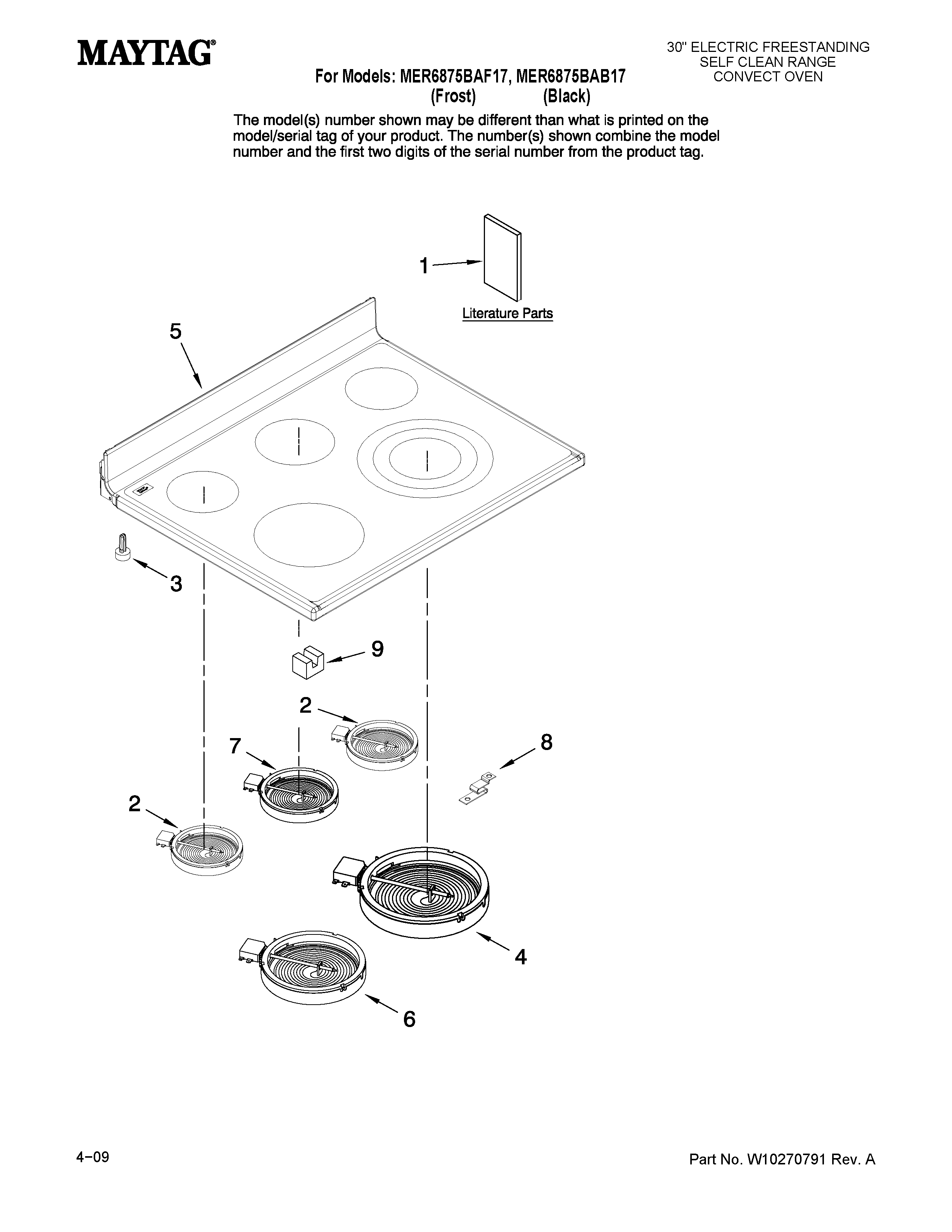

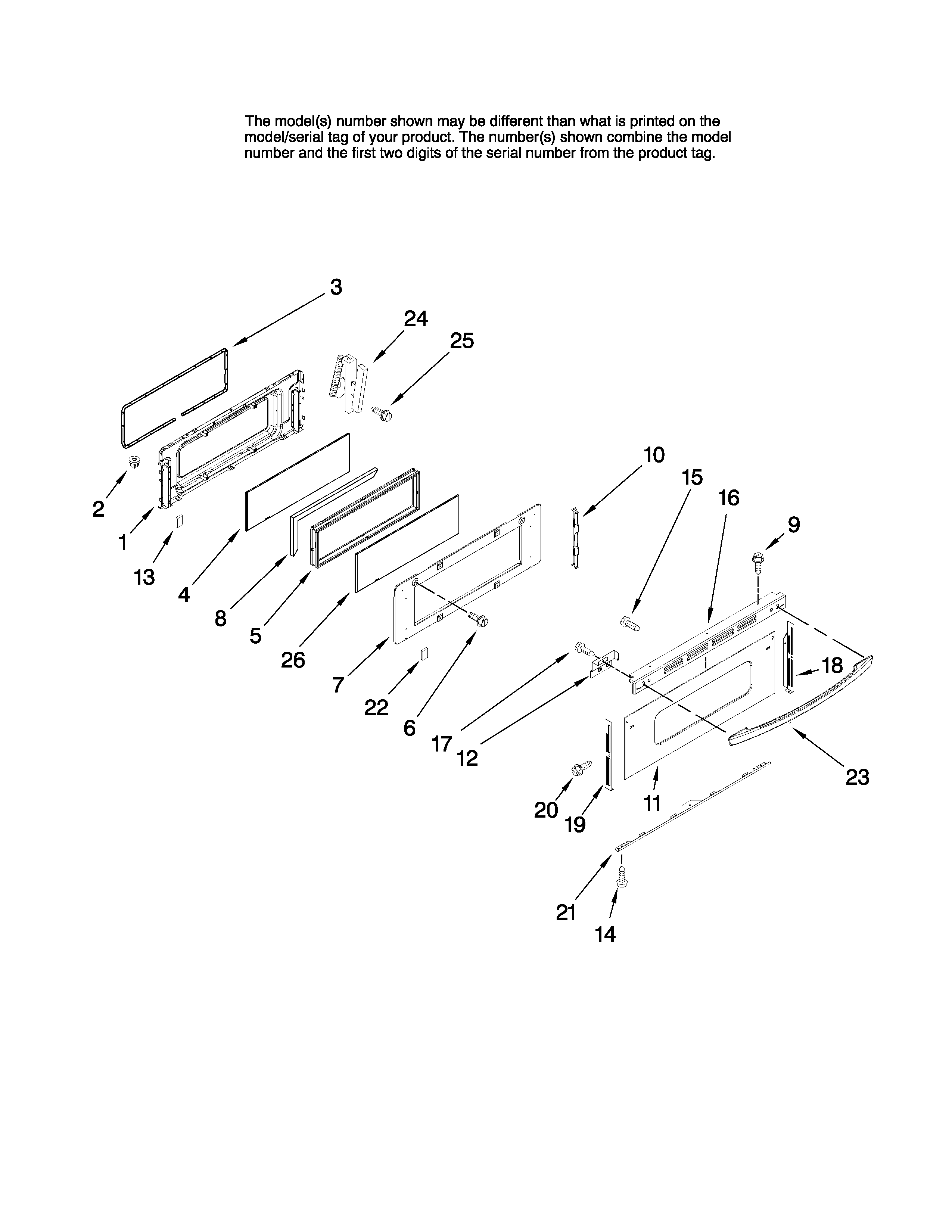

SELECT DIAGRAM
Browse Parts for MER6875BAF17 Ranges

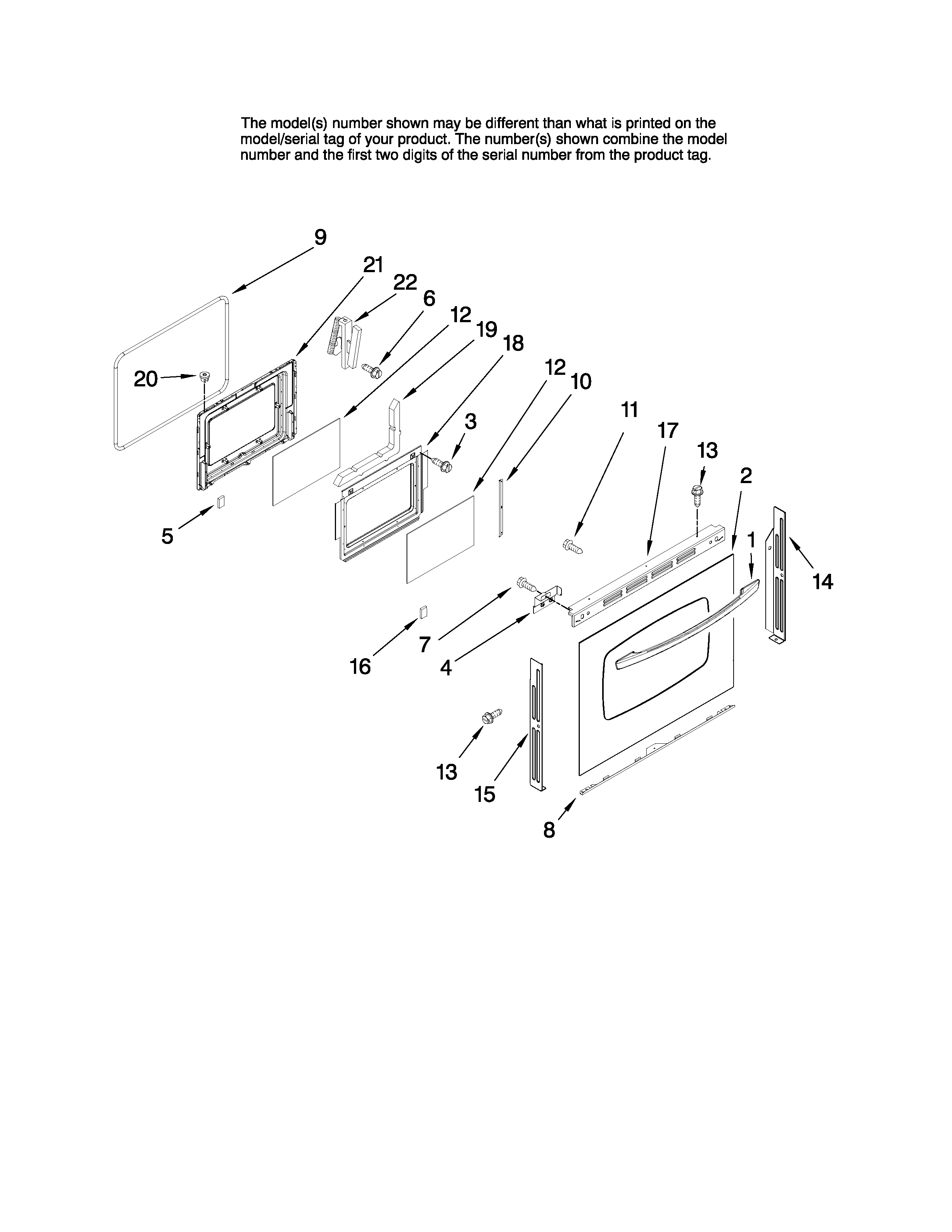

Lower door parts diagram
Door Trim
Part #3608F117-70Replaced by #WP3608F117-70
Manufacturer substitutionThis part replaces 3608F117-70. Substitute parts can look different from the original.In Stock$104.30
Qty

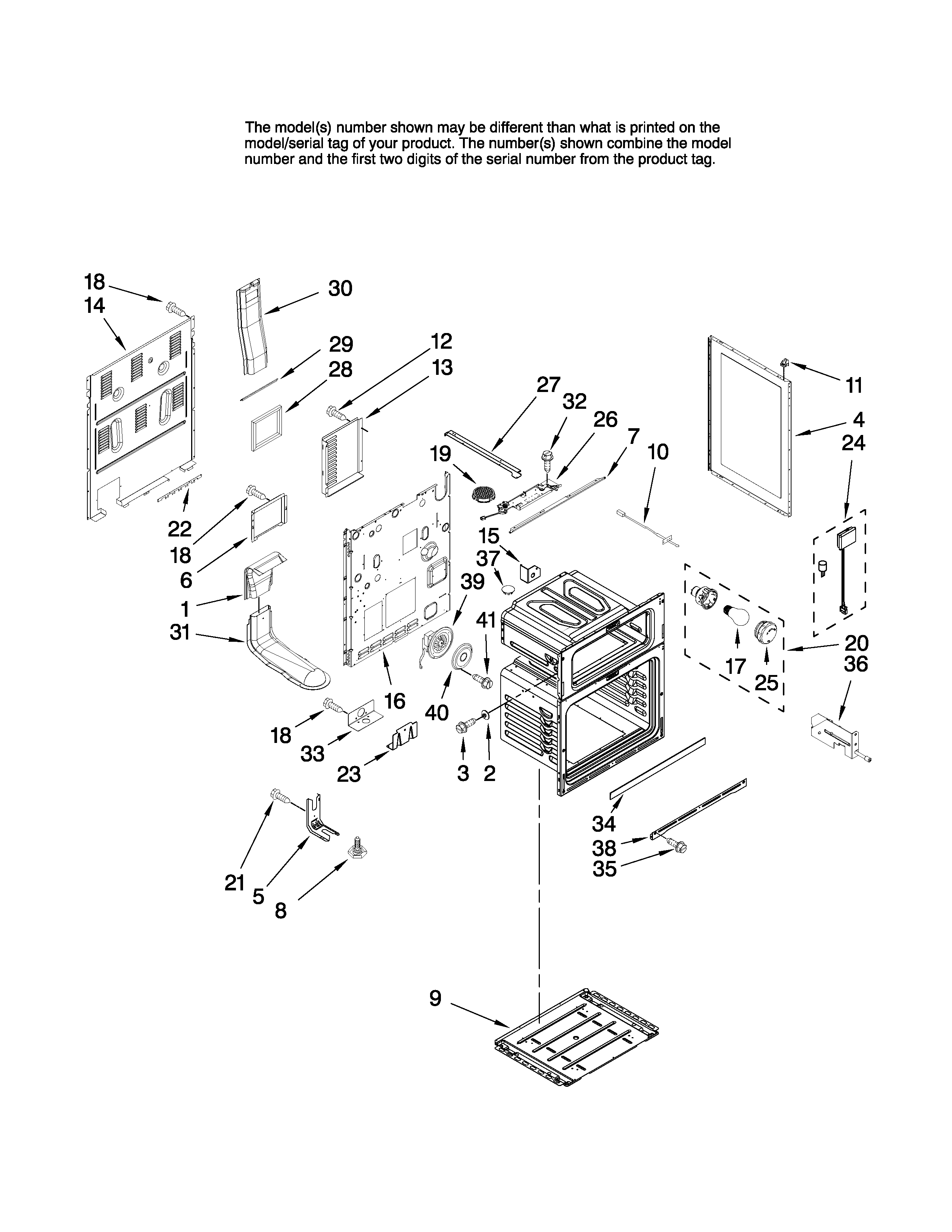

Chassis parts diagram
Range Anti-tip Bracket
Part #3801F656-51Replaced by #WP3801F656-51
Manufacturer substitutionThis part replaces 3801F656-51. Substitute parts can look different from the original.This item is not returnableIn Stock$5.7415% OFF Phone Price : $6.74
QtyOptional parts (not included) diagram
Paint Bz
Part #242756Replaced by #8212471

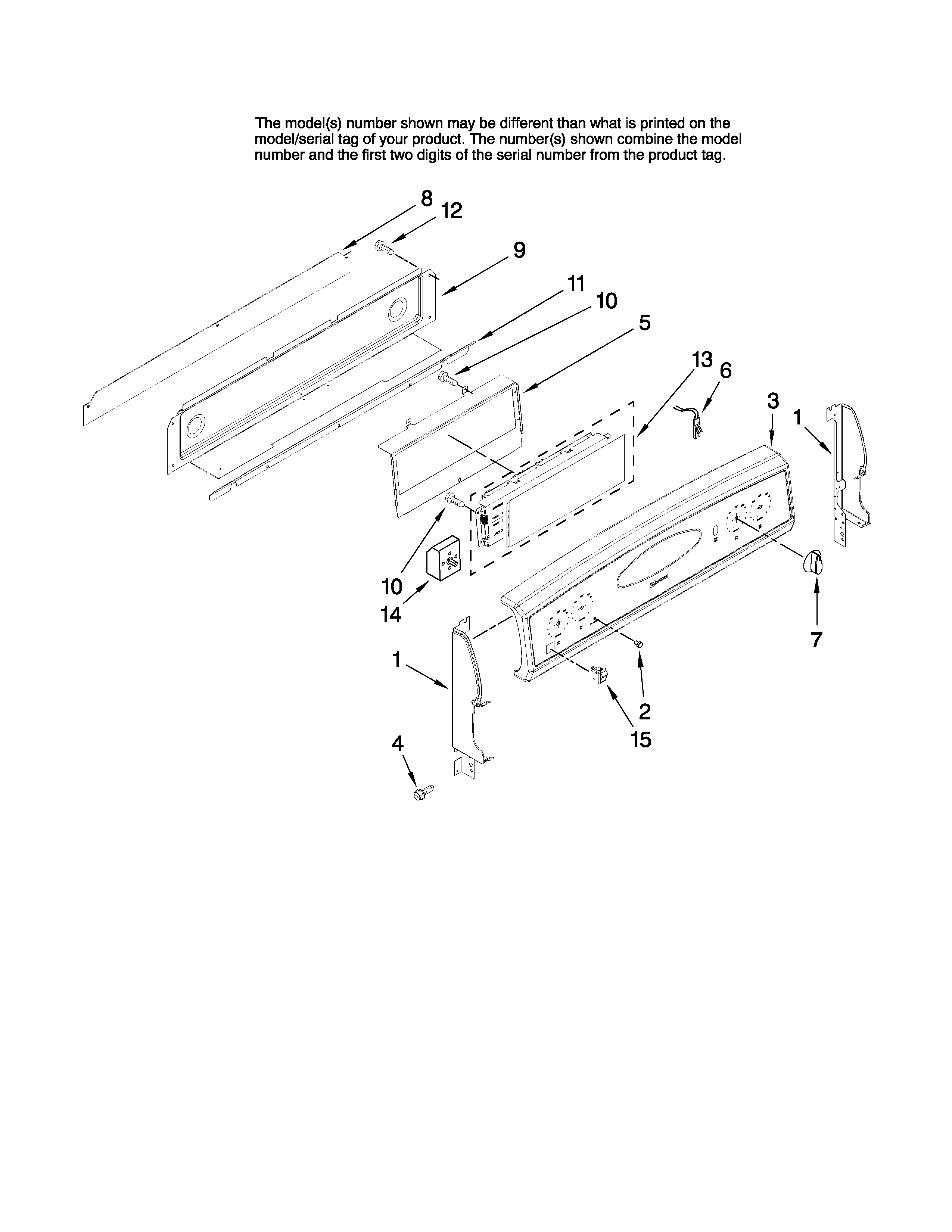

Manufacturer substitutionThis part replaces 242756. Substitute parts can look different from the original.In Stock$100.19QtyControl panel parts diagram
Light- Ind
Part #7407P136-60Replaced by #WP74004153
Manufacturer substitutionThis part replaces 7407P136-60. Substitute parts can look different from the original.This item is not returnableIn Stock$7.2112% OFF Phone Price : $8.21QtyRange Oven Door Glass Support
Part #3807F708-71Replaced by #WP3807F708-71
Manufacturer substitutionThis part replaces 3807F708-71. Substitute parts can look different from the original.In Stock$93.916% OFF Phone Price : $99.91QtyDoor Handle
Part #7701P517-60Replaced by #WP74011768
Manufacturer substitutionThis part replaces 7701P517-60. Substitute parts can look different from the original.In Stock$109.3510% OFF Phone Price : $121.35QtyChassis parts diagram
Infinite Switch
Part #7403P114-60Replaced by #W11122008
Manufacturer substitutionThis part replaces 7403P114-60. Substitute parts can look different from the original.In Stock$81.6131% OFF Was : $119.13QtyOptional parts (not included) diagram
Insulation
Part #261514Replaced by #WPW10208653
Manufacturer substitutionThis part replaces 261514. Substitute parts can look different from the original.In Stock$47.4211% OFF Phone Price : $53.42QtyDoor Handle
Part #7701P516-60Replaced by #WP74011767
Manufacturer substitutionThis part replaces 7701P516-60. Substitute parts can look different from the original.In Stock$136.818% OFF Phone Price : $148.81QtyOptional parts (not included) diagram
Insulation
Part #240132Replaced by #WPW10208653
Manufacturer substitutionThis part replaces 240132. Substitute parts can look different from the original.In Stock$47.4211% OFF Phone Price : $53.42Qty
