Kenmore 66475113610 gas range Parts

A Kenmore gas range like model 66475113610 typically lasts about 15 years with normal household use. Regular cleaning, correct burner flame, and prompt replacement of wear items (like the oven light bulb and door seal) help you reach that lifespan; see the 66475113610 use and care guide for model-specific care steps.

Typical lifespan and what affects it

Most gas ranges reach their full service life when heat, ignition, and door sealing stay consistent.

• Heavy daily cooking shortens lifespan faster than light use
• Skipping cleaning can clog burner ports and stress ignition parts
• Slamming the oven door can damage hinges, glass, and trim
• Running self-clean too often can accelerate wear on door seals and locks
• Poor leveling can cause uneven cooking and extra strain on the chassis

Maintenance checklist that extends range life

Use these habits to reduce repairs and keep performance steady.

• Keep burner caps and ports clean and dry after boil-overs
• Wipe the oven vent area clear so heat can exhaust properly
• Inspect the oven door seal for gaps, tears, or flattening
• Replace a dim or failed oven light promptly to avoid handling hot cookware in low light
• Confirm the range sits level; adjust legs if the oven racks slide

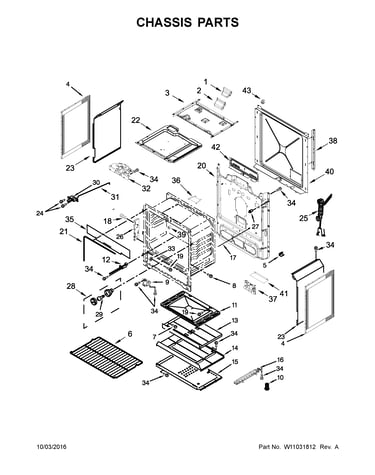

Common wear items (what they do)

Part	What you’ll notice when it’s worn	What it affects
Light bulb 8009	Oven light out or flickering	Visibility and safe handling
Door seal W11542153	Heat leaks, longer preheat, uneven baking	Temperature stability and efficiency
Range leveling leg WPW10058460	Range rocks, racks slide, door alignment issues	Cooking results and door fit

Why it matters

A gas range can keep working for many years, but small issues (weak sealing, poor leveling, dirty burners) force longer run times and higher heat exposure. That extra stress is what usually shortens the life of ignition, controls, and oven components.

Last updated: February 2026

On Kenmore gas range model 66475113610, you change a spark electrode (igniter) by removing the burner parts, disconnecting the electrode wire, swapping in the new electrode, then reassembling and confirming the electrode aligns with the burner base notch for reliable ignition. See the 66475113610 owner's manual.

Before you start (safety and access)

• Turn all burner knobs to OFF.
• Shut off power to the range at the breaker (spark ignition is electrical).
• Let the cooktop cool completely.
• Lift off grates and remove the burner cap and burner base for the burner you’re servicing.
• Keep spills and cleaners out of the gas tube opening and burner ports while parts are removed.

Step-by-step: replace the spark electrode

1. Remove the grate, burner cap, and burner base.
2. Locate the spark electrode at the burner; it sits next to the burner base and fires the spark.
3. Remove the mounting screw holding the electrode.
4. Disconnect the electrode wire connector.
5. Install the new electrode in the same position; secure it with the screw.
6. Reconnect the wire; make sure the connector is fully seated.
7. Reinstall the burner base and cap.
8. Alignment check: align the gas tube opening with the orifice holder, and align the igniter electrode with the notch in the burner base.

Quick checks if it still clicks but won’t light

• Burner cap seated flat and clean
• Burner ports not clogged
• Electrode tip not cracked and positioned correctly
• Wire connector tight (no loose fit)
• Try lighting that burner; remember all burners may click, but only the selected burner should light

What “good alignment” looks like

Item	Correct condition	What happens if it’s off
Burner cap	Flat, centered	Poor ignition, uneven flame
Burner base	Seated and stable	No flame or delayed ignition
Electrode	Lines up with notch	Weak spark, misfire clicking

Why it matters

On this Kenmore range, the igniter electrode position and burner cap cleanliness directly affect ignition and flame quality; correct alignment prevents delayed lighting and uneven flames.

Last updated: February 2026

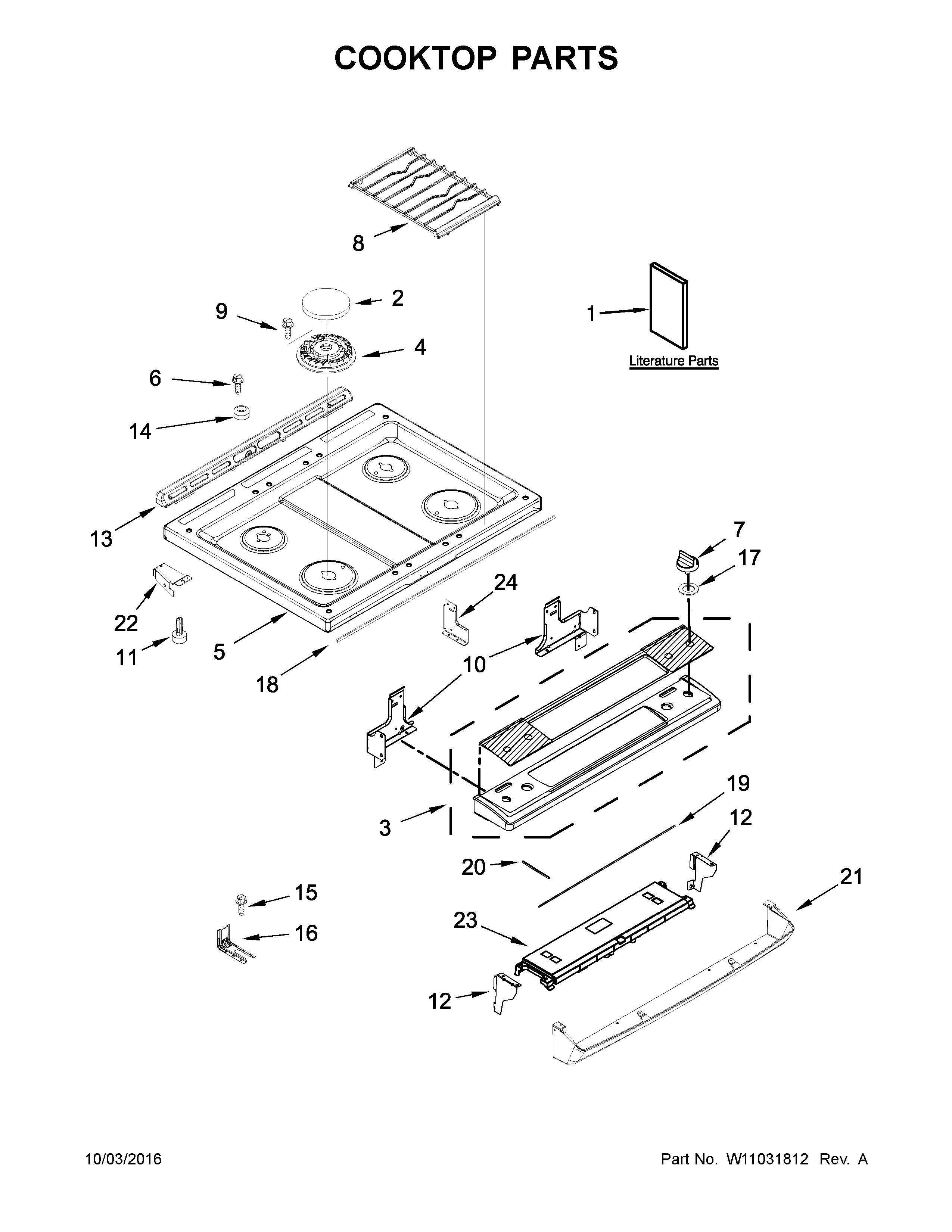

On Kenmore gas range model 66475113610, removing the cooktop (top) typically means lifting the main top after you remove the grates and sealed burner parts, then releasing any front or burner-area mounting screws. Always disconnect power and shut off gas before starting; see the 66475113610 owner's manual.

Before you start (safety and prep)

• Unplug the range (or switch off the breaker); the manual states to disconnect power before servicing.
• Turn all burner knobs to OFF and let the cooktop cool completely.
• Shut off the gas supply valve.
• Protect the countertop and cooktop surface with a towel or cardboard.
• Have a container ready for screws so nothing drops into the burner box.

Typical cooktop removal steps (sealed burner style)

1. Remove the grates.
2. Lift off each burner cap, then remove the burner base (the manual describes removing the cap and base for cleaning).
3. Look for mounting screws:
   • At the front lip under the control panel edge, or
   • Near the burner bases (some designs use screws that secure burner heads/burner tubes to the top).
4. Remove the screws, then lift the cooktop:
   • Many tops lift from the front and hinge upward, or lift up and off once released.
5. Support the top securely (do not strain the igniter wires or gas tubing).

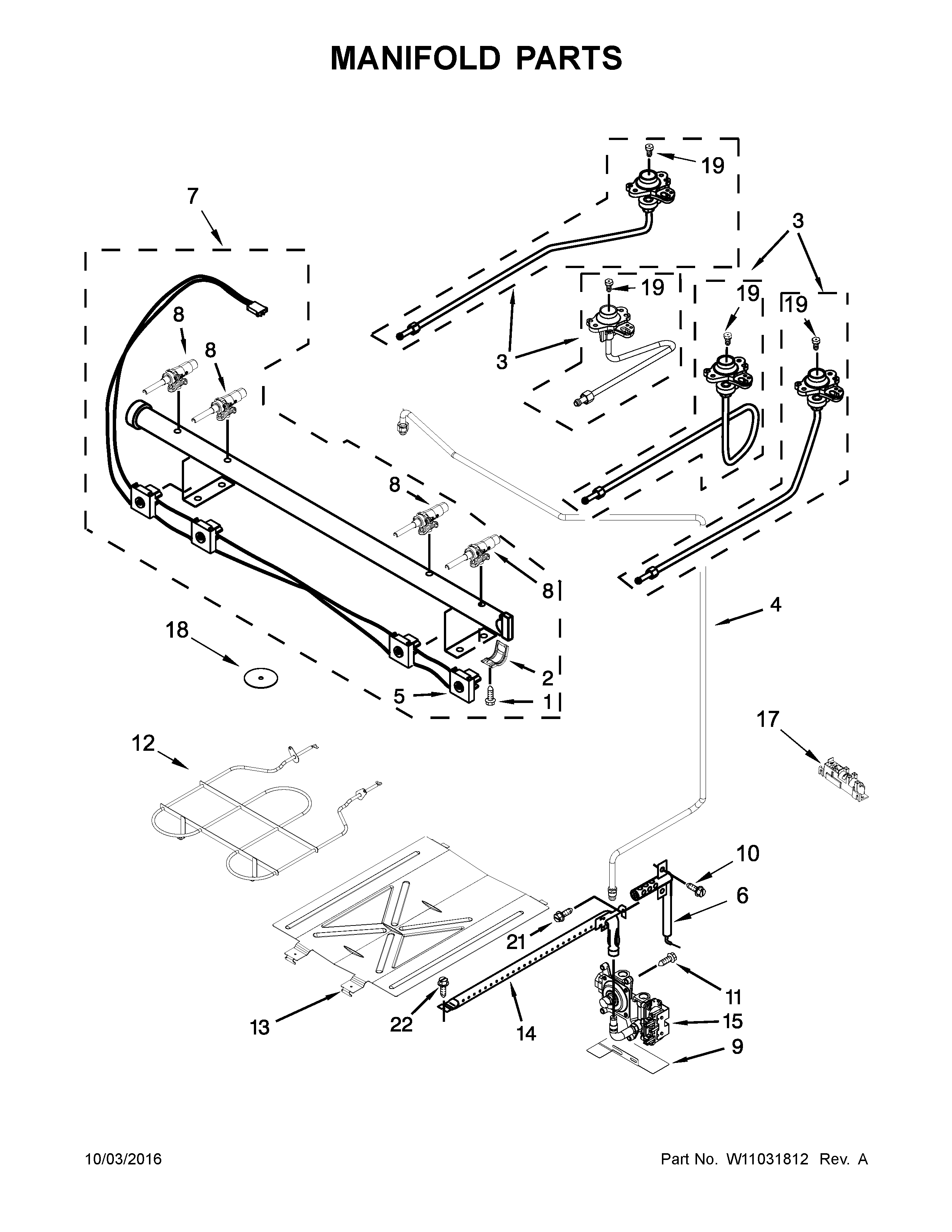

What you should see under the top

Area	What it includes	What to watch for
Ignition	Igniter electrodes and wiring	Brittle wires, loose connectors
Gas delivery	Manifold and burner tubes	Do not bend tubing
Fasteners	Clips and screws	Hidden screws near burners

If the top will not lift

• Recheck for missed screws near burner bases or the front edge.
• Make sure burner bases are fully removed; they can hide fasteners.
• If you suspect an ignition issue while you are in there, a failed spark system is often tied to the spark module WPW10110491.

Why it matters

Removing the top correctly prevents cracked cooktops, damaged igniter electrodes, and gas leaks. It also gives safe access for cleaning spills that can clog burner ports and cause uneven flames.

Last updated: February 2026

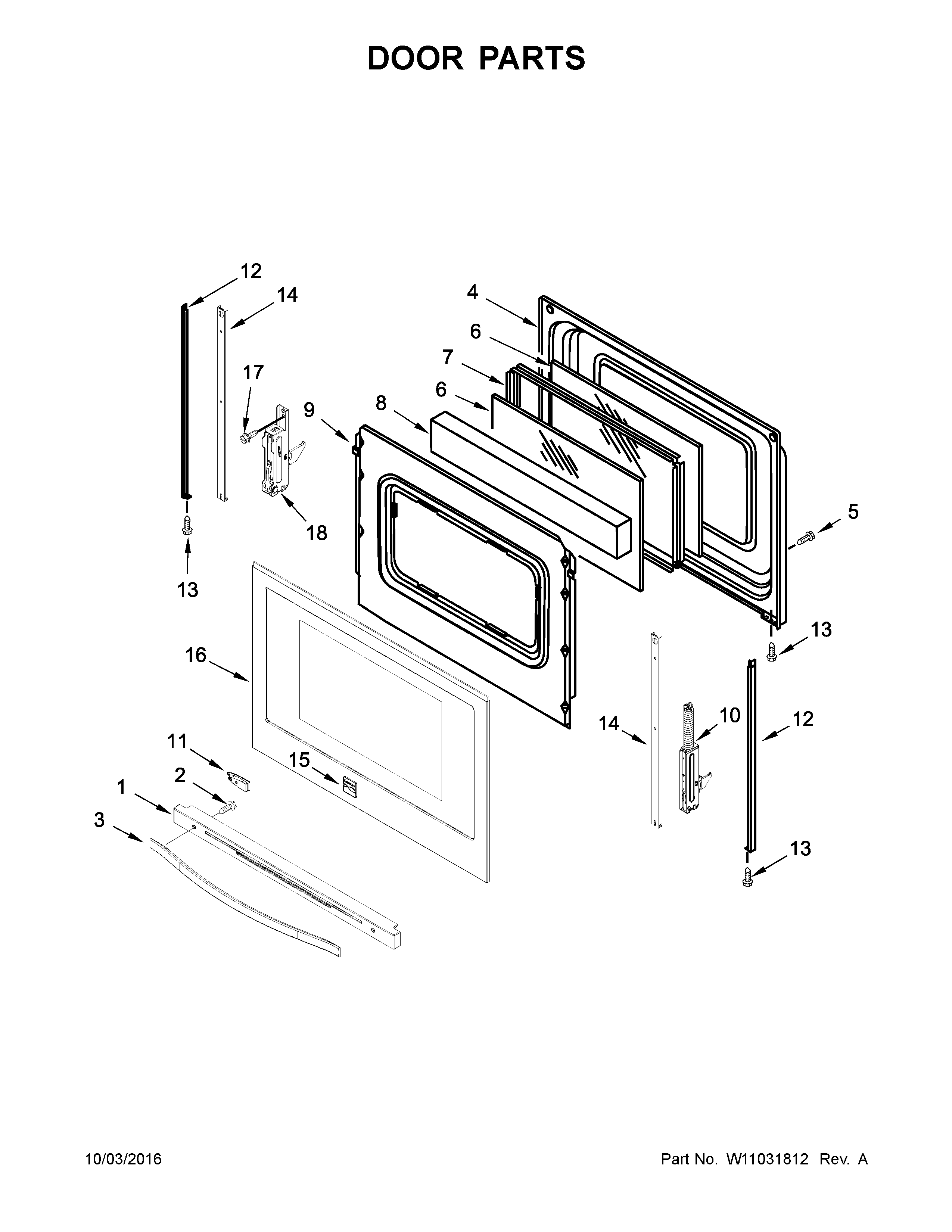

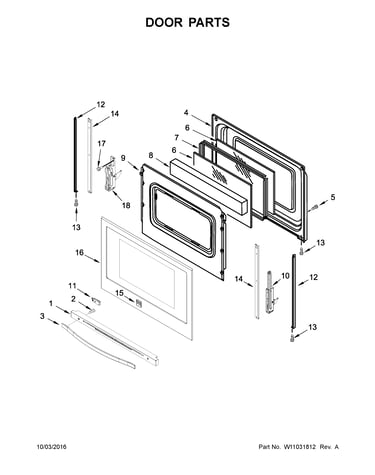

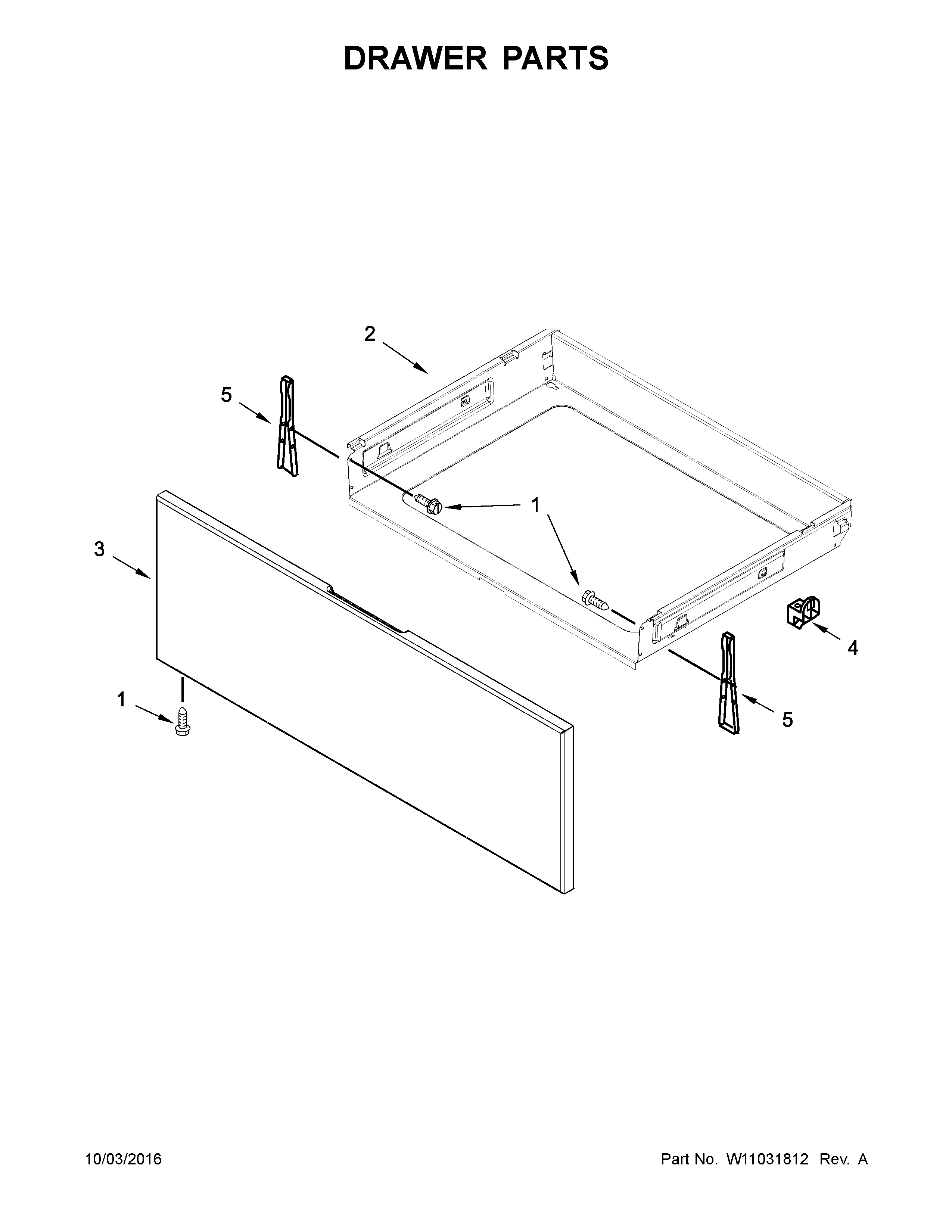

A Kenmore gas range like model 66475113610 combines a gas bake/broil system with safety and convenience parts such as the oven door gasket, racks, door lock (on self-clean models), and an oven light. Exact component names and locations vary by configuration; see the 66475113610 owner's manual for your layout.

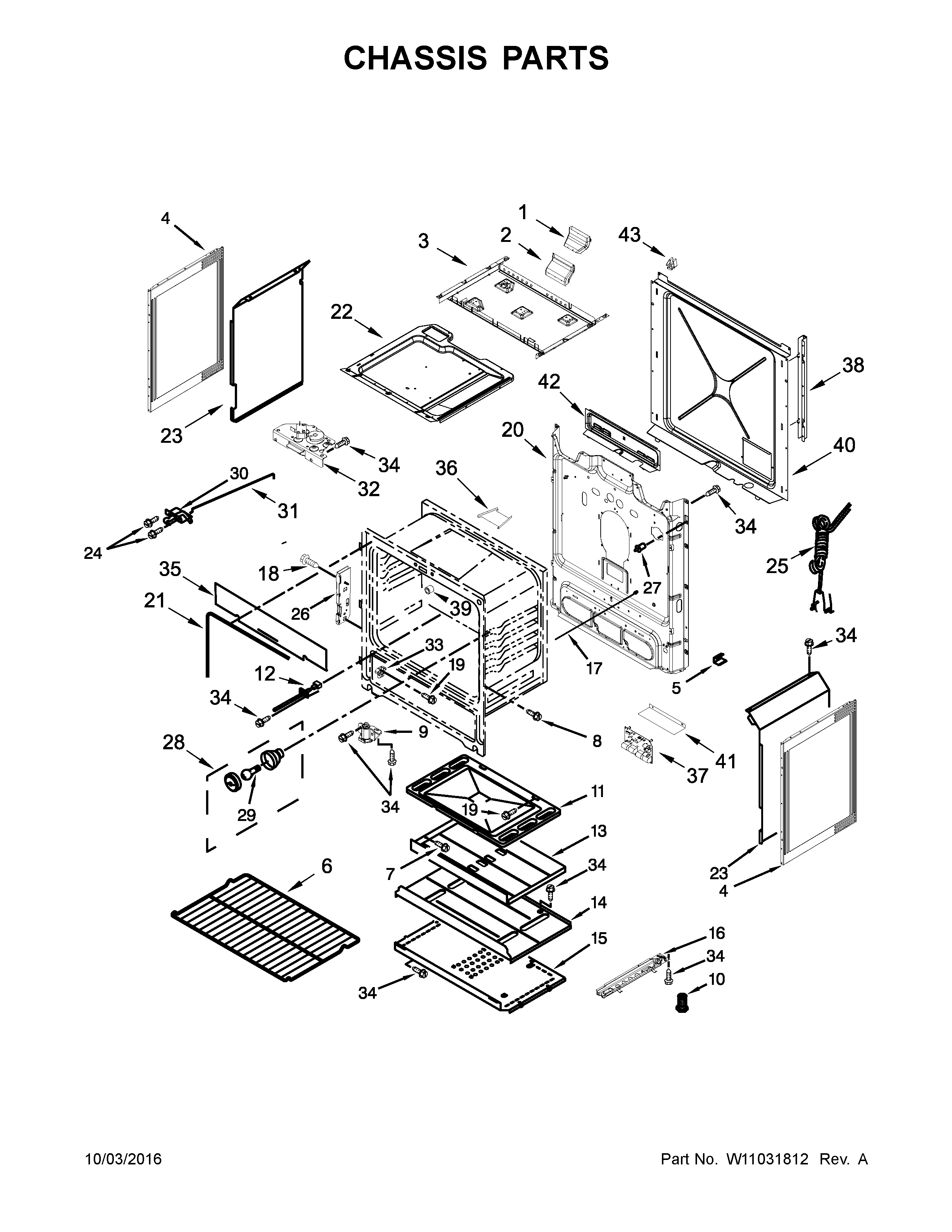

Main gas oven components (what they do)

• Bake burner and igniter: lights the gas for baking heat
• Broil burner and igniter: provides high, top-down heat for broiling
• Oven cavity and bottom liner: the insulated cooking box and its protective floor panel
• Oven racks: support cookware at different heights
• Oven vent: routes hot air and moisture out of the oven (do not block it, especially during self-clean)
• Door gasket (seal): helps hold heat in for stable temperatures
• Door lock system (some models): locks the door during the self-cleaning cycle
• Oven light and lens: lets you check food without opening the door

Parts you can replace on this model

These are common, customer-replaceable items we list for Kenmore 66475113610:

• Light bulb 8009 (oven light)
• Range oven rack W11520287 (rack replacement)
• Door seal W11542153 (door gasket)
• Range oven door lock assembly WPW10107820 (self-clean door lock)
• Range oven bottom liner WP3195097 (oven floor panel)

Quick “symptom to part” guide

Symptom	Most likely area	What we check first
Oven won’t heat	Gas supply, igniter, controls	Gas shutoff open; power on; try a different bake setting
Door won’t unlock after self-clean	Door lock system	Let oven cool fully; confirm cycle ended
Heat leaks, uneven baking	Door gasket, door alignment	Inspect gasket for gaps, tears, or hard spots
Can’t see inside oven	Oven light	Replace bulb; verify lens is seated

Why it matters

Knowing the major oven parts helps you troubleshoot safely. For example, the manual notes to disconnect power before servicing and to keep the oven vent clear during self-cleaning; both steps prevent damage and unsafe operation.

Last updated: February 2026

On Kenmore gas range model 66475113610, the model and serial label is on the oven frame behind the top side of the oven door. Open the oven door and look along the frame near the top edge; the label is typically easy to spot once the door is fully open. See the 66475113610 use and care guide.

Quick places to check on the range

• Open the oven door and inspect the frame at the top edge (most common for this model)
• Check the left and right sides of the oven frame for a rating label
• Look for a paper or foil label that lists both Model and Serial
• Wipe the area with a damp cloth if grease or soot is hiding the print

What the model number looks like

In the manual, this series is shown as 664.7511* (the asterisk indicates a color code). Your full model number for parts lookup is 66475113610.

You see on the label/manual	What it means	What to use for parts
664.7511*	Model series (color varies)	66475113610
Serial number	Unique ID for your exact unit	Keep for service records

Why it matters

We use the exact model number to match the correct Kenmore gas range parts, diagrams, and revisions. Even small differences can change fit for items like a range surface burner knob, spark module, or door seal.
