GE JBS03C3AD electric range

GE JBS03C3AD electric range Parts

Here are the diagrams and repair parts for GE JBS03C3AD electric range, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for JBS03C3AD Ranges

  • G.e. Range Surface Element Control Switch for GE JBS03C3AD - Part WB24T10025

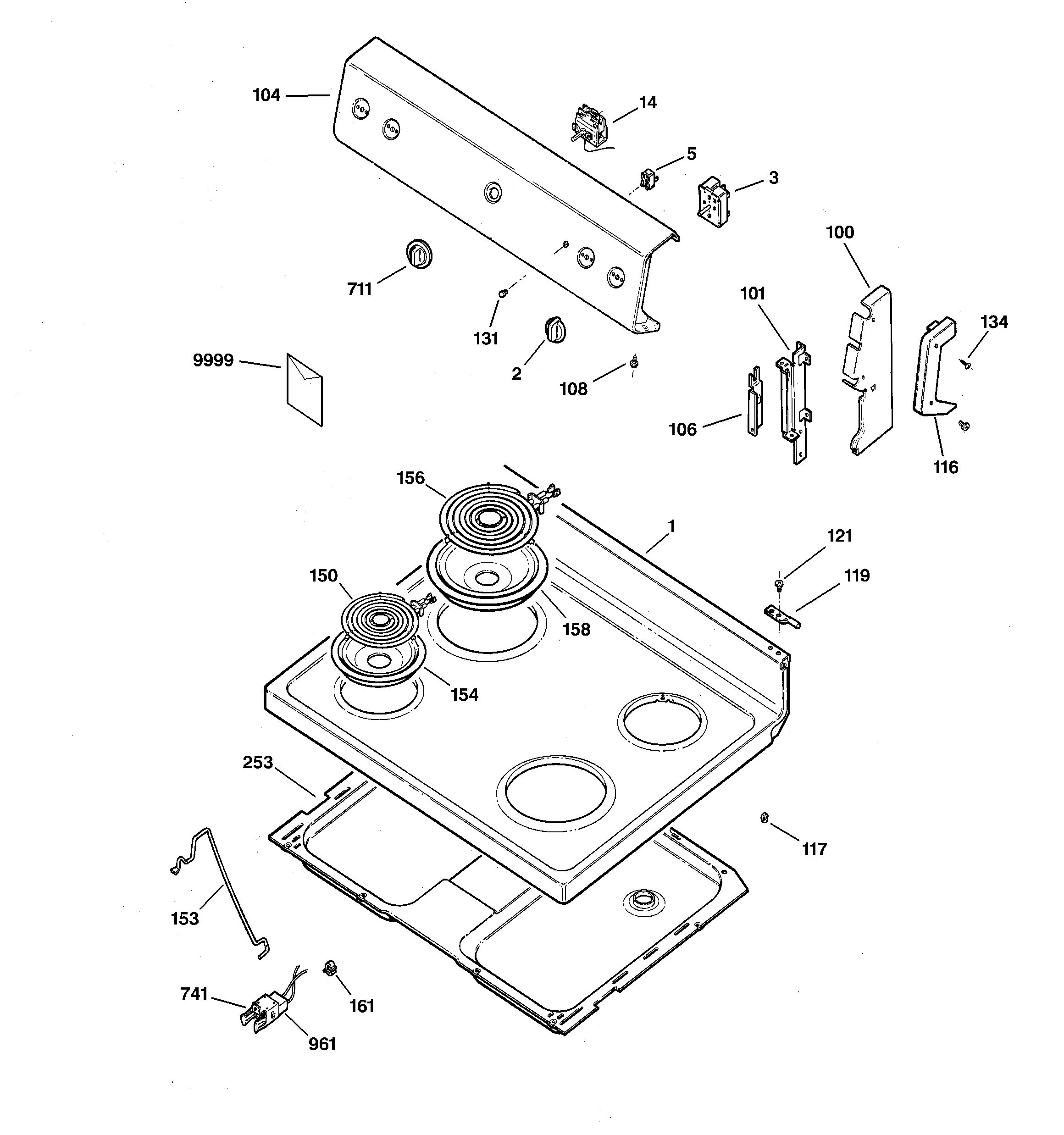

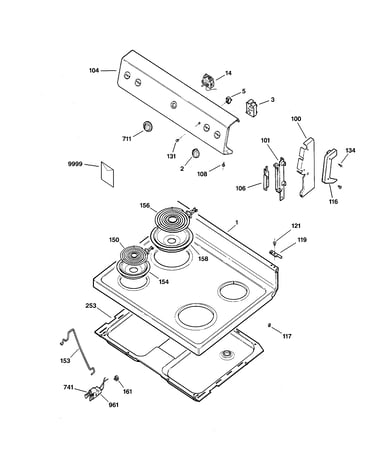

    Control panel & cooktop diagram

    G.e. Range Surface Element Control Switch

    Part #WB24T10025
    In Stock
    $28.69
    17% OFF Phone Price : $34.69Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Surface Element Control Switch, 1,500-watt for GE JBS03C3AD - Part WB24T10029

    Control panel & cooktop diagram

    Range Surface Element Control Switch, 1,500-watt

    Part #WB24T10029
    In Stock
    $46.77
    11% OFF Phone Price : $52.77Info Icon
    Minus Item
    Qty
    Plus Item
  • Hotpoint Range Surface Element Receptacle for GE JBS03C3AD - Part WB17T10006

    Control panel & cooktop diagram

    Terminal Block

    Part #WB17T10001

    Replaced by #WB17T10006

    Info Icon
    Manufacturer substitution
    This part replaces WB17T10001. Substitute parts can look different from the original.
    In Stock
    $23.89
    20% OFF Phone Price : $29.89Info Icon
    Minus Item
    Qty
    Plus Item
  • G.e. Bake Element for GE JBS03C3AD - Part WB30X46987

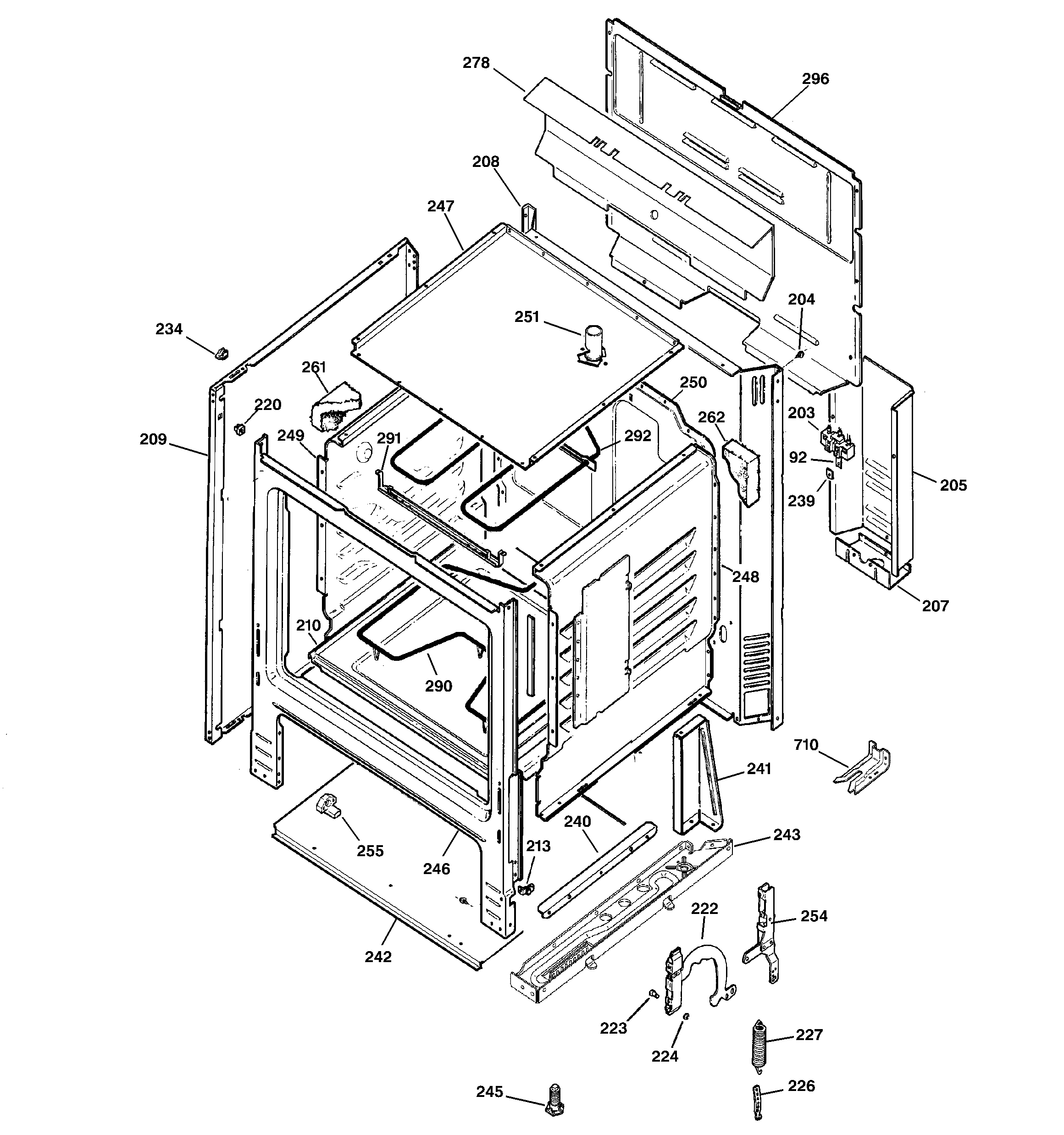

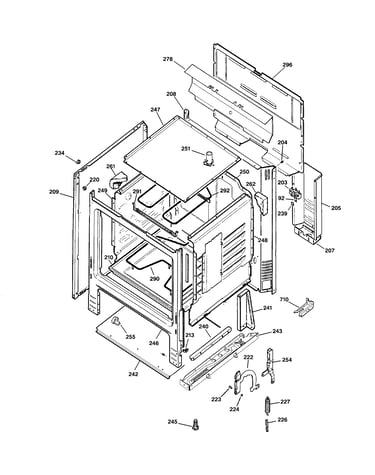

    Body parts diagram

    Range Bake Element

    Part #WB44K10005

    Replaced by #WB30X46987

    Info Icon
    Manufacturer substitution
    This part replaces WB44K10005. Substitute parts can look different from the original.
    In Stock
    $167.91
    7% OFF Phone Price : $179.91Info Icon
    Minus Item
    Qty
    Plus Item
  • G.e. Range Drip Pan (chrome) for GE JBS03C3AD - Part WB31T10010

    Control panel & cooktop diagram

    G.e. Range Drip Pan (chrome)

    Part #WB31T10010
    In Stock
    $18.69
    10% OFF Phone Price : $20.69Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Surface Element Receptacle for GE JBS03C3AD - Part WB2X8228

    Control panel & cooktop diagram

    Clip Receptacle

    Part #WB02X8228

    Replaced by #WB2X8228

    Info Icon
    Manufacturer substitution
    This part replaces WB02X8228. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $35.59
    14% OFF Phone Price : $41.59Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Coil Surface Element, 8-in for GE JBS03C3AD - Part WB30T10074

    Control panel & cooktop diagram

    Surface Unit

    Part #WB30T10033

    Replaced by #WB30T10074

    Info Icon
    Manufacturer substitution
    This part replaces WB30T10033. Substitute parts can look different from the original.
    In Stock
    $58.61
    9% OFF Phone Price : $64.61Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Rack for GE JBS03C3AD - Part WB48T10095

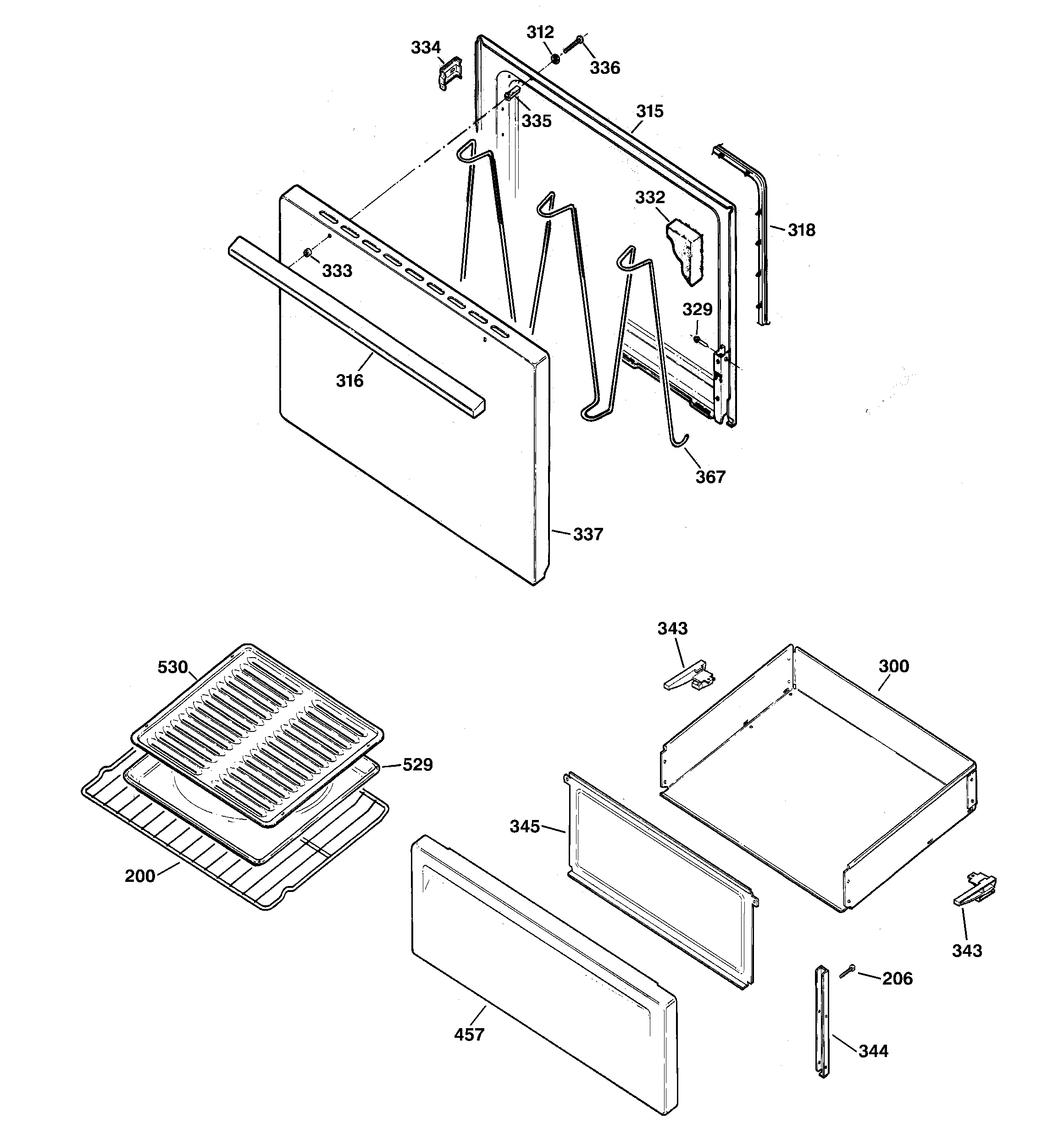

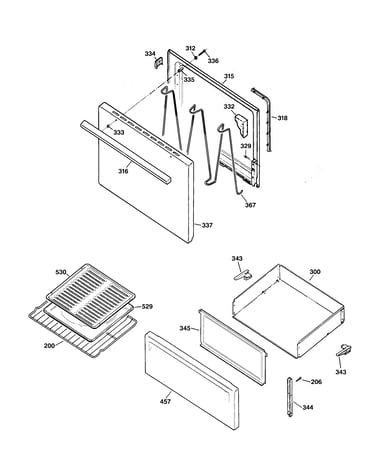

    Door & drawer parts diagram

    Oven Rack

    Part #WB48K0004

    Replaced by #WB48T10095

    Info Icon
    Manufacturer substitution
    This part replaces WB48K0004. Substitute parts can look different from the original.
    In Stock
    $63.25
    9% OFF Phone Price : $69.25Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Broil Element for GE JBS03C3AD - Part WB30X46986

    Body parts diagram

    Range Broil Element

    Part #WB44K10002

    Replaced by #WB30X46986

    Info Icon
    Manufacturer substitution
    This part replaces WB44K10002. Substitute parts can look different from the original.
    In Stock
    $148.90
    Minus Item
    Qty
    Plus Item
  • Hotpoint Range Indicator Light Lens (red) for GE JBS03C3AD - Part WB25T10041

    Control panel & cooktop diagram

    Lens

    Part #WB25K0002

    Replaced by #WB25T10041

    Info Icon
    Manufacturer substitution
    This part replaces WB25K0002. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $9.86
    9% OFF Phone Price : $10.86Info Icon
    Minus Item
    Qty
    Plus Item
