GE
Electric Wall Oven

Model #JCTP18BA1BB GE electric oven

Here are the diagrams and repair parts for GE JCTP18BA1BB electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

    Showing 10 of 121 parts

    Range Oven Door Inner Glass

    #338

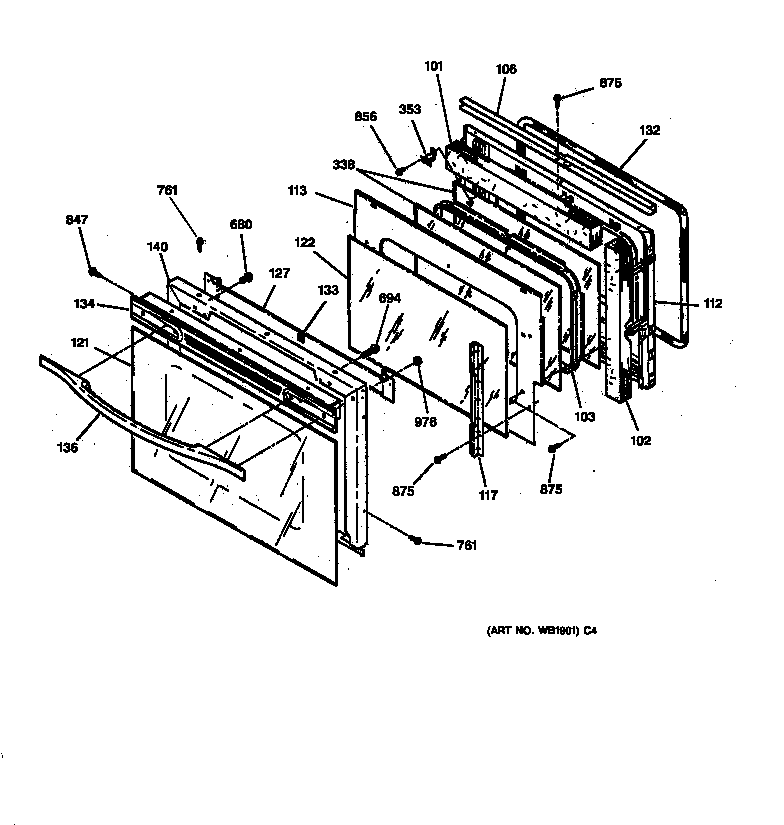

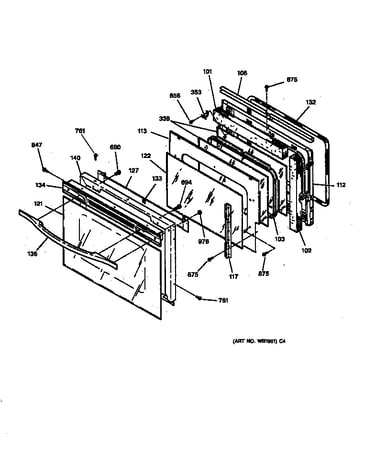

    Oven door Diagram

    $171.99

    In Stock

    Range Oven Door Inner Glass

    #122

    Oven door Diagram

    $117.99

    In Stock

    Dryer Screw

    #875

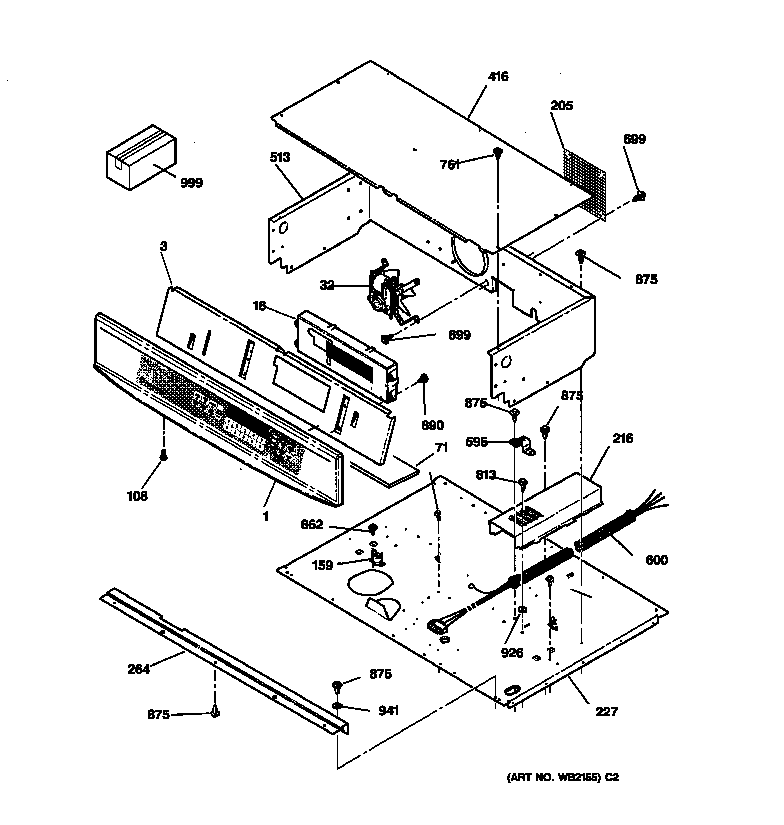

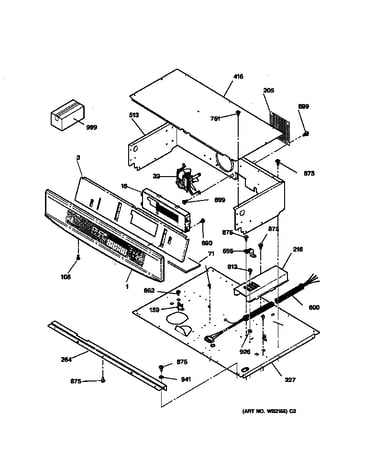

    Control panel Diagram

    Dryer screw

    Part #WH2X930
    This item is not returnable
    $3.19

    In Stock

    Range Bake Element

    #251

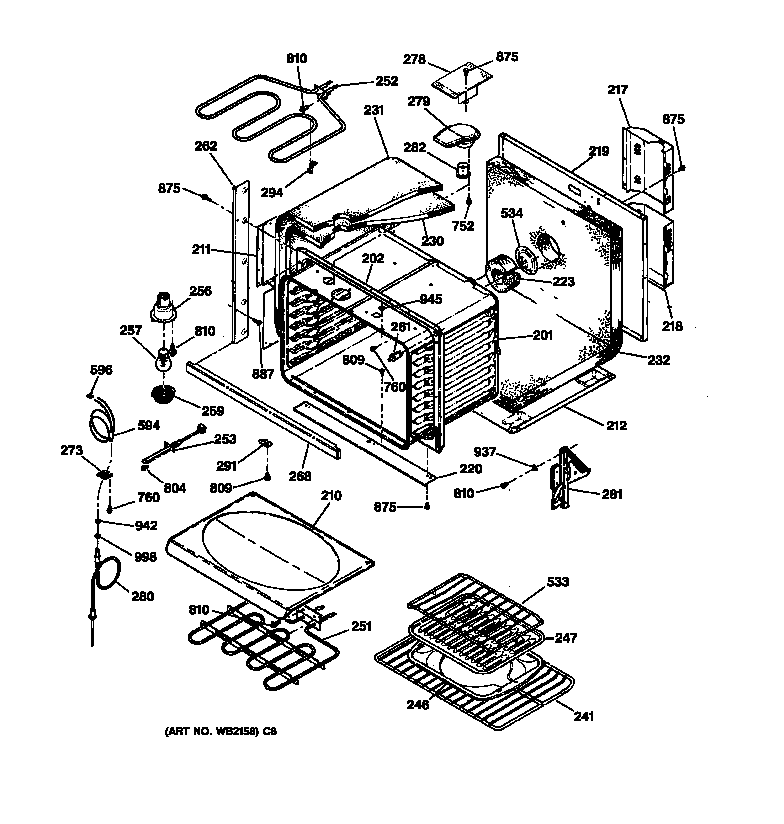

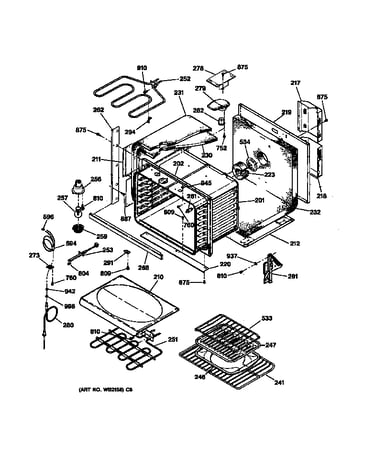

    Body parts Diagram

    Range bake element

    Part #WB44T10006
    $104.05

    In Stock

    Wall Oven Cooling Fan Assembly

    #32A

    Fan Diagram

    $122.10

    In Stock

    Wall Oven Cooling Fan Limit Switch

    #159

    Control panel Diagram

    $18.49

    In Stock

    Screw

    #761

    Control panel Diagram

    Screw

    Part #WB1K5029
    This item is not returnable
    $4.35

    In Stock

    Condenser Clamp

    #595

    Control panel Diagram

    Condenser clamp

    Part #WB2K5126
    This item is not returnable
    $5.64

    In Stock

    Oven Rack

    #241

    Body parts Diagram

    Oven rack

    Part #WB48K5022
    $87.82

    In Stock

    Control Erc3

    #16

    Control panel Diagram

    Control erc3

    Part #WB27T10086
    $285.99

    In Stock

    Symptoms common to all wall oven

    Choose a symptom to see related wall oven repairs.

    Main causes: bad oven door lock assembly, faulty electronic control board, wiring failure
    Main causes: broken broil element, faulty broil burner igniter, control system failure
    Main causes: lack of gas supply, broken igniter, tripped circuit breaker, broken oven element, tripped thermal fuse, control system failure
    Main causes: broken bake element, bad bake burner igniter, tripped thermal switch, control system failure
    Main causes: lack of electrical power, bad electronic control board, faulty oven control thermostat
    Main causes: faulty oven temperature sensor, control system problem, weak burner igniter, damaged oven element

    Repair guides common to all wall oven

    These step-by-step repair guides will help you safely fix what’s broken on your wall oven.

    June 1, 2015
    By Lyle Weischwill
    How to replace a wall oven control thermostat

    Get your oven temperature under your control by replacing a faulty oven control thermostat.

    Repair difficulty
    Time required
     60 minutes or less
    How to replace a wall oven door outer glass panel

    Learn how to replace a damaged outer window panel on your wall oven door with these step-by-step instructions.

    Repair difficulty
    Time required
     45 minutes or less
    June 1, 2015
    By Lyle Weischwill
    How to replace a wall oven thermal fuse

    The thermal fuse trips to prevent the over from excessively overheating. The oven won't heat again until you replace the fuse.

    Repair difficulty
    Time required
     60 minutes or less

    Articles and videos common to all wall oven

    Use the advice and tips in these articles and videos to get the most out of your wall oven.

    October 26, 2016

    How to repair broken or damaged wires video

    By Sears PartsDirect staff

    Learn how to repair broken, frayed or damaged wires in your appliances.

    September 28, 2016

    Wall oven won't heat: troubleshooting thermal switch problems video

    By Sears PartsDirect staff

    Learn what to do if your Kenmore, Frigidaire or Electrolux wall oven won’t heat up after running a self-cleaning cycle.

    September 22, 2016

    Easy party appetizer recipe video

    By Sears PartsDirect staff

    Make your next get-together a hit with these 3 great-tasting party appetizer recipes.
