Kenmore 6284567990 electric range

Kenmore 6284567990 electric range Parts

Here are the diagrams and repair parts for Kenmore 6284567990 electric range, as well as links to manuals and error code tables, if available.

By Schematic
By Part

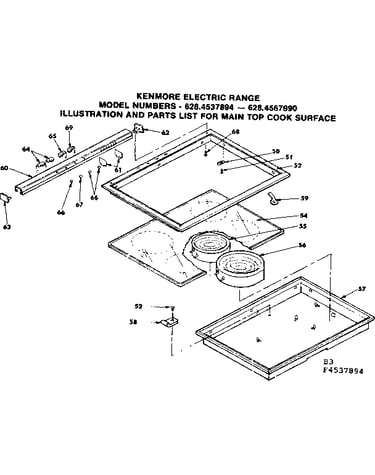

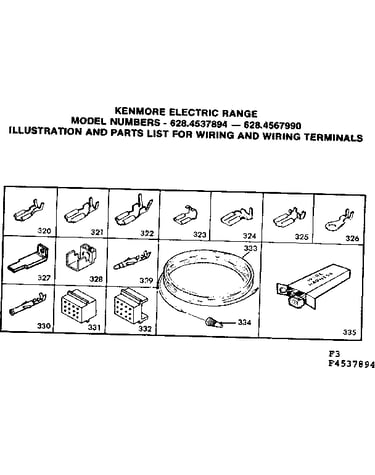

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 6284567990 Ranges

  • Kelvinator Range Terminal Block for Kenmore 6284567990 - Part 5304409888

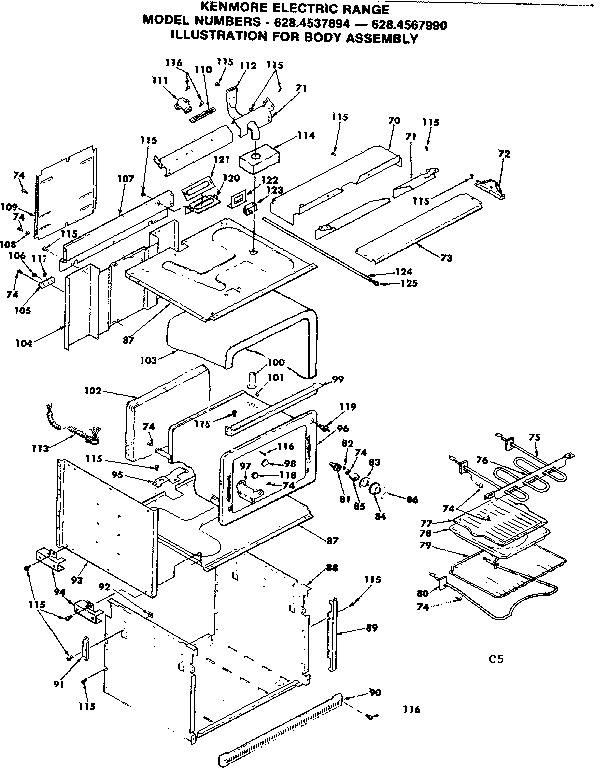

    Body assembly diagram

    Terminal Block

    Part #1189558

    Replaced by #5304409888

    Info Icon
    Manufacturer substitution
    This part replaces 1189558. Substitute parts can look different from the original.
    In Stock
    $25.30
    19% OFF Phone Price : $31.30Info Icon
    Minus Item
    Qty
    Plus Item
  • Frigidaire Range Bake Element for Kenmore 6284567990 - Part 5303051519

    Body assembly diagram

    Bake Unit

    Part #1312853

    Replaced by #5303051519

    Info Icon
    Manufacturer substitution
    This part replaces 1312853. Substitute parts can look different from the original.
    In Stock
    $31.93
    16% OFF Phone Price : $37.93Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Broil Pan for Kenmore 6284567990 - Part 5304442087

    Body assembly diagram

    Oven Broiler Grid

    Part #1313049

    Replaced by #5304442087

    Info Icon
    Manufacturer substitution
    This part replaces 1313049. Substitute parts can look different from the original.
    In Stock
    $45.36
    12% OFF Phone Price : $51.36Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Broil Pan for Kenmore 6284567990 - Part 5304442087

    Body assembly diagram

    Broiler Grid

    Part #1317972

    Replaced by #5304442087

    Info Icon
    Manufacturer substitution
    This part replaces 1317972. Substitute parts can look different from the original.
    In Stock
    $45.36
    12% OFF Phone Price : $51.36Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Broil Pan for Kenmore 6284567990 - Part 5304442087

    Body assembly diagram

    Oven Broiler Pan

    Part #1313048

    Replaced by #5304442087

    Info Icon
    Manufacturer substitution
    This part replaces 1313048. Substitute parts can look different from the original.
    In Stock
    $45.36
    12% OFF Phone Price : $51.36Info Icon
    Minus Item
    Qty
    Plus Item
  • Bulb for Kenmore 6284567990 - Part 8009

    Body assembly diagram

    Oven Lamp

    Part #STD372401

    Replaced by #8009

    Info Icon
    Manufacturer substitution
    This part replaces STD372401. Substitute parts can look different from the original.
    In Stock
    $35.61
    Minus Item
    Qty
    Plus Item
  • Range Screw for Kenmore 6284567990 - Part 1164479

    Range Screw

    Part #1164479
    This item is not returnable
    In Stock
    $3.30
    23% OFF Phone Price : $4.30Info Icon
    Minus Item
    Qty
    Plus Item
  • Thermostat for Kenmore 6284567990 - Part 5301318926

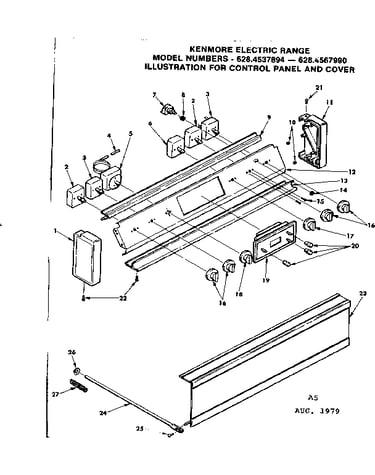

    Control panel and cover diagram

    Thermostat

    Part #1318926

    Replaced by #5301318926

    Info Icon
    Manufacturer substitution
    This part replaces 1318926. Substitute parts can look different from the original.
    In Stock
    $346.18
    Minus Item
    Qty
    Plus Item
  • Insulator for Kenmore 6284567990 - Part 08003090

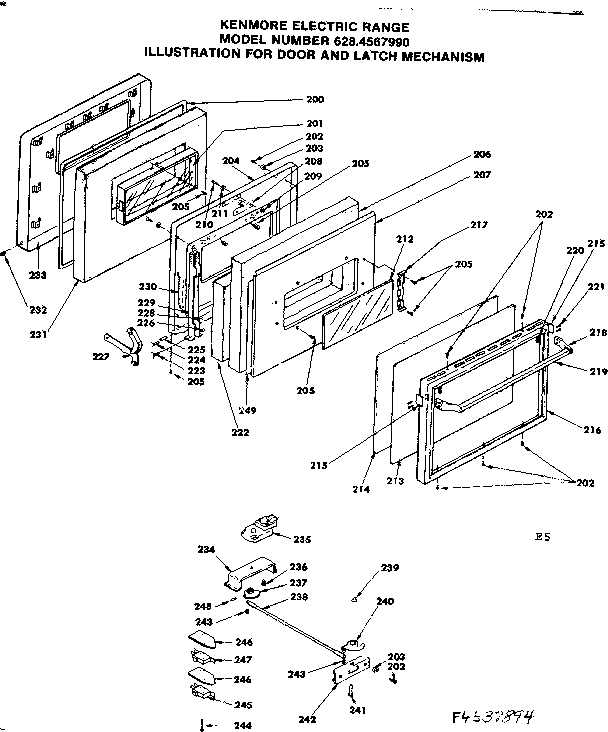

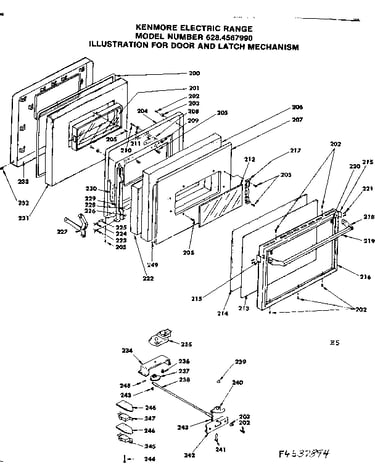

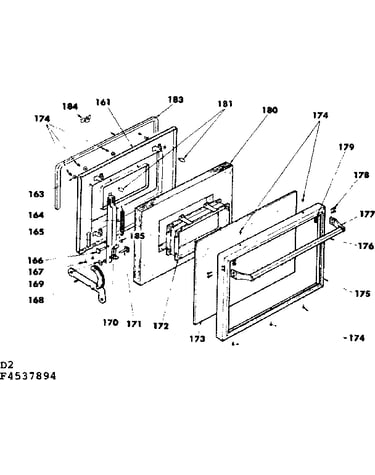

    Door and latch mechanism diagram

    Insulator

    Part #1308690

    Replaced by #08003090

    Info Icon
    Manufacturer substitution
    This part replaces 1308690. Substitute parts can look different from the original.
    In Stock
    $27.75
    Minus Item
    Qty
    Plus Item
  • Flat Washer for Kenmore 6284567990 - Part STD551025

    Body assembly diagram

    Washer

    Part #STD551025

    Replaced by #STD551025

    Info Icon
    Manufacturer substitution
    This part replaces STD551025. Substitute parts can look different from the original.
    In Stock
    $36.61
    Minus Item
    Qty
    Plus Item
