Speed Queen AWN63RSN116TW01 washer Parts

Your Speed Queen AWN63RSN116TW01 washer is a top-load design; most Speed Queen top-load washers of this style are about 3.2 cu. ft. usable capacity. For the exact capacity rating tied to your specific model and serial tag, confirm it in the AWN63RSN116TW01 owner's manual.

How to confirm capacity for AWN63RSN116TW01

Capacity is usually listed in the specifications section, but you can also validate it by matching the model and serial information to the correct documentation.

• Check the specs section in the AWN63RSN116TW01 owner's manual
• Verify the model number on the serial plate matches AWN63RSN116TW01 exactly
• Use the manual’s load size guidance to avoid overloading (capacity and performance are closely linked)
• If you routinely need more room, use the largest load size setting recommended for average loads

Usable capacity vs. “how much fits” (what you notice day to day)

Even when two washers list similar cubic feet, real-world loading depends on water level strategy and how freely items can move.

Why loads can feel “small” in a top-load washer

• Bulky items need space to circulate for proper wash and rinse
• Overloading reduces turnover and can leave detergent residue
• Choosing too small a load size can reduce water volume and cleaning performance

Quick guide: what capacity means for loading

What you’re washing	What to do	Why it helps
Mixed everyday laundry	Use the larger load size when in doubt	Helps maintain proper water-to-load ratio
Sheets and bulky items	Avoid packing the tub tight	Improves turnover and rinsing
Heavier loads (towels/jeans)	Load loosely, distribute evenly	Reduces out-of-balance and vibration

Why it matters

Knowing the approximate cubic feet helps you set realistic load sizes, prevent overloading, and reduce issues like poor cleaning, excessive vibration, and longer cycle times. For broader repair and performance tips for Speed Queen washers, we recommend how to fix Speed queen washer problems.

Last updated: February 2026

Common problems on the Speed Queen AWN63RSN116TW01 washer include lid lock errors, slow or no draining, excessive vibration (unbalanced loads), and “max Speed not reached” during final spin. Many symptoms trace back to load size, suds level, or a few key components like the lid lock and drain pump.

Most common symptoms we see

• Won’t start or stops mid-cycle (lid not locking or unlocking)
• Won’t drain or drains slowly (water left in tub)
• Won’t spin fast enough in final spin (max Speed not reached)
• Excessive vibration or banging during spin (out-of-balance load)
• Clicking sounds that seem unusual (often normal lid lock or control power-up)

What the manual says (and what to do first)

The AWN63RSN116TW01 manual calls out several frequent conditions and quick resets:

• Lid unlocking error: unplug the washer for 3 minutes to unlock the lid, then retry the cycle.
• Lid locking error: confirm the lid is fully closed; open the lid or unplug to clear the code.
• Max Speed not reached: usually caused by unbalanced load, excess suds, or slow draining; use HE detergent and distribute the load evenly.
• All status lights flashing: unplug for 15 seconds, plug back in, then recheck.

For the exact light patterns and steps, use the owner's manual.

Parts that commonly relate to these problems

If basic checks do not resolve the issue, these model-matched parts are common suspects:

Symptom	Common cause	Example part for this model

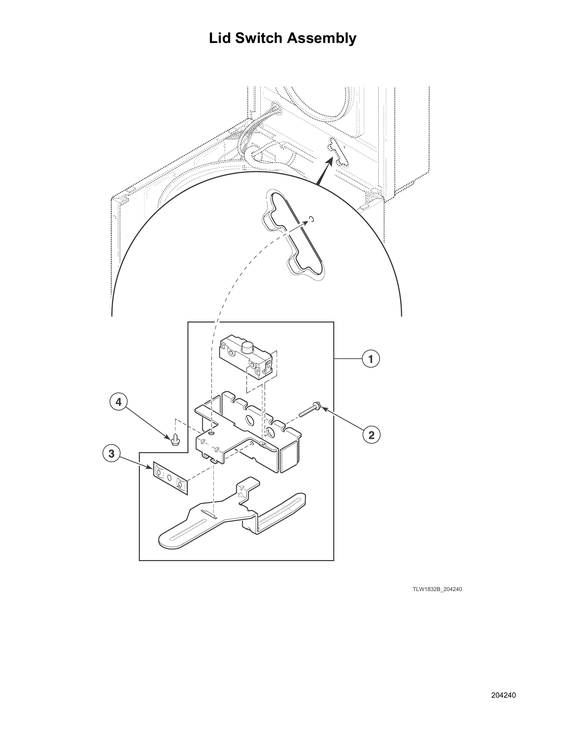

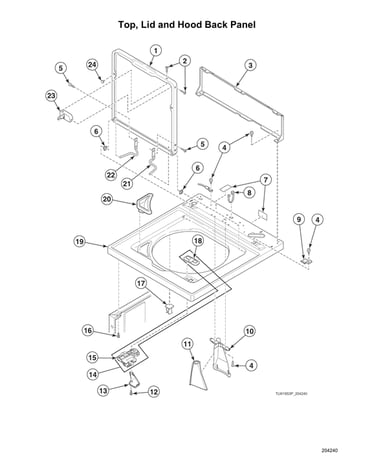

Lid won’t lock/unlock	Lid lock mechanism not engaging	Alliance lid lock catch 203573

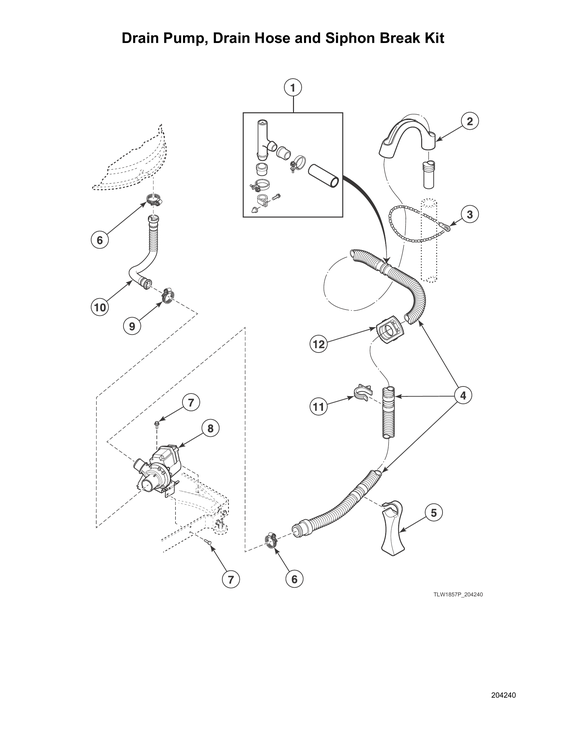

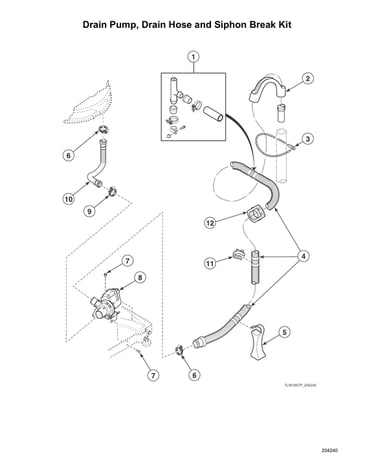

Won’t drain / slow drain	Pump issue or restriction	Alliance pump and bracket 203885

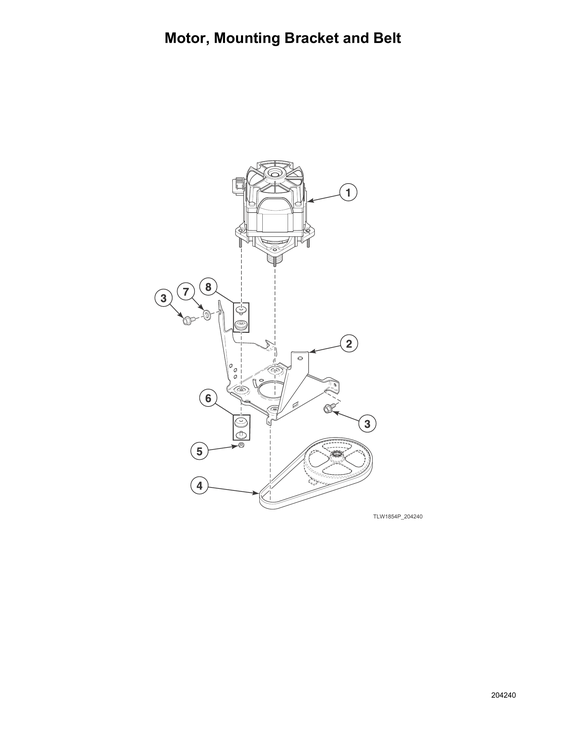

Max Speed not reached	Belt slipping, load/suds, or drain issue	Alliance belt 204690
Overfills/underfills	Water level sensing problem	Speed queen pressure sensor 203843

Why it matters

These washers protect the drive system by limiting spin Speed when the load is off-balance, too sudsy, or not draining well. Fixing the root cause prevents repeat shutdowns, wet clothes at the end of the cycle, and unnecessary wear on the motor and belt.

For a broader troubleshooting walkthrough specific to Speed Queen washers, use how to fix Speed queen washer problems.

Last updated: February 2026

Speed Queen top-load washers like model AWN63RSN116TW01 typically last about 25 years in normal home use when they are installed correctly, not overloaded, and maintained (hoses, drain path, and proper detergent amounts). For model-specific care and operating guidance, use the AWN63RSN116TW01 owner's manual.

Typical lifespan and what it means

Most owners think about lifespan in two ways: calendar years and total wash cycles.

Measure	Typical expectation	What affects it most
Years of service	~25 years	Load size, installation, maintenance
Total cycles	~10,400 cycles	Cycle choice, balance, water quality

What helps your washer reach its full lifespan

We see the longest-lasting Speed Queen washers when these basics are followed:

• Keep loads to a practical size; overloading increases wear on the drive system and suspension.
• Use the manufacturer-recommended detergent amount; too much can cause residue and performance issues.
• Make sure the washer is level and stable to reduce out-of-balance stress.
• Maintain good drain flow (no kinked hose, restricted standpipe, or slow household drain).
• Address unusual symptoms early (all status lights flashing, repeated drain problems, or persistent vibration).

Parts that commonly impact longevity (when symptoms show up)

Lifespan is usually limited by wear items or components that get stressed by vibration, draining issues, or heavy loads. If your washer starts acting up, these model-matched parts are common suspects:

• Alliance belt 204690 (slipping, squealing, weak spin)
• Alliance pump and bracket 203885 (slow drain, water left in tub)
• Speed queen pressure sensor 203843 (fill level problems, overfill or underfill symptoms)
• Alliance out-of-balance switch assembly 807384 (frequent stopping or imbalance-related behavior)

Why it matters

A long service life lowers your cost per load, but only if the washer runs efficiently and avoids repeat breakdowns. Good installation and early troubleshooting prevent secondary damage to higher-cost parts like the motor or control.

For step-by-step troubleshooting approaches that match this brand and washer type, see how to fix Speed queen washer problems. If you need to purchase replacement parts for AWN63RSN116TW01, start with the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026
