Kenmore 79072313013 gas range Parts

A Kenmore gas range like model 79072313013 typically lasts about 15 years with normal household use. Consistent cleaning, correct burner flame, and prompt replacement of wear items (like igniters and light bulbs) help you reach that lifespan; see the 79072313013 use and care guide for routine care steps.

• Cleaning and maintenance: grease and spills can damage finishes and components over time.
• Ignition system health: weak igniters can cause delayed ignition and extra wear.
• Proper flame: a steady blue flame indicates good combustion; orange can happen briefly from dust.
• Heat management: avoid blocking oven vents and keep airflow around the range.
• Wear items: bulbs, igniters, and sensors are normal replacements during ownership.

• Clean surface burners and caps regularly; keep ports clear.
• Wipe spills promptly, especially sugary or acidic spills.
• If a burner flame is orange, run it a few minutes; dust in the gas line can clear.
• Replace a failing oven igniter early to prevent no-heat situations.
• Follow the cleaning methods and intervals in the 79072313013 use and care guide.

A gas range can run for many years, but small issues (like a weak igniter or inaccurate temperature sensor) often show up before major failures. Fixing those early keeps cooking performance consistent and reduces strain on the gas valve, control, and burner system.

Last updated: February 2026

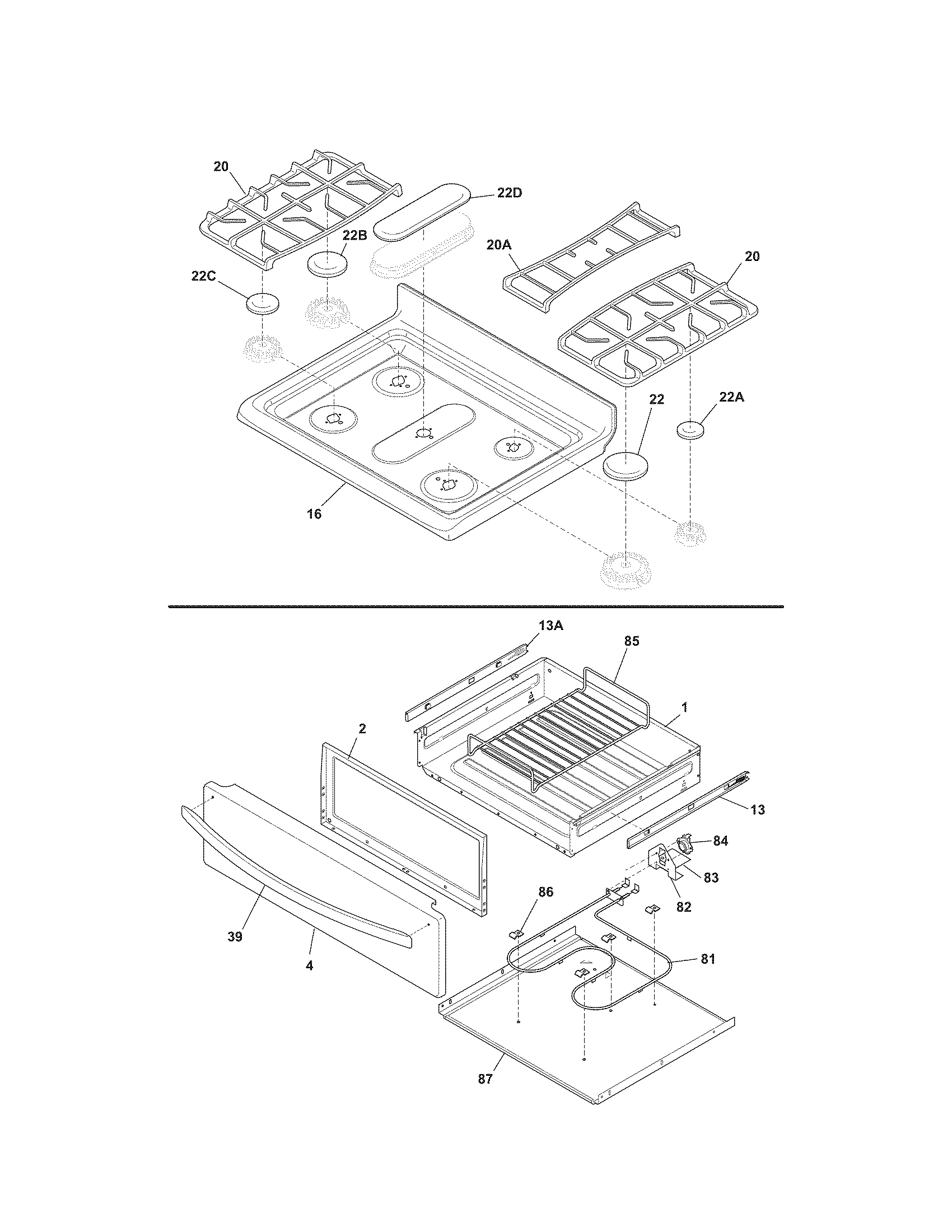

On the Kenmore 79072313013 gas range, the cooktop is not removable, so we do not remove the “top” as a single piece. For cleaning and service access, we remove surface parts (grates, burner caps, and burner heads) and, when needed, pull the range out after shutting off gas and power; see the installation guide.

• Remove the cooking grates.
• Lift off the burner caps.
• Lift off the burner heads (some models).
• Wipe spills from the cooktop surface once parts are off and the surface is cool.
• If you need deeper access, service is typically done from the front, back, or by lifting the range slightly and pulling it forward (not by lifting the cooktop).

• Turn all burner knobs to OFF.
• Let all surfaces cool completely.
• Shut off the gas supply valve if you will move the range.
• Unplug the power cord (or switch off the breaker).
• Avoid reaching over burners; keep flammables away from the range.

Follow the process in the 79072313013 owner’s manual and installation instructions:

Trying to remove a non-removable cooktop can bend panels, damage igniters, or create a gas leak risk. Removing the correct surface parts gives you cleaning access without stressing the manifold, burner wiring, or gas tubing.

Last updated: February 2026

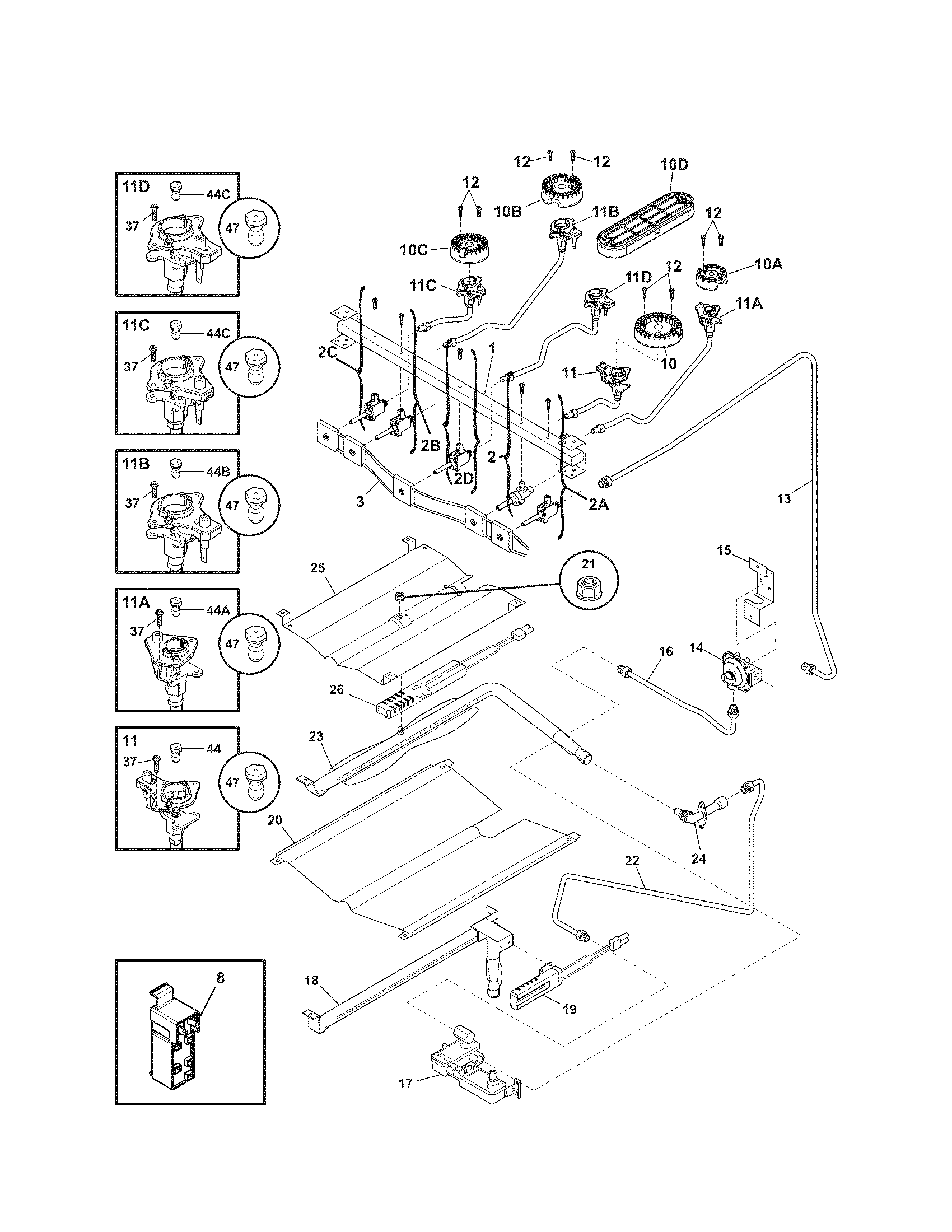

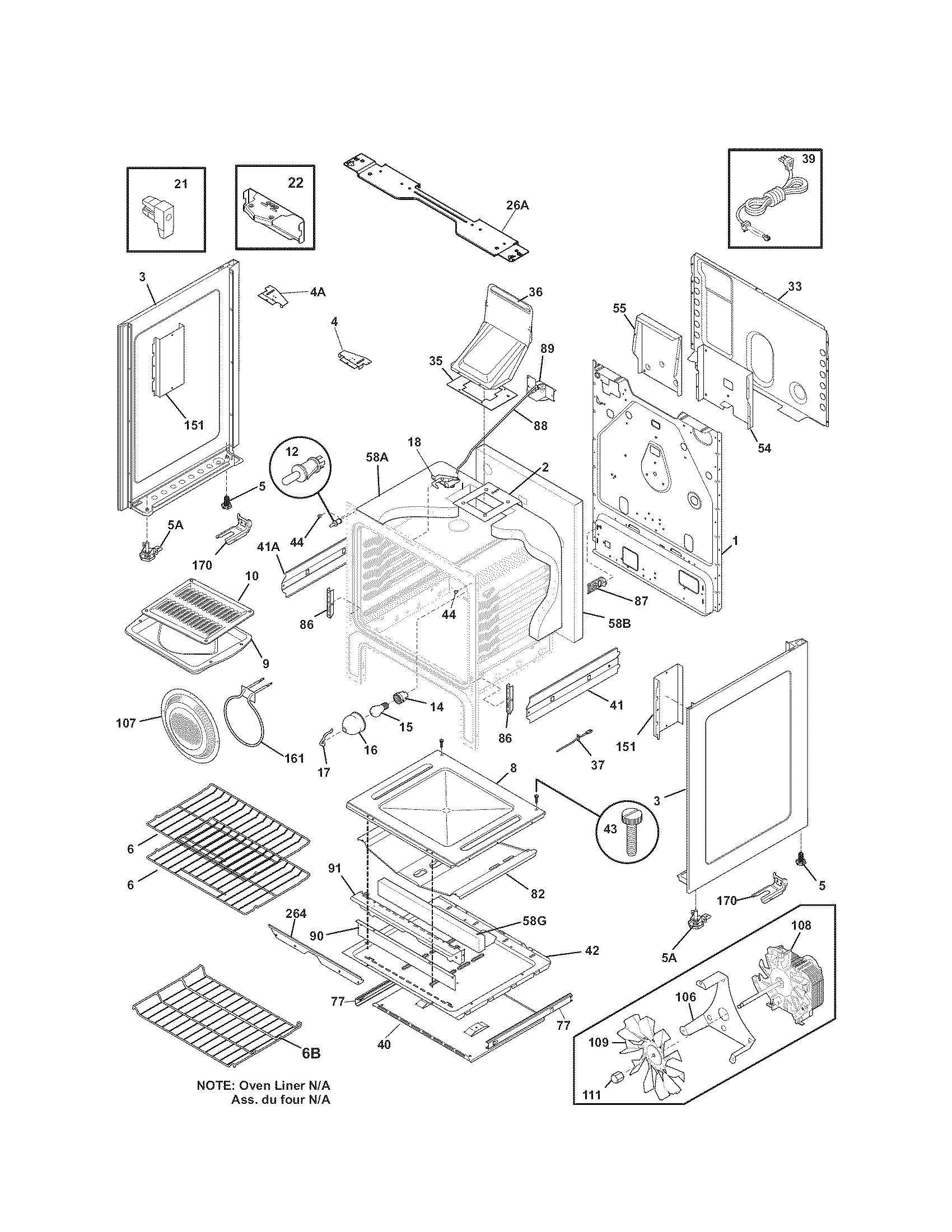

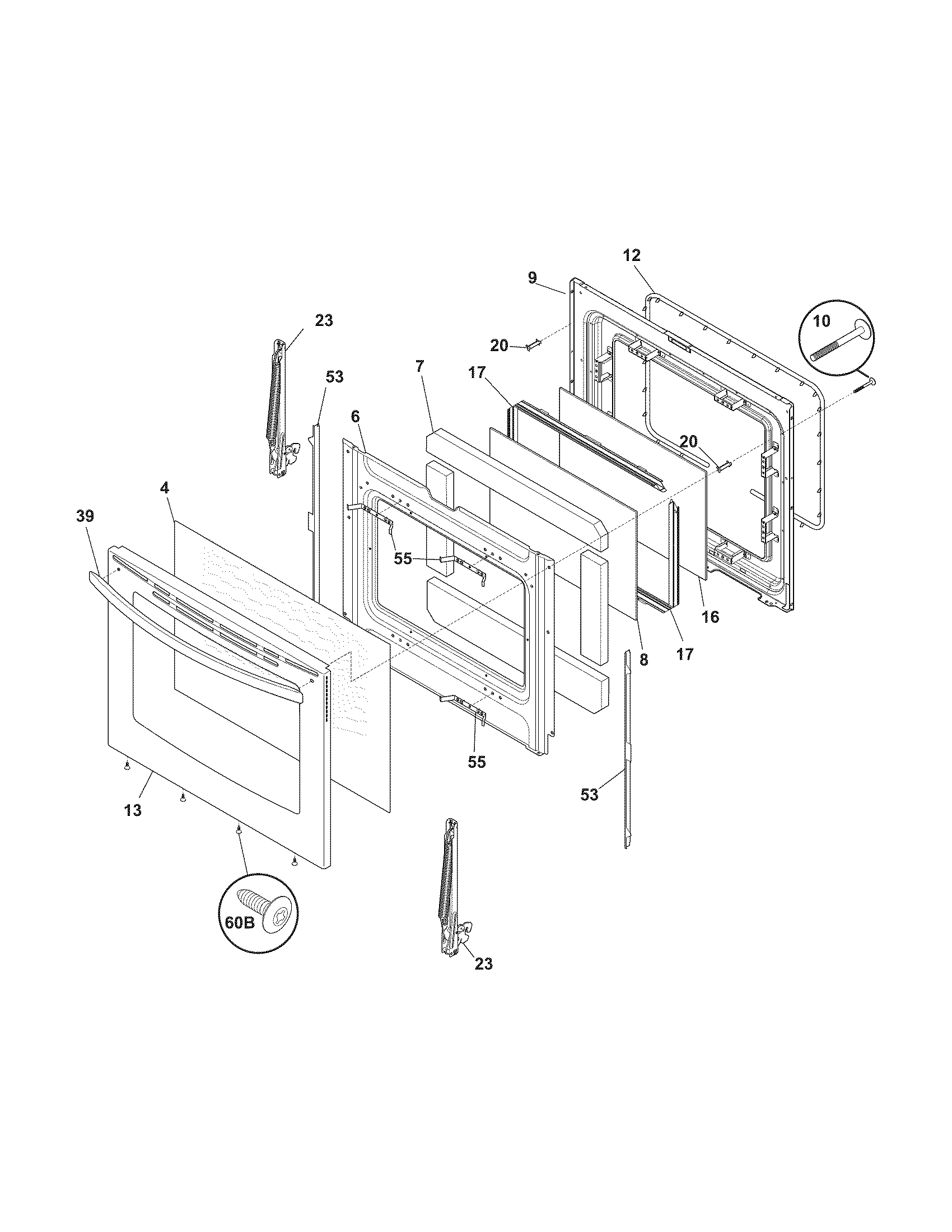

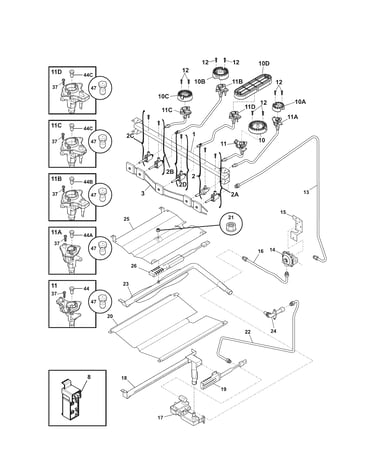

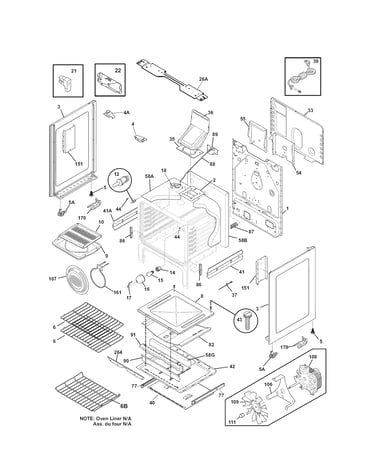

A Kenmore gas range like model 79072313013 uses a gas burner system for heat plus electric ignition and controls. The main oven parts include the bake burner and igniter, temperature sensing and control components, oven racks, door sealing parts, and ventilation that keeps combustion air flowing.

• Oven burner (bake burner): produces the flame that heats the oven cavity.
• Oven burner igniter: glows to ignite gas; the gas valve opens after the igniter reaches ignition temperature.
• Oven gas valve: opens to allow gas flow to the burner when the control calls for heat.
• Oven temperature sensor: tells the control how hot the oven is so it can cycle heat.

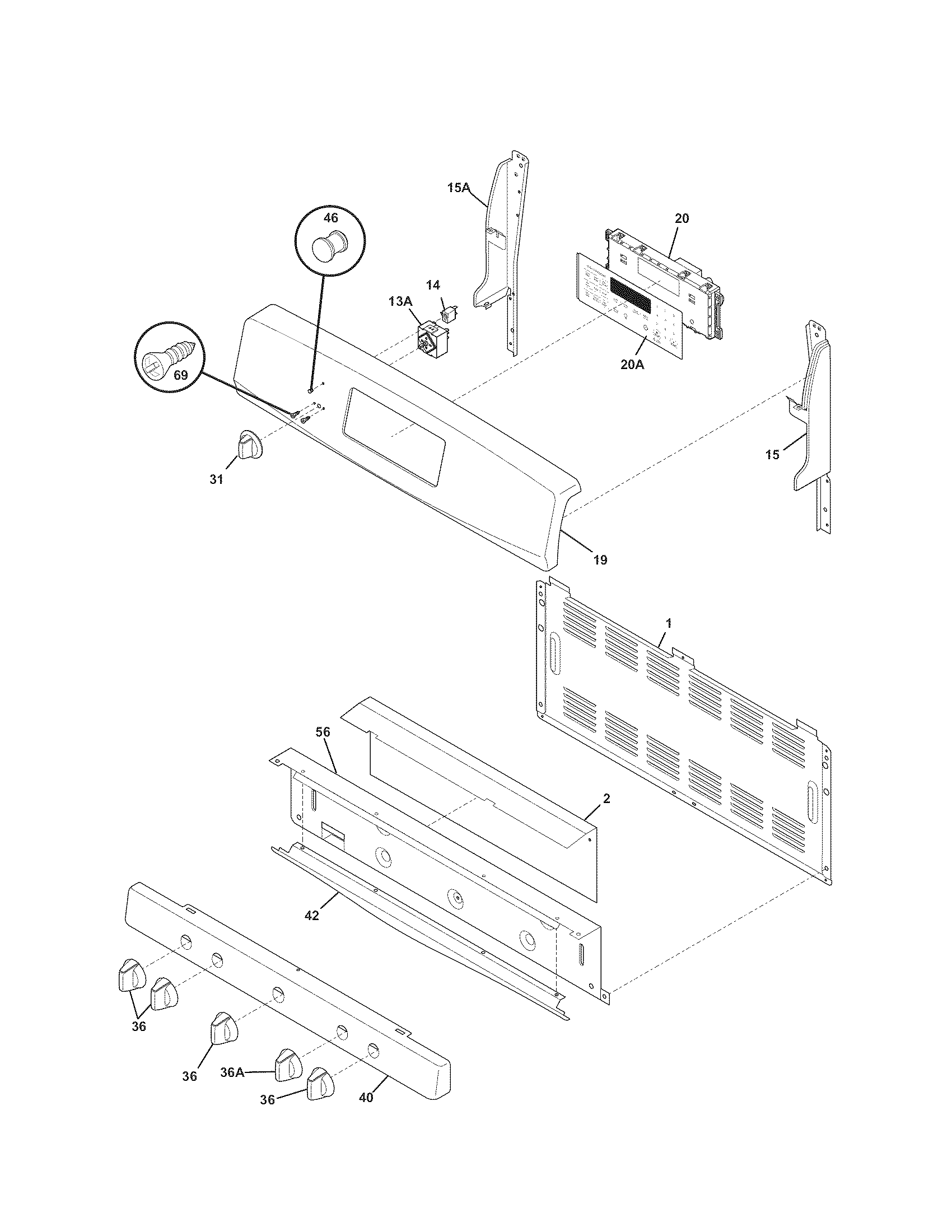

• Oven control board/clock: manages bake/broil functions, timing, and temperature regulation.
• Oven racks: support cookware and must be removed for self-clean on many ranges.
• Oven vent: routes hot air and combustion byproducts out; it must not be blocked.

These are common service parts for this model when you have ignition or temperature problems:

When you set Bake, power flows to the igniter and it glows. After about 30 to 60 seconds, the oven valve opens and the burner lights; the igniter and flame then cycle to maintain temperature. For operating details and safety notes, use the 79072313013 owner's manual.

Knowing the major parts helps you troubleshoot safely. For example, a weak igniter can cause slow lighting, and a blocked vent can affect burner combustion and make nearby surfaces hotter than expected.

Last updated: February 2026

If you can’t find a part for your Kenmore 79072313013 gas range, we recommend confirming the full model number and then using the parts diagrams and part lists to match the exact component name and number; the 79072313013 owner's manual also helps identify common service items.

• Recheck the model number tag on the range (use the full number: 79072313013).
• Search by the part number if you have it (from the old part, a diagram callout, or the manual).
• Use the part description from the diagram (for example, “oven igniter” vs. “surface igniter”).
• Look for common wear items that may be listed under a different section (light bulb, screws, burner parts).
• If your part is discontinued, search for a compatible substitute listed for the same model.

If you are troubleshooting ignition or heating issues, these are frequently requested items for the 79072313013:

Using the exact model number and matching the diagram callout prevents ordering a similar-looking Kenmore or Frigidaire-style part that will not fit your gas range. It also helps you avoid replacing the wrong ignition component (bake igniter vs. surface igniter).

Last updated: February 2026

On the Kenmore gas range model 79072313013, the model and serial number are printed on the identification plate on the right-hand surface of the oven front frame. You typically access it by opening the storage drawer, warmer drawer, or broiler drawer (depending on your configuration); see the 79072313013 installation guide.

Check these spots in this order:

• Open the bottom drawer (storage, warmer, or broiler drawer) and look at the lower right oven frame area.
• Look for a metal identification plate on the right-hand oven front frame.
• Write down the model number, serial number, and any lot number/letter shown.
• If the drawer is hard to open, remove items and pull straight out evenly.
• Use a flashlight; the plate can be easy to miss in low light.

The identification plate is more than a label; it helps us match the correct Kenmore range parts and service information.

If you are ordering parts like an igniter, sensor, or spark module, record the full model number first.

• Match the model number exactly: 79072313013
• Keep a photo of the plate for reference
• Use the model number to confirm fit before buying parts such as the tappan range oven burner igniter 316489403

Kenmore ranges can have multiple versions that look similar. Using the identification plate information prevents wrong-part orders and speeds up troubleshooting.

Last updated: February 2026
