To attach the grass bagger on a Craftsman setup using grass catcher attachment model 917249890, we install the lower chute under the mower’s deflector shield, then connect and latch the upper chute to the cover so clippings flow cleanly into the containers. Use the steps in the 917249890 owner's manual for the exact latch points.

Quick attach steps (chutes and containers)

• Park on a flat surface, set the parking brake, and shut the engine off; remove the key.
• Lower the mower deck to the lowest cutting position (this makes chute alignment easier).
• Position the lower chute so the extended edge sits under the deflector shield and alongside the hinge bracket.
• Align the chute with the mower housing and engage the front and rear latch points.
• Insert the curved end of the upper chute into the hole in the back of the cover; handle it carefully so you do not damage the full-bagger indicator.
• Push in and turn the upper chute until it lines up with the lower chute; align bosses/slots and slide together.
• Hook the rubber latch hole over the latch pin to secure the chute connection.

Parts that commonly affect fit and latching

If the bagger will not “seat” or keeps popping loose, these parts are the usual suspects:

Symptom	Most likely area	What to check
Chute won’t stay latched	Chute latch	Cracks, weak latch tension, missing hardware
Poor airflow, clogs easily	Upper chute seal	Gasket condition and chute alignment
Indicator not moving	Full container indicator	Binding from debris or misrouted chute

• Consider replacing a worn latch such as the lawn tractor bagger attachment chute latch 532109808.
• If you see gaps where the upper chute meets the cover, inspect the gasket 532127534.

Why it matters

Correct chute placement under the deflector shield and a tight latch connection prevents blowout, reduces clogging, and helps the full-bagger indicator work properly. A small misalignment can cause constant plugging and poor bagging performance.

Last updated: February 2026

A truly “universal” grass catcher is uncommon because baggers must match the tractor’s deck size, discharge style (side or rear), and mounting points. For Craftsman grass catcher attachment model 917249890, the best fit and performance come from using the correct chute, containers, and hardware shown in the 917249890 owner's manual.

What “universal” usually means (and what to check)

Most universal-fit grass catchers are designed to work across multiple mower brands, but they still require compatibility checks. Before buying any universal kit, we recommend confirming:

• Deck width and discharge location (side discharge is most common)
• Mounting method (rear bracket, hitch plate, or frame mount)
• Airflow path from deck to chute (tight bends reduce bagging)
• Container style and capacity (hard containers vs. bags)
• Chute sealing (gaps cause blowout and clogging)

How to confirm compatibility for Craftsman 917249890

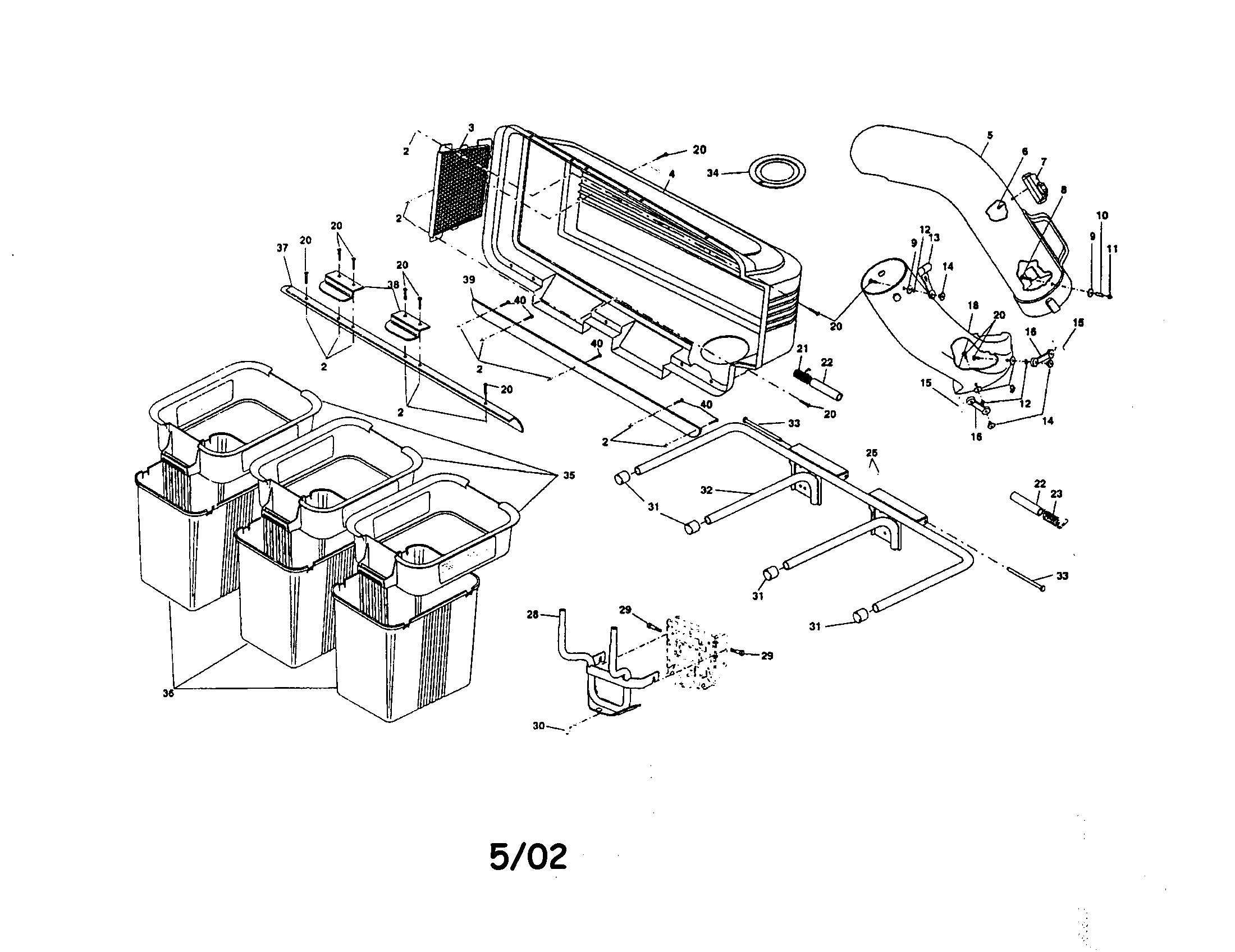

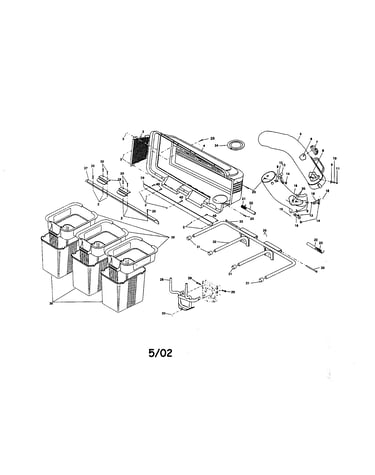

Your 917249890 grass catcher is engineered as a matched system. If you are trying to adapt another catcher, use the parts diagram in the manual to compare the key connection points and airflow components.

Key components that must match

Component	What it does	Common “universal” problem
Upper chute	Carries clippings up to the containers	Wrong angle causes clogging
Lower chute	Connects deck discharge to upper chute	Doesn’t align to deck opening
Containers and cover	Holds debris and controls airflow	Poor sealing reduces suction
Indicator	Shows when containers are full	Not calibrated for airflow

If your current system is damaged or missing pieces, replacing the original components is the most reliable path. Common fit-related parts for this model include the grass catcher upper chute 532126840 and the lawn tractor bagger attachment lower chute 592866501.

Why it matters

Bagging performance depends on strong, consistent airflow. The manual’s operating tips (full throttle while bagging, low gear for good cut quality, and mowing tall grass in two passes) are designed around the 917249890 chute and container setup, so mismatched “universal” parts often lead to clogs and blowout.

Last updated: February 2026

The model number 917249890 identifies a Craftsman 42-inch mower grass catcher attachment, not a walk-behind lawn mower. If you are trying to find the mower or lawn tractor model that this bagger fits, use the ID tag on the tractor itself and confirm the correct attachment setup in the 917249890 owner's manual.

How to confirm the correct model number

We recommend matching the model number to the product type first, because Craftsman numbers can look similar across tractors, mowers, and attachments.

• 917249890 = grass catcher attachment (bagger)
• The lawn tractor model number is on the tractor frame (typically under the seat area, on the rear fender, or near the engine)
• The mower deck size (42-inch) should match what the bagger is designed for
• Use the parts diagram in the manual to verify you have the right chute and container pieces

What you may be mixing up

If you searched “Craftsman 917249890 lawn mower,” it usually means one of these situations.

What you have	What 917249890 refers to	What to check next
Walk-behind mower	Not this model	Find the mower’s model tag on the deck housing
Riding lawn tractor	The bagger attachment for a 42-inch deck	Find the tractor model tag, then match bagger mounting
Loose bagger parts	This attachment’s parts list	Match parts by name and number in the manual

Parts that help identify this attachment

These common bagger components are listed for model 917249890 and can help you confirm you are working with the correct attachment.

• Grass catcher upper chute 532126840 (connects deck discharge to the bagger)
• Lawn tractor bagger attachment lower chute 592866501 (routes clippings into the containers)
• Indicator 532130933 (shows when the container is full)
• Screen 532127533 (cover screen)

Why it matters

Using the correct tractor model number and the correct bagger attachment model number prevents fit issues like chute misalignment, poor airflow, and frequent clogging. It also ensures you order the right Craftsman replacement parts the first time.

Last updated: February 2026

For Craftsman grass catcher attachment model 917249890, we recommend buying replacement parts from Sears PartsDirect (using the exact model number to match diagrams and hardware), and you can also find Craftsman parts through major retailers and the Craftsman brand store. Use the model number first, then match the part name and part ID.

Best ways to make sure you get the right part

• Start with the full model number: 917249890
• Use the exploded views and parts list in the 917249890 owner's manual
• Match by part ID (most reliable), then confirm the part name
• Replace worn bagger components promptly; the manual notes grass catcher parts can wear and should be checked often
• If you are replacing fasteners, match size and type (screw, washer, shoulder bolt) to avoid fit issues

Common replacement parts customers order for this bagger

These are examples of model-matched parts that commonly wear, loosen, or get damaged:

What you need	Example part for model 917249890	What it does
Chute won’t stay latched	Lawn tractor bagger attachment chute latch 532109808	Secures the chute connection so clippings stay contained
Poor airflow or clogging at upper chute	Gasket 532127534	Helps seal the upper chute area to reduce leaks and improve flow
Cracked or missing upper chute	Grass catcher upper chute 532126840	Routes clippings from the deck to the containers
Container won’t indicate “full” correctly	Indicator 532130933	Shows when the container is filling up

Why it matters

Grass catcher attachments take constant impact from debris and vibration. Using the correct Craftsman model number and matching the exact part ID helps prevent chute leaks, frequent clogs, and premature wear on the chute, gasket, and latches.

Last updated: February 2026
