Model #RF391PXXW1 Whirlpool electric range

Here are the repair parts and diagrams for your Whirlpool RF391PXXW1 electric range.

The diagram(s) below can help you find the right part.  If you’d like help, we invite you to call our customer service number at the top of the page, or click chat.

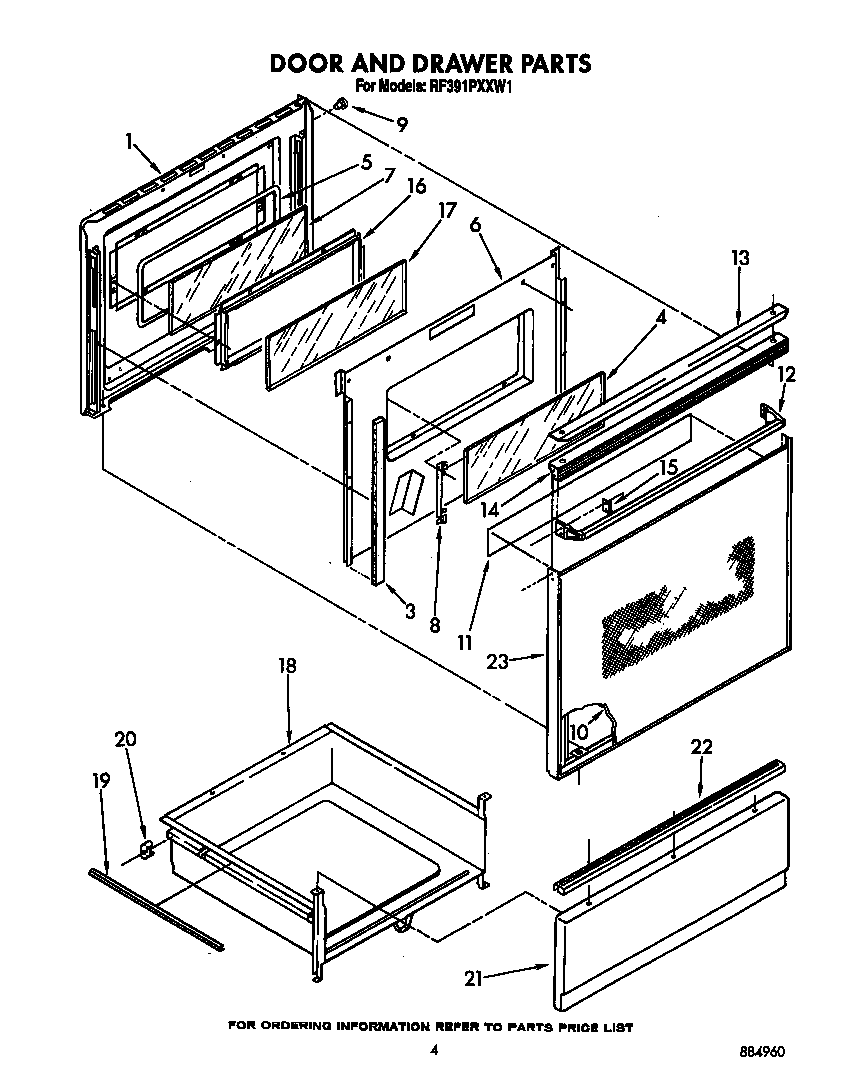

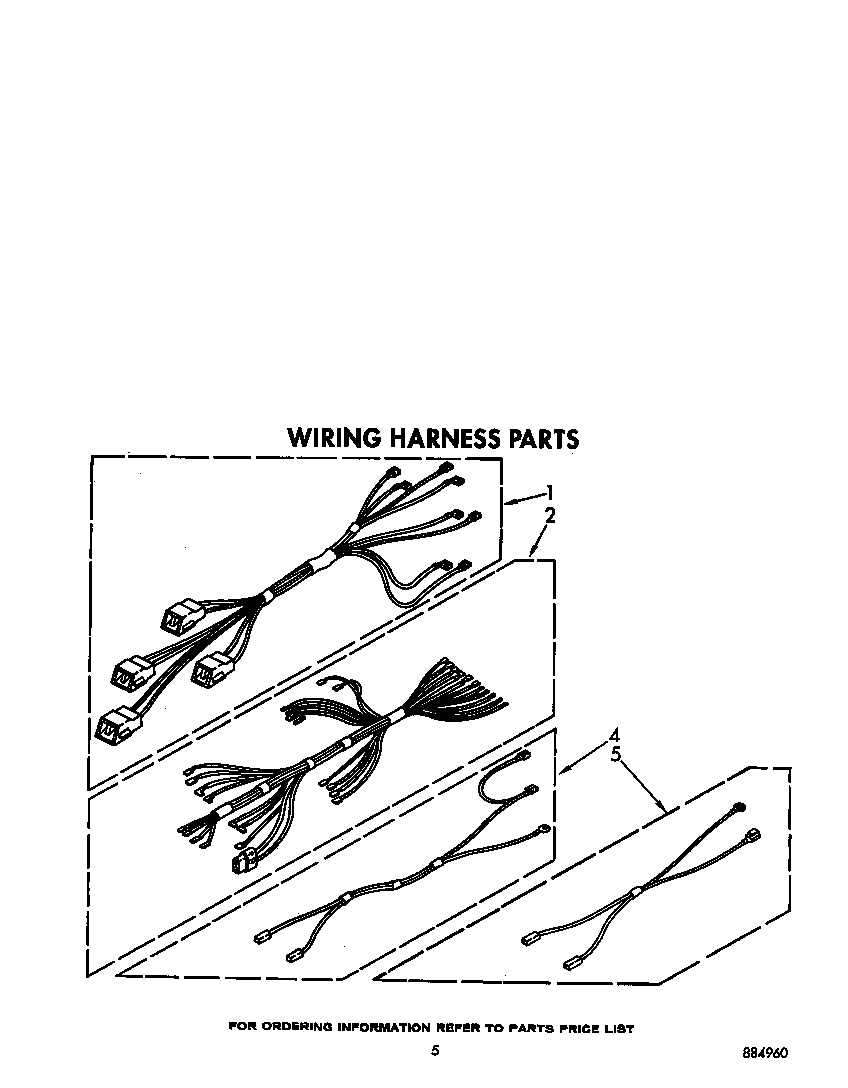

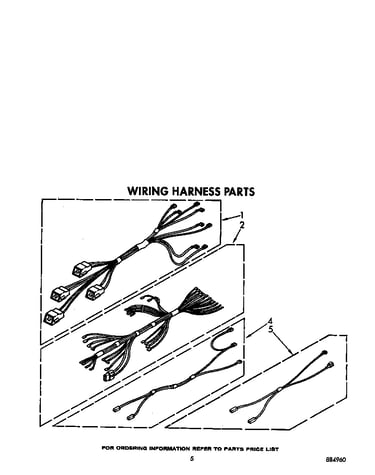

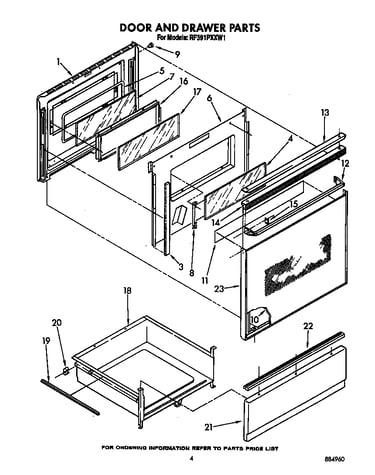

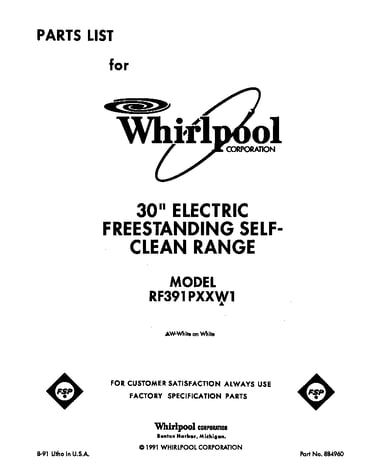

On this page, you can also find any manuals, installation guides and error code tables associated with this model.

For advice on diagnosing problems with appliances, lawn & garden equipment and other products, check out the videos, repair guides and articles in our DIY section.

Save to my profileError Codes

Showing 10 of 193 parts

Appliance Spray Paint (Black)

#NI

All parts Diagram

$17.97

In Stock

Range Oven Door Switch

#25

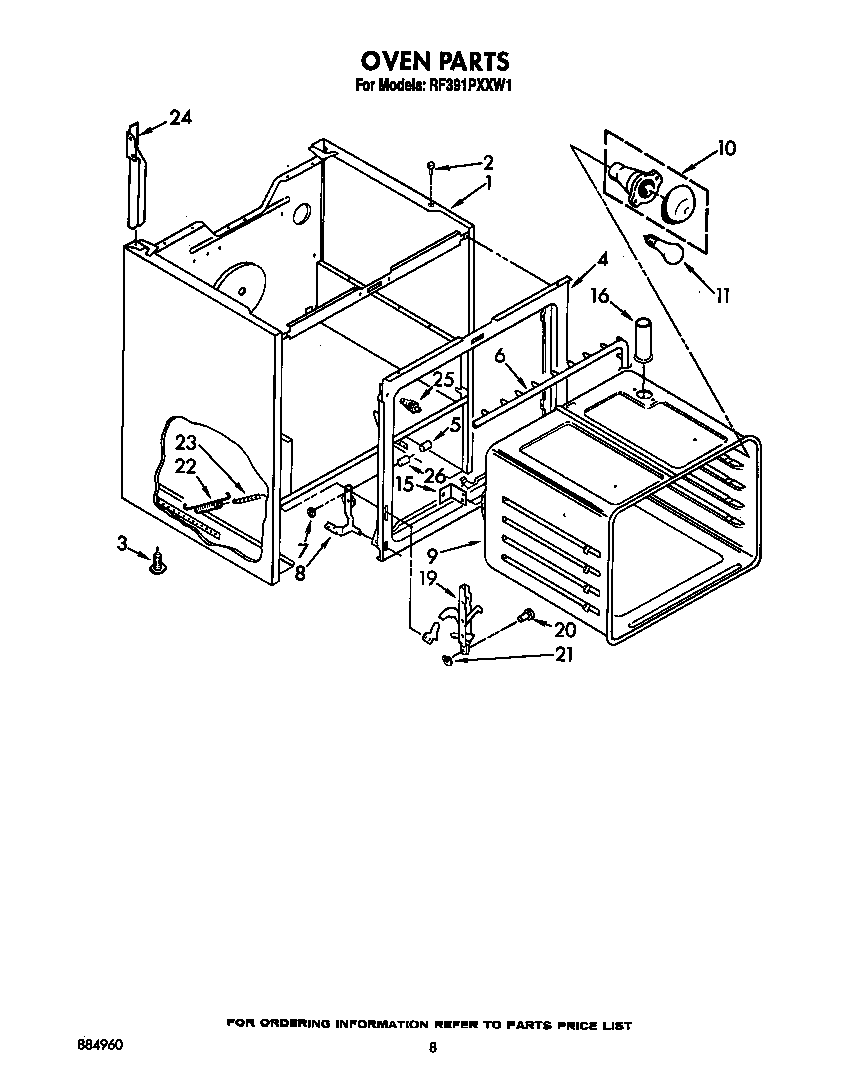

Oven (continued) Diagram

$30.58

In Stock

Appliance Splicing Wire, 25-ft, 14-gauge (Yellow)

#NI

All parts Diagram

$16.20

In Stock

Clip

#7A

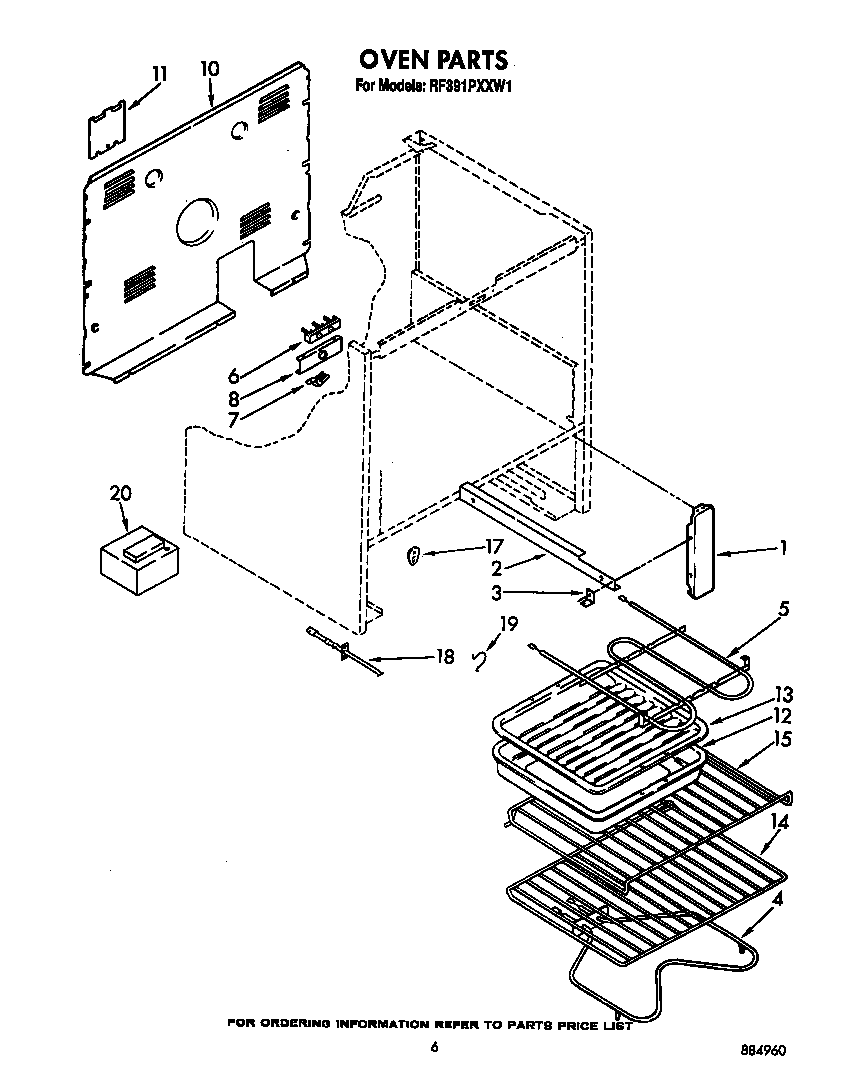

Oven Diagram

Clip

Part #313660
This item is not returnable

$6.69

In Stock

Wire (Red)

#NI

All parts Diagram

Wire (red)

Part #242831

$214.42

In Stock

Dryer Terminal Block Hex Nut

#6B

Oven Diagram

Dryer terminal block hex nut

Part #WP112432
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  112432
This part replaces 112432
This item is not returnable

$2.10

In Stock

Screw

#2A

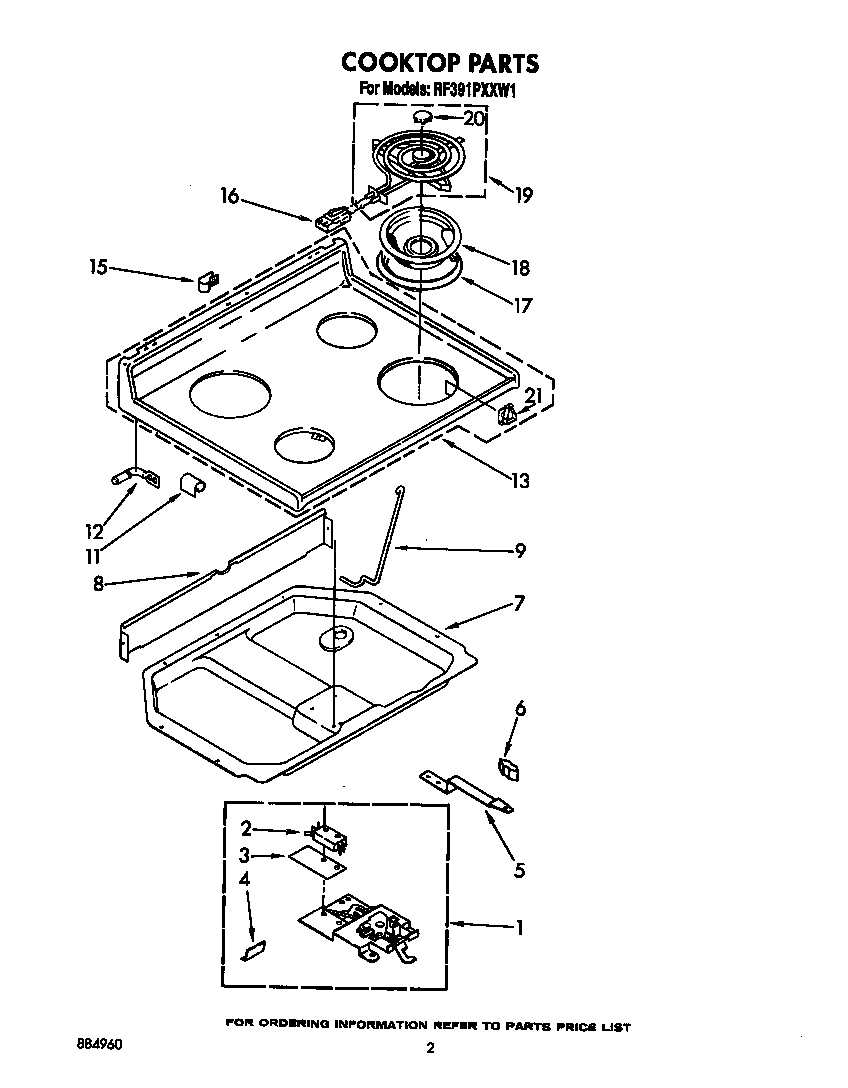

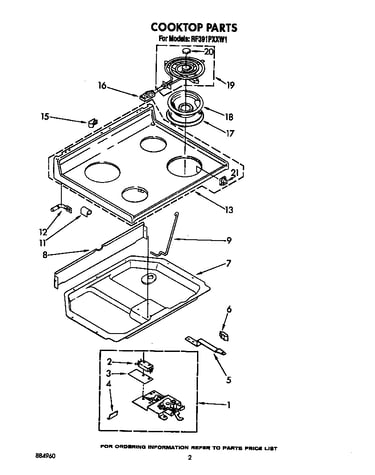

Cooktop Diagram

Screw

Part #98106

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Clamp

#15

Cooktop Diagram

Refrigerator clamp

Part #WP308605
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  308605
This part replaces 308605
This item is not returnable

$6.29

In Stock

Range Surface Element Control Switch

#17A

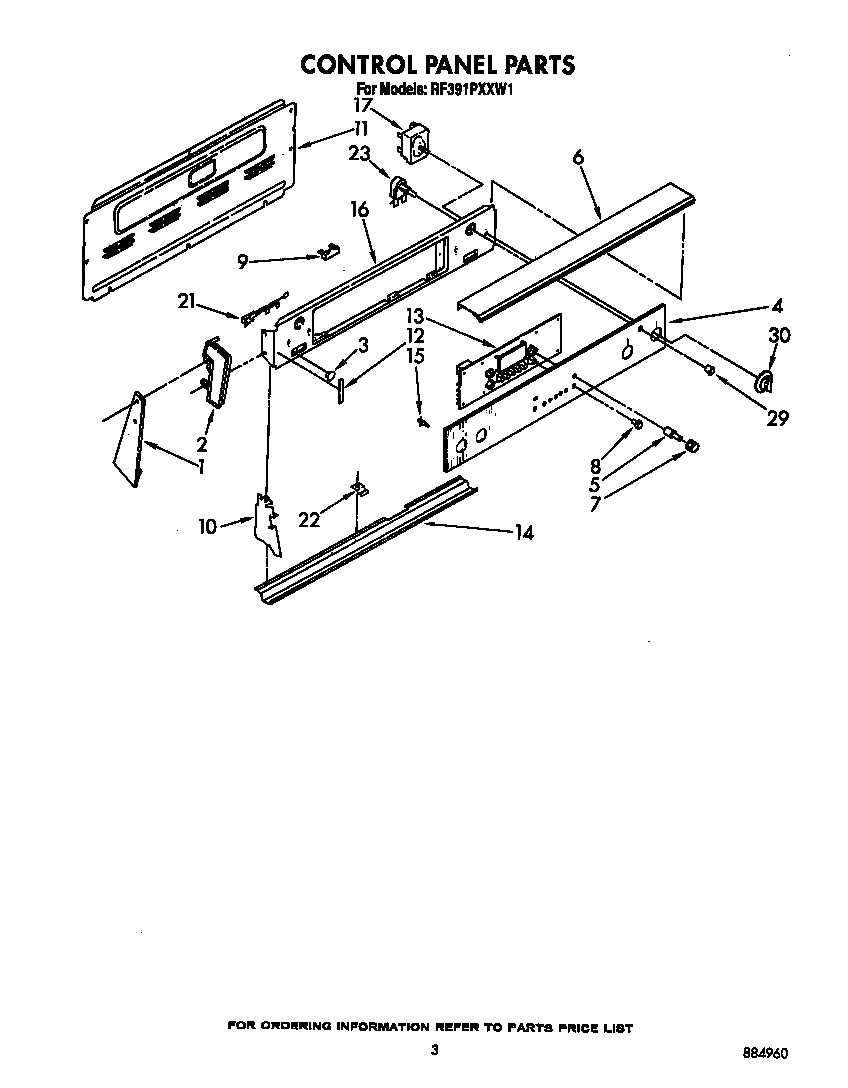

Control panel Diagram

Range surface element control switch

Part #W10900107
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  3148946
This part replaces 3148946

$27.66

Back Order

Range Light Socket

#10

Oven (continued) Diagram

Range light socket

Part #W11281687
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  3150505
This part replaces 3150505

$21.50

In Stock
