Amana
Electric Wall Oven

Model # AOES2430E-P1132363NE Official Amana wall oven

Here are the diagrams and repair parts for Official Amana AOES2430E-P1132363NE wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 150 parts  |
Regular Rack R0760019
#34

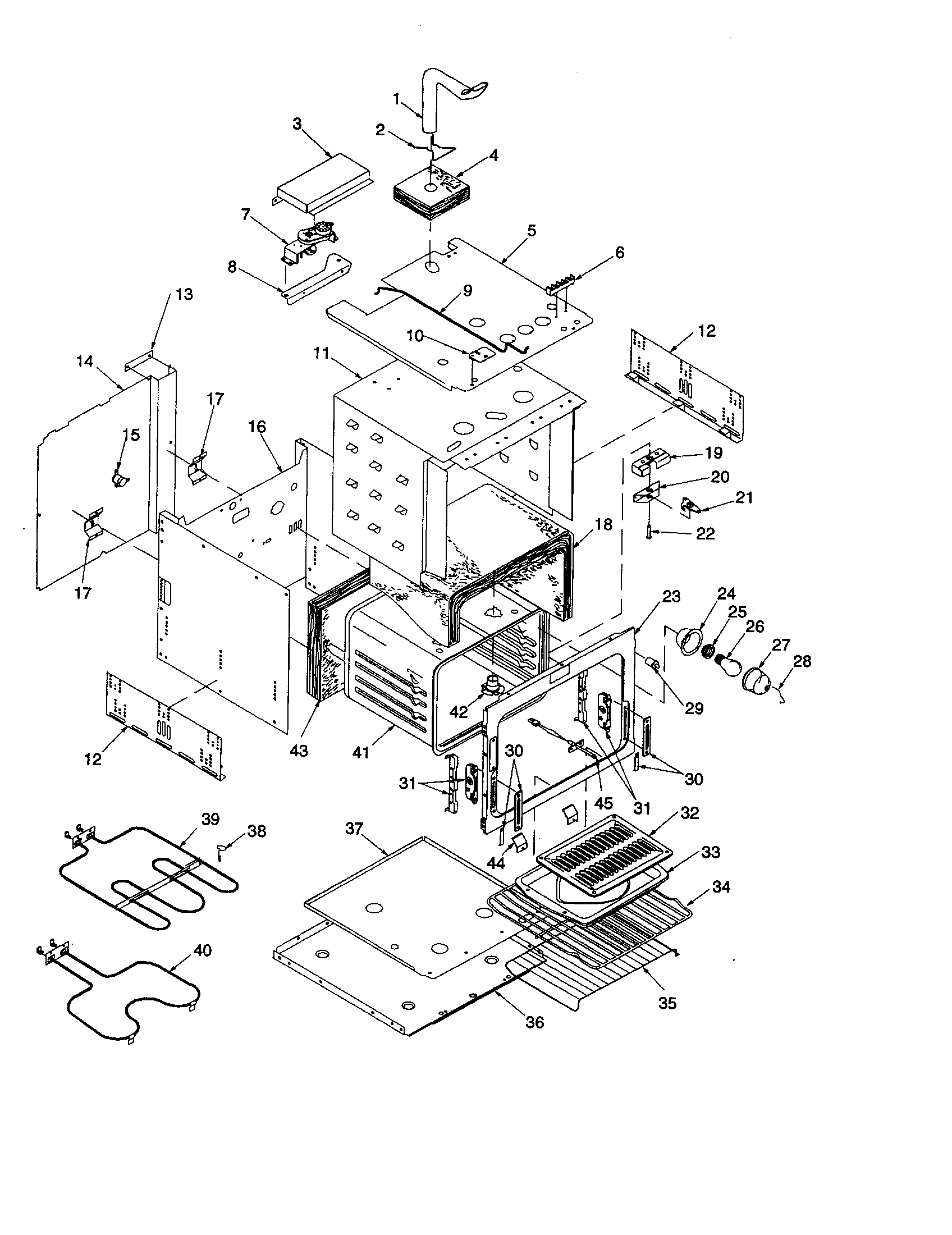

Oven body diagram

Regular rack

Part #R0760019

The manufacturer no longer makes this part, and there's no substitute part

Front-oven (p1132363ne, P1132363nww) R9900420
#23A

Oven body diagram

Front-oven (p1132363ne, p1132363nww)

Part #R9900420

The manufacturer no longer makes this part, and there's no substitute part

Bracket R0762050
#19

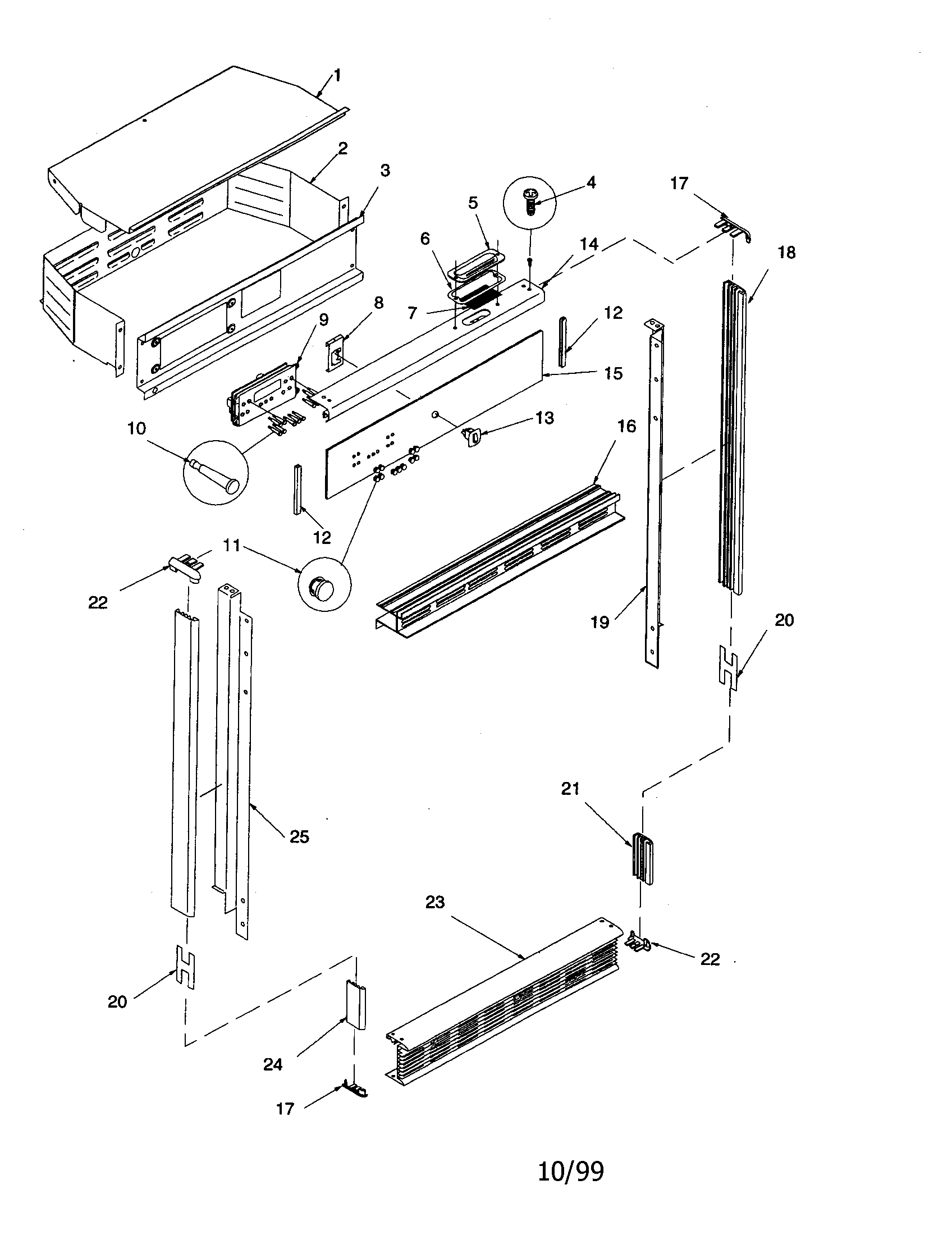

Control panel diagram

Bracket

Part #R0762050

The manufacturer no longer makes this part, and there's no substitute part

Insulation Wrapper (p1132363ne, P1132363nww) R9900444
#18

Oven body diagram

Insulation wrapper (p1132363ne, p1132363nww)

Part #R9900444

The manufacturer no longer makes this part, and there's no substitute part

Retainer-door R0751506
#30A

Oven body diagram

Retainer-door

Part #R0751506

The manufacturer no longer makes this part, and there's no substitute part

Duct R0762064
#1

Oven body diagram

Duct

Part #R0762064

The manufacturer no longer makes this part, and there's no substitute part

Strike Plate (p1132355ne, P1132355nww) R0760003
#6

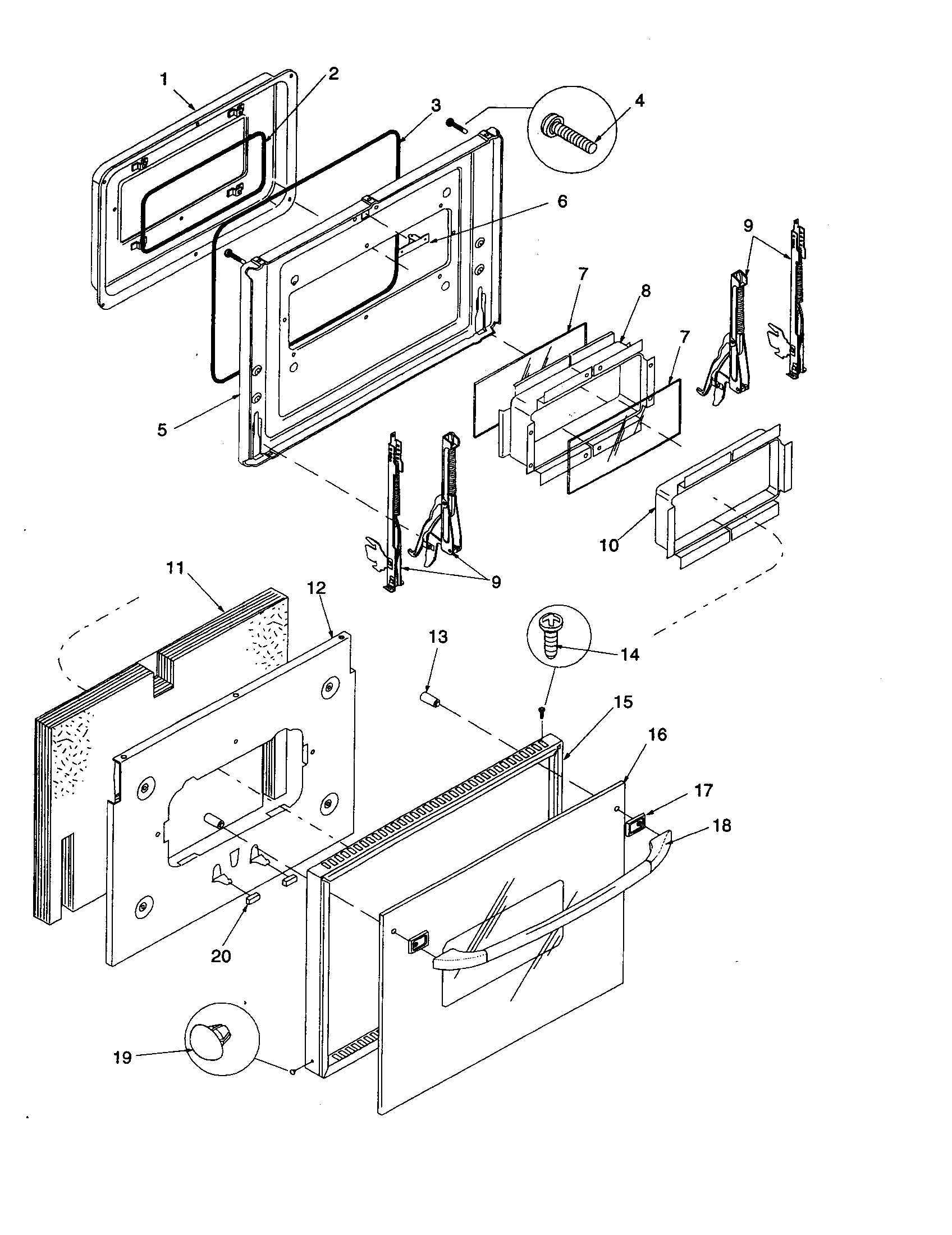

Door assembly diagram

Strike plate (p1132355ne, p1132355nww)

Part #R0760003

The manufacturer no longer makes this part, and there's no substitute part

Shield, Ovenbottom R0762017
#37

Oven body diagram

Shield, ovenbottom

Part #R0762017

The manufacturer no longer makes this part, and there's no substitute part

Spacer, Cork & Rubber R0762080
#20

Door assembly diagram

Spacer, cork & rubber

Part #R0762080

The manufacturer no longer makes this part, and there's no substitute part

Box And Wires Assembly (p1132363ne, P1132363nww) R9900448

#NI

All parts diagram

Box and wires assembly (p1132363ne, p1132363nww)

Part #R9900448

The manufacturer no longer makes this part, and there's no substitute part
