Amana
Electric Wall Oven

Model # AOES2430E-P1132363NE Official Amana wall oven

Here are the diagrams and repair parts for Official Amana AOES2430E-P1132363NE wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

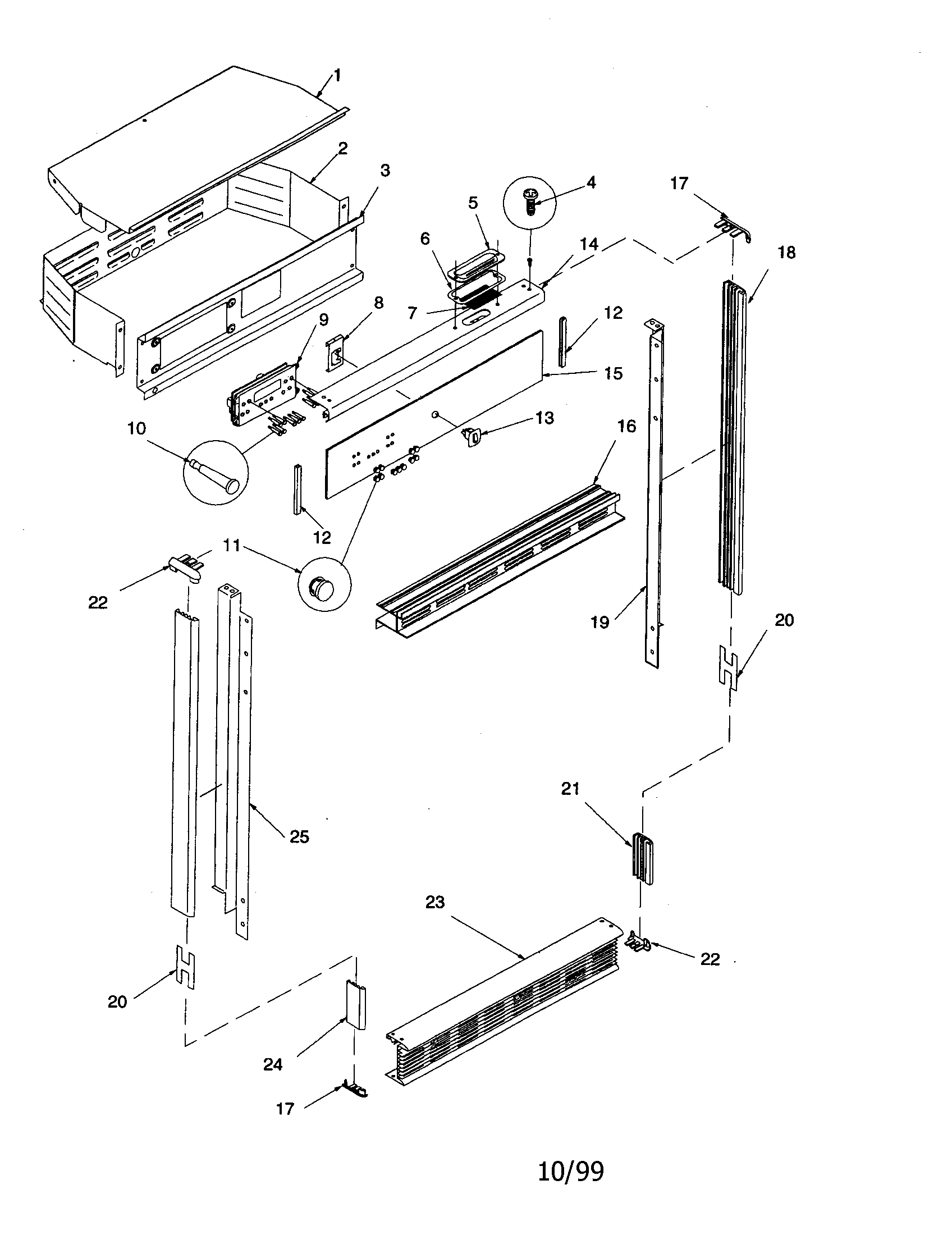

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 150 parts  |
Regular Rack R0760019
#34

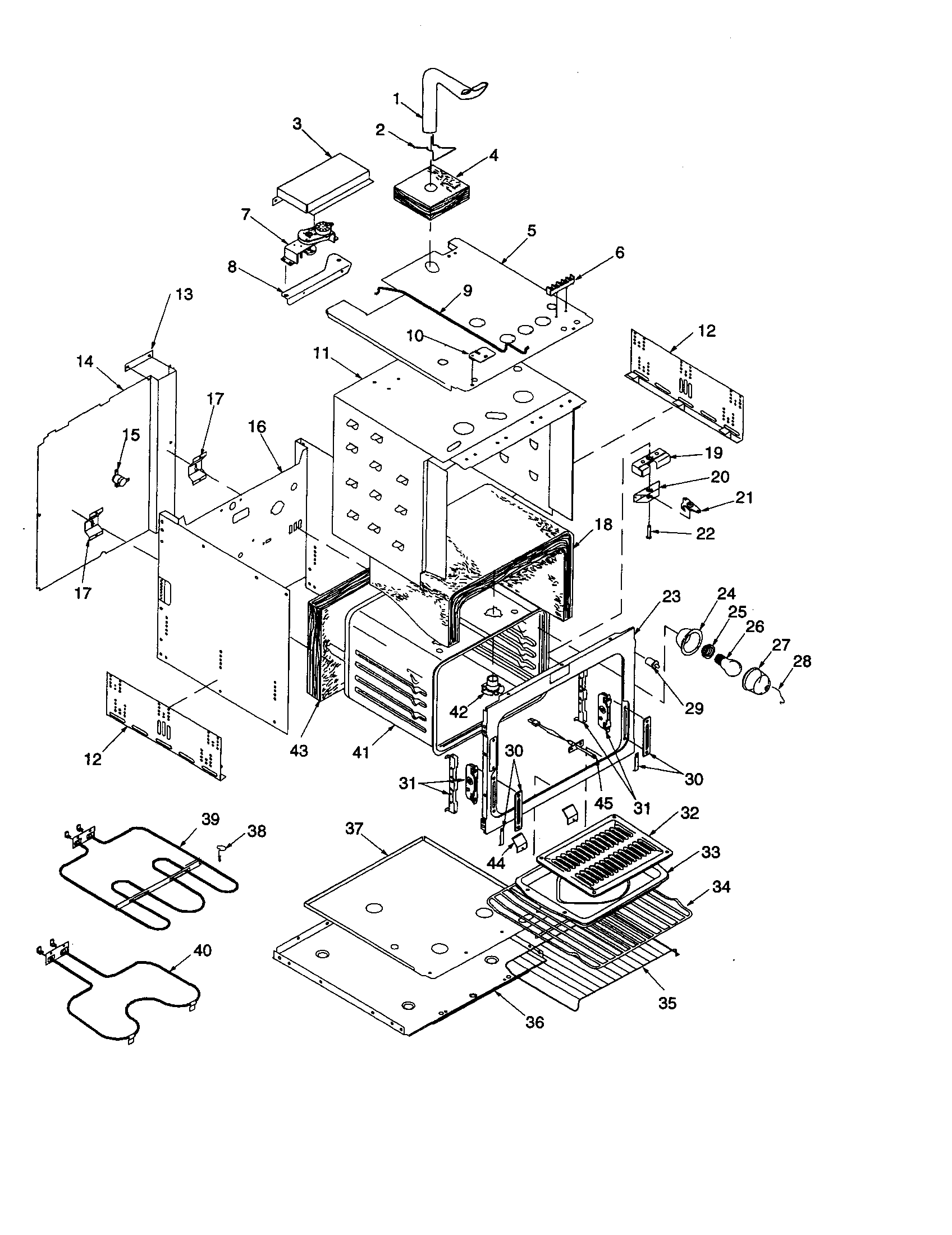

Oven body diagram

Regular rack

Part #R0760019

The manufacturer no longer makes this part, and there's no substitute part

Retainer-door R0751506
#30A

Oven body diagram

Retainer-door

Part #R0751506

The manufacturer no longer makes this part, and there's no substitute part

Screw-handle R0762023
#4

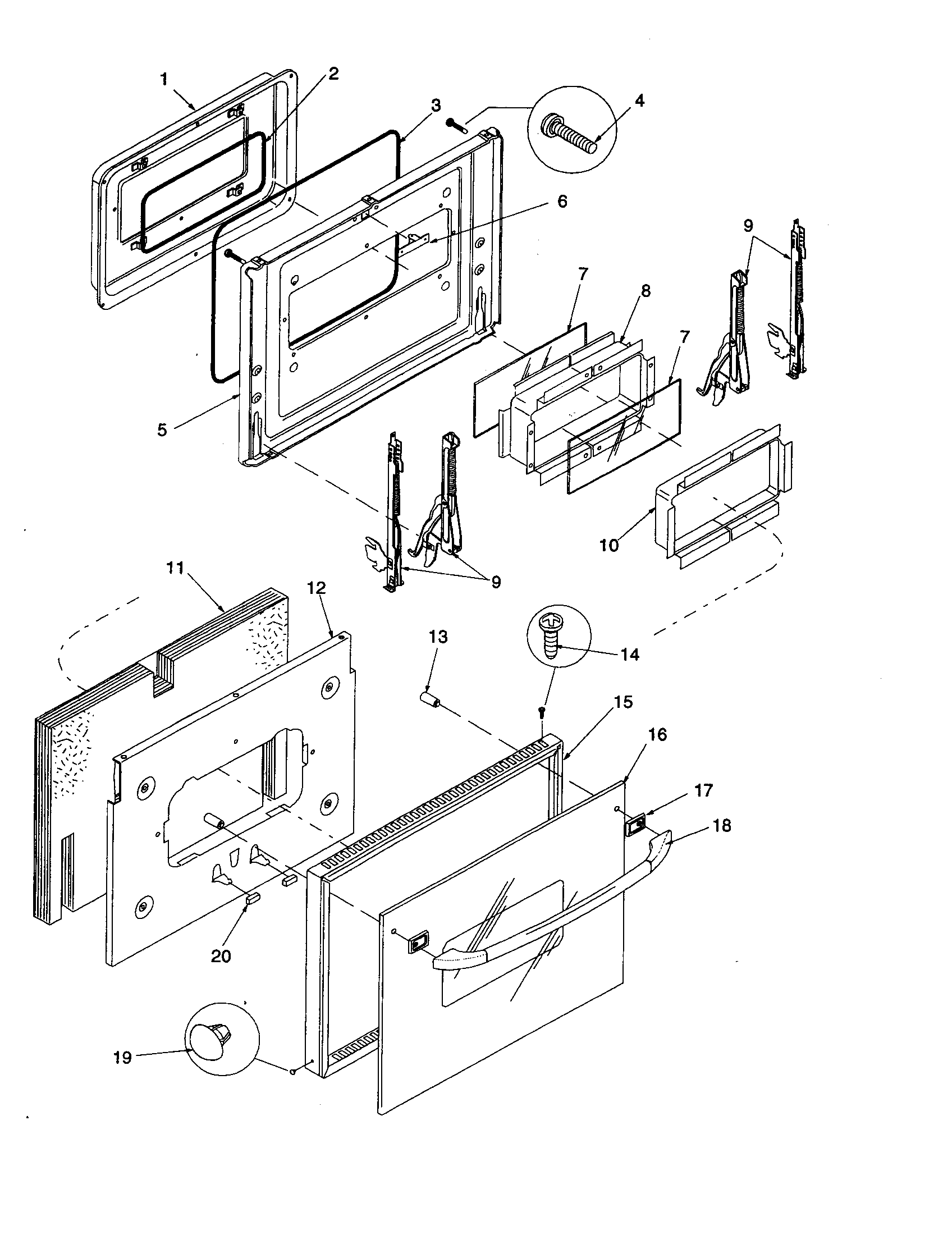

Door assembly diagram

Screw-handle

Part #R0762023

The manufacturer no longer makes this part, and there's no substitute part

Seal-oven Door (p1132355ne, P1132355nww) R0757004
#3

Door assembly diagram

Seal-oven door (p1132355ne, p1132355nww)

Part #R0757004

The manufacturer no longer makes this part, and there's no substitute part

Housing-door Lock R0762035
#20

Oven body diagram

Housing-door lock

Part #R0762035

The manufacturer no longer makes this part, and there's no substitute part

Shield-wire R0762083
#14

Oven body diagram

Shield-wire

Part #R0762083

The manufacturer no longer makes this part, and there's no substitute part

Bracket-oven Bottom R0762103
#13

Oven body diagram

Bracket-oven bottom

Part #R0762103

The manufacturer no longer makes this part, and there's no substitute part

Front-oven (p1132363ne, P1132363nww) R9900420
#23A

Oven body diagram

Front-oven (p1132363ne, p1132363nww)

Part #R9900420

The manufacturer no longer makes this part, and there's no substitute part

Insulation Wrapper (p1132363ne, P1132363nww) R9900444
#18

Oven body diagram

Insulation wrapper (p1132363ne, p1132363nww)

Part #R9900444

The manufacturer no longer makes this part, and there's no substitute part

Liner-door Baffle (p1132363ne, P1132363nww) R9900424
#5

Door assembly diagram

Liner-door baffle (p1132363ne, p1132363nww)

Part #R9900424

The manufacturer no longer makes this part, and there's no substitute part
