Samsung
Bottom-Mount Refrigerator

Model #RF28HMEDBWW/AA-07 Samsung refrigerator

Here are the diagrams and repair parts for Samsung RF28HMEDBWW-AA-07 refrigerator, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 323 parts

    Refrigerator Temperature Sensor

    #1-2

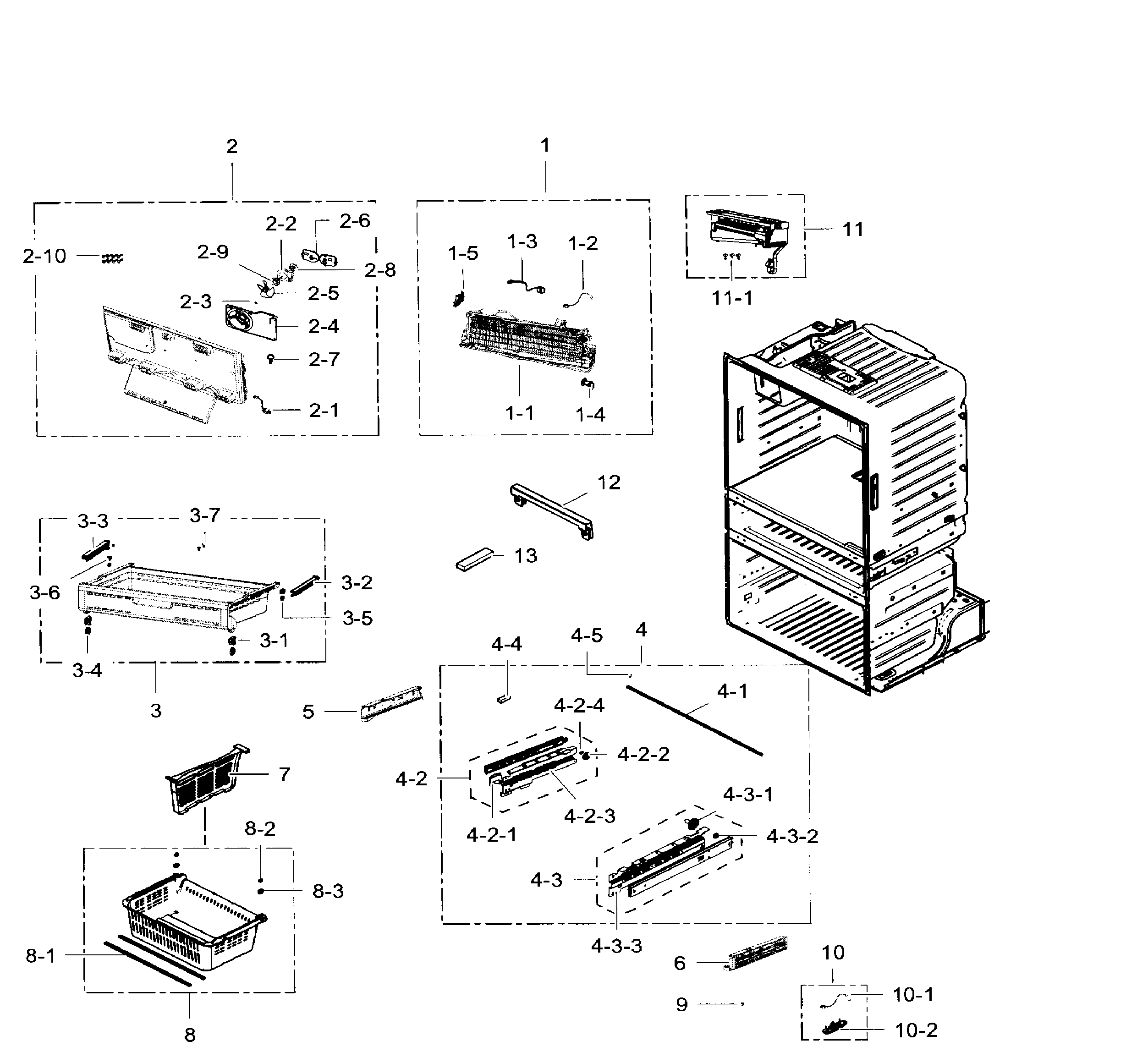

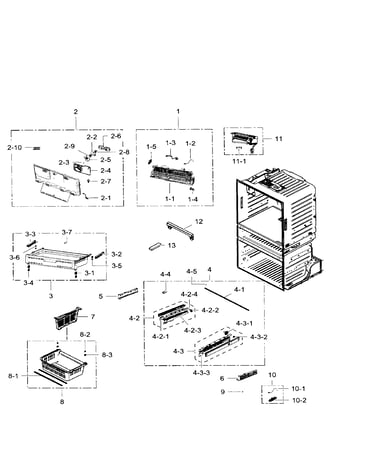

    Freezer / icemaker Diagram

    $18.03

    In Stock

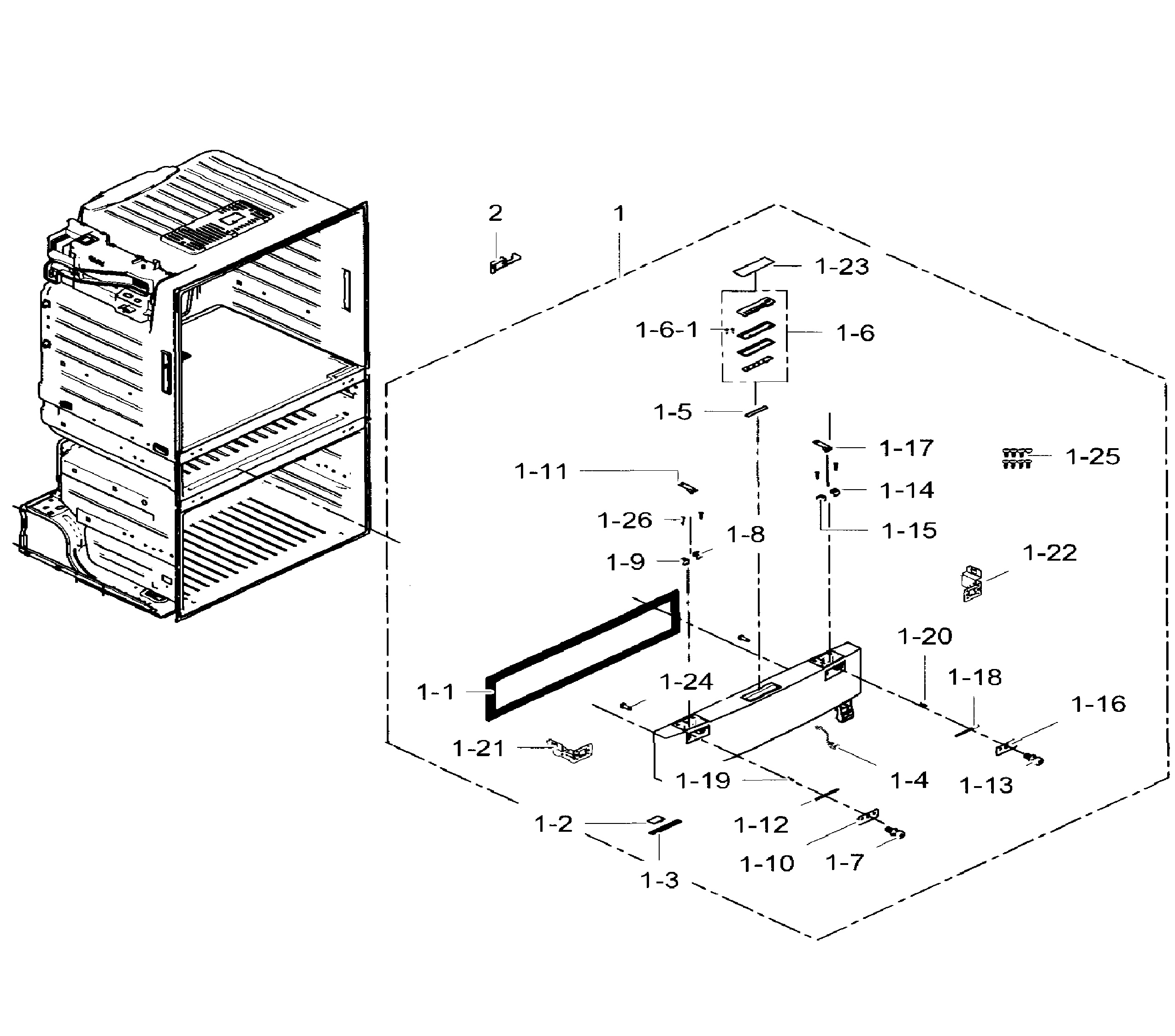

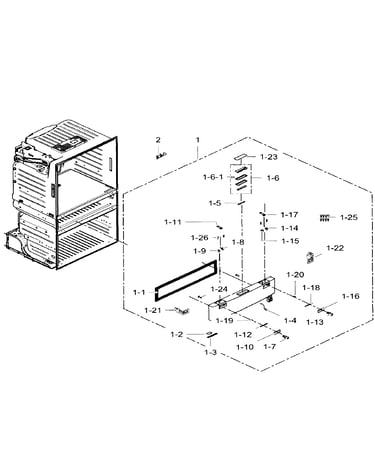

    Refrigerator Freezer Door Handle Support

    #3-2

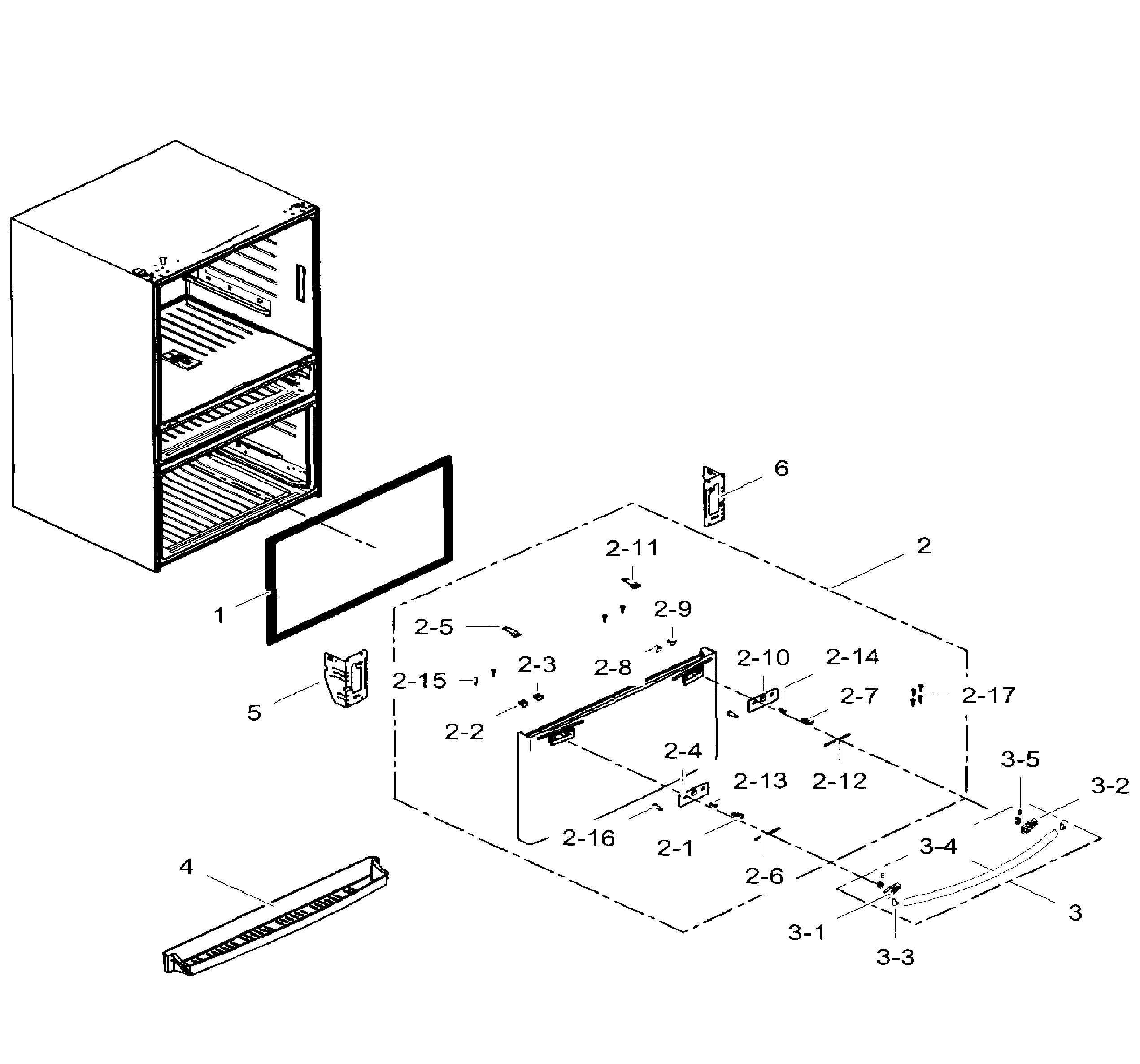

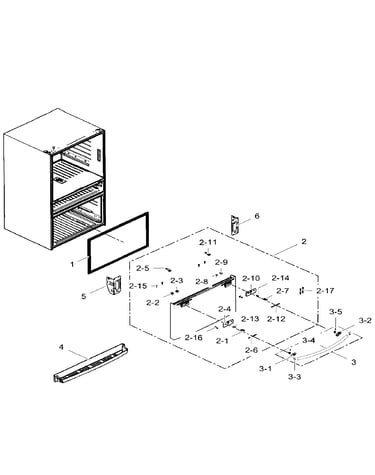

    Freezer door Diagram

    $17.65

    In Stock

    Refrigerator Fresh Food Evaporator Cover Assembly

    #6

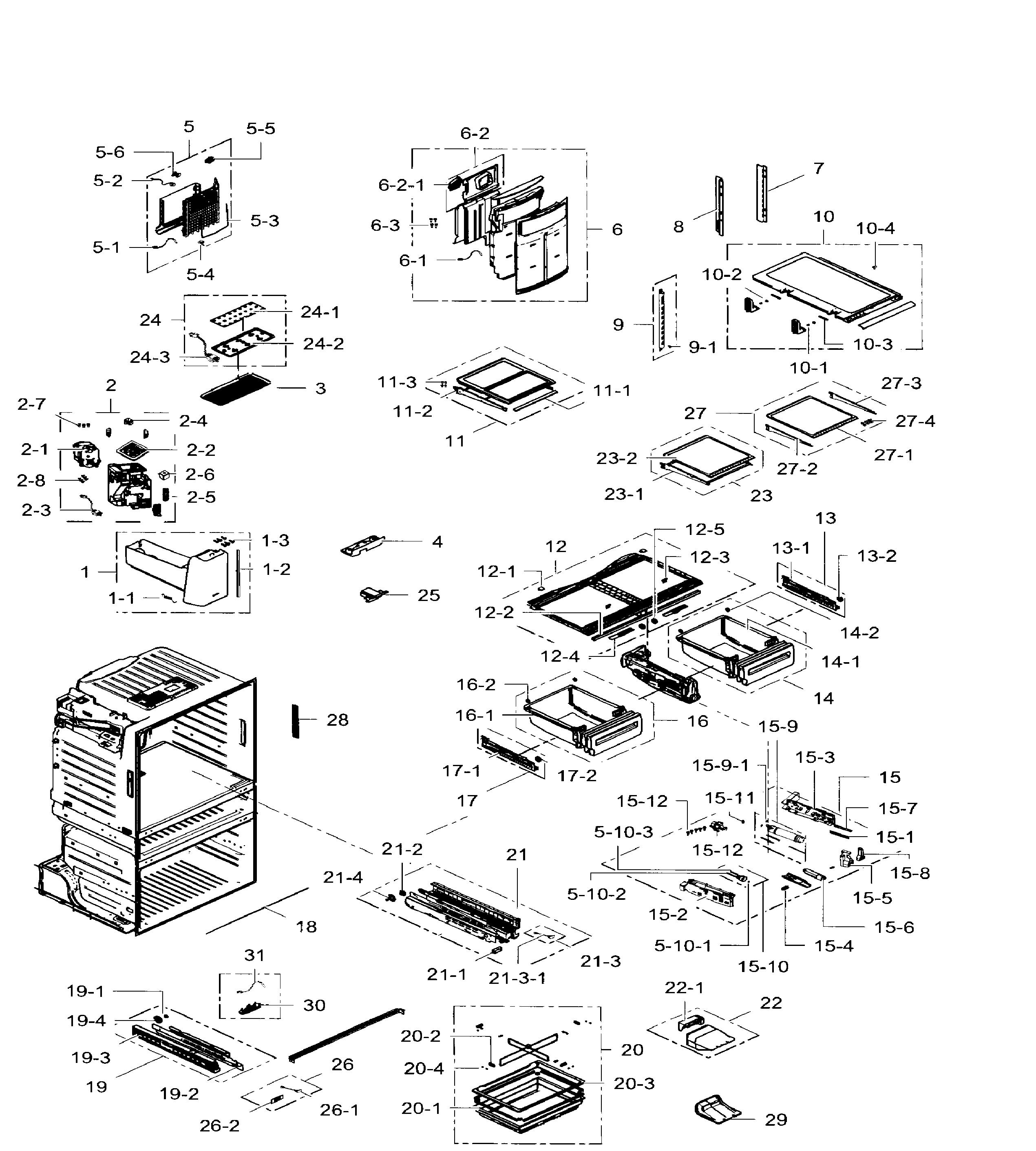

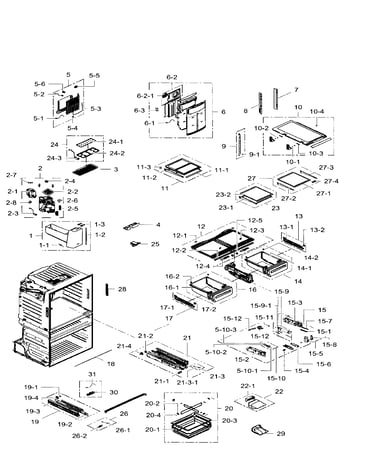

    Fridge Diagram

    $113.52

    In Stock

    Refrigerator Door Handle Assembly

    #12-4

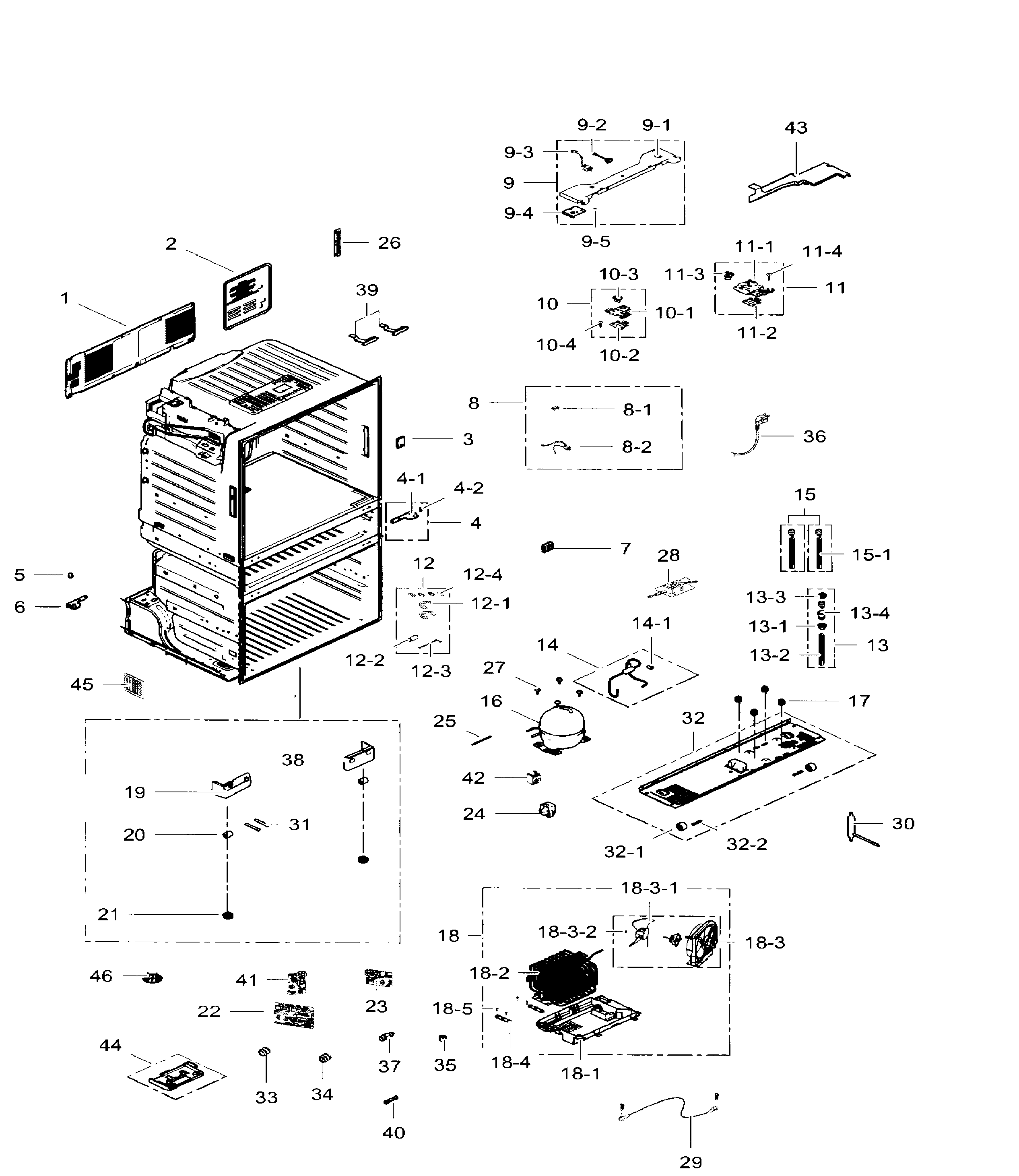

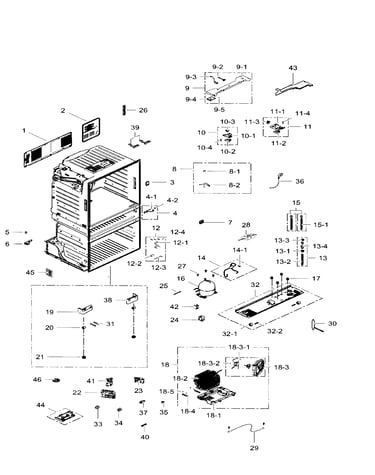

    Cabinet Diagram

    $8.00

    In Stock

    Refrigerator Wire Harness

    #21-3

    Fridge Diagram

    Refrigerator wire harness

    Part #DA96-00640A
    $94.18

    In Stock

    Refrigerator Temperature Sensor

    #6-1

    Fridge Diagram

    $17.22

    In Stock

    Refrigerator Door Handle Set Screw

    #3-5

    Freezer door Diagram

    Refrigerator door handle set screw

    Part #6009-001526
    This item is not returnable
    $2.61

    In Stock

    Refrigerator Flipper Hinge

    #7-3

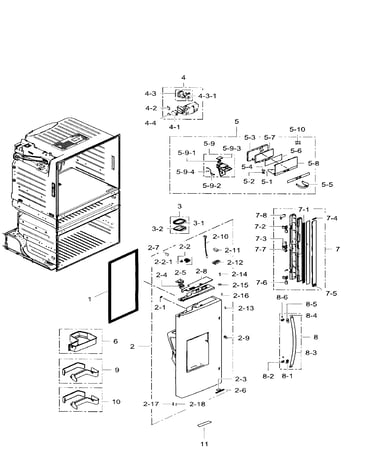

    Left door Diagram

    Refrigerator flipper hinge

    Part #DA63-03454B
    This item is not returnable
    $3.86

    In Stock

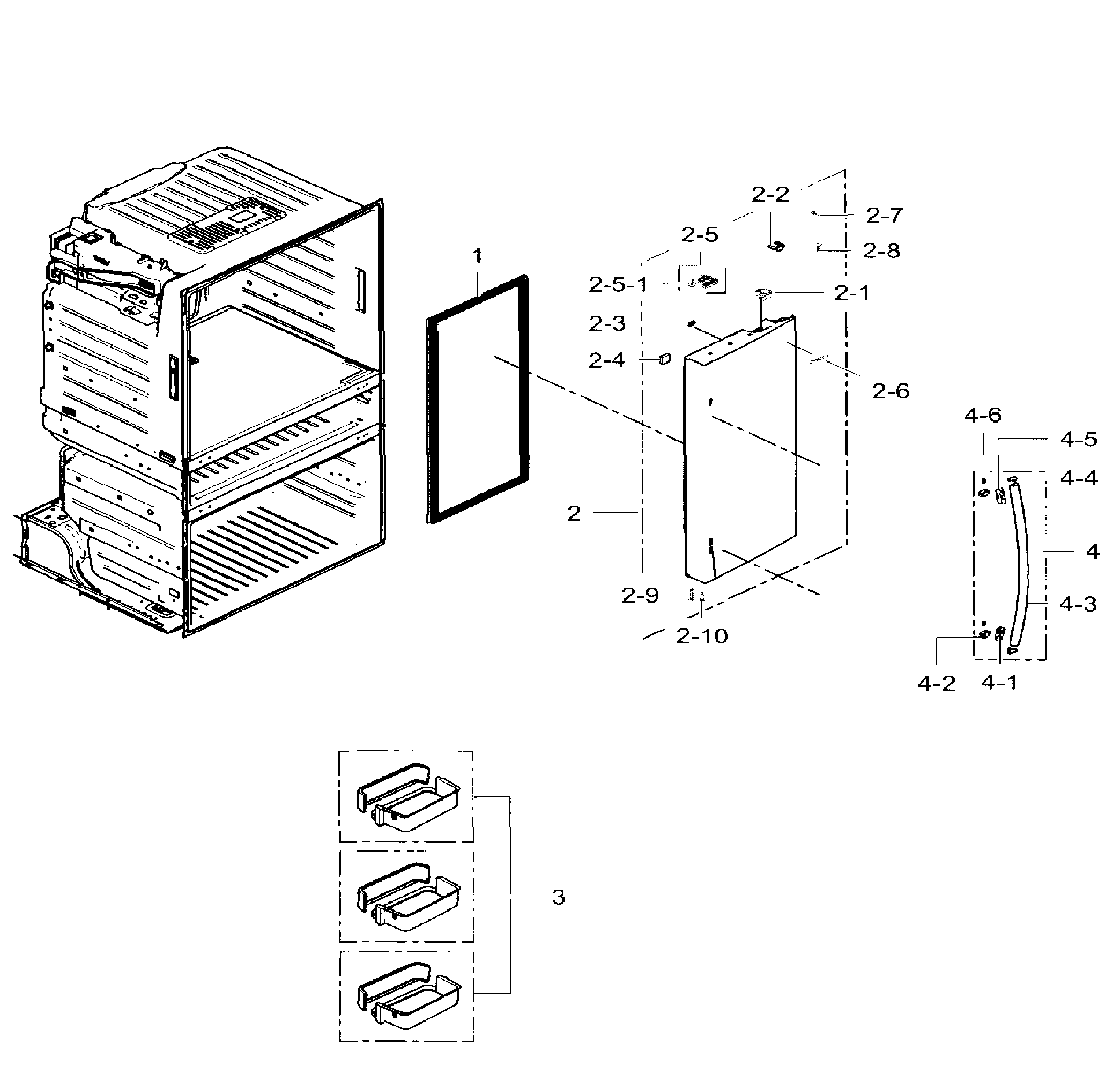

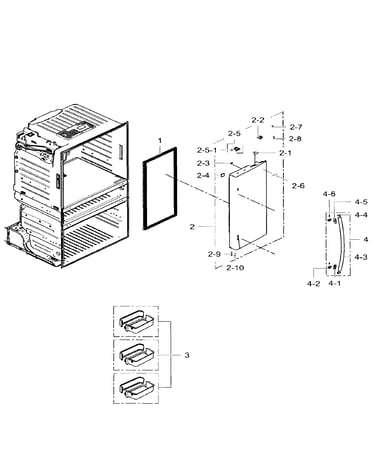

    Refrigerator Door Gasket

    #1

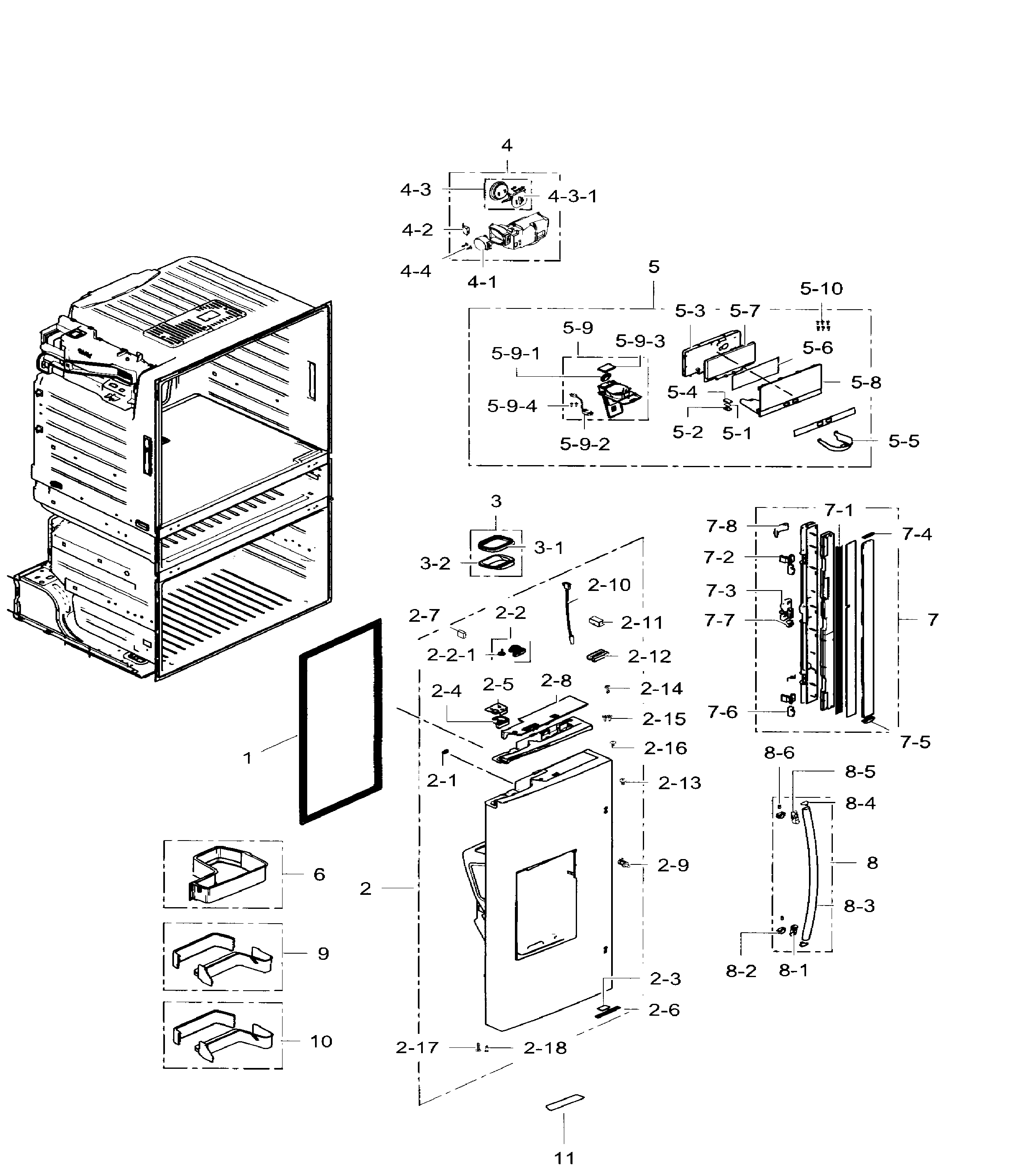

    Left door Diagram

    Refrigerator door gasket

    Part #DA97-13015C
    $75.71

    In Stock

    Refrigerator Dispenser Lever

    #5-9

    Left door Diagram

    $75.15

    In Stock
