Model # MAV7501EWW Official Maytag washer

Here are the diagrams and repair parts for Official Maytag MAV7501EWW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

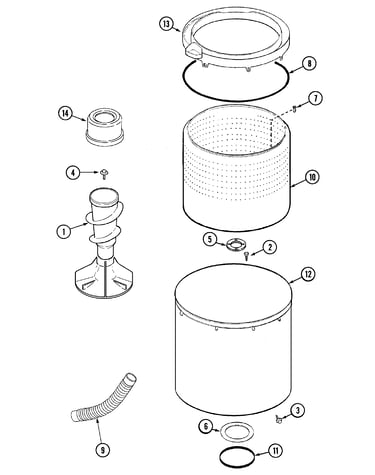

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

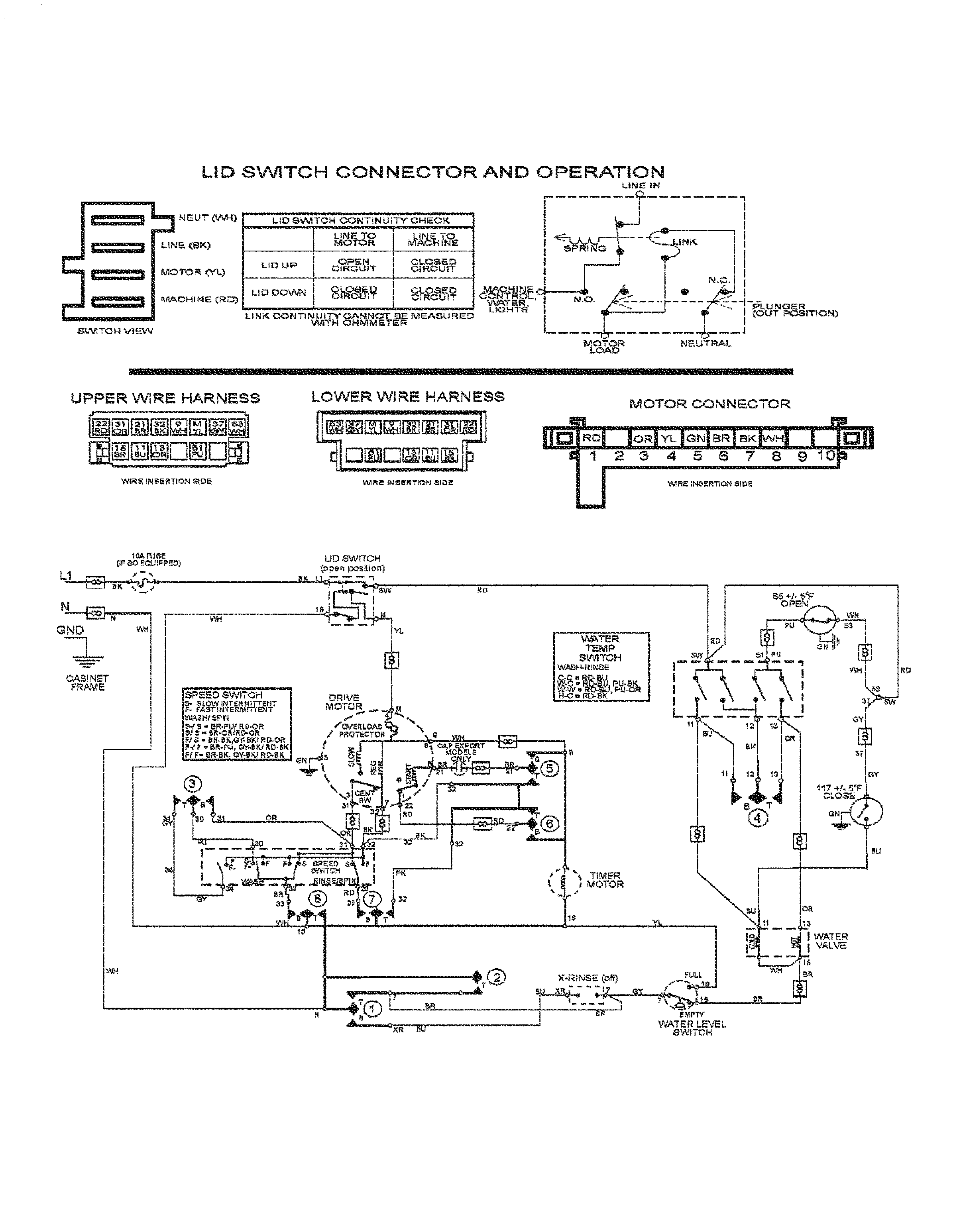

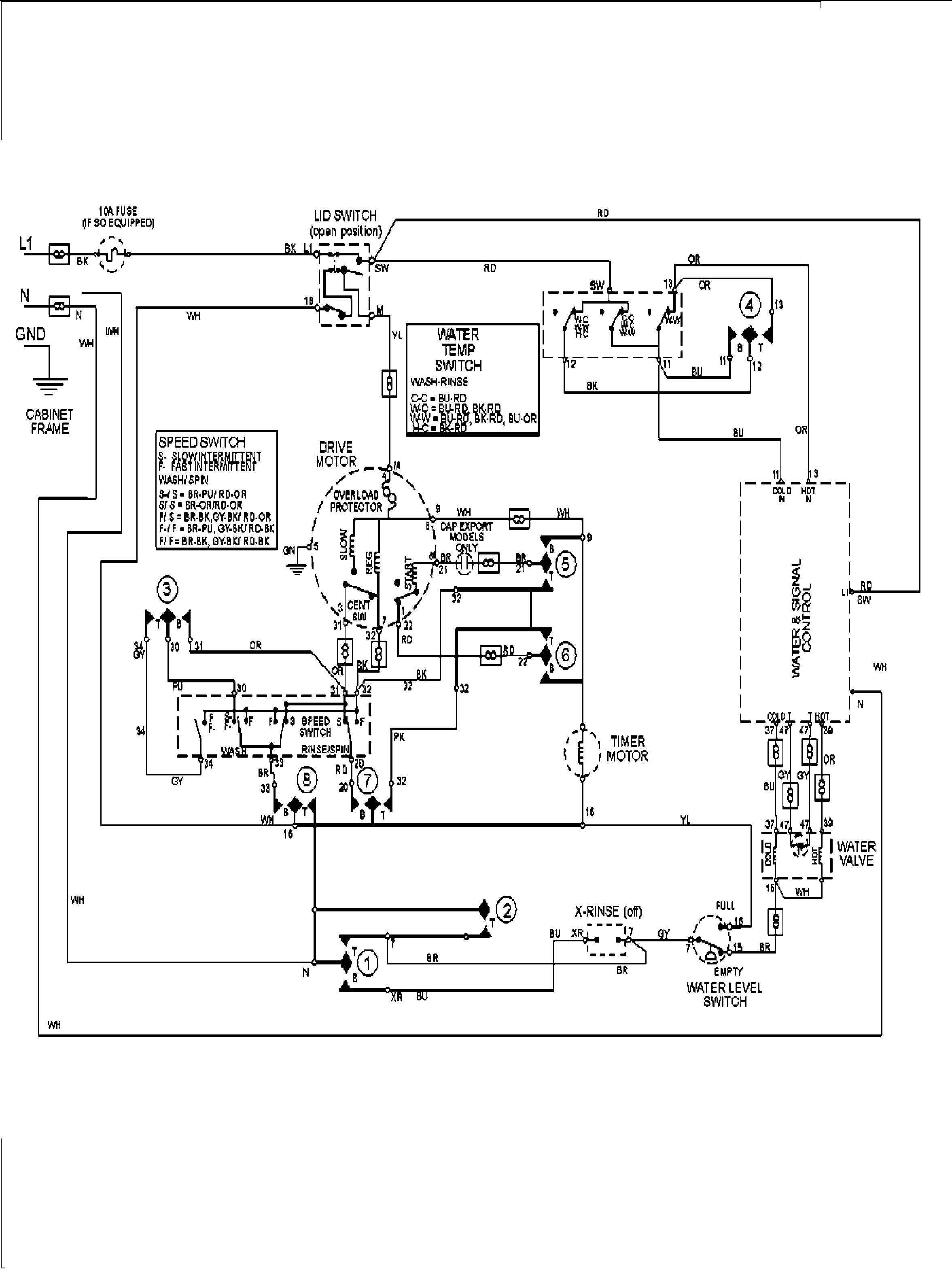

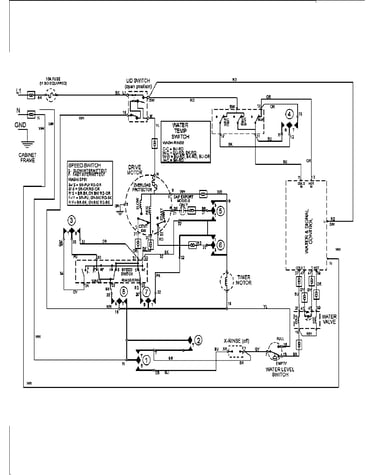

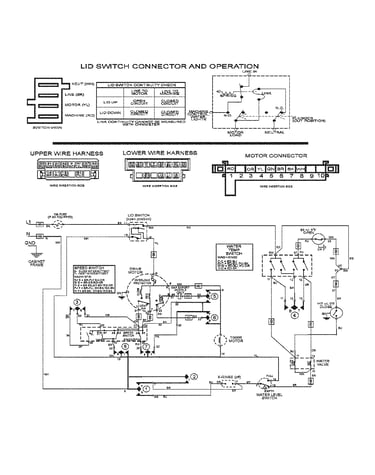

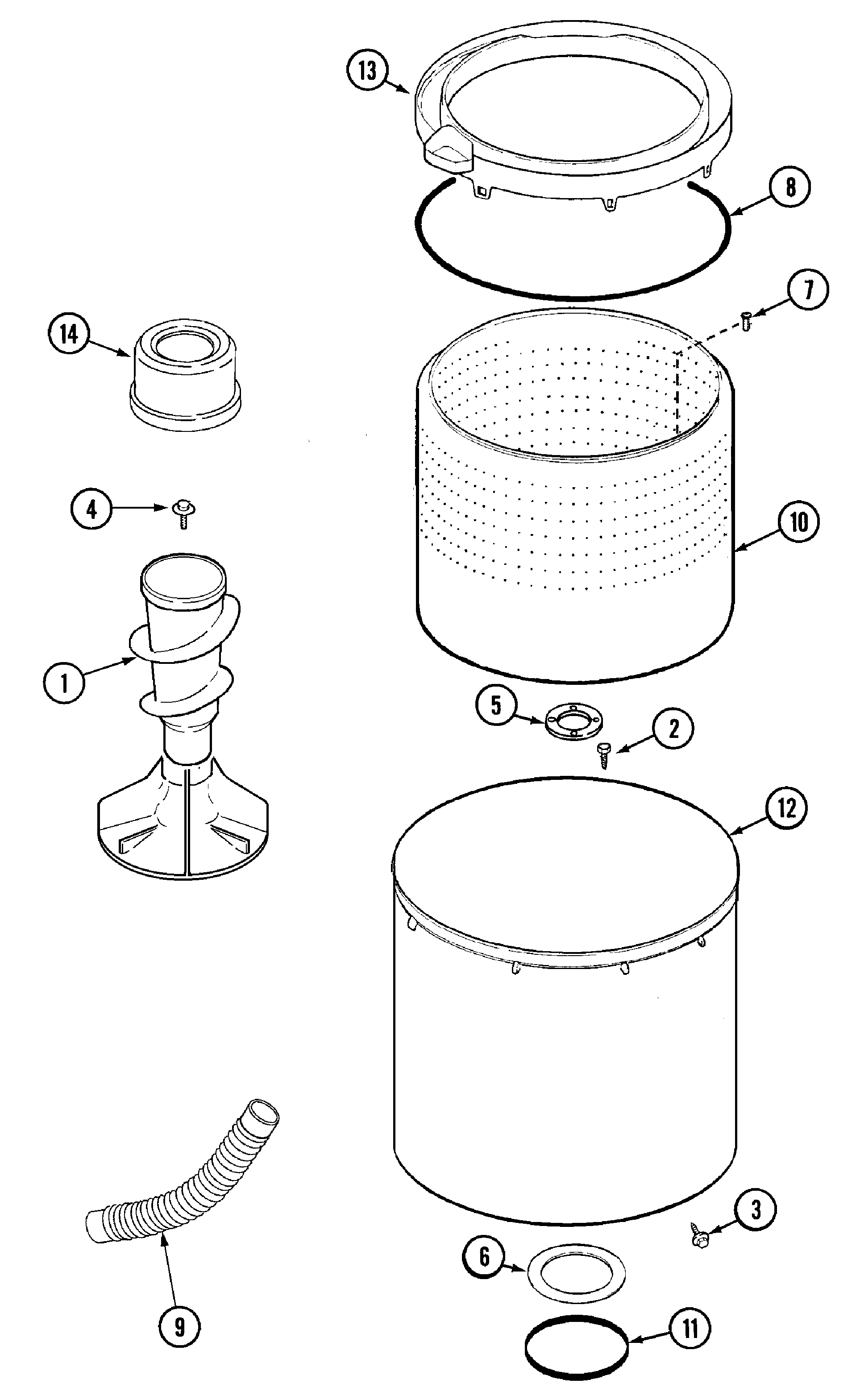

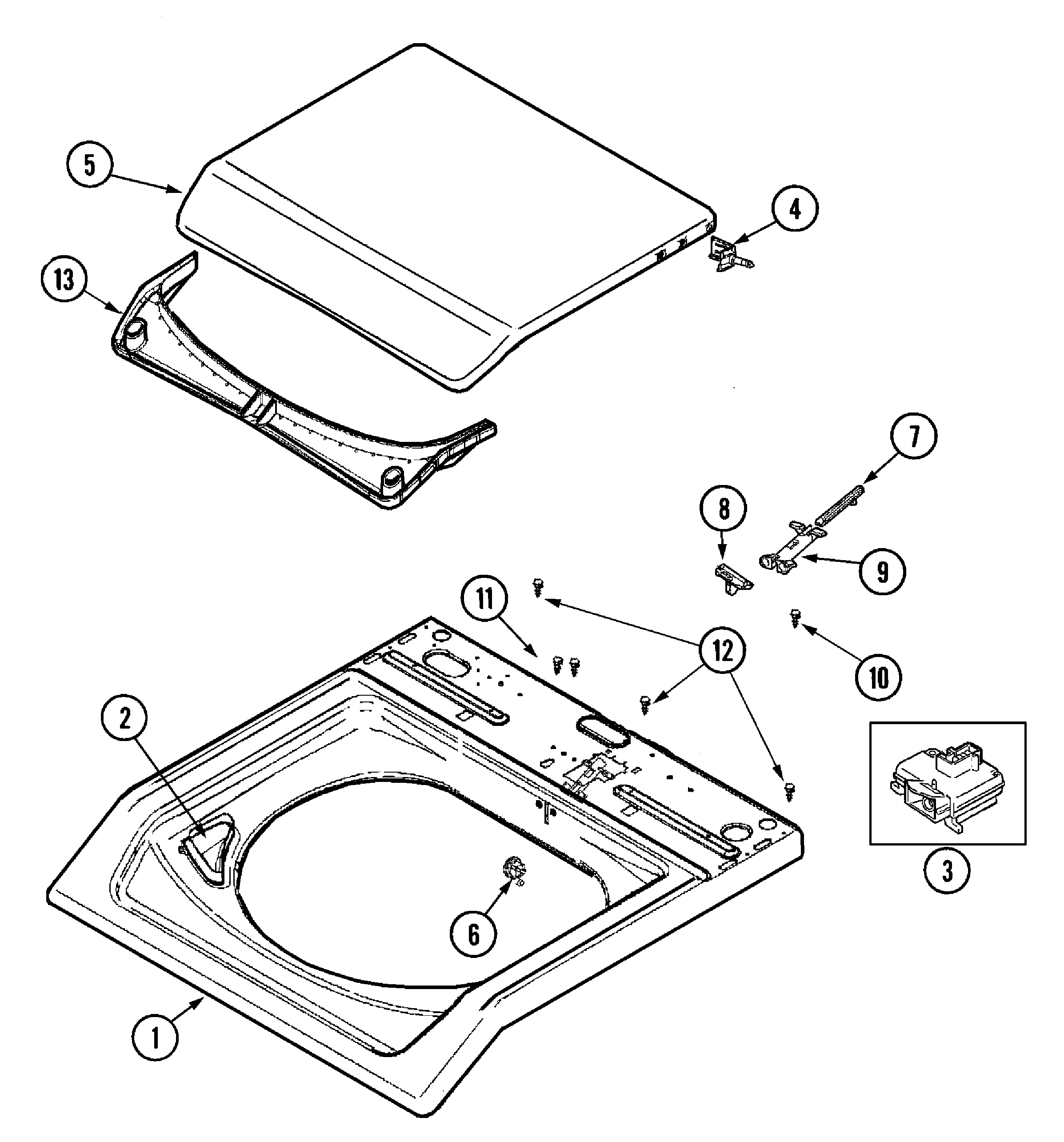

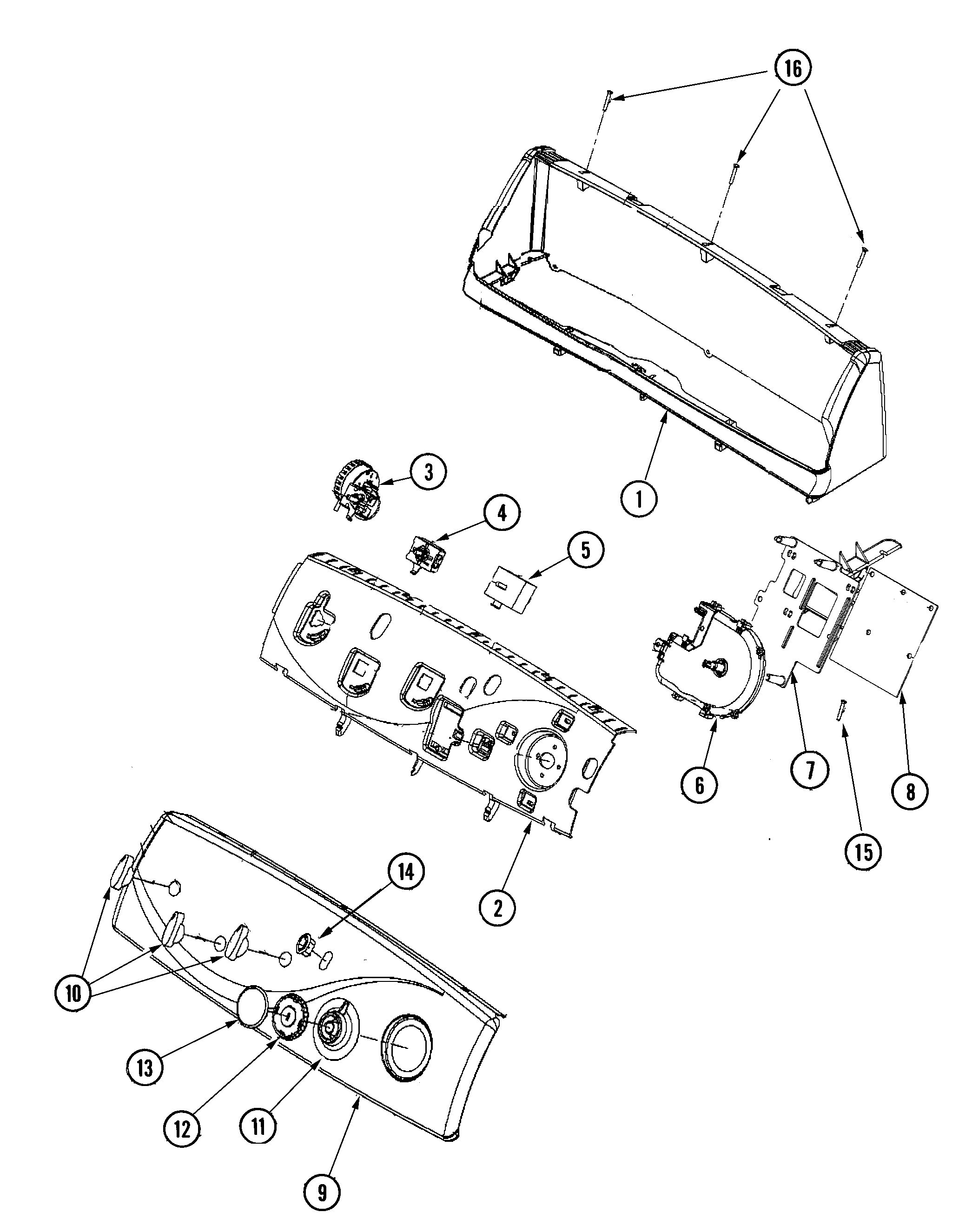

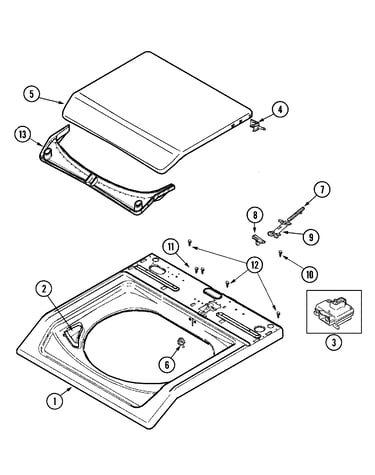

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 171 parts  |
Hose Clamp 22002853
#13

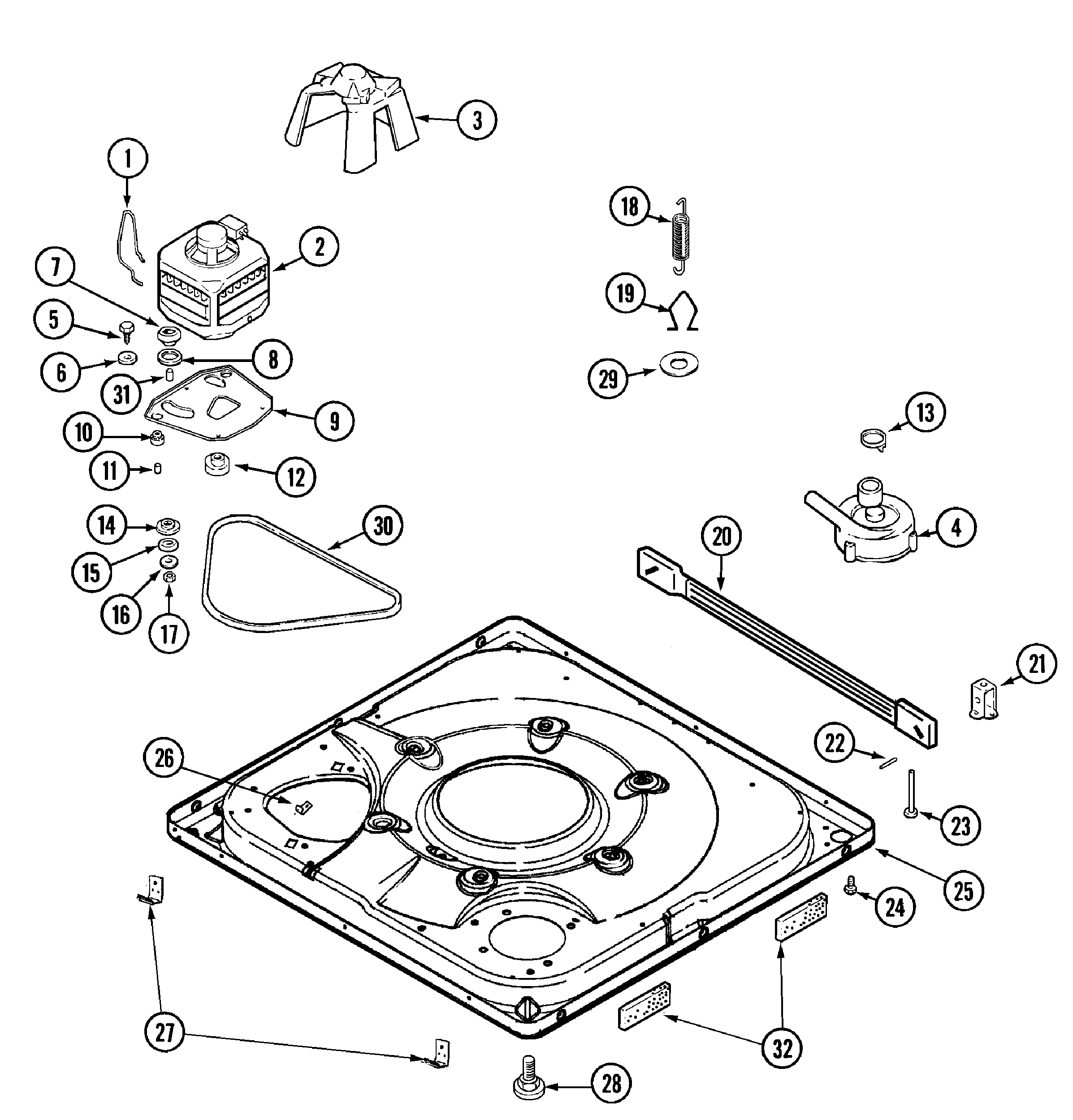

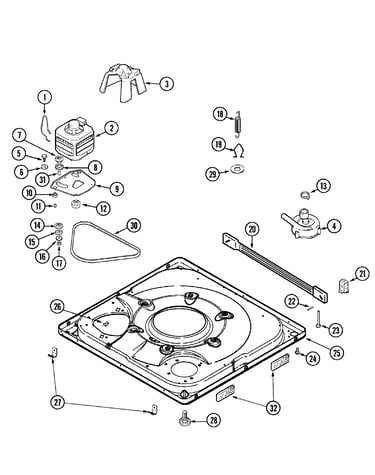

Base diagram

Hose clamp

Part #22002853

Replaced by #WP285655

?
Manufacturer substitution
This part replaces 22002853. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49 |
59% OFF MSRP : $16.00
In Stock
Inlet Hose 33-7891
#16A

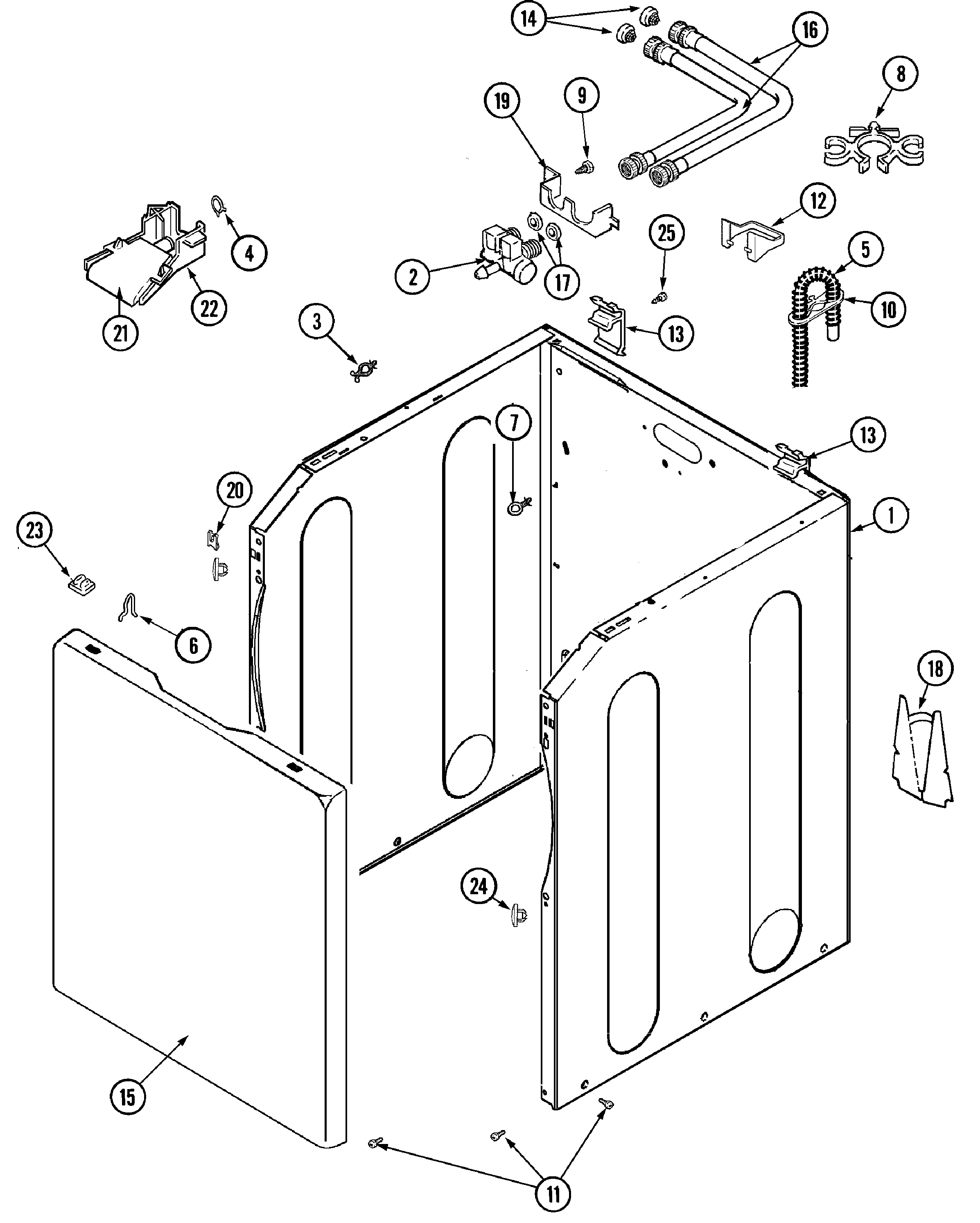

Cabinet diagram

Inlet hose

Part #33-7891

Replaced by #WP89503

?
Manufacturer substitution
This part replaces 33-7891. Substitute parts can look different from the original.
BEST SELLER
$14.49 |
12% OFF Phone Price : $16.49
In Stock
Washer Drive Motor 21001506
#2A

Base diagram

Washer drive motor

Part #21001506

Replaced by #WP21001950

?
Manufacturer substitution
This part replaces 21001506. Substitute parts can look different from the original.
BEST SELLER
$141.69 |
21% OFF MSRP : $180.00
In Stock
Pulley 22004297
#2B

Base diagram

Pulley

Part #22004297

Replaced by #WP21001950

?
Manufacturer substitution
This part replaces 22004297. Substitute parts can look different from the original.
BEST SELLER
$141.69 |
21% OFF MSRP : $180.00
In Stock
Motor (110v 21001750
#2

Base diagram

Motor (110v

Part #21001750

Replaced by #WP21001950

?
Manufacturer substitution
This part replaces 21001750. Substitute parts can look different from the original.
BEST SELLER
$141.69 |
21% OFF MSRP : $180.00
In Stock
Washer Screw 22001995
#25

Cabinet diagram

Washer screw

Part #22001995

Replaced by #W11573574

?
Manufacturer substitution
This part replaces 22001995. Substitute parts can look different from the original.
BEST SELLER
$11.78
In Stock
Snubber 21001161
#22

Transmission diagram

Snubber

Part #21001161

Replaced by #WP21002026

?
Manufacturer substitution
This part replaces 21001161. Substitute parts can look different from the original.
This item is not returnable
$7.49 |
12% OFF Phone Price : $8.49
In Stock
Screw 22002019
#3A

Base diagram

Screw

Part #22002019

Replaced by #WP3351614

?
Manufacturer substitution
This part replaces 22002019. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Spacer 25-7830
#31

Base diagram

Spacer

Part #25-7830

Replaced by #WP25-7830

?
Manufacturer substitution
This part replaces 25-7830. Substitute parts can look different from the original.
$8.39 |
11% OFF Phone Price : $9.39
In Stock
Nut, Motor P 25-7325
#17

Base diagram

Nut, motor p

Part #25-7325

Replaced by #WPY707702

?
Manufacturer substitution
This part replaces 25-7325. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
