Model # SWTT20QN Official Speed Queen commercial washer

Here are the diagrams and repair parts for Official Speed Queen SWTT20QN commercial washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

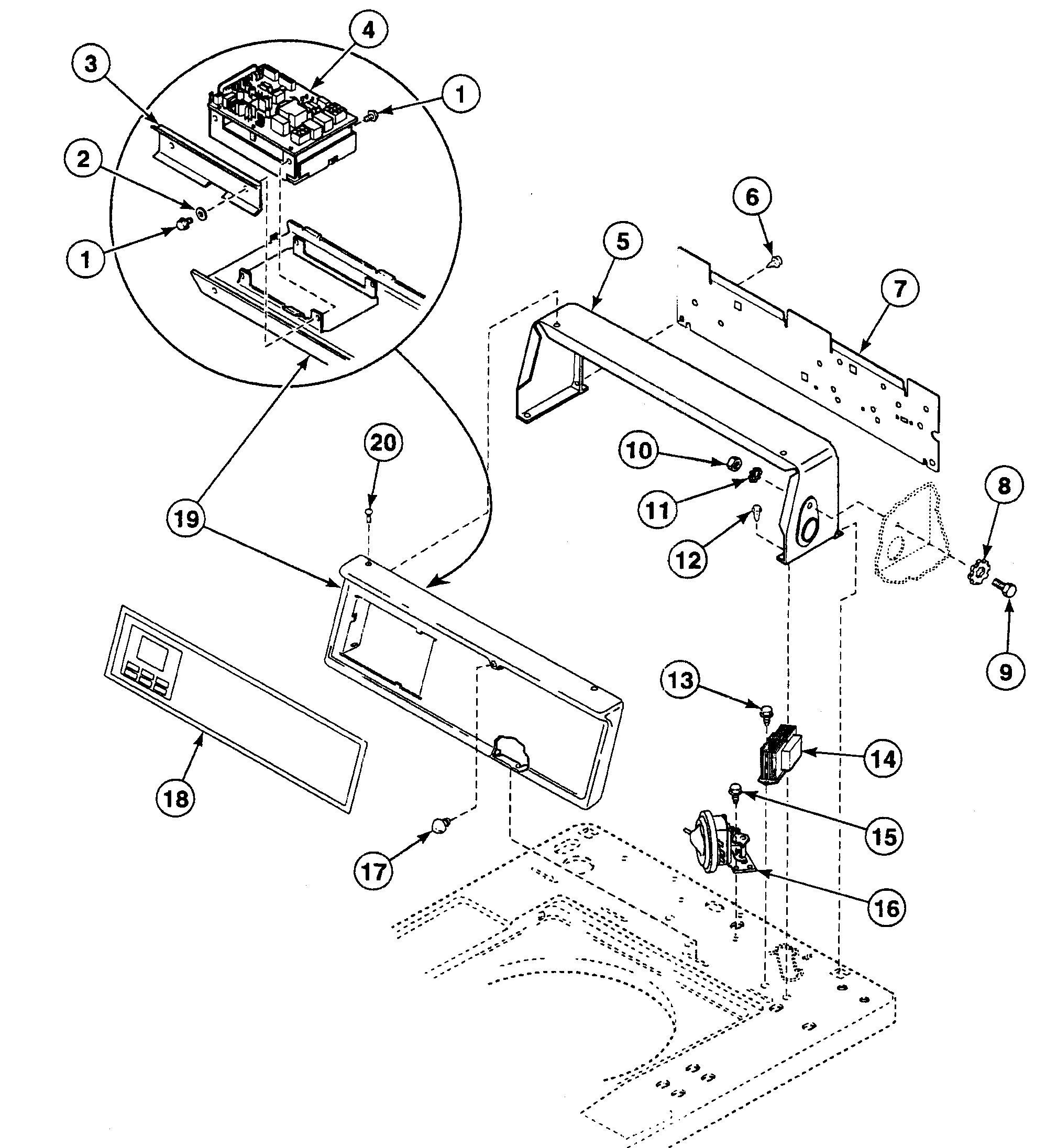

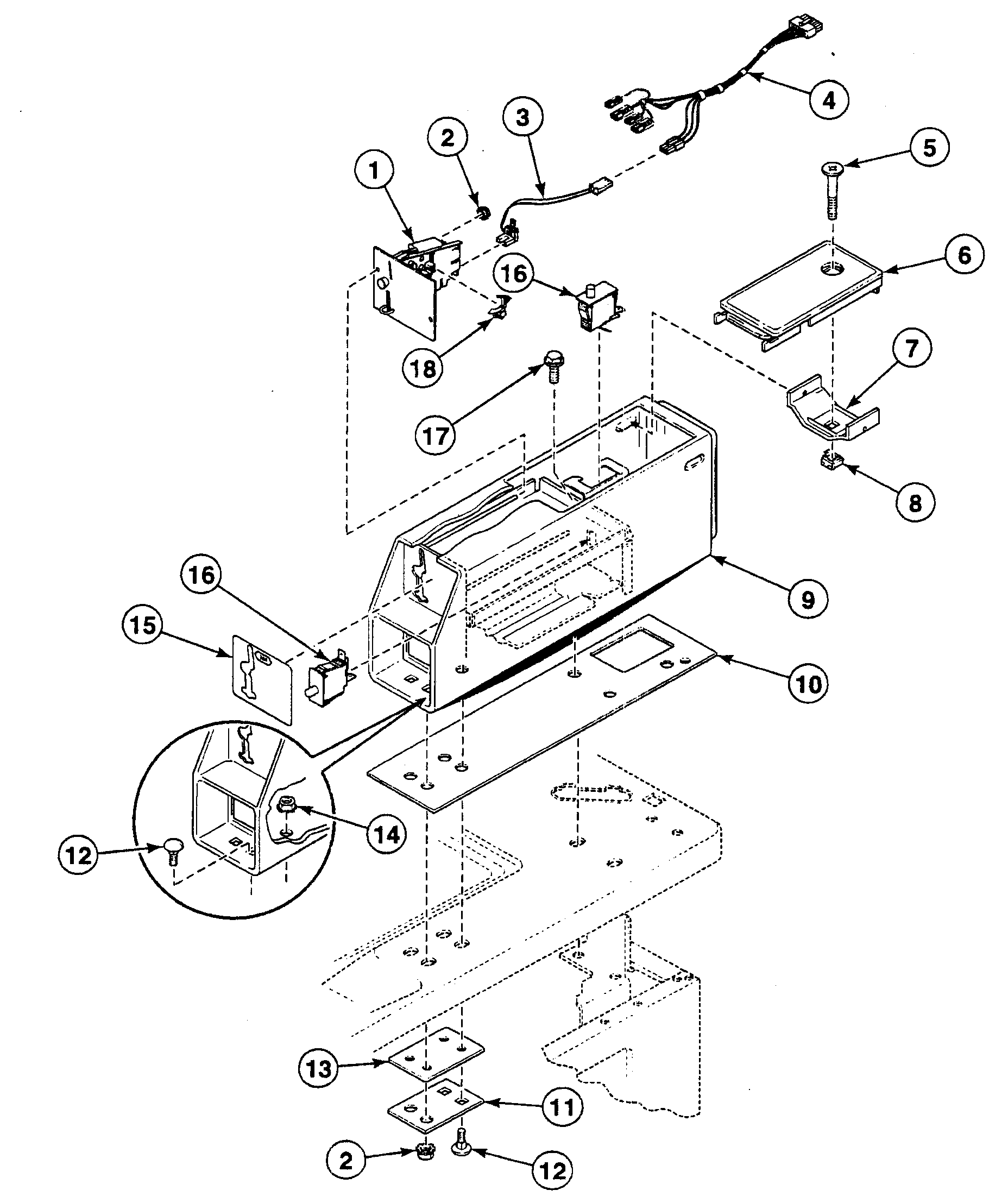

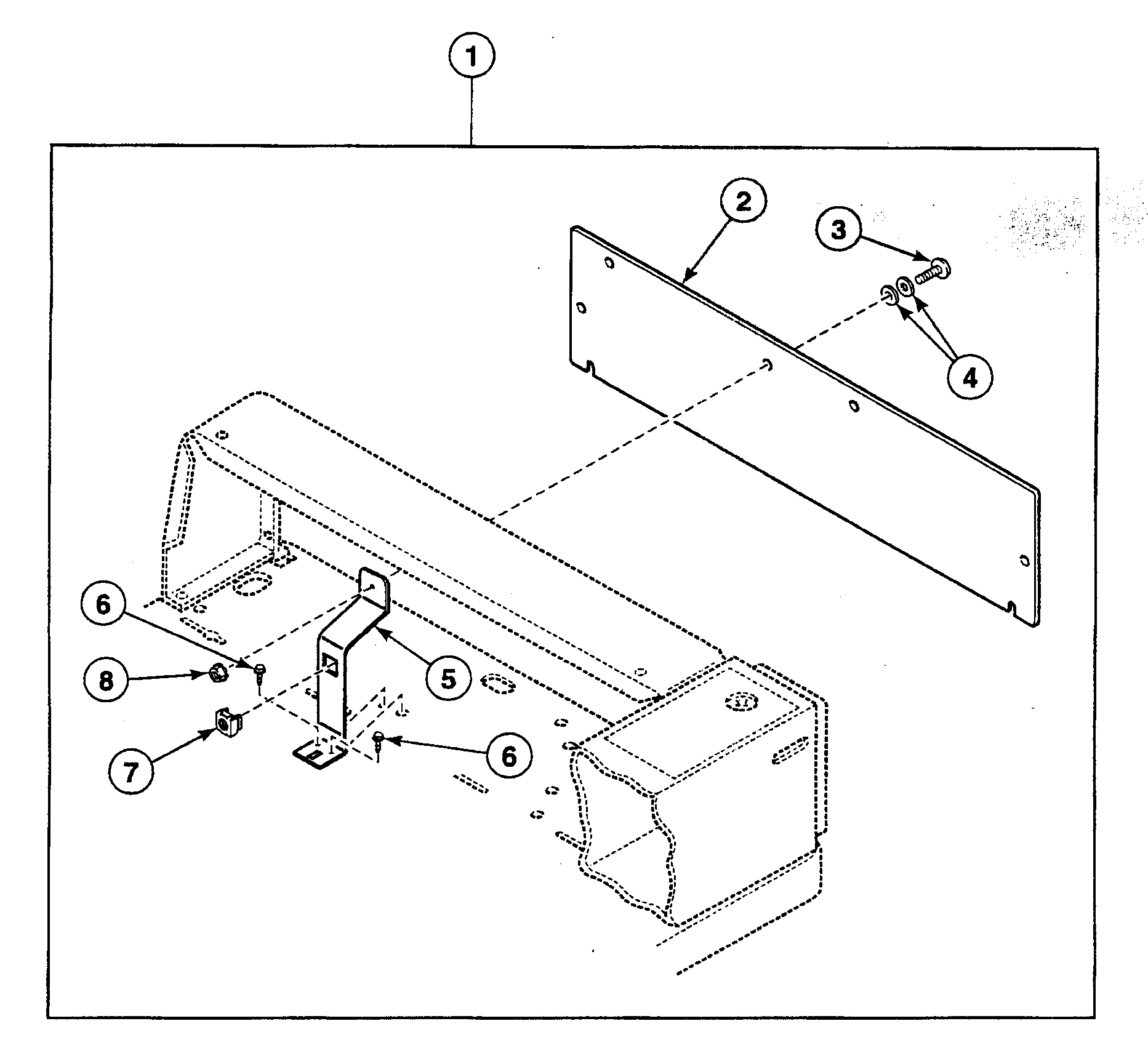

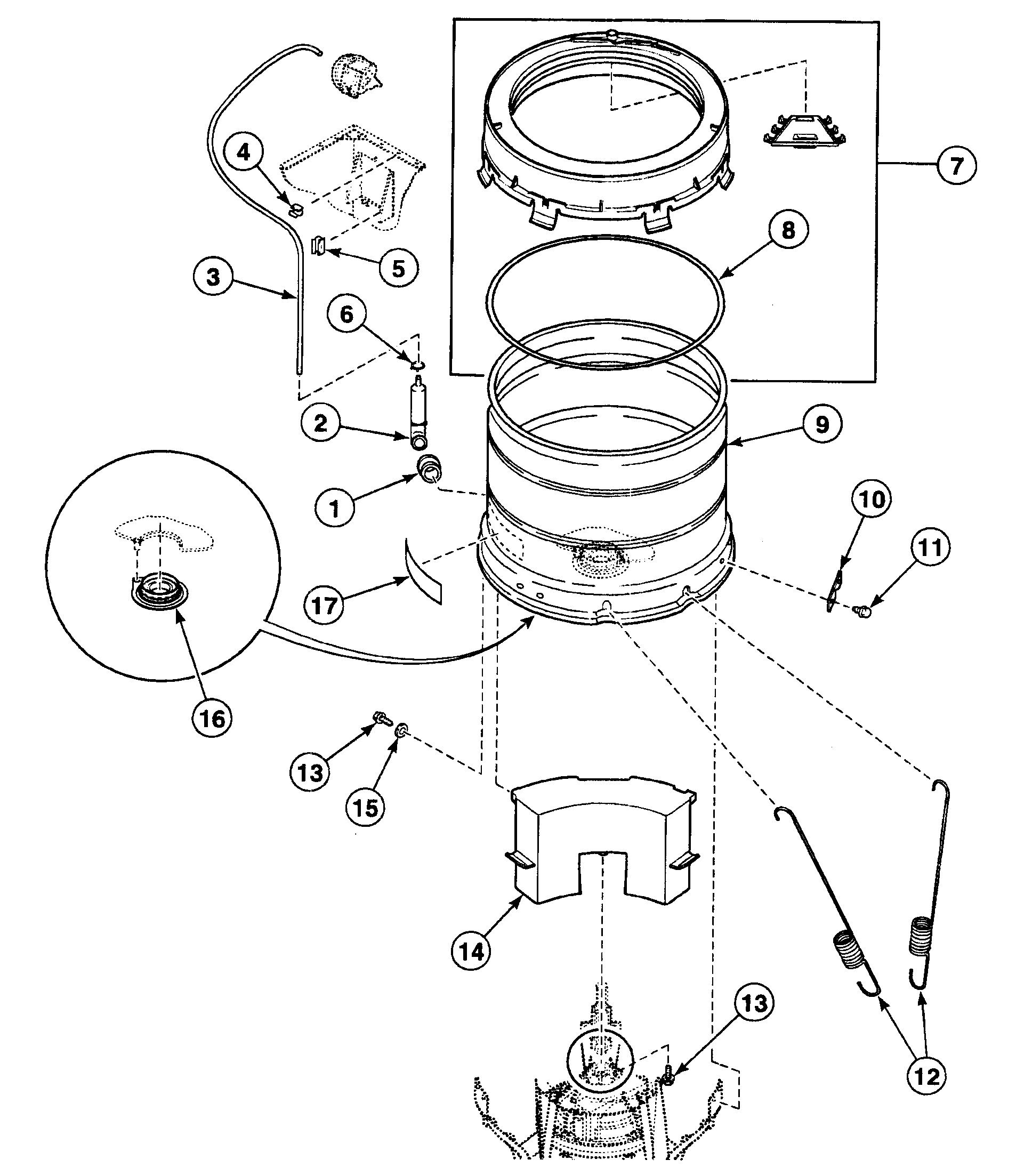

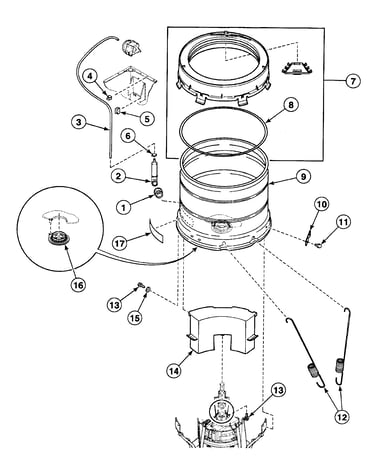

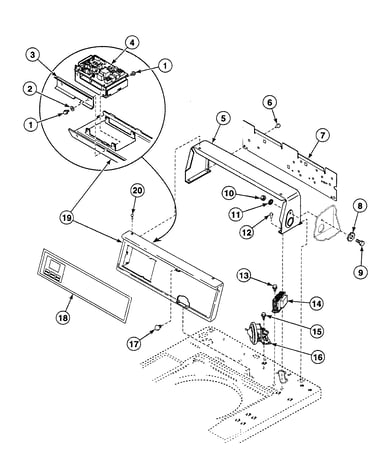

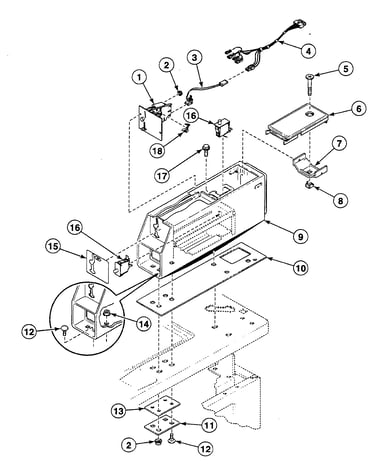

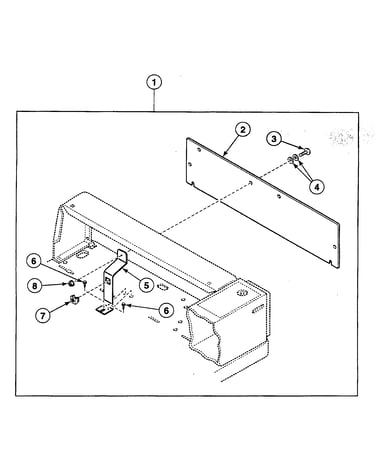

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 274 parts  |
Washer Drive Belt 38174
#19

Motor assy diagram

Washer drive belt

Part #38174

The manufacturer no longer makes this part, and there's no substitute part

Appliance Silicone Sealant 200996P
#6A

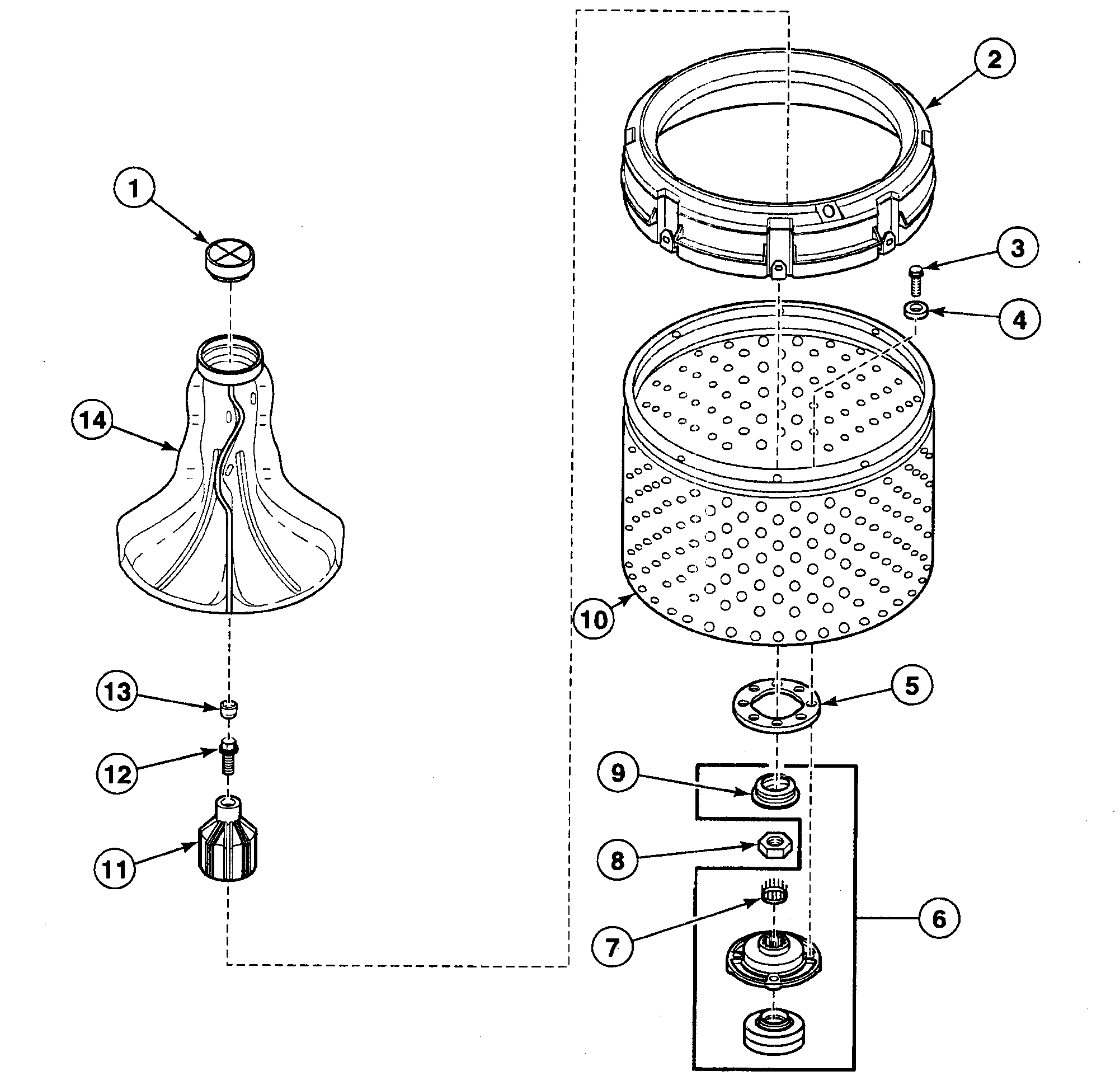

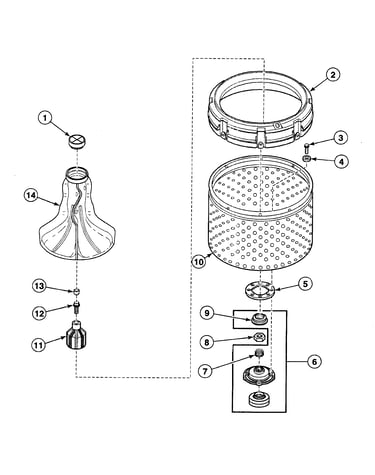

Agitator diagram

Appliance silicone sealant

Part #200996P

The manufacturer no longer makes this part, and there's no substitute part

Washer Start Capacitor 37377
#26

Motor assy diagram

Washer start capacitor

Part #37377

The manufacturer no longer makes this part, and there's no substitute part

Washer Drain Pump 201566P
#17

Motor assy diagram

Washer drain pump

Part #201566P

The manufacturer no longer makes this part, and there's no substitute part

Washer Hub And Seal Kit 766P3A
Washer hub and seal kit

Part #766P3A

The manufacturer no longer makes this part, and there's no substitute part

Washer Idler Spring 202032
#6A

Motor assy diagram

Washer idler spring

Part #202032

The manufacturer no longer makes this part, and there's no substitute part

Gasket 34338
#5

Lid assy diagram

Gasket

Part #34338

The manufacturer no longer makes this part, and there's no substitute part

Ring 23748
#14

Motor assy diagram

Ring

Part #23748

The manufacturer no longer makes this part, and there's no substitute part

Washer 52549
#13

Motor assy diagram

Washer

Part #52549

The manufacturer no longer makes this part, and there's no substitute part

Washer Tub-to-pump Hose 38351
#6

Drain hoses diagram

Washer tub-to-pump hose

Part #38351

The manufacturer no longer makes this part, and there's no substitute part
