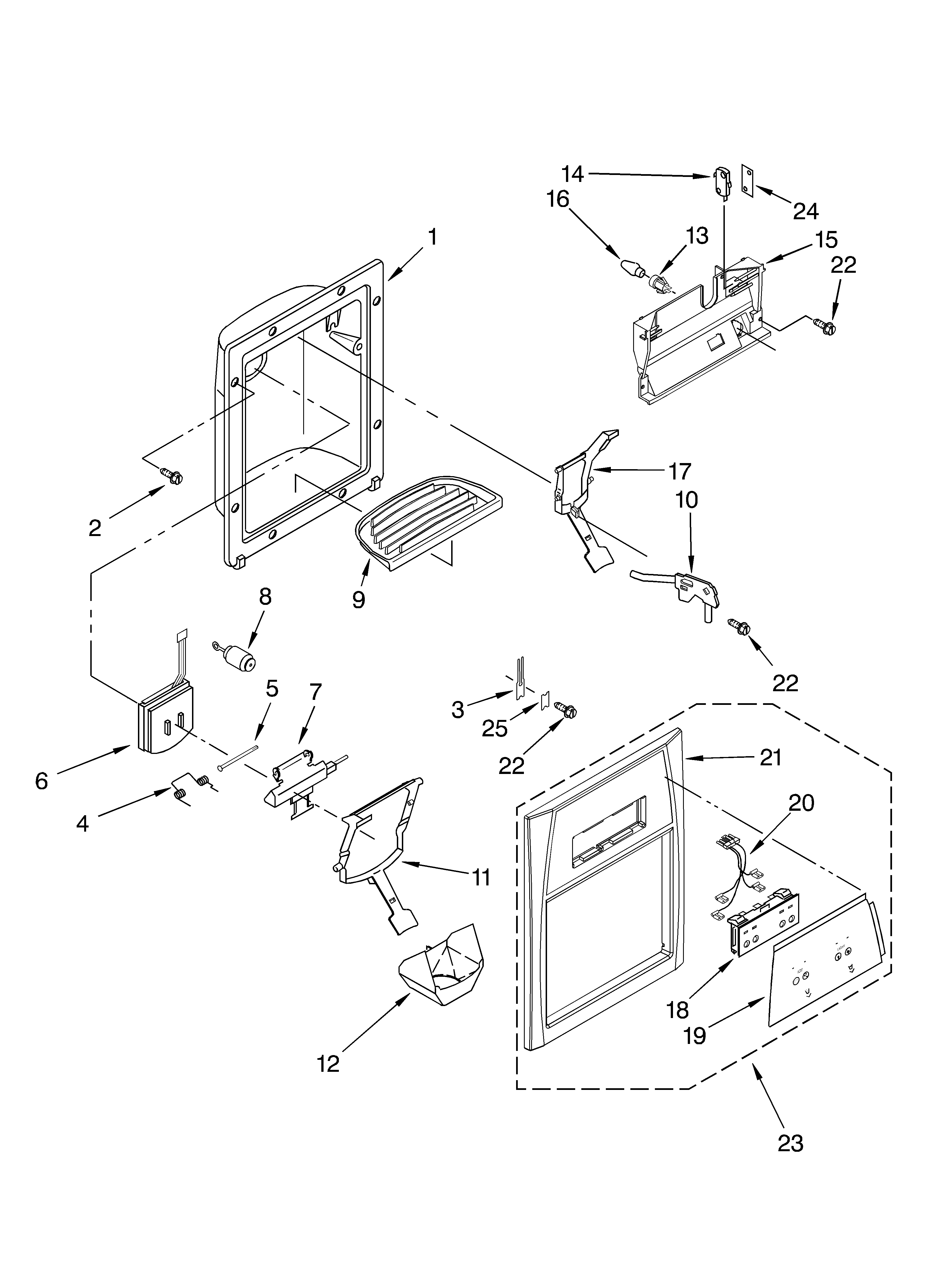

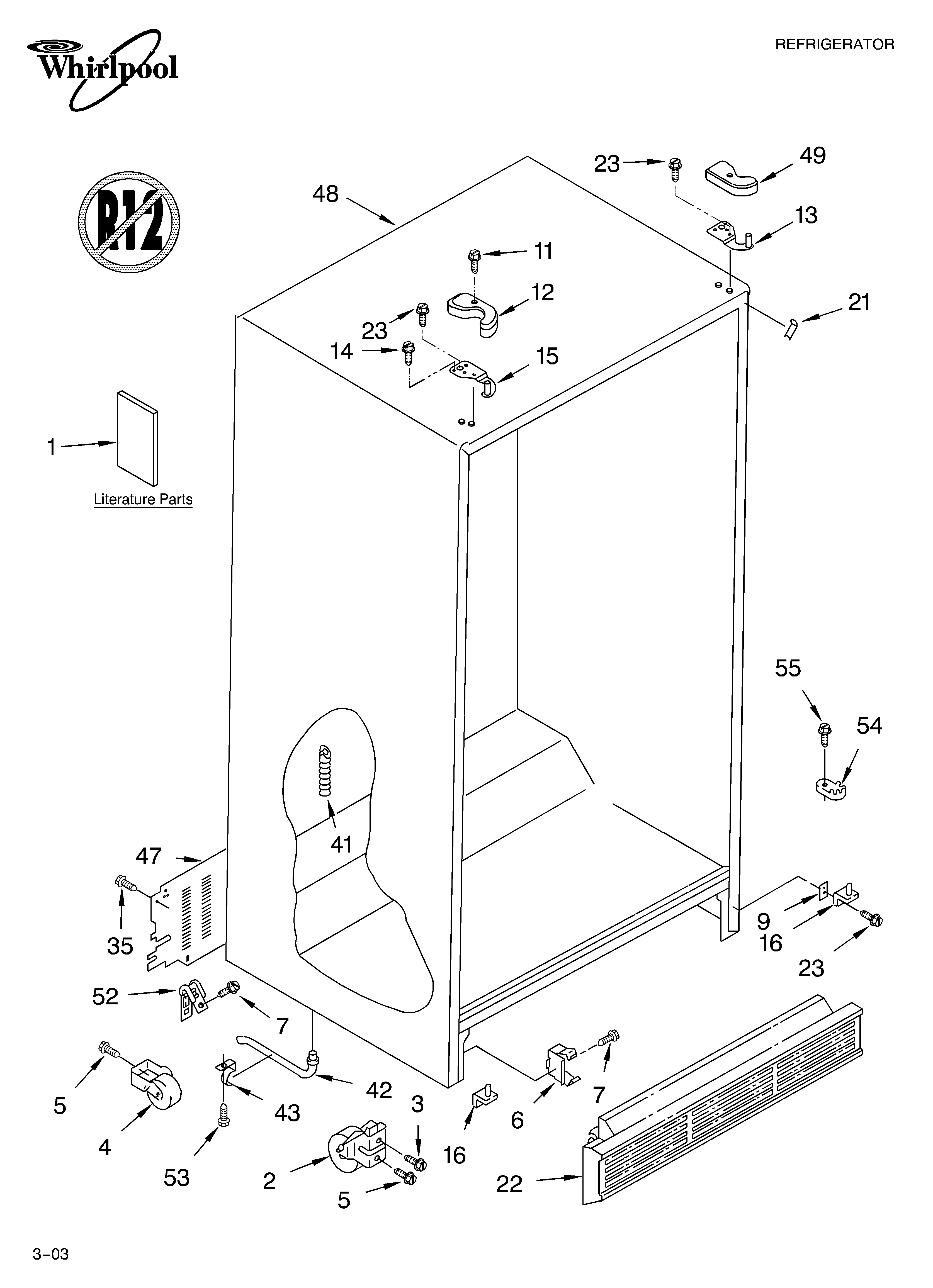

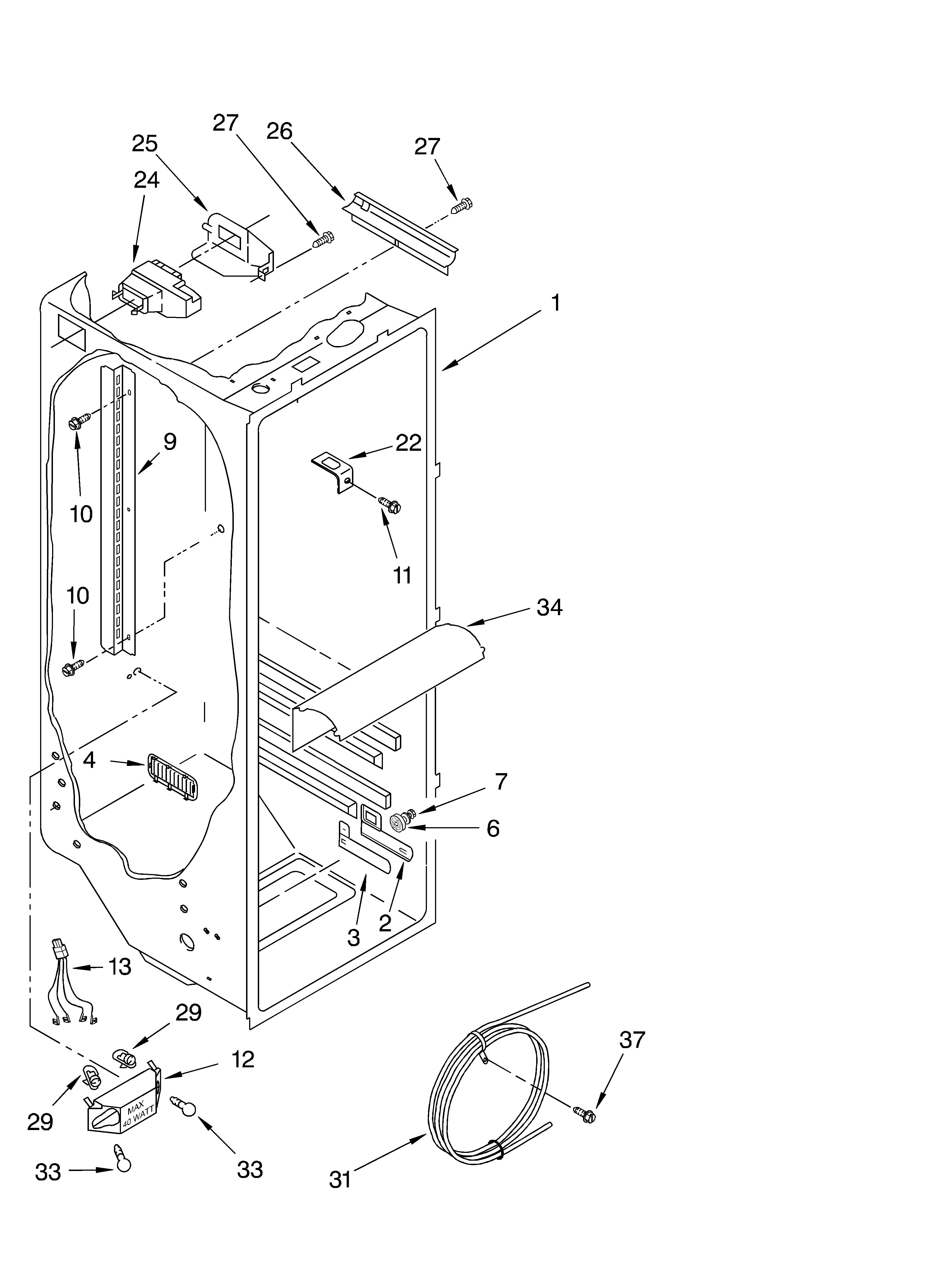

Whirlpool ED5CHQXKB03 side-by-side refrigerator Parts

The Whirlpool ED5CHQXKB03 is a full-size side-by-side refrigerator that typically fits a 36-inch-wide space. For the exact exterior dimensions, door-swing clearance, and required ventilation gaps, use the measurements listed in the ED5CHQXKB03 installation guide.

What “how big” should include

When you are planning delivery, a cabinet opening, or a move, we recommend confirming these measurements for ED5CHQXKB03:

• Overall width (cabinet case)
• Overall height (floor to top of cabinet or hinge cover, depending on spec)
• Overall depth (case depth and depth including handles)
• Door swing clearance (space needed to fully open doors and drawers)
• Ventilation clearance (space above and behind for airflow)

Quick planning ranges (useful before you measure)

These are the common planning ranges for Whirlpool 36-inch class side-by-side refrigerators; confirm the exact numbers for ED5CHQXKB03 in the installation guide.

Measurement	Typical planning range	Notes
Width	35 to 36 in.	varies by trim and cabinet case design
Height	69 to 71 in.	varies with leveling legs and hinge area
Depth	33 to 35 in.	changes most when handles are included

Why it matters

Correct dimensions prevent delivery problems, doors hitting walls or cabinets, and restricted airflow that can reduce cooling performance. They also help avoid kinking the water line when you push the refrigerator back into place.

Related setup details

For water supply requirements, ice maker setup, and operating clearances, follow the specifications and procedures in the ED5CHQXKB03 owner’s manual.

Last updated: February 2026

To tell which Whirlpool you have, match the model number and serial number from the appliance ID label to your paperwork and parts listings. For Whirlpool model ED5CHQXKB03, the label is located on the inside wall of the refrigerator compartment; use those numbers to identify the exact version and correct parts.

Where to find the model and serial number on ED5CHQXKB03

Check these common spots first:

• Inside the fresh food (refrigerator) compartment on an inside wall (primary location)
• Near the crisper area or side wall inside the refrigerator section
• On your purchase receipt, delivery paperwork, or warranty documents
• In the product literature packet (if you still have it)

For diagrams and model-specific details, use the ED5CHQXKB03 owner's manual.

What to write down (and why)

Record both numbers exactly as shown on the label:

• Complete model number (example: ED5CHQXKB03)
• Serial number (unique to your unit)
• Purchase date (helpful for service and parts matching)

Quick ID checklist

Item	What it does	Why it matters
Model number	Identifies the design family and configuration	Ensures parts diagrams match your refrigerator
Serial number	Identifies the production run	Helps confirm compatible revisions
Purchase date	Establishes timeline	Useful when discussing service history

Why it matters

Whirlpool often uses similar-looking side-by-side refrigerators with different internal components (ice maker, thermostat, defrost parts, door hardware). Using the exact model and serial number prevents ordering the wrong replacement part and speeds up troubleshooting.

Last updated: February 2026

To reset cooling on your Whirlpool ED5CHQXKB03 side-by-side refrigerator, turn the refrigerator control to OFF, disconnect power, then restore power and set the control back to your normal setting. For models with digital controls, turning the unit OFF then ON resets cooling.

Quick reset steps (ED5CHQXKB03)

• Turn the refrigerator or freezer control (thermostat) to OFF.
• Unplug the refrigerator (or switch off the circuit breaker) for safety.
• Wait about 5 minutes.
• Restore power.
• Set the control back to the desired temperature setting (see the ED5CHQXKB03 owner's manual).

If it still is not cooling after the reset

A reset only helps if the control needs to be restarted. If cooling is still weak, check these common causes first:

• Air vents blocked by food packages; keep vents clear for proper circulation.
• Doors opened often or left ajar; temperatures rise quickly in a side-by-side.
• Large warm load of groceries; it can take several hours to pull temps back down.
• Controls set incorrectly for room conditions.
• Unit is in an automatic defrost cycle; recheck operation in about 30 minutes.

What “reset” means on this refrigerator

Reset method	What it does	When to use it
Control to OFF, power off, power on	Restarts the control and cooling cycle	Not cooling, after cleaning, after moving
Digital control OFF then ON	Resets the electronic control state	Not cooling on digital-control versions

Why it matters

Resetting correctly prevents false “no-cool” symptoms caused by a control left in OFF, a brief power issue, or a control that needs a restart. Clearing vents and limiting door openings helps the ED5CHQXKB03 recover temperature faster after the reset.

Last updated: February 2026

The Whirlpool ED5CHQXKB03 side-by-side refrigerator has about 25.3 cu. ft. total capacity. A common compartment breakdown for this platform is about 9.9 cu. ft. freezer and about 15.4 cu. ft. fresh food; use the ED5CHQXKB03 owner’s manual to confirm the exact figures for your unit.

Capacity details (what to use for comparisons)

When you see multiple numbers, use total capacity for model-to-model comparisons and compartment capacity for storage planning.

• Total capacity: overall usable space
• Fresh food capacity: refrigerator-side storage
• Freezer capacity: freezer-side storage
• Usable space varies with shelves, bins, and ice storage installed

Measurement	Typical value for ED5CHQXKB03	What it helps with
Total capacity	25.3 cu. ft.	Comparing refrigerators
Freezer capacity	9.9 cu. ft.	Frozen-food planning
Fresh food capacity	15.4 cu. ft.	Day-to-day storage planning

Why your “usable” space can feel smaller

Even with the same cubic-foot rating, interior layout changes how much you can actually fit.

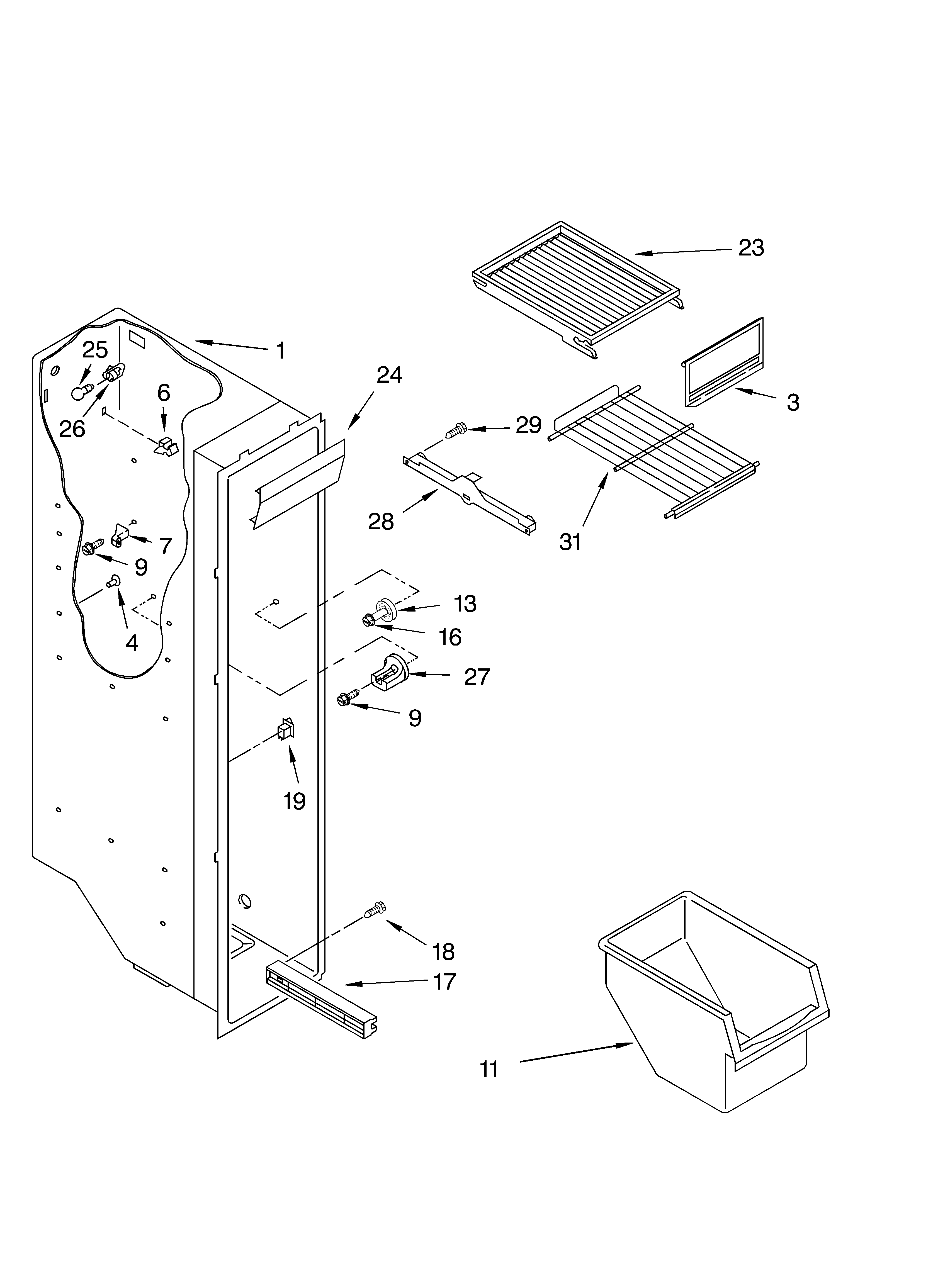

• Ice maker and ice bin reduce freezer shelf space
• Door bins trade depth for easy access
• Crisper and meat pans take volume but improve organization
• Shelves and dividers create more practical storage zones

If you are rebuilding interior storage, replacing missing bins and pans helps restore the intended layout; the refrigerator crisper pan WP2188656 is one example of a model-correct storage component.

Why it matters

Capacity affects grocery planning, freezer organization, and whether your current storage accessories match the way you use the refrigerator.

Last updated: February 2026

The biggest problem we see in Whirlpool refrigerators like model ED5CHQXKB03 is loss of cooling (fresh food too warm, freezer warming, or temperature swings). The most common root causes are restricted airflow from dirty condenser coils, a defrost system issue, or a fan/control problem that prevents cold air from circulating correctly.

Quick checks that solve the most calls

• Set temperatures back to normal targets: 0°F freezer, 37°F fresh food.
• Clean condenser coils and the condenser fan area (unplug first).
• Make sure vents inside both compartments are not blocked by food packages.

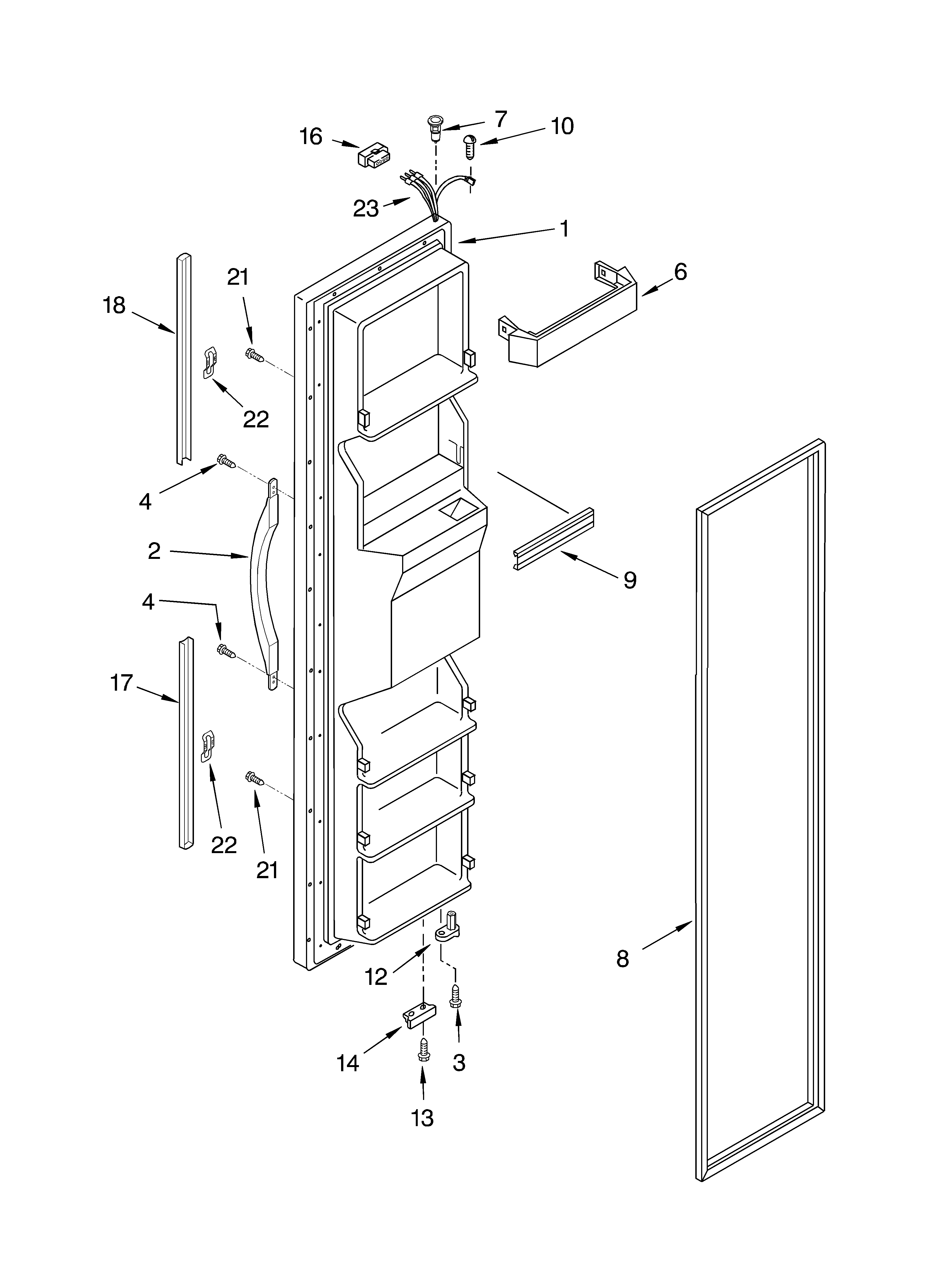

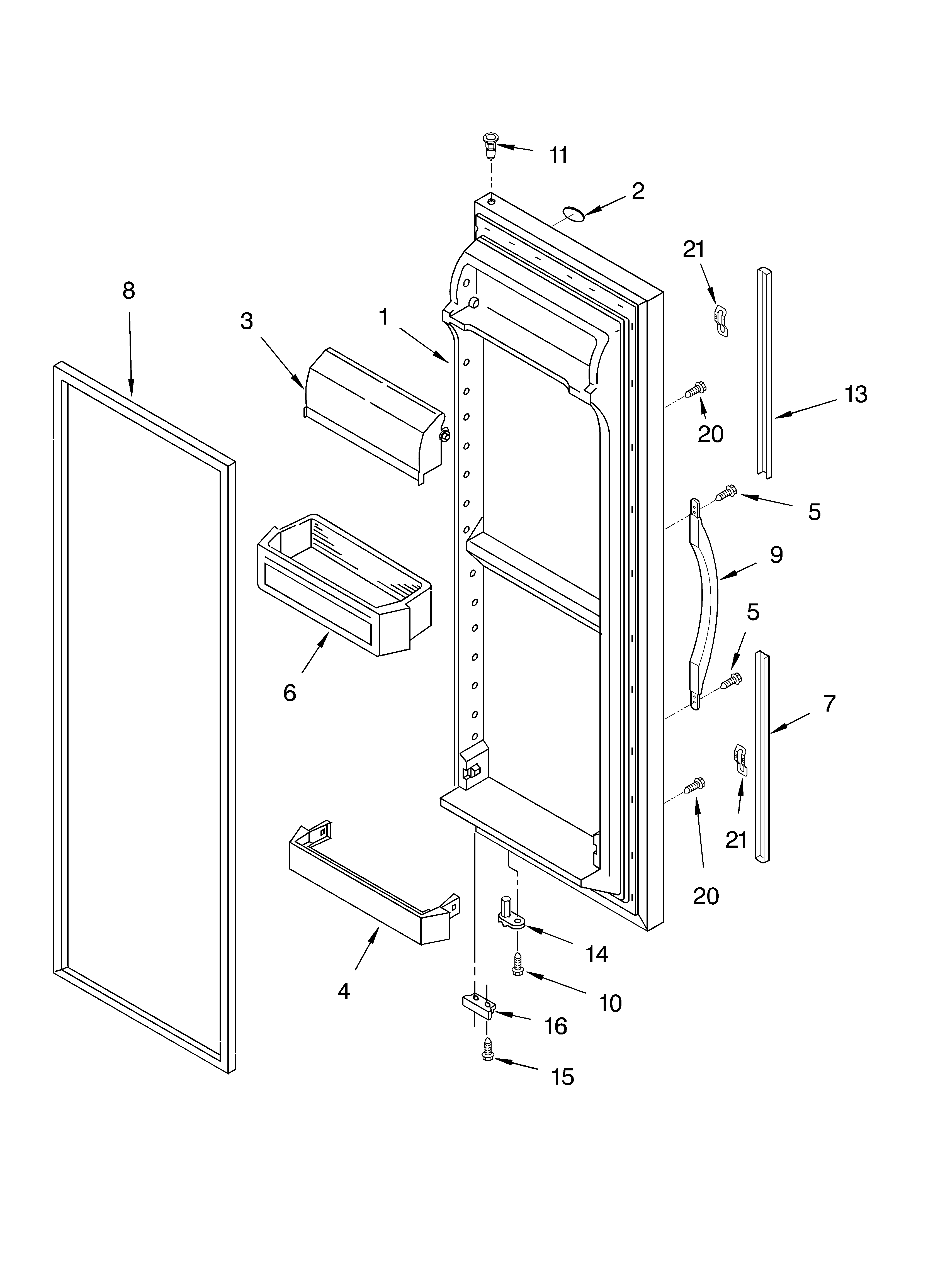

• Confirm both doors seal fully and close on their own.

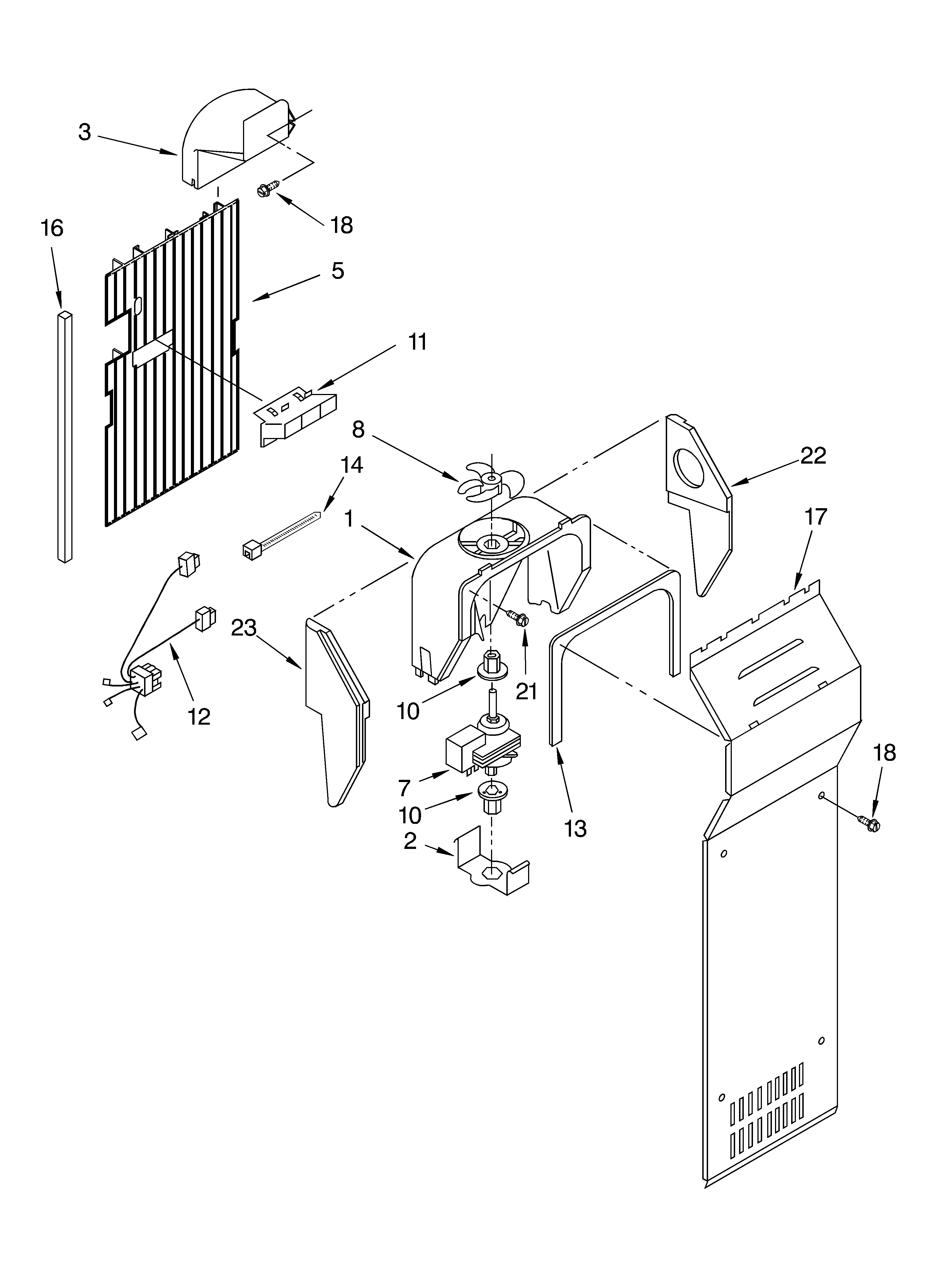

• Listen for the evaporator fan in the freezer; it should run when the compressor runs.

Most common “big problems” and what they point to

Symptom	Most likely area	Common next step
Freezer OK, fridge warm	Airflow/evaporator fan, damper, frost buildup	Check fan noise and look for frost behind rear freezer panel
Both sections warm	Condenser coils, condenser fan, compressor/start components	Clean coils; verify condenser fan runs
Heavy frost, weak airflow	Defrost system	Test/replace defrost safety parts
Water under/inside fridge	Defrost drain or water supply issue	Clear drain; check water line connections

Parts that commonly fix cooling and ice issues on ED5CHQXKB03

If troubleshooting points to a failed component, these model-matched parts are frequent solutions:

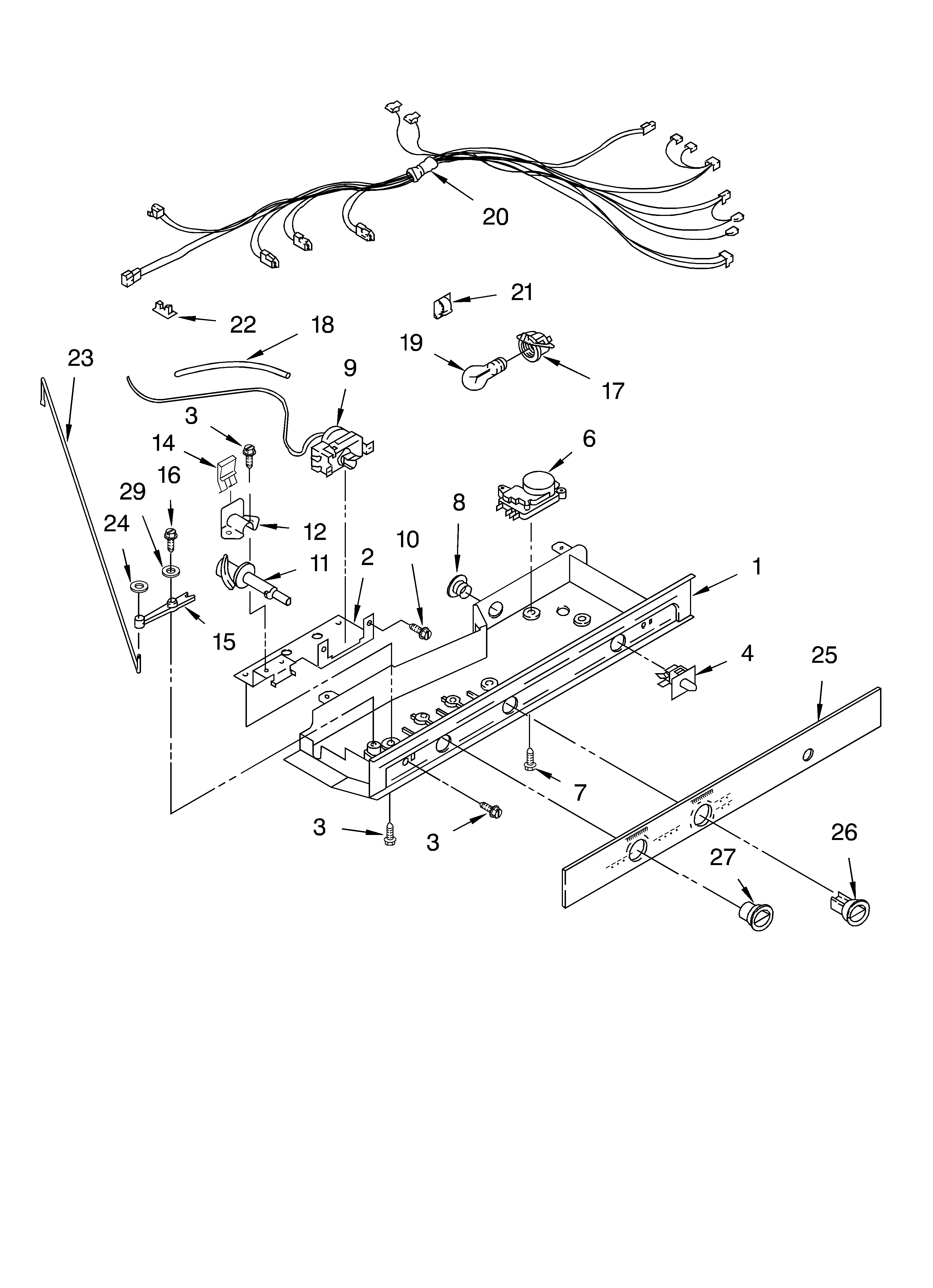

• Refrigerator thermostat WP2198202 (temperature control not regulating correctly)
• Refrigerator defrost bi-metal WPW10225581 (defrost safety thermostat opens too soon or not at all)
• Refrigerator heater WP2323198 (defrost heater not melting frost)

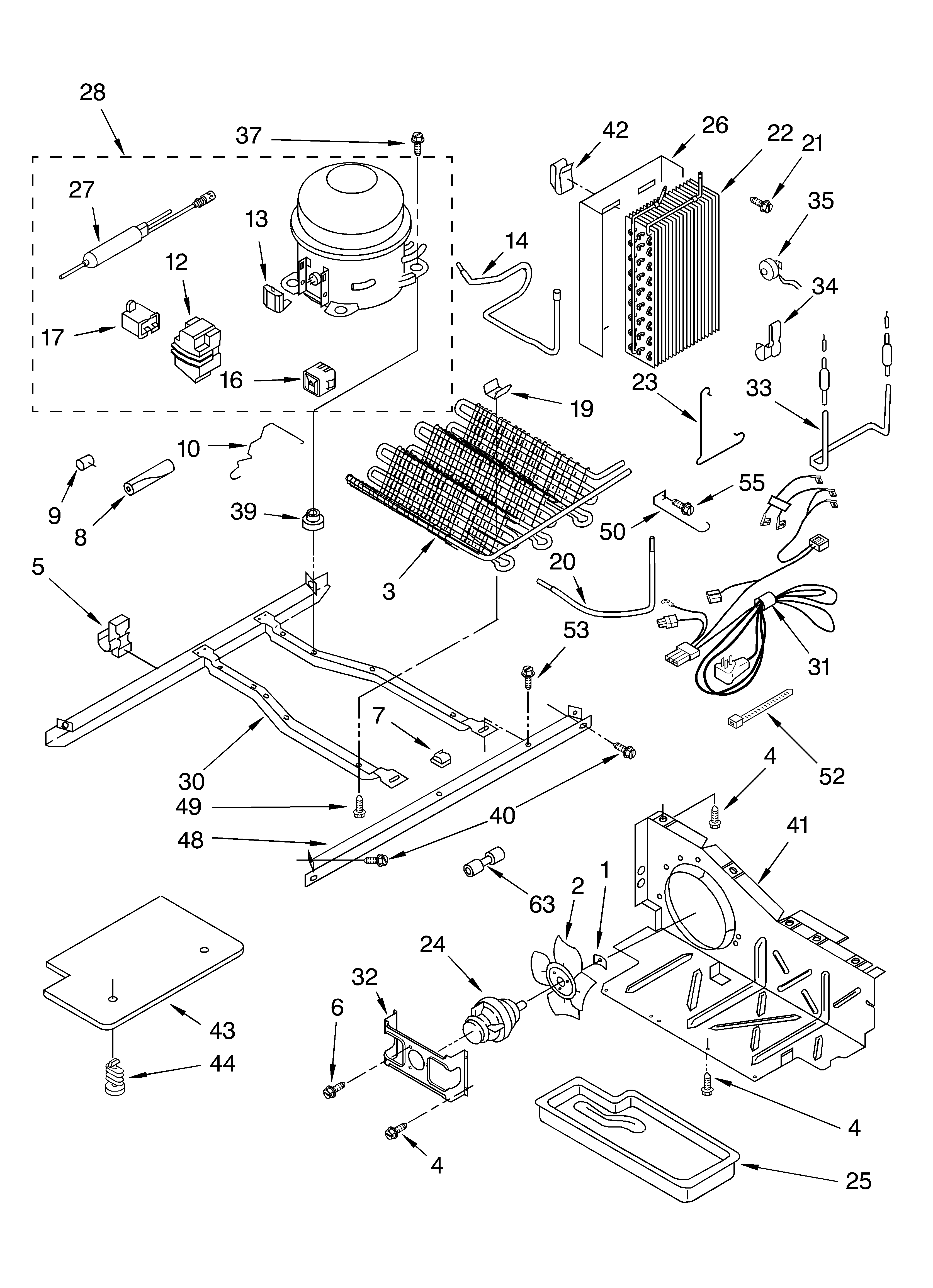

• Condenser motor W10822259 (no heat removal at the condenser)

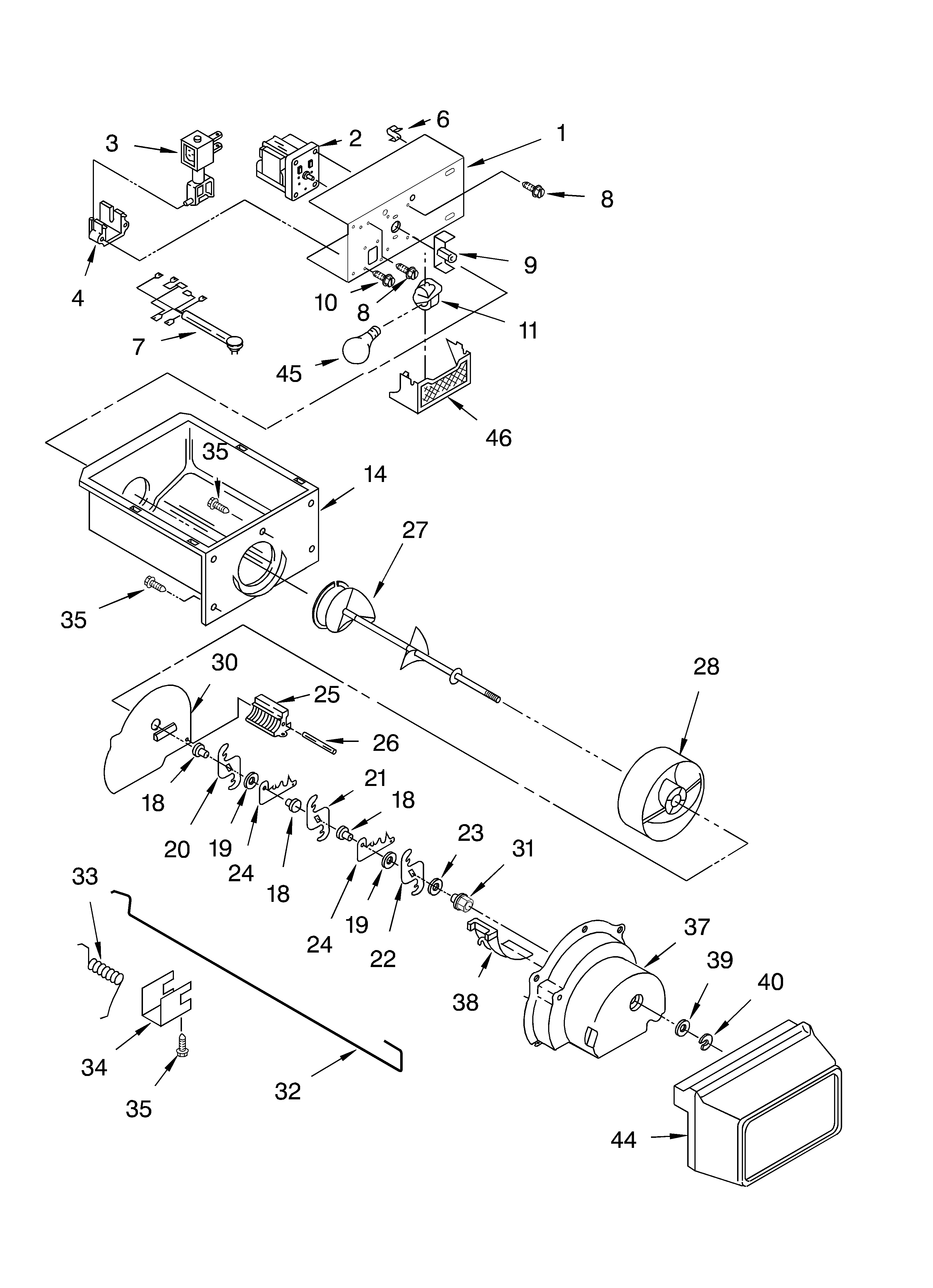

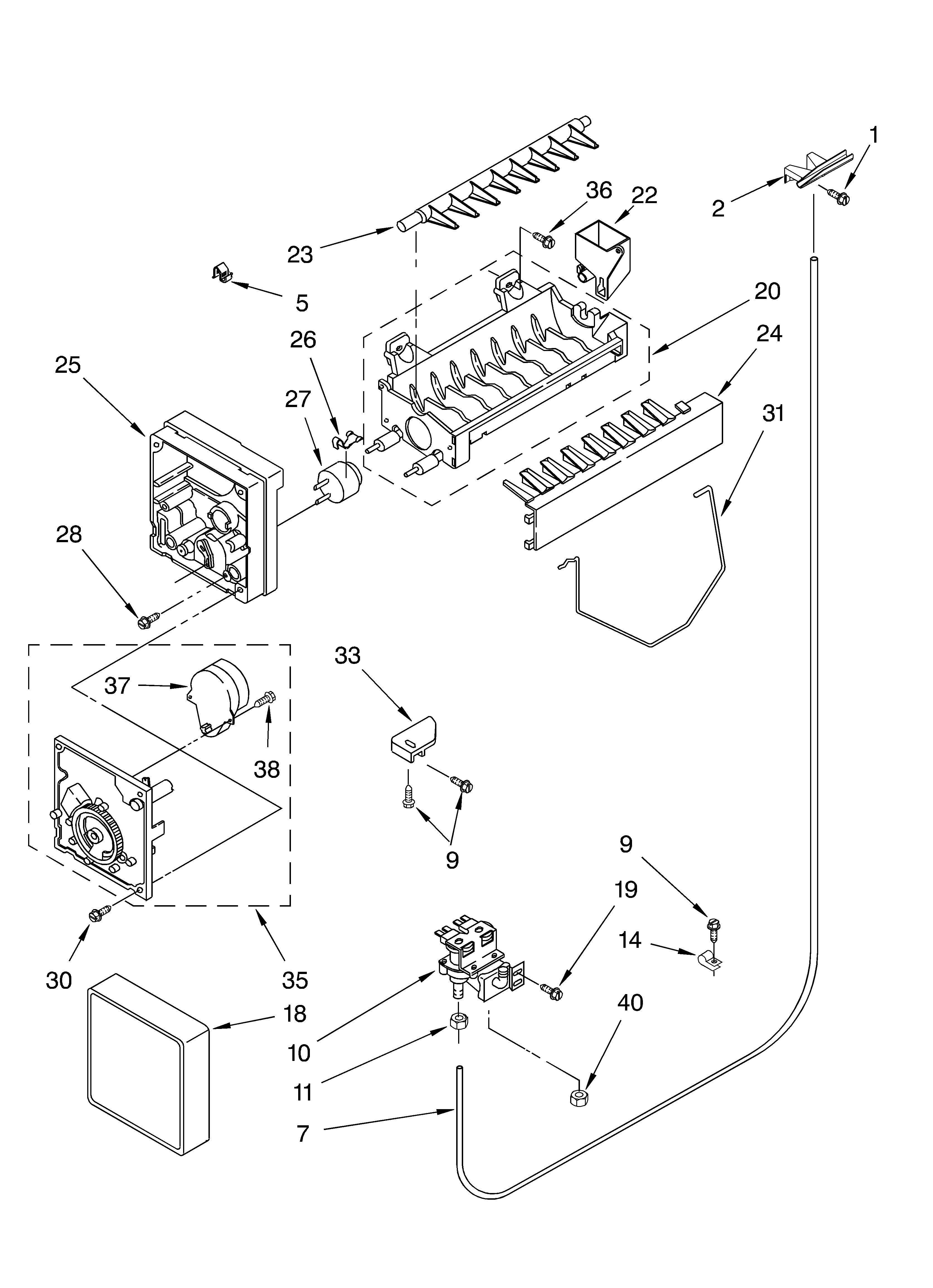

• Ice maker assembly 4317943 (ice maker stops producing or cycles incorrectly)

Why it matters

Cooling problems can snowball: poor airflow and frost buildup force longer run times, warmer food temps, and more strain on the sealed system. Fixing airflow, defrost, and fan issues early usually restores normal temperatures faster and prevents repeat failures.

For model-specific operating and maintenance steps (including water supply parameters like pressure range), follow the ED5CHQXKB03 owner's manual.

Last updated: February 2026

Most Whirlpool refrigerators, including the Whirlpool ED5CHQXKB03 side-by-side refrigerator, typically last 10 to 18 years with normal household use and basic upkeep. Consistent maintenance (airflow, clean coils, good door sealing) is what most often separates a 10-year fridge from an 18-year fridge.

Typical lifespan ranges (what to expect)

Here are practical benchmarks we use for Whirlpool side-by-side units:

• 10 to 12 years: common point for first major repairs (fans, ice maker, defrost issues)
• 13 to 18 years: typical service life with routine care
• 18+ years: achievable when the sealed system stays healthy and maintenance is consistent

Lifespan range	What it usually means	Common focus areas
0 to 5 years	Early ownership period	Installation, water supply setup, filter habits
6 to 12 years	Wear items start showing up	Ice maker, thermostat, door sealing
13 to 18 years	Normal end-of-life window	Cooling performance, defrost reliability
18+ years	Above-average longevity	Coil cleaning, airflow, quick fixes when symptoms start

What shortens refrigerator life fastest

These are the most common life-reducers we see on side-by-side refrigerators:

• Dirty condenser coils causing high heat and long run times
• Poor ventilation around the cabinet (tight enclosure, blocked grille)
• Door gasket leaks that let warm, moist air in (frost and compressor strain)
• Ice maker or water system leaks that create corrosion or ice buildup
• Skipping small repairs until they become cooling-system stress

Maintenance that helps ED5CHQXKB03 reach the high end of the range

We recommend these habits for Whirlpool side-by-side refrigerators:

• Clean condenser coils regularly (more often with pets)
• Keep door gaskets clean and sealing evenly; correct door closing issues
• Maintain proper temperatures (about 37°F fresh food and 0°F freezer)
• Use correct water supply conditions for dispenser/ice maker performance (your documentation lists 30 to 120 psi water pressure)
• Follow the care and operating guidance in the ED5CHQXKB03 owner’s manual

Why it matters

A refrigerator that runs hotter or longer than it should wears out the compressor and other cooling components faster. Simple airflow, sealing, and water-system upkeep reduces run time, prevents frost and leaks, and helps the refrigerator stay in its normal 10 to 18-year lifespan window.

Last updated: February 2026
