Jenn-Air
Electric Wall Oven

Model # JJW3430WS00 Official Jenn-Air 30" electric wall oven

Here are the diagrams and repair parts for Official Jenn-Air JJW3430WS00 30" electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

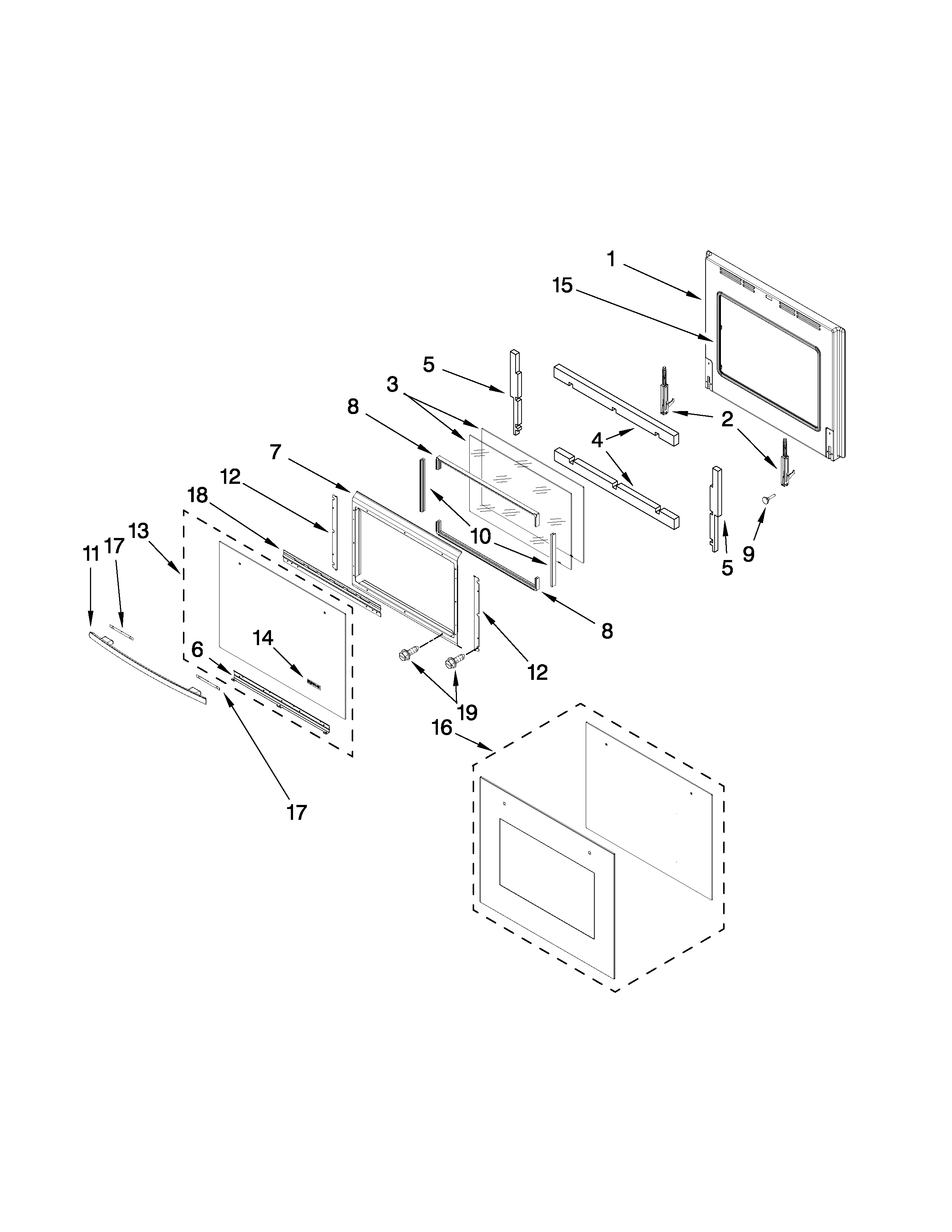

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 106 parts  |

Spray W 350930
#NI

Optional diagram

Spray w

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69
11% OFF Phone Price : $17.69
In Stock
Touch-up Paint (black) 72032
#NI

Optional diagram

Touch-up paint (black)

Part #72032

Replaced by #72032

?
Manufacturer substitution
This part replaces 72032. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.02
25% OFF MSRP : $12.00
In Stock
Sensor Probe 7430P043-60
#13

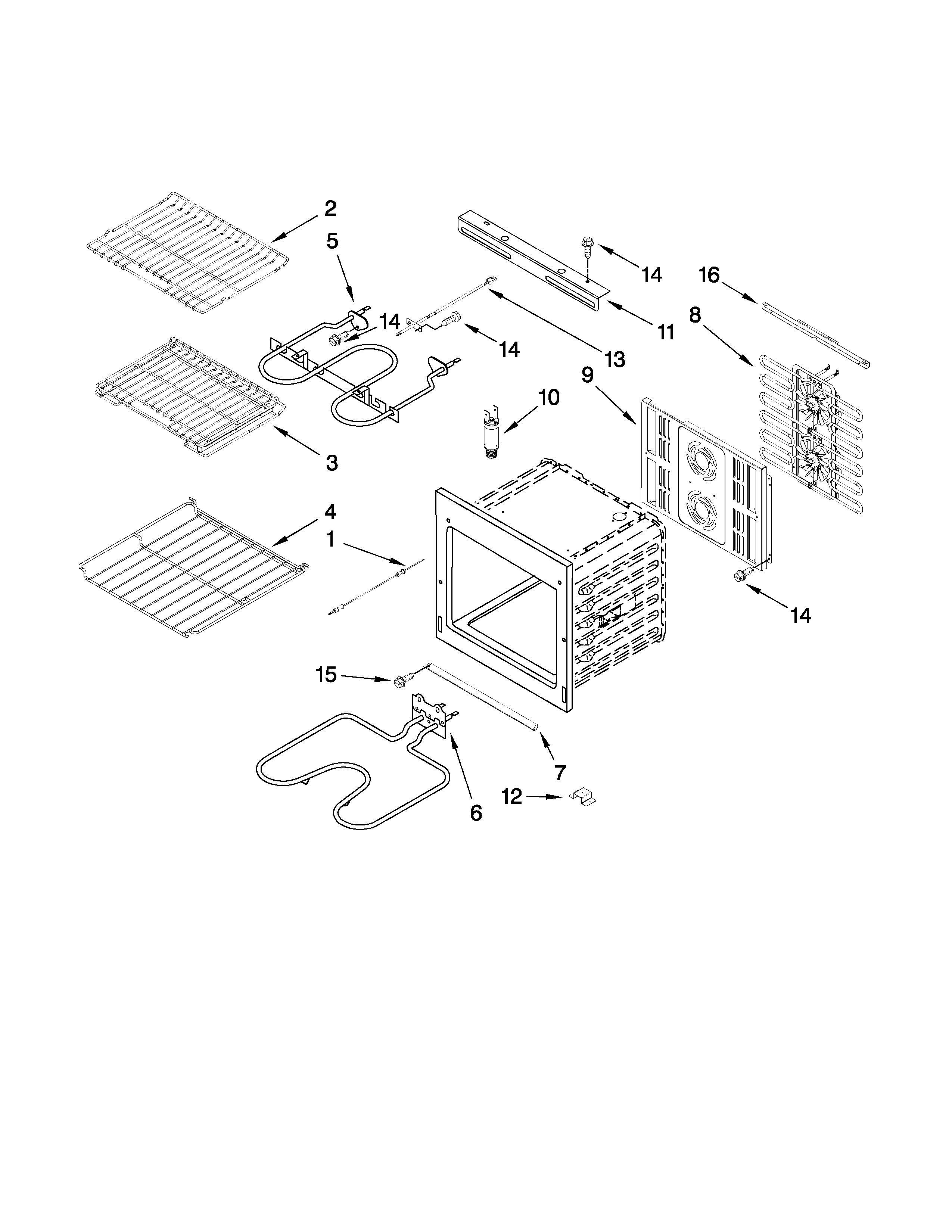

Internal oven parts diagram

Sensor probe

Part #7430P043-60

Replaced by #WP74008369

?
Manufacturer substitution
This part replaces 7430P043-60. Substitute parts can look different from the original.
BEST SELLER
$96.39
9% OFF Phone Price : $106.39
In Stock
Adhesive 482338
#NI

Optional diagram

Adhesive

Part #482338

Replaced by #WP482338

?
Manufacturer substitution
This part replaces 482338. Substitute parts can look different from the original.
$31.27
37% OFF MSRP : $50.00
In Stock
Wall Oven Light Bulb W10169757
#29

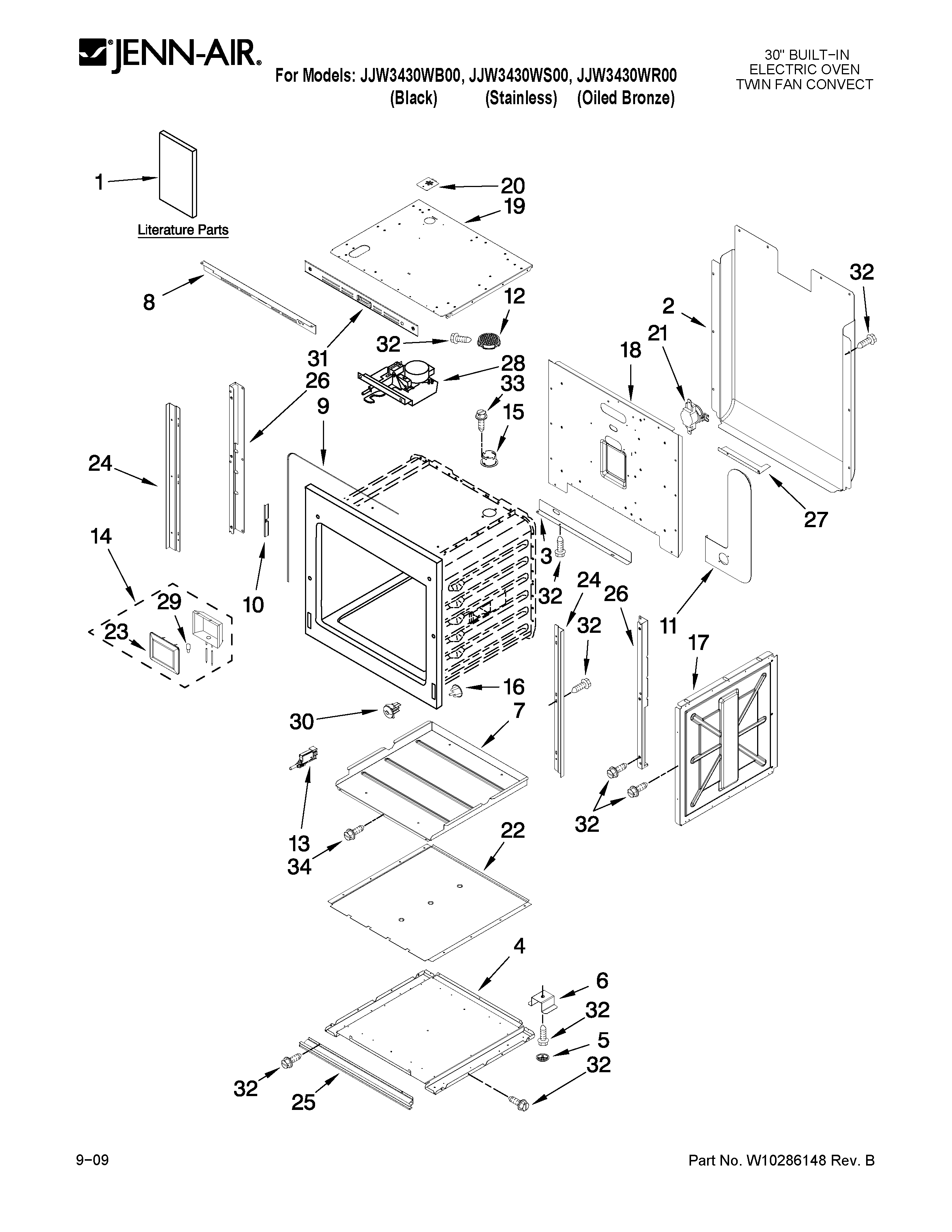

Oven parts diagram

Wall oven light bulb

Part #W10169757

Replaced by #WPW10169757

?
Manufacturer substitution
This part replaces W10169757. Substitute parts can look different from the original.
This item is not returnable
$32.76
13% OFF Phone Price : $37.76
In Stock
Screw W10236129
Screw

Part #W10236129

Replaced by #WP489464

?
Manufacturer substitution
This part replaces W10236129. Substitute parts can look different from the original.
This item is not returnable
$6.49
13% OFF Phone Price : $7.49
In Stock
Electronic Control W10176142
#12

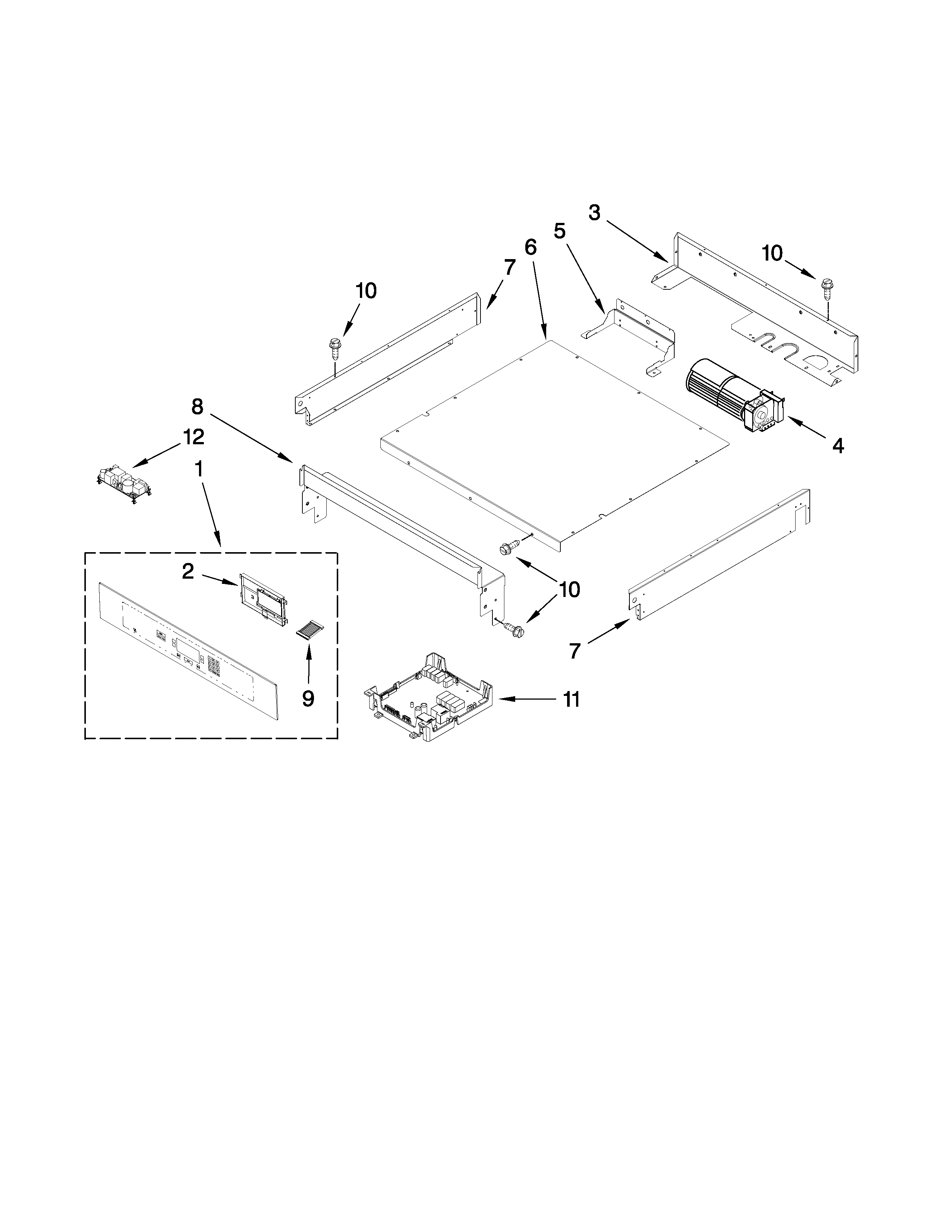

Control panel parts diagram

Electronic control

Part #W10176142

Replaced by #WPW10286791

?
Manufacturer substitution
This part replaces W10176142. Substitute parts can look different from the original.
$174.49
8% OFF MSRP : $190.00
In Stock
Electronic Control W10175827
#11

Control panel parts diagram

Electronic control

Part #W10175827

The manufacturer no longer makes this part, and there's no substitute part

Switch- Hi 7403P899-60
#21

Oven parts diagram

Switch- hi

Part #7403P899-60

Replaced by #WP7403P899-60

?
Manufacturer substitution
This part replaces 7403P899-60. Substitute parts can look different from the original.
$88.32
5% OFF Phone Price : $93.32
In Stock
Spray Bl 830864
#NI

Optional diagram

Spray bl

Part #830864

Replaced by #285006

?
Manufacturer substitution
This part replaces 830864. Substitute parts can look different from the original.
This item is not returnable
$28.89
15% OFF Phone Price : $33.89
In Stock
