GE JDC27GP1 electric freestanding range

GE JDC27GP1 electric freestanding range Parts

Here are the diagrams and repair parts for GE JDC27GP1 electric freestanding range, as well as links to manuals and error code tables, if available.

By Schematic

By Part

SELECT DIAGRAM

Browse Parts for JDC27GP1 Ranges

#253

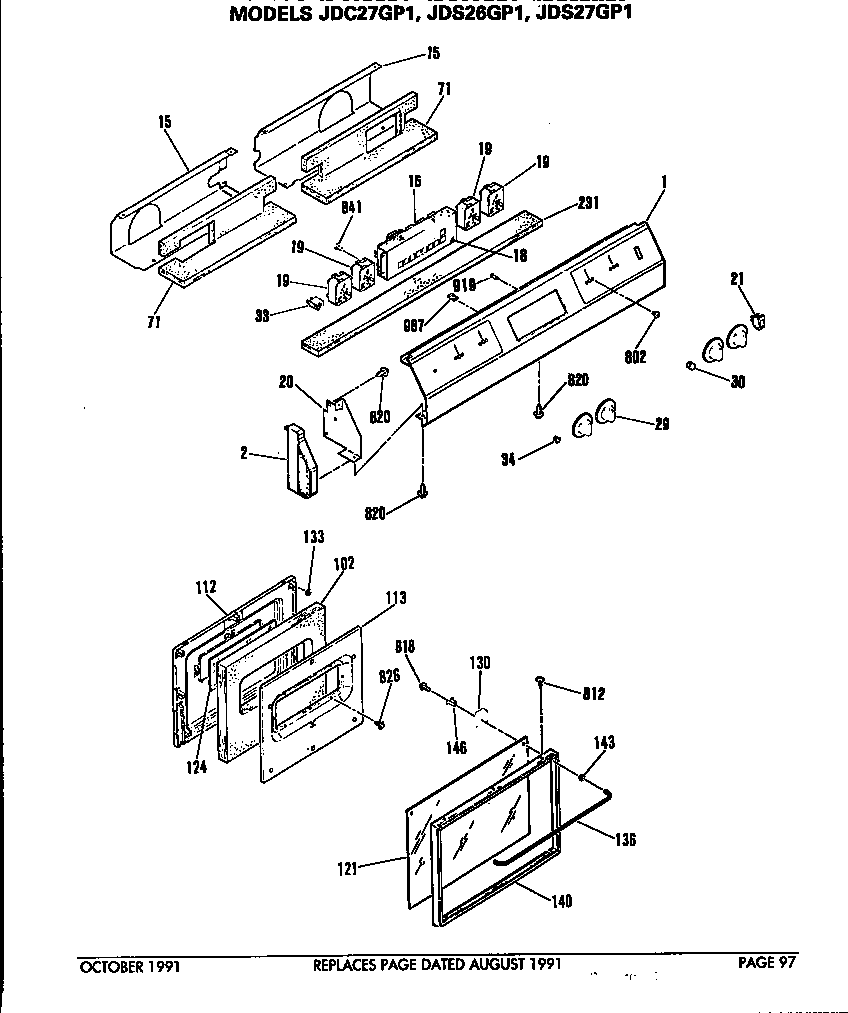

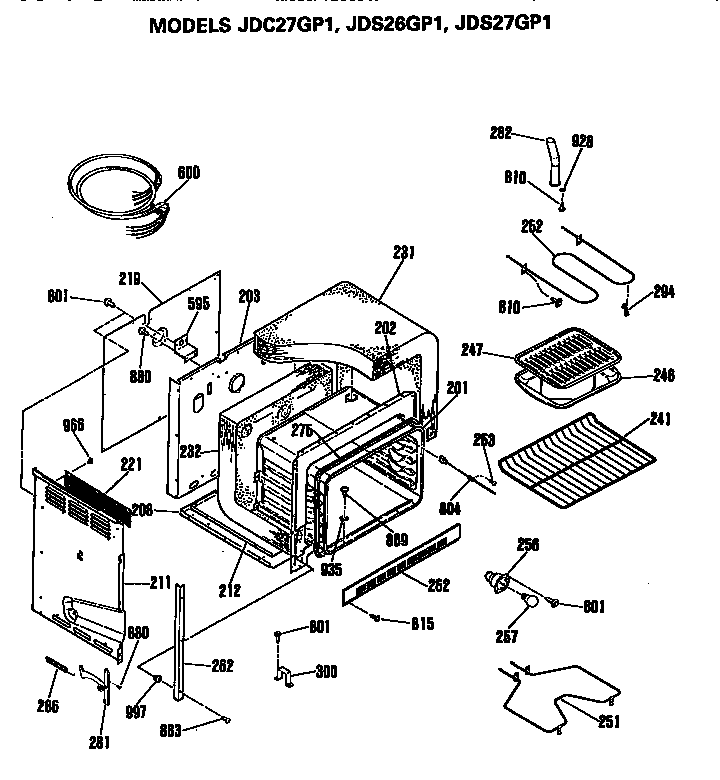

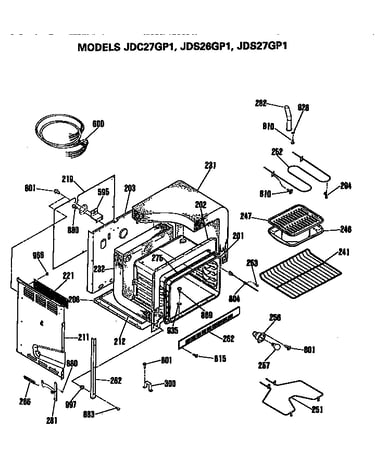

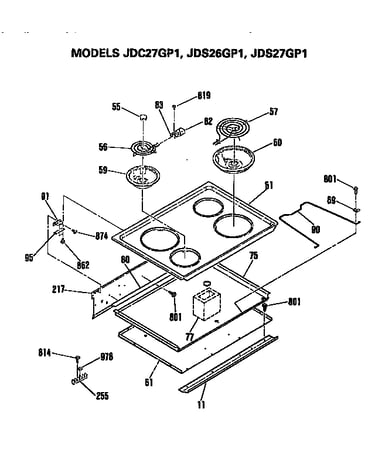

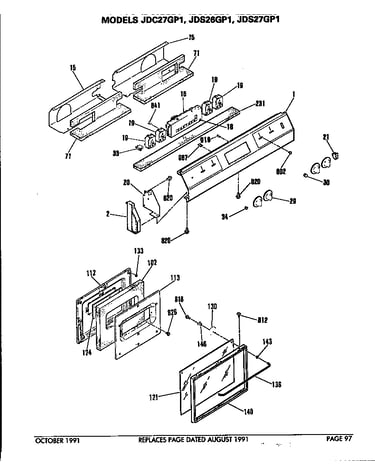

All parts diagram
Sensor
Part #WB20X106
Replaced by #WB21X5301
Manufacturer substitution
This part replaces WB20X106. Substitute parts can look different from the original.
In Stock
$124.76
9% OFF Phone Price : $136.76
Qty
#321
All parts diagram
Range Drip Pan
Part #WB32X106
In Stock
$21.53
22% OFF Phone Price : $27.53
Qty
#57
All parts diagram
Range Coil Surface Element, 8-in
Part #WB30X255
In Stock
$78.93
7% OFF Phone Price : $84.93
Qty
#810
All parts diagram
Screw-10-32
Part #WB1X1253
Replaced by #WB1X1130
Manufacturer substitution
This part replaces WB1X1253. Substitute parts can look different from the original.
In Stock
$9.86
9% OFF Phone Price : $10.86
Qty
#809
All parts diagram
Range Screw
Part #WB1X1137
In Stock
$9.01
10% OFF Phone Price : $10.01
Qty
#56
All parts diagram
Range Coil Surface Element, 6-in
Part #WB30X256
In Stock
$71.34
8% OFF Phone Price : $77.34
Qty
#247
All parts diagram
Griddle Broil
Part #WB49X627
Replaced by #WB48X10056
Manufacturer substitution
This part replaces WB49X627. Substitute parts can look different from the original.
In Stock
$36.11
14% OFF Phone Price : $42.11
Qty
#83
All parts diagram
Clip-term Bk
Part #WB17X218
Replaced by #WB17X211
Manufacturer substitution
This part replaces WB17X218. Substitute parts can look different from the original.
In Stock
$11.84
14% OFF Phone Price : $13.84
Qty
#999
All parts diagram
Use And Care Guide
Part #49-8250
In Stock
$32.94
Qty
#43
All parts diagram
Oven Spacer
Part #WB2X9158
In Stock
$45.02
Qty

Most common symptoms to help you fix your ranges

Choose a symptom to see related range repairs.

Why isn't my range working?

Main causes: power supply failure, blown thermal fuse, bad relay control board, damaged terminal block, wiring failure…

Why doesn't my range's oven broiler work?

Main causes: broken broiler element, weak or broken broil burner igniter, control system failure, faulty temperature sen…

Why won't my range's oven heat?

Main causes: power supply problem, control thermostat or electronic control board failure, broken element, bad burner ig…

Why can't I unlock my range's oven door?

Main causes: broken oven door lock assembly, wiring failure, electronic control board problem…

Why is my range's oven temperature wrong?

Main causes: faulty temperature sensor, electronic control board problem, control thermostat failure, weak burner ignite…

Why won't my range's oven bake?

Main causes: bad bake element, broken burner igniter, control system failure, blown thermal fuse, faulty temperature sen…

How do I get rid of streaks on my range's oven window?

Main causes: food splatters, spilling food on the oven door, allowing liquid to drip through oven door vent when cleanin…
