Tappan 13-3028-45-01 electric range - lt32088510

Tappan 13-3028-45-01 electric range - lt32088510 Parts

Here are the diagrams and repair parts for Tappan 13-3028-45-01 electric range - lt32088510, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 13-3028-45-01 Ranges

  • Range Drip Pan, 6-in (chrome) for Tappan 13-3028-45-01 - Part 316048414

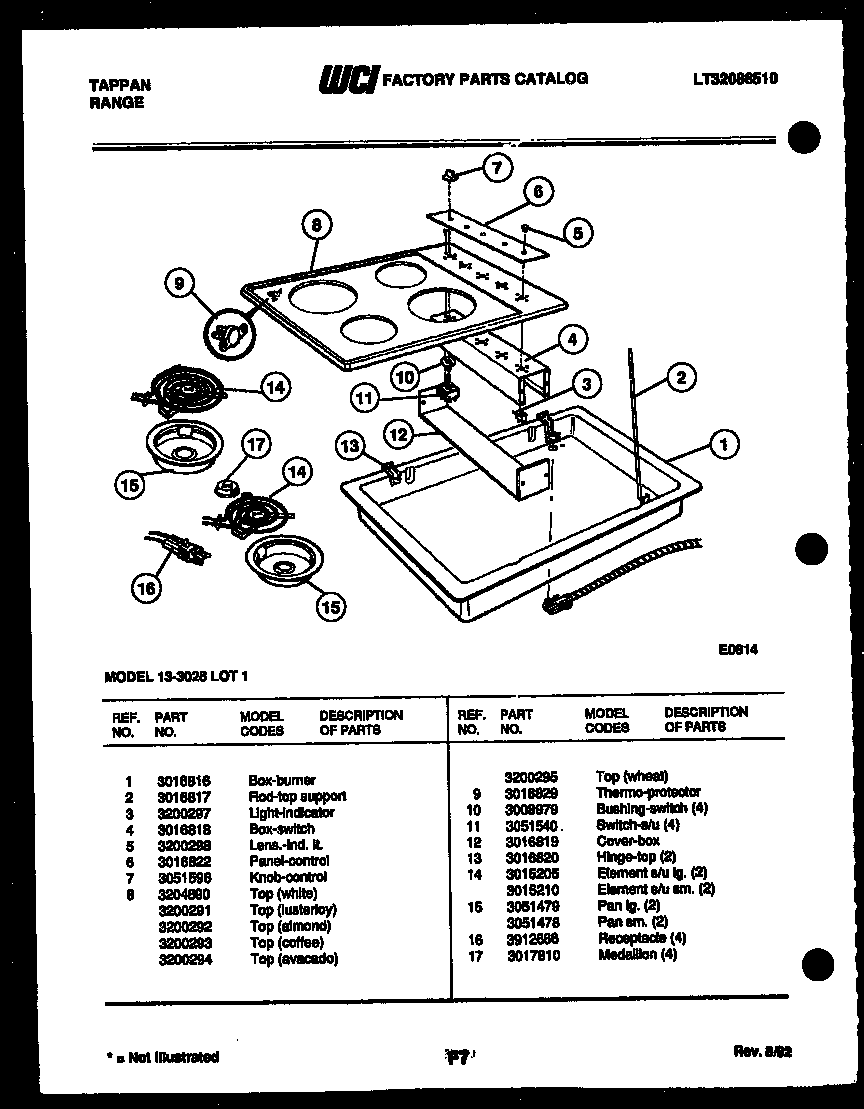

    Cooktop parts diagram

    Surface Pan

    Part #3051478

    Replaced by #316048414

    Info Icon
    Manufacturer substitution
    This part replaces 3051478. Substitute parts can look different from the original.
    In Stock
    $10.74
    16% OFF Phone Price : $12.74Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Surface Element Control Switch for Tappan 13-3028-45-01 - Part 5303935086

    Cooktop parts diagram

    Switch

    Part #3051540

    Replaced by #5303935086

    Info Icon
    Manufacturer substitution
    This part replaces 3051540. Substitute parts can look different from the original.
    In Stock
    $42.19
    12% OFF Phone Price : $48.19Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Coil Surface Element, 8-in for Tappan 13-3028-45-01 - Part 5308011964

    Cooktop parts diagram

    Surface Element

    Part #3015205

    Replaced by #5308011964

    Info Icon
    Manufacturer substitution
    This part replaces 3015205. Substitute parts can look different from the original.
    In Stock
    $172.33
    7% OFF Phone Price : $184.33Info Icon
    Minus Item
    Qty
    Plus Item
  • Lens for Tappan 13-3028-45-01 - Part 3200298

    Cooktop parts diagram

    Lens

    Part #3200298
    In Stock
    $32.15
    Minus Item
    Qty
    Plus Item
  • Rod for Tappan 13-3028-45-01 - Part 3016817

    Cooktop parts diagram

    Rod

    Part #3016817
    In Stock
    $43.71
    Minus Item
    Qty
    Plus Item
  • Burner Box for Tappan 13-3028-45-01 - Part 3016816

    Cooktop parts diagram

    Burner Box

    Part #3016816
    In Stock
    $118.30
    Minus Item
    Qty
    Plus Item
  • Range Indicator Light for Tappan 13-3028-45-01 - Part 316022503

    Cooktop parts diagram

    Light

    Part #3200297

    Replaced by #316022503

    Info Icon
    Manufacturer substitution
    This part replaces 3200297. Substitute parts can look different from the original.
    In Stock
    $63.69
    9% OFF Phone Price : $69.69Info Icon
    Minus Item
    Qty
    Plus Item
  • Frigidaire Range Coil Element, 6-in for Tappan 13-3028-45-01 - Part 318372211

    Cooktop parts diagram

    Surface Element

    Part #3015210

    Replaced by #318372211

    Info Icon
    Manufacturer substitution
    This part replaces 3015210. Substitute parts can look different from the original.
    In Stock
    $53.76
    10% OFF Phone Price : $59.76Info Icon
    Minus Item
    Qty
    Plus Item
  • Box-switch W for Tappan 13-3028-45-01 - Part 5303935024

    Cooktop parts diagram

    Cover

    Part #3016819

    Replaced by #5303935024

    Info Icon
    Manufacturer substitution
    This part replaces 3016819. Substitute parts can look different from the original.
    In Stock
    $38.32
    Minus Item
    Qty
    Plus Item
  • Frigidaire Range Drip Pan, 8-in (chrome) for Tappan 13-3028-45-01 - Part 316048413

    Cooktop parts diagram

    Surface Pan

    Part #3051479

    Replaced by #316048413

    Info Icon
    Manufacturer substitution
    This part replaces 3051479. Substitute parts can look different from the original.
    In Stock
    $13.97
    13% OFF Phone Price : $15.97Info Icon
    Minus Item
    Qty
    Plus Item
