Kelvinator
Washer

Model # AWP330H1W Official Kelvinator 24" washer - 5995223954

Here are the diagrams and repair parts for Official Kelvinator AWP330H1W 24" washer - 5995223954, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 182 parts  |
Trunnion 5303283294
#15

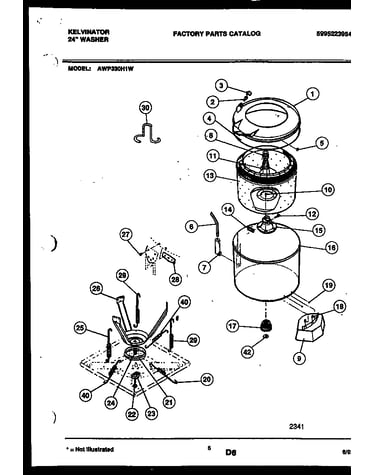

Tub detail diagram

Trunnion

Part #5303283294

Replaced by #131545101

?
Manufacturer substitution
This part replaces 5303283294. Substitute parts can look different from the original.
BEST SELLER
$102.42 |
9% OFF Phone Price : $112.42
In Stock
Washer Basket Drive Tube Seal 5303161307
#5

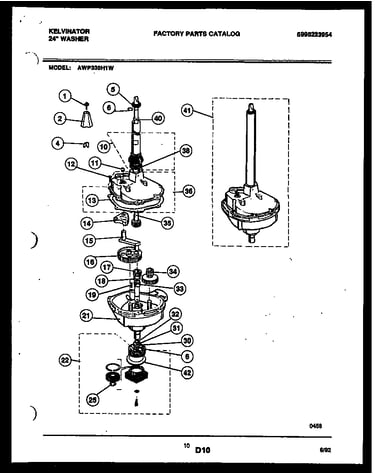

Transmission parts diagram

Washer basket drive tube seal

Part #5303161307

$19.44 |
9% OFF Phone Price : $21.44
In Stock
Control Panel F140555-000
#11

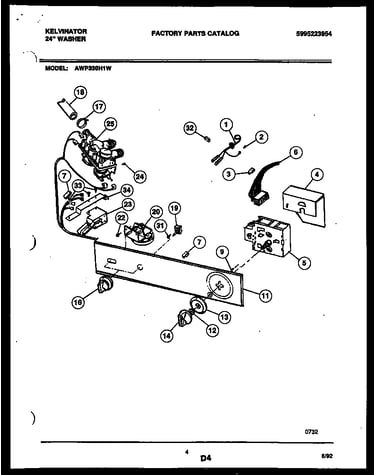

Console and control parts diagram

Control panel

Part #F140555-000

$26.99
In Stock
Panel 3205926
#25

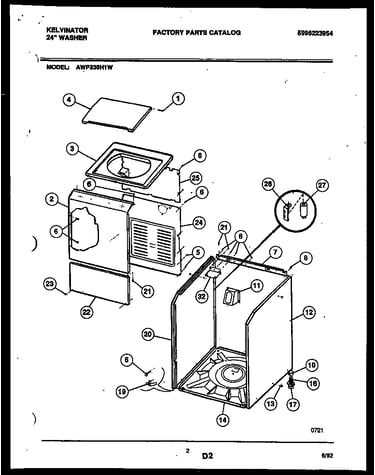

Cabinet parts diagram

Panel

Part #3205926

$21.49
In Stock
Clip 3205935

#NI

All parts diagram

Clip

Part #3205935

This item is not returnable
$2.16
In Stock
Screw 5303015671
Screw

Part #5303015671

This item is not returnable
$3.20
In Stock
Catch 08027587
#5

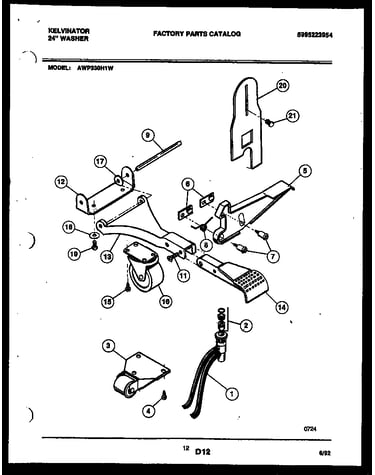

Portable washer components diagram

Catch

Part #08027587

$12.99
In Stock
Screw 08004660
Screw

Part #08004660

This item is not returnable
$2.16
In Stock
Screw 08011251

#NI

All parts diagram

Screw

Part #08011251

This item is not returnable
$2.16
In Stock
Washer Screw 5303270023
#6

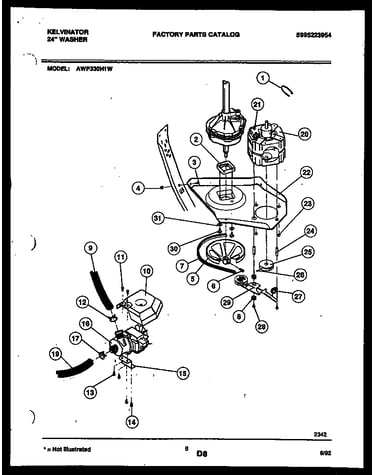

Motor and idler arm clutch diagram

Washer screw

Part #5303270023

$22.84
In Stock
