Kelvinator AW500COD 28" washer - k1780-36 Parts
Here are the diagrams and repair parts for Kelvinator AW500COD 28" washer - k1780-36, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for AW500COD 28" Washer - K1780-36
Console & controls diagram
Screw
Part #F073325-000Replaced by #131168200
Manufacturer substitutionThis part replaces F073325-000. Substitute parts can look different from the original.In Stock$14.0812% OFF Phone Price : $16.08
Qty
#NI
All parts diagram
Adhesive
Part #064709-100Replaced by #5308027429
Manufacturer substitutionThis part replaces 064709-100. Substitute parts can look different from the original.In Stock$43.2318% OFF Was : $53.03QtyPump, hoses diagram

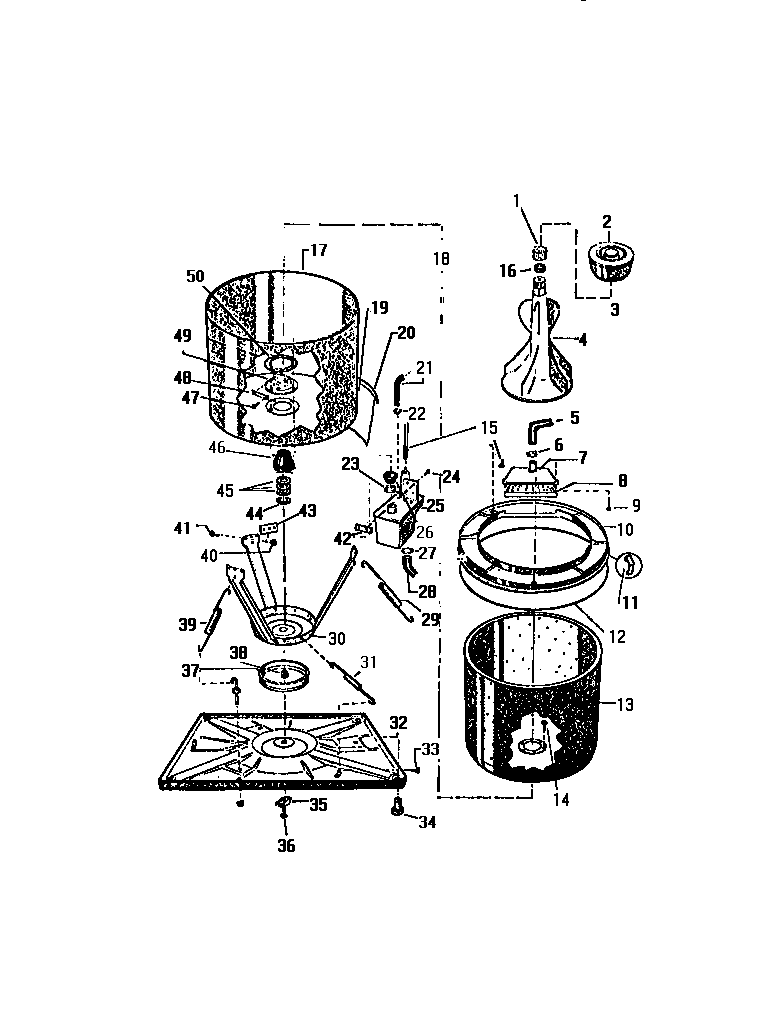

Water Valve
Part #F141174-000Replaced by #134190200
Manufacturer substitutionThis part replaces F141174-000. Substitute parts can look different from the original.In Stock$130.598% OFF Phone Price : $142.59QtyTubs, base diagram
Washer
Part #F132835-000Replaced by #5308002401
Manufacturer substitutionThis part replaces F132835-000. Substitute parts can look different from the original.In Stock$8.9910% OFF Phone Price : $9.99Qty#NI
All parts diagram
Spray Paint (white)
Part #F94566-10Replaced by #5303321319
Manufacturer substitutionThis part replaces F94566-10. Substitute parts can look different from the original.This item is not returnableIn Stock$16.5811% OFF Phone Price : $18.58QtyConsole & controls diagram
Screw
Part #F137858-000Replaced by #131205100
Manufacturer substitutionThis part replaces F137858-000. Substitute parts can look different from the original.In Stock$17.1610% OFF Phone Price : $19.16QtyConsole & controls diagram
Switch
In Stock$53.17QtyMotor diagram
Housing
In Stock$143.80Qty#NI
All parts diagram
Dispenser
Part #F064534-000Replaced by #5308011246
Manufacturer substitutionThis part replaces F064534-000. Substitute parts can look different from the original.In Stock$27.35QtyTransmission diagram
Hub
Part #F140465-000Replaced by #134596100
Manufacturer substitutionThis part replaces F140465-000. Substitute parts can look different from the original.In Stock$191.76Qty
