Owner’s manual
View engine
What does prime and pull start mean?
On the Craftsman 917377425 rotary lawn mower, “prime and pull start” means you press the primer to pump a small amount of fuel into the engine for cold starting, then pull the starter handle to crank the engine until it starts. See the starting steps in the owner's manual.
How to start a cold engine (prime and pull)
We follow these steps for this mower style:
- Push the primer 3 times before starting a cold engine.
- Hold the operator presence control bar down to the handle.
- Pull the starter handle quickly with a smooth, firm motion.
- Do not let the starter rope snap back; guide it back in.
- To stop the engine, release the operator presence control bar.
What “prime” does (and when to use it)
Priming adds extra fuel for a cold start. It is usually not needed if the engine has already run in the last few minutes.
| Situation | Prime? | What to do |
|---|---|---|
| First start of the day (cold engine) | Yes | Prime 3 times, then pull start |
| Restart after a short break | Usually no | Hold control bar, pull start |
| Cool weather | Maybe | Prime, then pull; repeat priming only if needed |
| Engine seems flooded | No | Wait a few minutes, then pull start |
If it will not start after priming
These checks solve most “prime and pull” starting problems:
- Make sure the operator presence control bar is fully held down.
- Avoid over-priming; too much fuel can flood the engine.
- Check for old gas; stale fuel can cause hard starting.
- Inspect the starter rope and recoil action if the pull feels stuck.
- Review seasonal storage and fuel-draining steps in the owner's manual.
Why it matters
Using the primer correctly prevents flooding, reduces pull-start effort, and helps protect the carburetor and fuel system, especially after storage longer than 30 days.
Last updated: February 2026
What model number is the Craftsman 917377425 riding mower?
The Craftsman 917377425 is not a riding mower model number; it identifies a Craftsman 6.5 HP, 22-inch, side-discharge, power-propelled rotary walk-behind lawn mower. For model-specific identification details and the correct parts breakdown, use the owner's manual.
How we know 917377425 is a walk-behind mower

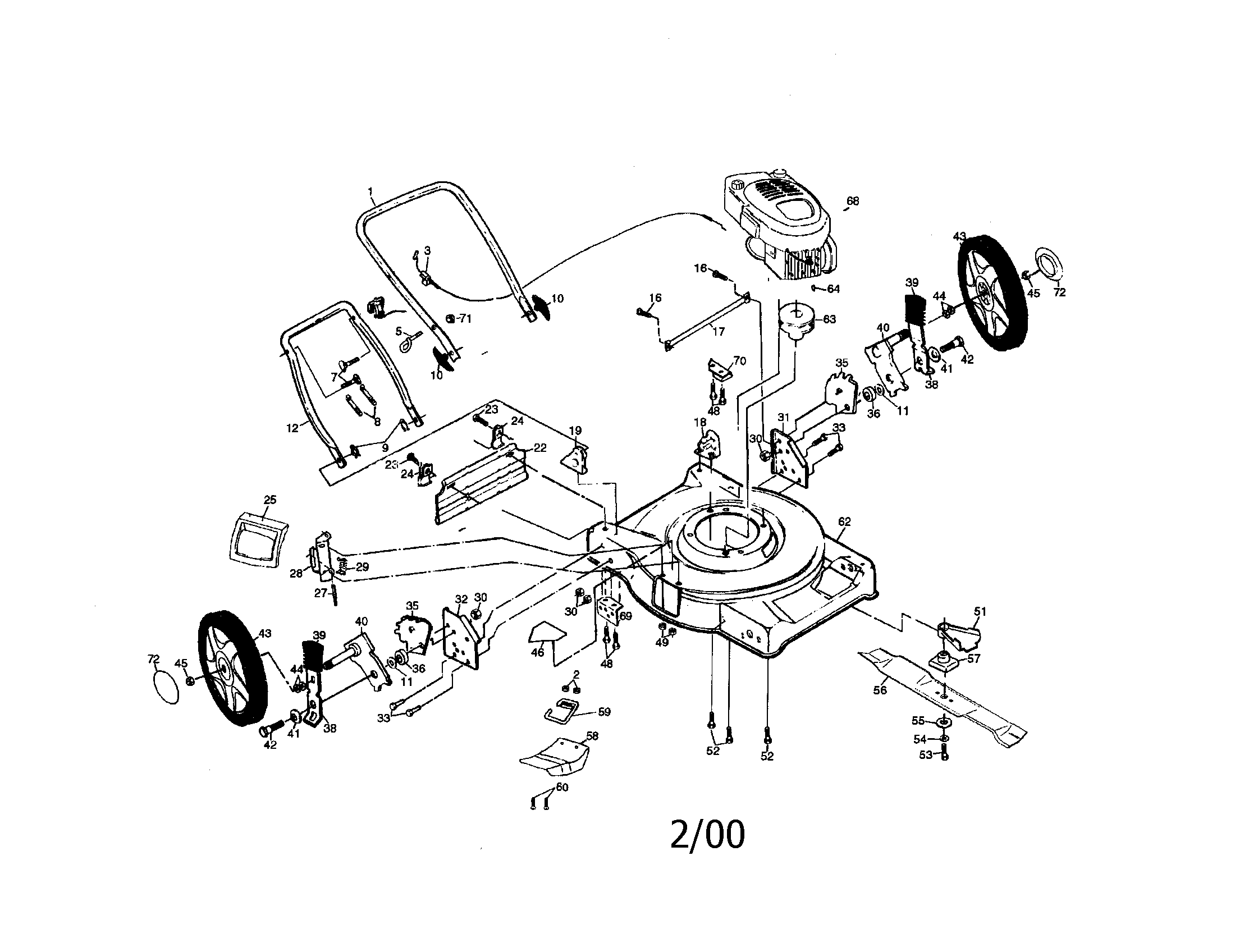

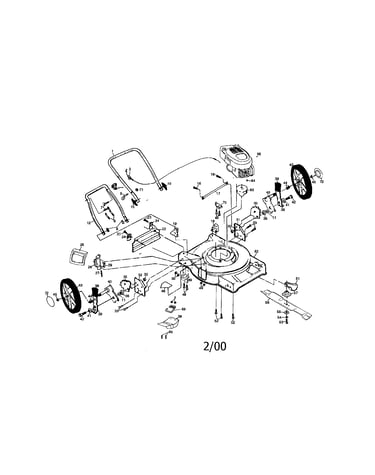

The documentation for model 917.377425 lists it as a rotary lawn mower with 22-inch side discharge and includes walk-behind components like the handle, zone control cable, and gear case assembly.
If you are trying to identify a Craftsman riding mower
Riding mower model numbers are typically found on the frame under the seat, near the rear fender, or on the mower deck (location varies by design). Use these checks:
- Look for a product tag that says Model and Serial
- Write the model number exactly as shown (letters and numbers)
- Confirm whether the unit is walk-behind (push/propel) or riding (seat and steering)
- Match the model number to the correct parts list before ordering
- Use the manual for your exact model to confirm engine and deck details
Quick comparison: walk-behind vs riding mower identifiers
| Feature | Walk-behind mower (917377425) | Riding mower |
|---|---|---|
| Operator position | Walking behind | Seated |
| Typical deck size | Around 21 to 22 inches | Often 30 inches and up |
| Common controls | Zone control cable, handle controls | Steering, pedals, PTO/blade switch |
Why it matters
Using the wrong model number can lead to ordering parts that do not fit. For example, this model’s parts list includes items like the lawn mower blade 532406713 and belt 532157769, which are typical walk-behind components, not riding mower deck or transmission parts.
Last updated: February 2026
What size belt do I need for a Craftsman 42 inch deck?
A “Craftsman 42-inch deck” belt size depends on the exact riding mower model and deck configuration; it is not the same as the self-propel (drive) belt used on the Craftsman 917377425 walk-behind mower. For model 917377425, the correct drive belt is the V-belt shown in the parts list and diagram in the owner's manual.
How to identify the right belt for your 42-inch deck
A 42-inch deck belt is for a riding mower deck, not a walk-behind mower. To get the correct belt size, match these details:
- Riding mower model number (from the frame tag)
- Deck model number (often separate from the tractor model)
- Belt routing style (single belt vs. multiple belts)
- Whether the belt is a deck drive belt or a blade/mandrel belt
- The belt you are replacing (numbers printed on the belt, if readable)
Belt info we can confirm for Craftsman 917377425 (walk-behind)

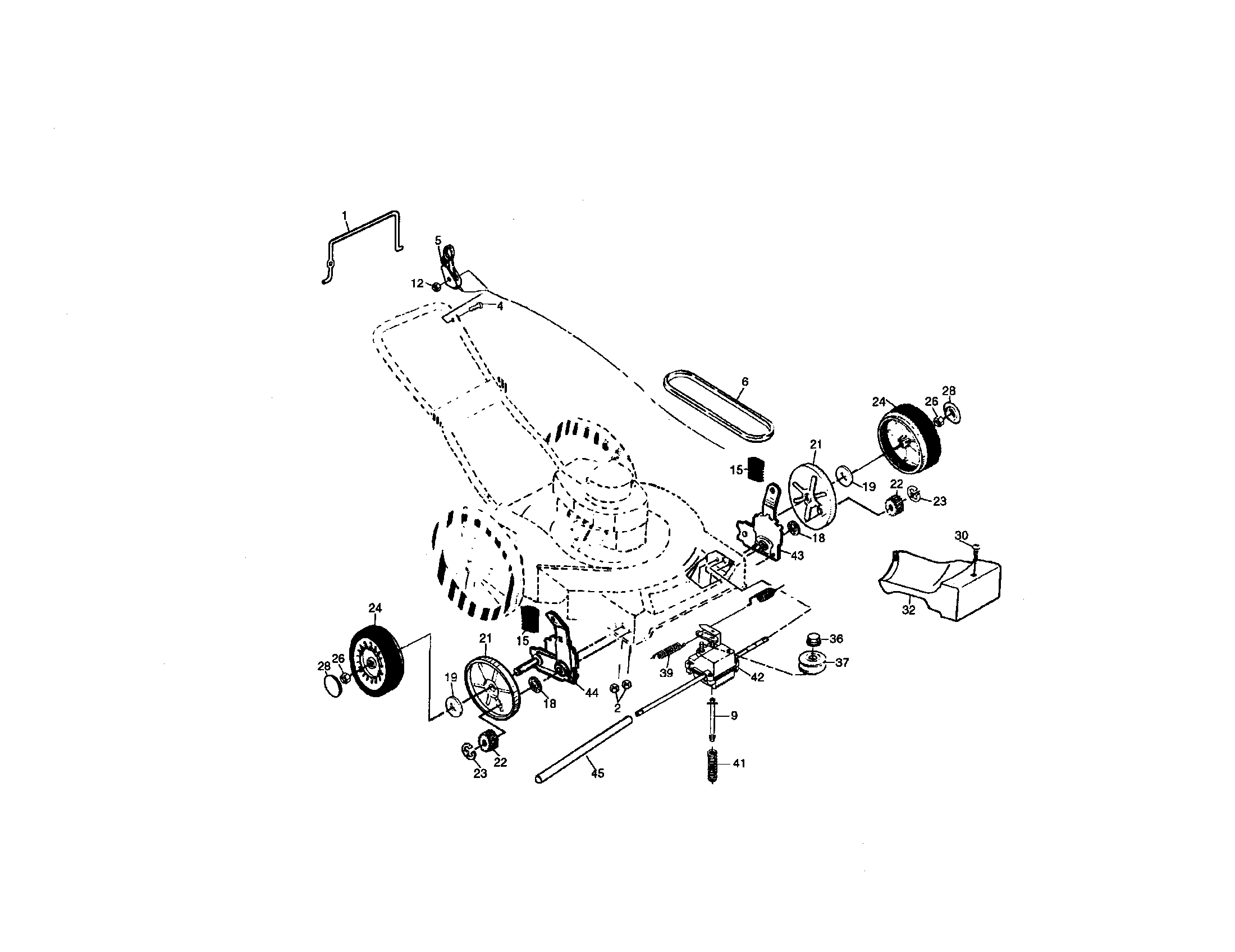

For your Craftsman 917377425 rotary lawn mower, the belt in the drive system is listed as a V-belt in the repair parts section.
| Mower type | What the belt drives | Where to confirm the exact belt | Example part on this model page |
|---|---|---|---|
| Walk-behind (917377425) | Self-propel/drive wheels | Owner's manual | Belt 532157769 |
| Riding mower with 42-inch deck | Deck pulleys and blades | Riding mower and deck model tags | Deck belt varies by model |
Quick checks before you order
- If your mower has a 22-inch blade and is self-propelled, you are in the walk-behind category (917377425).
- If you sit on the mower and it has a 42-inch cutting deck, you need the riding mower model number to select the correct deck belt.
- If the old belt is intact, use its printed number as the fastest match.
Why it matters
Belt width and effective length control pulley engagement and blade speed. The wrong belt can slip, jump off, or overload bearings and pulleys, leading to poor cut quality and premature wear.
Last updated: February 2026
What year is Craftsman Model 917377425?
Craftsman rotary lawn mower model 917377425 does not have a single built-in “model year”; the model number identifies the product family, not the manufacturing date. To find the year, we use the mower’s product/serial number label and match it to the date-code format shown in the owner's manual.
Where to find the date information
Look for a sticker or stamped tag on the mower; common locations include:
- On the rear of the deck near the discharge opening
- Under the handle mounting area
- Near the engine mounting plate
- On the wheel height adjuster area
How to decode it (what to look for)
On many Craftsman walk-behind mowers, the serial or product number includes a date code. When you locate the label, compare it to the identification and parts information in the manual.
Typical clues that you have the right code:
- A longer number than the model number (often 8 to 12+ characters)
- A mix of numbers and letters
- A separate line labeled “Serial,” “Product,” or “MFG”
Quick reference table
Use this to keep the numbers straight while you’re checking the tag.
| Item | Example | What it tells you |
|---|---|---|
| Model number | 917377425 | Which mower design and parts list you need |
| Serial/product number | (varies) | The manufacturing date code is usually here |
Why it matters
The correct year (from the serial/product label) helps us match the right blade, drive parts, and hardware for your exact build. For example, this model uses parts like the lawn mower blade 532406713 and the belt 532157769, and small changes by production run can affect fit.
Last updated: February 2026
