Model # 5KSM45EAQ4 Official KitchenAid stand mixer

Here are the diagrams and repair parts for Official KitchenAid 5KSM45EAQ4 stand mixer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

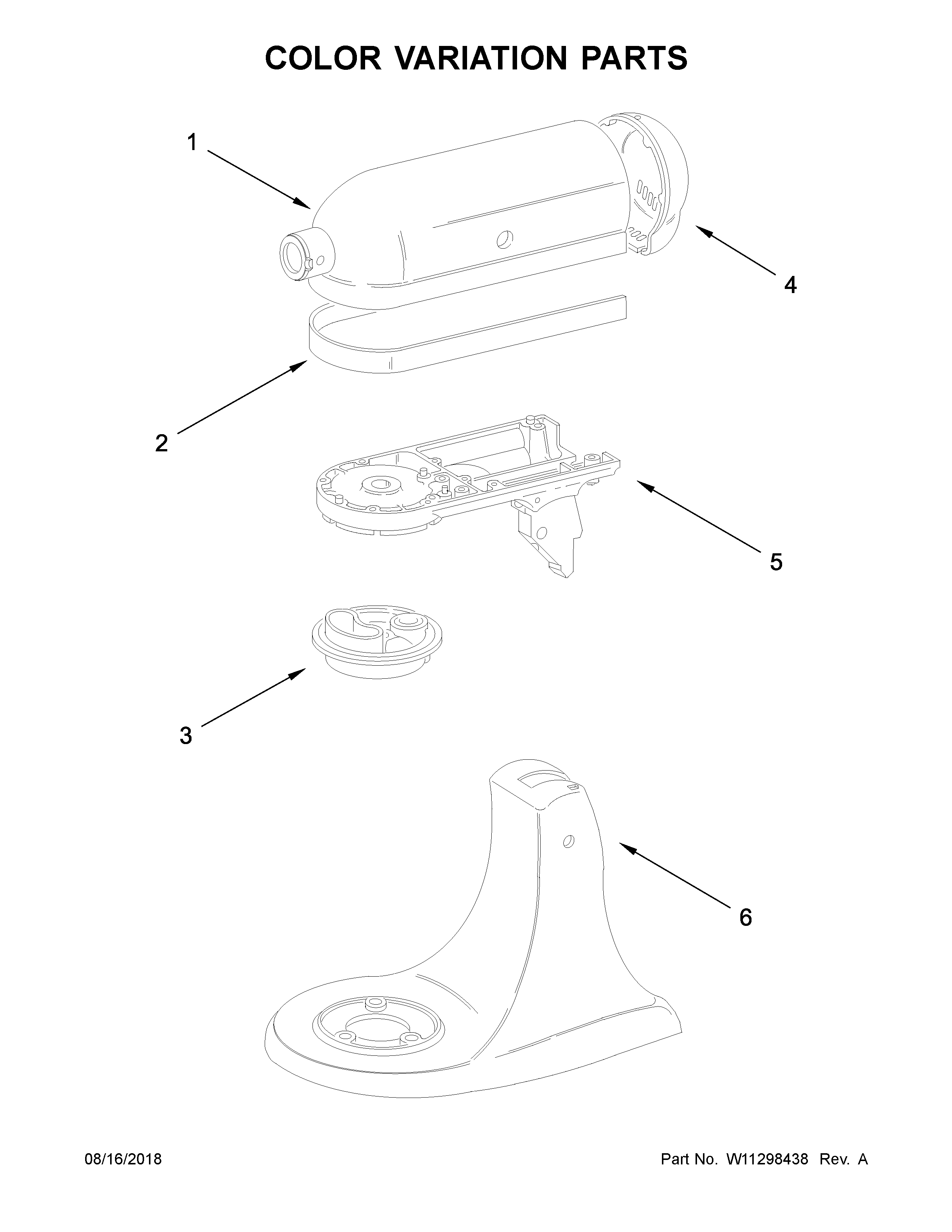

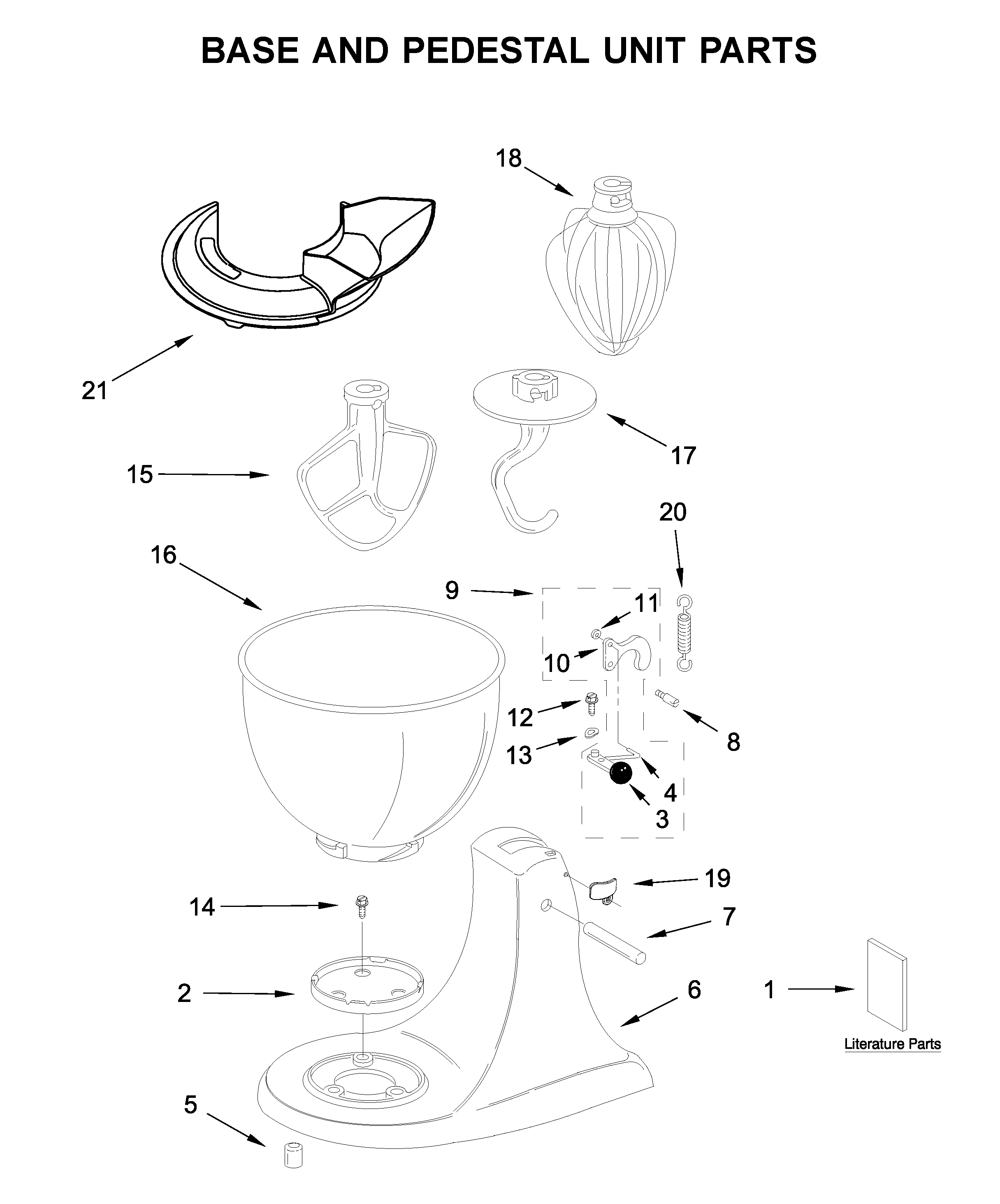

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 102 parts  |

Stand Mixer Worm Gear W10112253
#8

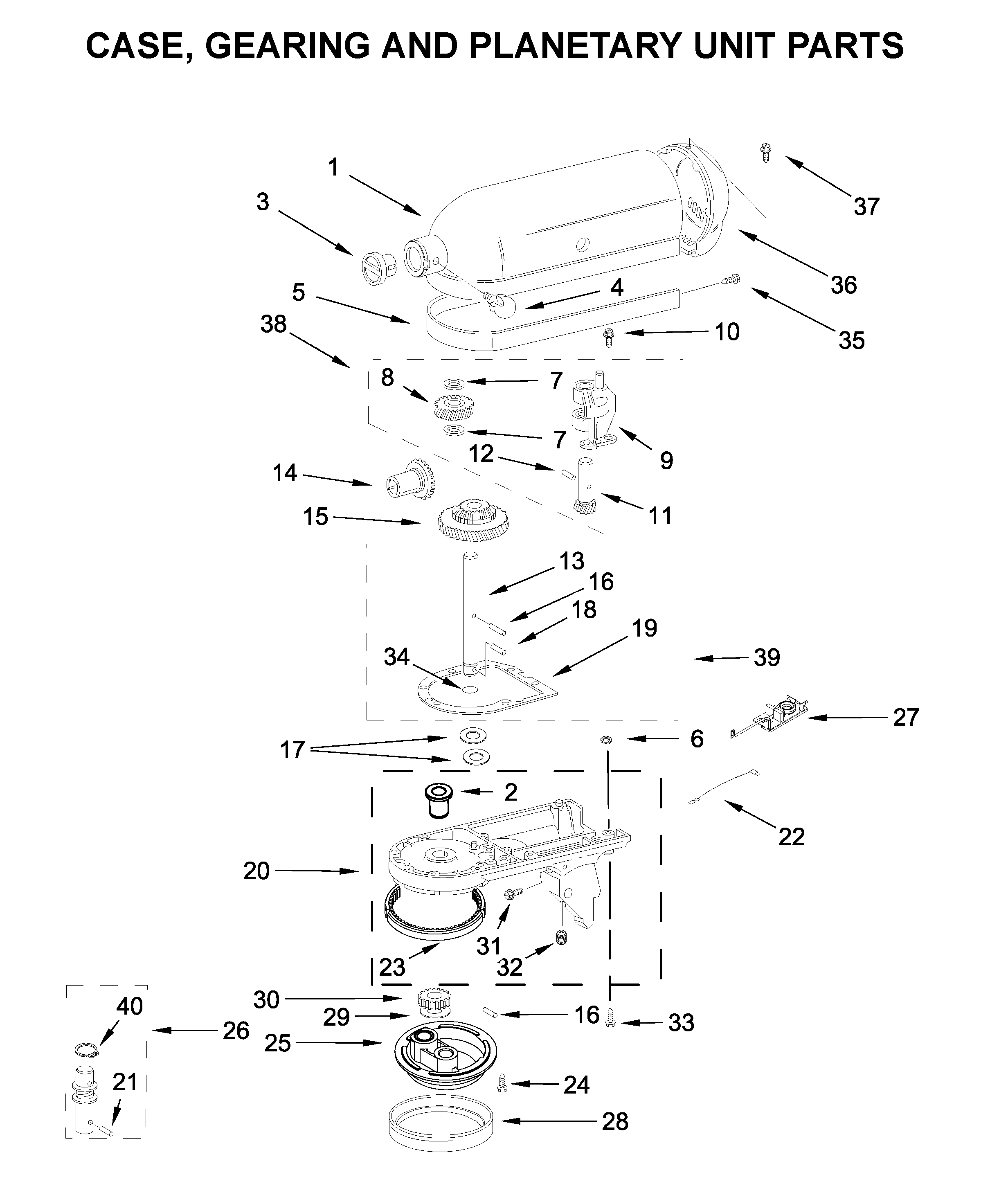

Case, gearing and planetary unit parts diagram

Stand mixer worm gear

Part #W10112253

Replaced by #WPW10112253

?
Manufacturer substitution
This part replaces W10112253. Substitute parts can look different from the original.
BEST SELLER
$14.64
14% OFF Phone Price : $17.09
In Stock
Ring-o 67500-55
#34

Case, gearing and planetary unit parts diagram

Ring-o

Part #67500-55

Replaced by #WP67500-55

?
Manufacturer substitution
This part replaces 67500-55. Substitute parts can look different from the original.
This item is not returnable
$5.09
16% OFF Phone Price : $6.09
In Stock
Stand Mixer Set Screw WP3400203
#32

Case, gearing and planetary unit parts diagram

Stand mixer set screw

Part #WP3400203

This item is not returnable
$5.09
16% OFF Phone Price : $6.09
In Stock
Speed Lever 9709276
#3

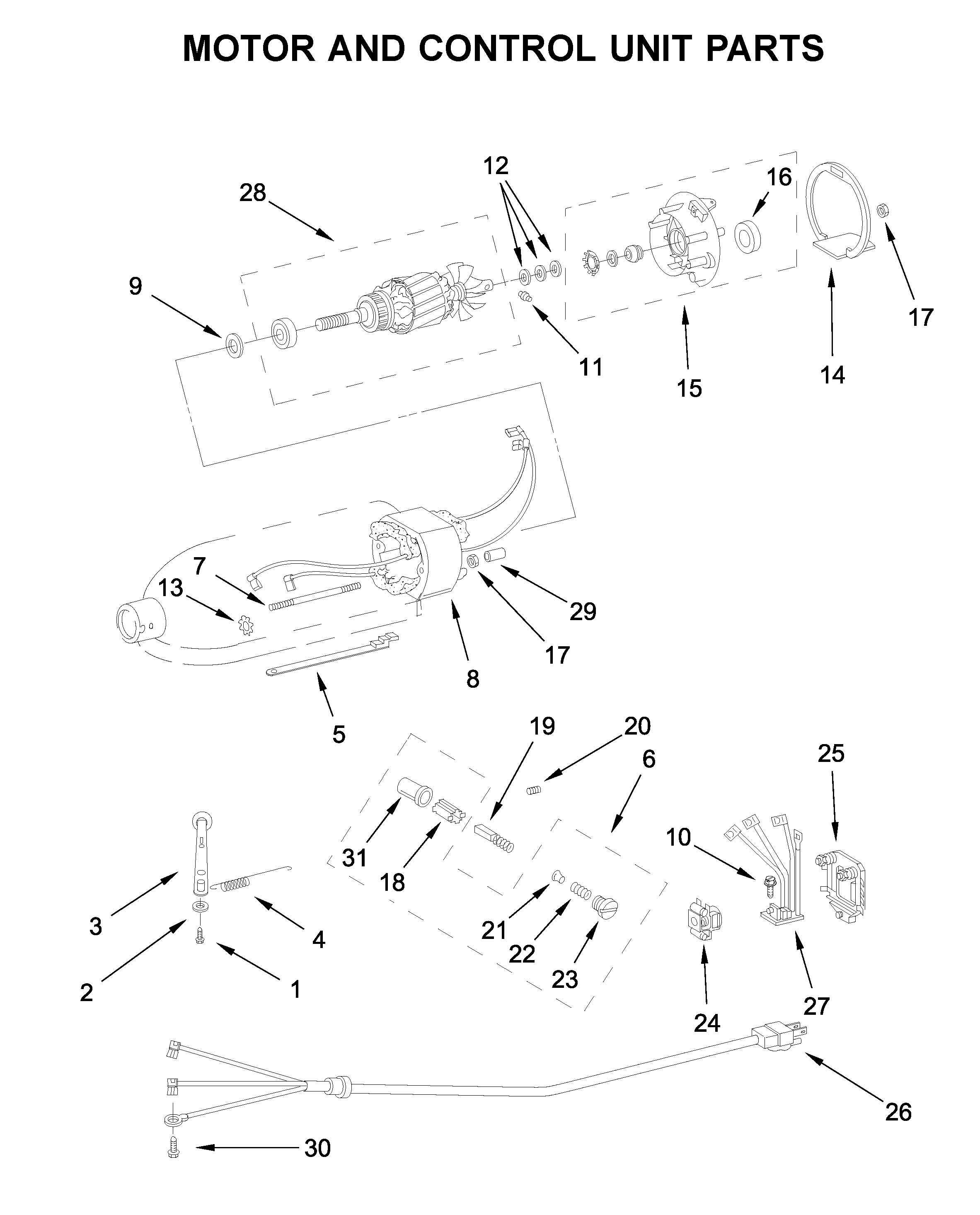

Motor and control unit parts diagram

Speed lever

Part #9709276

Replaced by #WP9709276

?
Manufacturer substitution
This part replaces 9709276. Substitute parts can look different from the original.
This item is not returnable
$5.79
15% OFF Phone Price : $6.79
In Stock
Pin-groove 9705443
#18

Case, gearing and planetary unit parts diagram

Pin-groove

Part #9705443

Replaced by #WP9705443

?
Manufacturer substitution
This part replaces 9705443. Substitute parts can look different from the original.
This item is not returnable
$4.58
18% OFF Phone Price : $5.58
In Stock
Drip Ring 240285
#28

Case, gearing and planetary unit parts diagram

Drip ring

Part #240285

Replaced by #WP240285

?
Manufacturer substitution
This part replaces 240285. Substitute parts can look different from the original.
This item is not returnable
$9.29
10% OFF Phone Price : $10.29
In Stock
Hub Cover-at W10753041
#3

Case, gearing and planetary unit parts diagram

Hub cover-at

Part #W10753041

Replaced by #W11048596

?
Manufacturer substitution
This part replaces W10753041. Substitute parts can look different from the original.
This item is not returnable
$10.39
16% OFF Phone Price : $12.39
In Stock
Ring 16897
#2

Case, gearing and planetary unit parts diagram

Ring

Part #16897

Replaced by #WP16897

?
Manufacturer substitution
This part replaces 16897. Substitute parts can look different from the original.
This item is not returnable
$5.09
16% OFF Phone Price : $6.09
In Stock
Washer W10323378
#17

Case, gearing and planetary unit parts diagram

Washer

Part #W10323378

Replaced by #WPW10323378

?
Manufacturer substitution
This part replaces W10323378. Substitute parts can look different from the original.
This item is not returnable
$10.49
16% OFF Phone Price : $12.49
In Stock
Lock Washer 8533914
#6

Case, gearing and planetary unit parts diagram

Lock washer

Part #8533914

Replaced by #WP8533914

?
Manufacturer substitution
This part replaces 8533914. Substitute parts can look different from the original.
This item is not returnable
$5.09
16% OFF Phone Price : $6.09
In Stock
