How do I clear the error code on my Whirlpool oven?
On the Whirlpool WGE555S0BW01 electric range, you typically clear an error code by pressing the CANCEL key for the affected oven (CANCEL UPPER or CANCEL LOWER) to clear the display. If the code returns after clearing, the range needs troubleshooting of the related circuit or component; follow the steps in the WGE555S0BW01 owner's manual.
- Press CANCEL UPPER or CANCEL LOWER (whichever oven is showing the code).
- If the display is flashing after a power interruption, press CANCEL UPPER to clear the display, then reset the clock if needed.
- If Control Lock is on, press and hold START LOWER for 3 seconds to unlock, then try CANCEL again.
- If the code appears during or right after Self-Clean, press CANCEL UPPER or CANCEL LOWER; wait for the oven to cool if the door is locked.
- If the code comes back immediately, turn the range off at the breaker for 1 minute, then restore power and recheck.
A repeating letter-number code usually points to a problem the control is detecting (not just a one-time glitch). Common causes include:
- Oven temperature sensor circuit issue
- Door lock or latch feedback problem (often noticed around clean cycles)
- Wiring connection problem at the control or sensor
- Electronic oven control problem
| What you see | What to do first | Next step if it returns |
|---|---|---|
| Letter + number error code | Press CANCEL for that oven | Use Whirlpool error codes to identify the code and follow the checks |
| Flashing time after outage | Press CANCEL UPPER | Reset clock, then test Bake |
| Door locked after canceling clean | Wait for cool-down | Do not force the door; retry after unlock |
Clearing the code gets you cooking again when it is a temporary control issue, but a code that reappears helps pinpoint the exact system (sensor, latch, wiring, or control) that needs repair so you can avoid uneven baking, shutdowns, or a locked door.
Last updated: February 2026
How do I find the model number on my WGE555S0BW01?
On a Whirlpool electric range like WGE555S0BW01, the model number is printed on the rating label (a sticker or metal tag) on the range frame. The most common location is around the oven door opening, visible when you open the oven door.
Check these spots in order (they are the most common for Whirlpool ranges):
- Oven door frame: along the left or right side of the opening
- Front frame behind the storage drawer: remove the drawer and look on the frame
- Lower side trim area: near the bottom front edge
- Back panel: sometimes on the rear of the range (harder to see once installed)
The rating label usually includes:
- Model number (example format: WGE555S0BW01)
- Serial number
- Electrical rating (volts/amps)
- Manufacturing codes
- Write the model number exactly as shown, including all letters and numbers.
- Avoid mixing up similar characters (for example, 0 and O, 1 and I).
- If the label is greasy, wipe gently with a damp cloth and mild soap; do not scrape.
We use the exact model number to match the correct diagrams and parts for your specific configuration (cooktop elements, control panel, door parts, and wiring). That prevents ordering the wrong component.
For diagrams and label location notes specific to this range, use the owner's manual.
Last updated: March 2026
What is the average lifespan of WGE555S0BW01?
A Whirlpool electric range like model WGE555S0BW01 typically lasts 13 to 15 years with normal household use and basic maintenance. Keeping the cooktop elements clean, avoiding slamming the oven door, and fixing heating issues early helps you reach that lifespan.
- Heating components: surface elements and the oven bake element cycle on and off and wear over time.
- Control electronics: power surges and heat exposure can shorten control life.
- Door wear: hinges, latch, and handle loosen if the door is used roughly.
- Wiring connections: loose or overheated connections can cause intermittent failures.
- Cleaning habits: spills baked onto elements and harsh cleaners can damage finishes and parts.
| Symptom | Most common cause | Typical fix |
|---|---|---|
| One burner won’t heat | Failed radiant element or switch | Replace element or switch |
| Oven won’t bake | Failed bake element | Replace bake element |
| Display works but heat is erratic | Control or wiring issue | Inspect wiring, test components |
| Door won’t close evenly | Worn hinge or bracket | Replace hinge parts |
These are normal wear items on many electric ranges, including WGE555S0BW01:

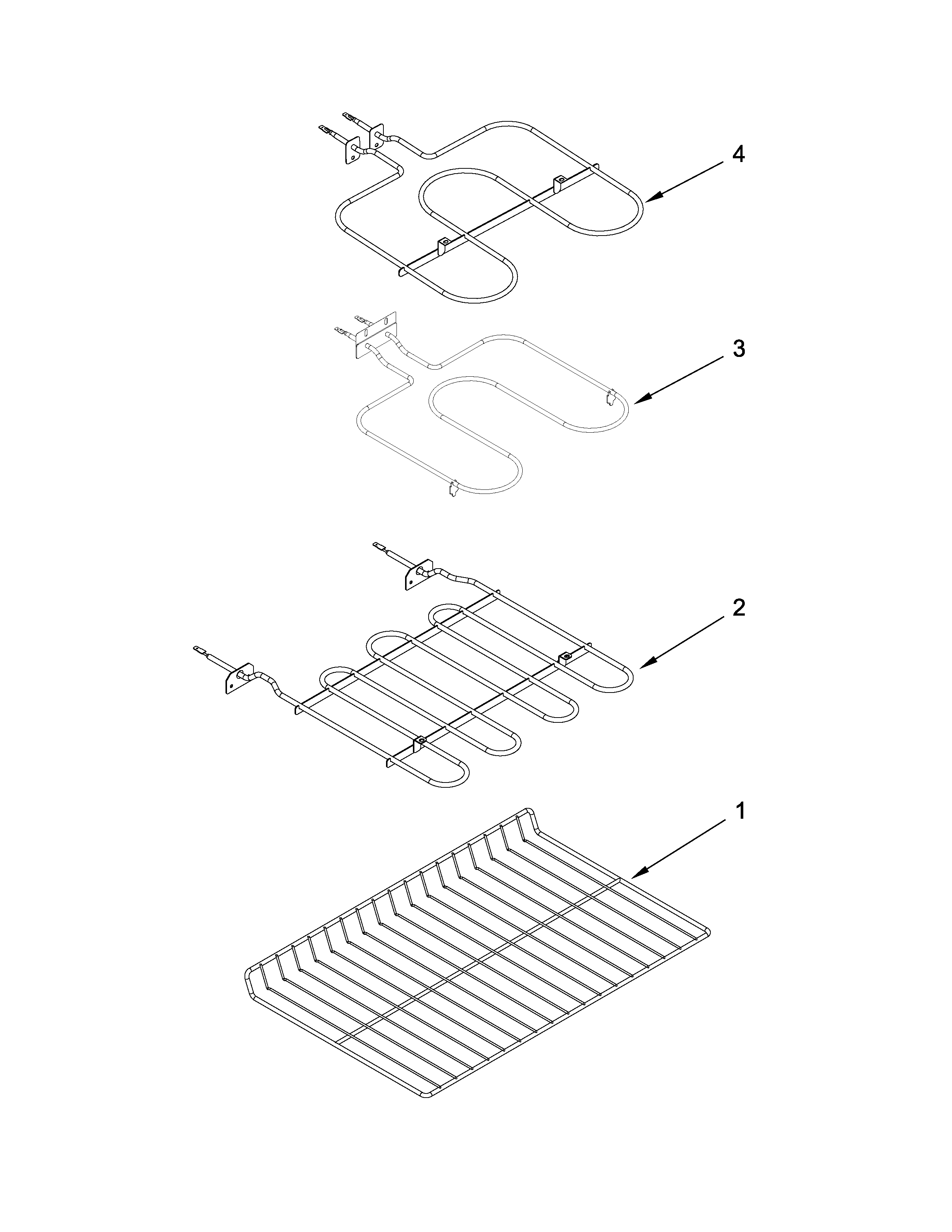

- Range bake element WPW10272325 (if the oven stops heating or heats unevenly)

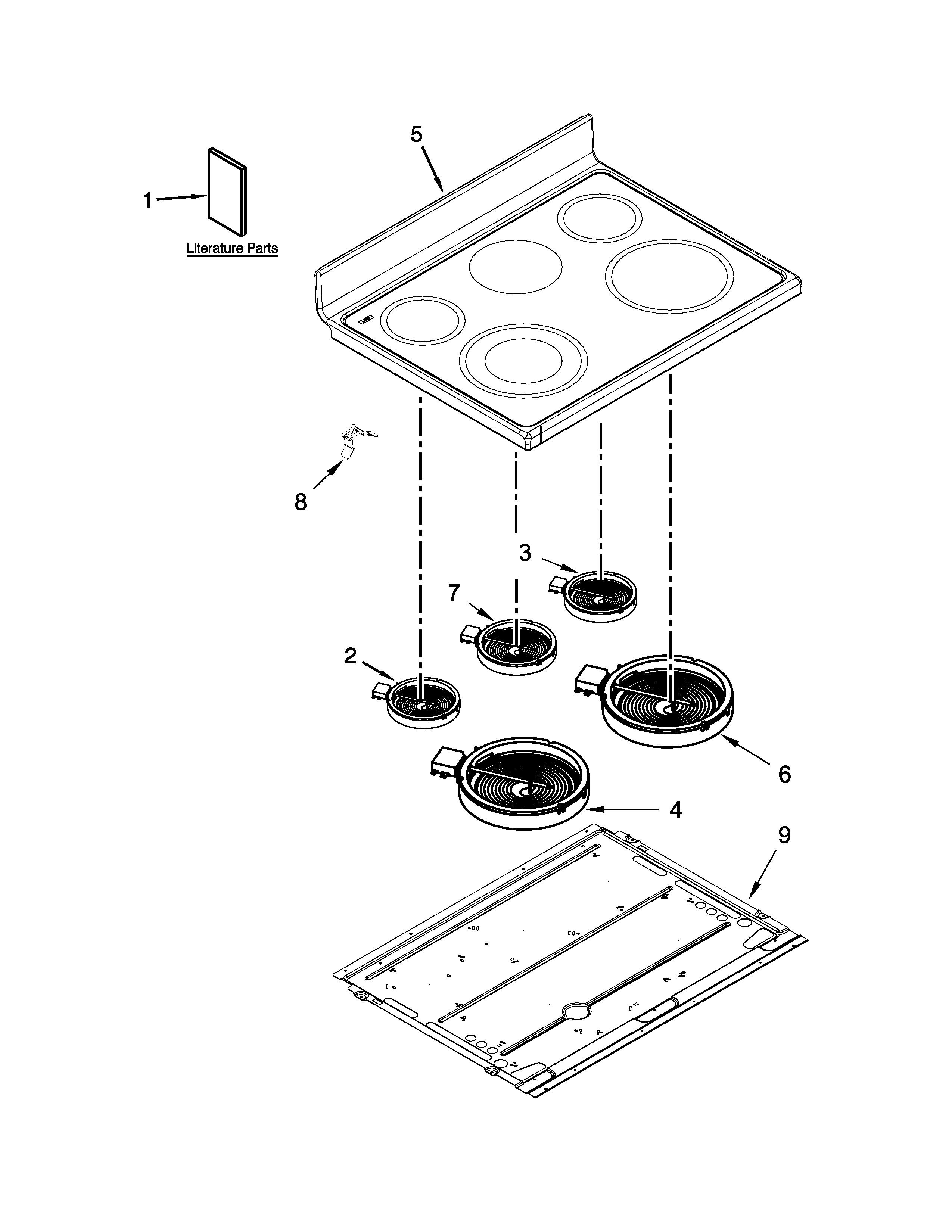

- Range dual radiant surface element W11517959 (if a dual burner won’t heat correctly)
- Terminal block WPW10245259 (if the power cord connection overheats or loosens)
Knowing the typical 13 to 15 year lifespan helps you decide whether to repair a heating or control problem now or plan for replacement later. A single failed element is usually a straightforward repair; repeated control or wiring failures often signal broader wear.
For model-specific use and care tips, follow the maintenance and cleaning guidance in the owner's manual.
Last updated: March 2026
