Model # 291376402 Official Craftsman 18" reel lawn mower

Here are the diagrams and repair parts for Official Craftsman 291376402 18" reel lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |

Bolt 30119-2
#24

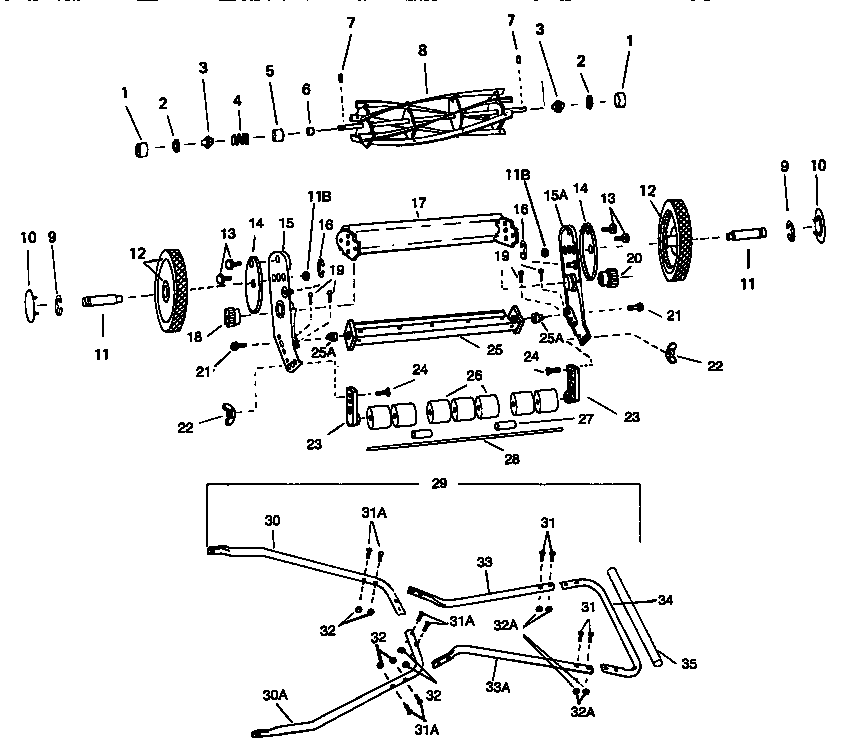

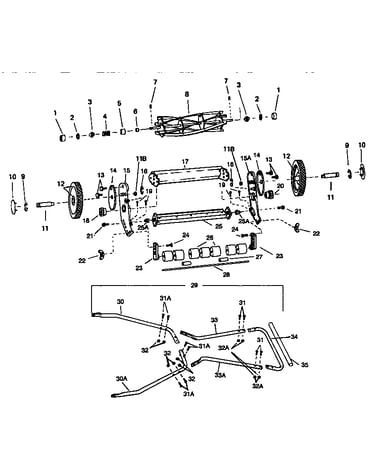

Replacement parts diagram

Bolt

Part #30119-2

The manufacturer no longer makes this part, and there's no substitute part

Lawn Mower Drive Pinion Gear, Left 30737-3
#18

Replacement parts diagram

Lawn mower drive pinion gear, left

Part #30737-3

The manufacturer no longer makes this part, and there's no substitute part

Shrub Bar 10367-1-10
#17

Replacement parts diagram

Shrub bar

Part #10367-1-10

The manufacturer no longer makes this part, and there's no substitute part

Lawn Mower Bolt 30660
#13

Replacement parts diagram

Lawn mower bolt

Part #30660

The manufacturer no longer makes this part, and there's no substitute part

Reel Lawn Mower Pinion Gear, Right 30737-2
#20

Replacement parts diagram

Reel lawn mower pinion gear, right

Part #30737-2

The manufacturer no longer makes this part, and there's no substitute part

Spring 30309
#4

Replacement parts diagram

Spring

Part #30309

The manufacturer no longer makes this part, and there's no substitute part

Dust Cap 30308-0-10
#5

Replacement parts diagram

Dust cap

Part #30308-0-10

The manufacturer no longer makes this part, and there's no substitute part

Plate 10326-17-10
#15

Replacement parts diagram

Plate

Part #10326-17-10

The manufacturer no longer makes this part, and there's no substitute part

Plate 10326-16-10
#15A

Replacement parts diagram

Plate

Part #10326-16-10

The manufacturer no longer makes this part, and there's no substitute part

Lawn Mower Ratchet Pawl 30316
#7

Replacement parts diagram

Lawn mower ratchet pawl

Part #30316

The manufacturer no longer makes this part, and there's no substitute part
