Downdraft Ventilation System

Model #KIRD801XSS1 Official KitchenAid vent system

Here are the diagrams and repair parts for KitchenAid KIRD801XSS1 vent system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 77 parts

    Cooktop Downdraft Vent Grease Filter#33A

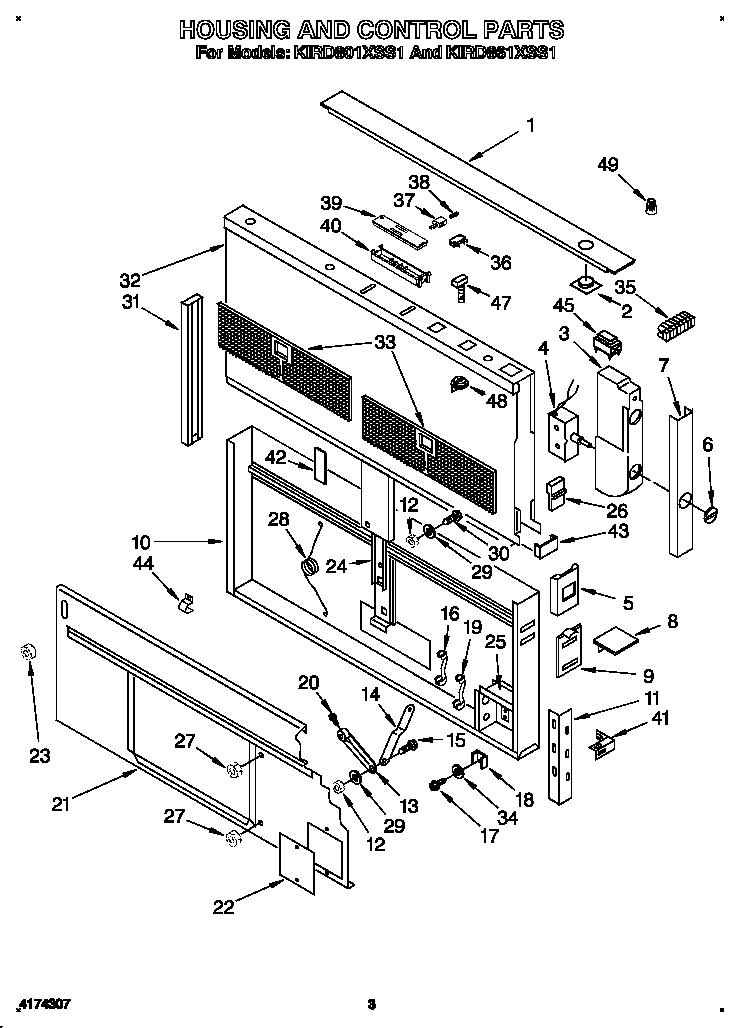

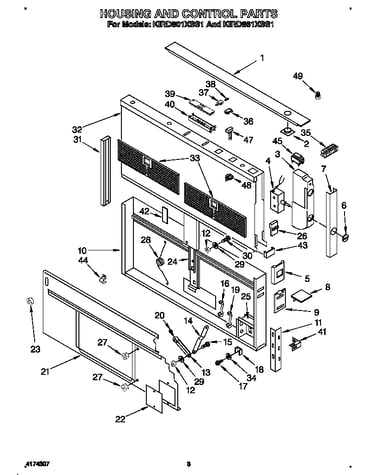

    Housing and control parts Diagram

    Grease filter

    Part #4360193
    Replaced by #WPW10396091
    ?
    Manufacturer substitution
    This part replaces 4360193. Substitute parts can look different from the original.
    In Stock
    $82.40 |
    14% OFF
    Was: $96.29
    Downdraft Vent Filter Switch Kit#37

    Housing and control parts Diagram

    Actuator

    Part #4360166
    Replaced by #W10235643
    ?
    Manufacturer substitution
    This part replaces 4360166. Substitute parts can look different from the original.
    In Stock
    $134.49 |
    10% OFF
    MSRP: $150.00
    Downdraft Vent Filter Switch Kit#39

    Housing and control parts Diagram

    Switch cover

    Part #4360168
    Replaced by #W10235643
    ?
    Manufacturer substitution
    This part replaces 4360168. Substitute parts can look different from the original.
    In Stock
    $134.49 |
    10% OFF
    MSRP: $150.00
    Downdraft Vent Filter Switch Kit#38

    Housing and control parts Diagram

    Spring

    Part #4360167
    Replaced by #W10235643
    ?
    Manufacturer substitution
    This part replaces 4360167. Substitute parts can look different from the original.
    In Stock
    $134.49 |
    10% OFF
    MSRP: $150.00
    Downdraft Vent Filter Switch Kit#40

    Housing and control parts Diagram

    Switch housing

    Part #4360169
    Replaced by #W10235643
    ?
    Manufacturer substitution
    This part replaces 4360169. Substitute parts can look different from the original.
    In Stock
    $134.49 |
    10% OFF
    MSRP: $150.00
    Downdraft Vent Filter Switch Kit#36

    Housing and control parts Diagram

    Switch

    Part #4360196
    Replaced by #W10235643
    ?
    Manufacturer substitution
    This part replaces 4360196. Substitute parts can look different from the original.
    In Stock
    $134.49 |
    10% OFF
    MSRP: $150.00
    Range Hood Grease Filter#33B

    Housing and control parts Diagram

    Grease filter

    Part #4360194
    Replaced by #WPW10381779
    ?
    Manufacturer substitution
    This part replaces 4360194. Substitute parts can look different from the original.
    In Stock
    $100.79 |
    9% OFF
    Phone Price: $110.79
    Range Hood Fan Switch#16

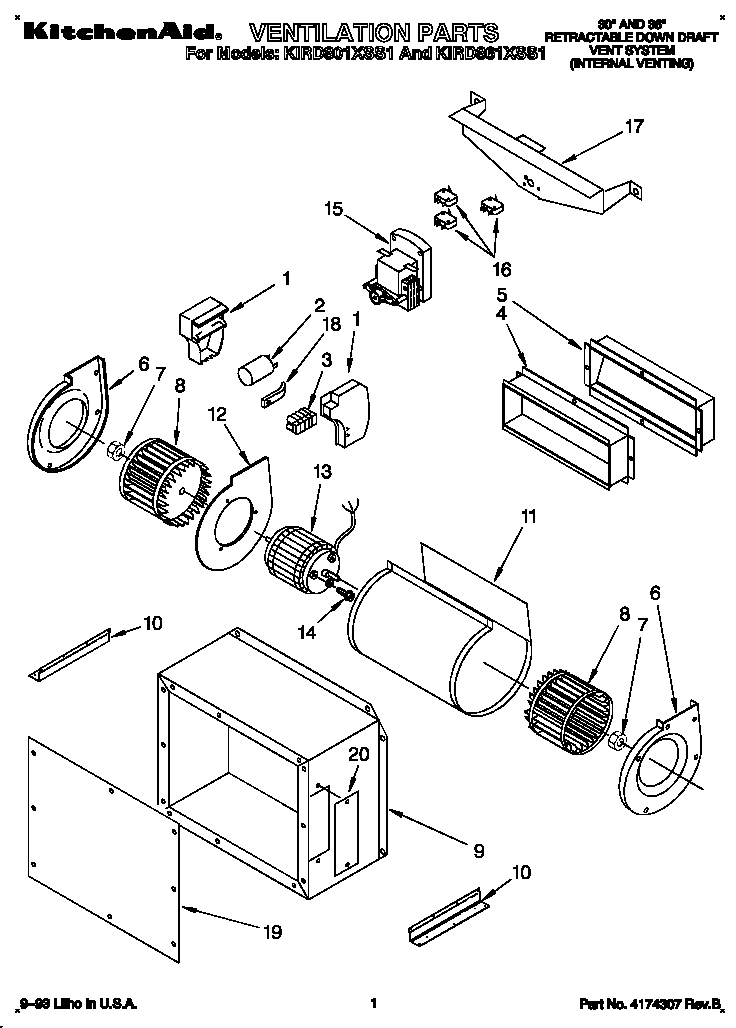

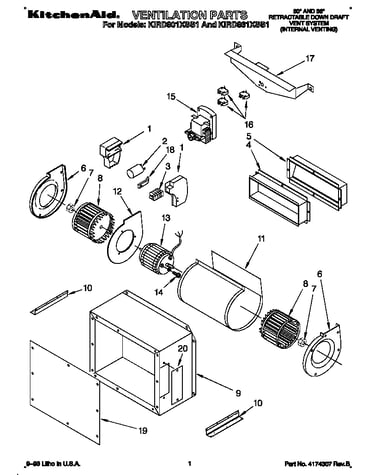

    Ventilation parts Diagram

    Switch

    Part #4360035
    Replaced by #WPW10240604
    ?
    Manufacturer substitution
    This part replaces 4360035. Substitute parts can look different from the original.
    In Stock
    $101.56 |
    22% OFF
    MSRP: $130.00
    Washer#29

    Housing and control parts Diagram

    Washer

    Part #4360158
    Replaced by #98007193
    ?
    Manufacturer substitution
    This part replaces 4360158. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $9.94
    Downdraft Vent Up/Down Switch#45

    Housing and control parts Diagram

    Switch

    Part #4360210
    Replaced by #WPW10323305
    ?
    Manufacturer substitution
    This part replaces 4360210. Substitute parts can look different from the original.
    In Stock
    $65.19 |
    7% OFF
    Phone Price: $70.19
