Model #MC-UG323-00 Panasonic vacuum

Here are the diagrams and repair parts for Panasonic MC-UG323-00 vacuum, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

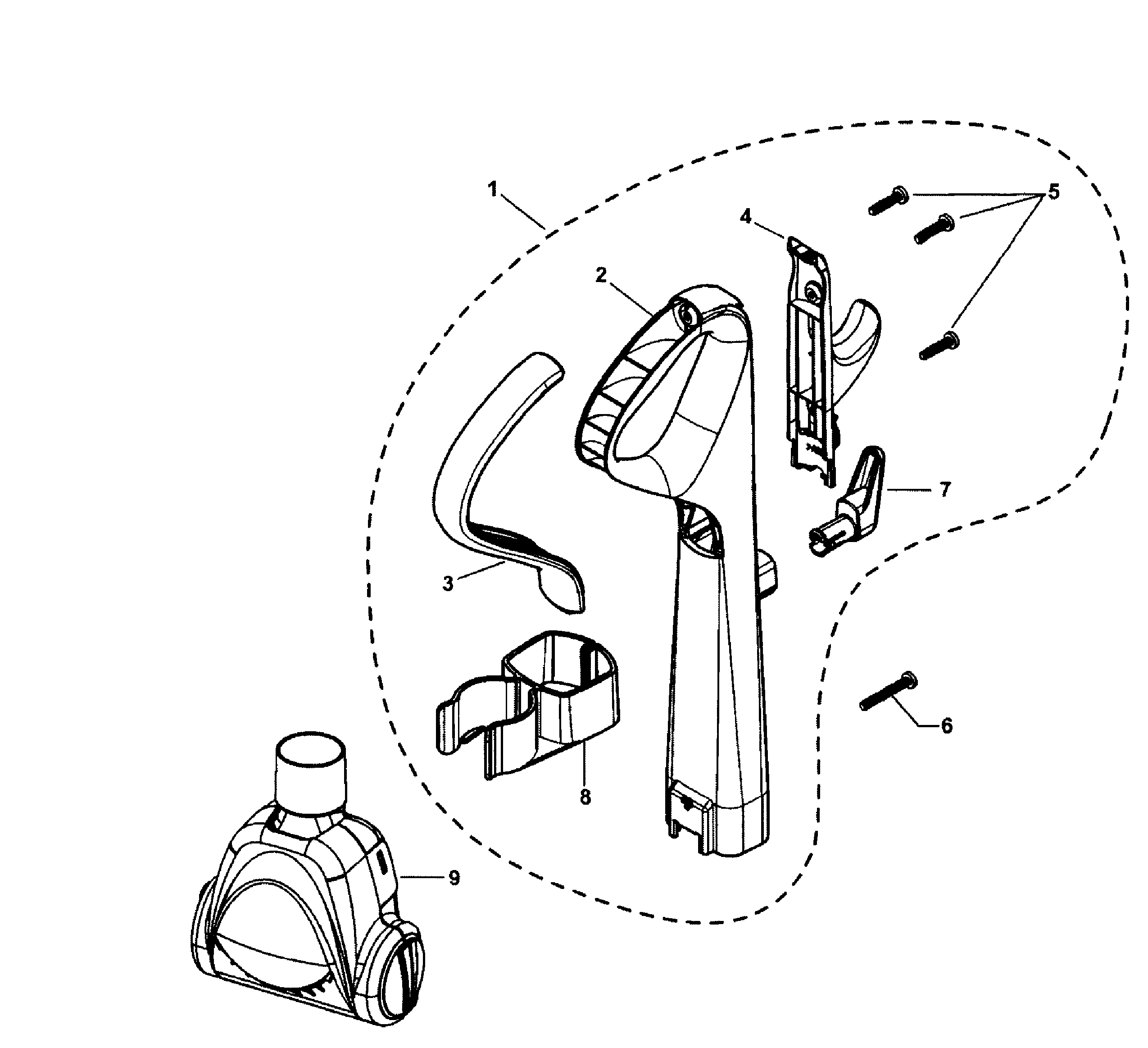

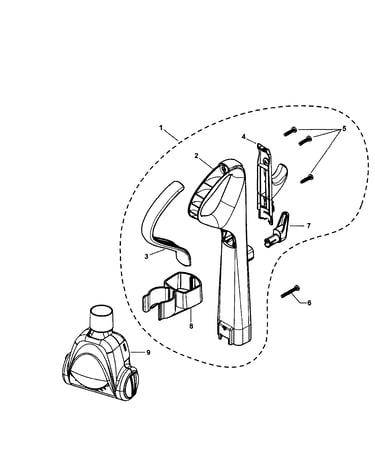

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileOwner’s manual

    Showing 10 of 61 parts

    Vacuum Beater Bar

    #4

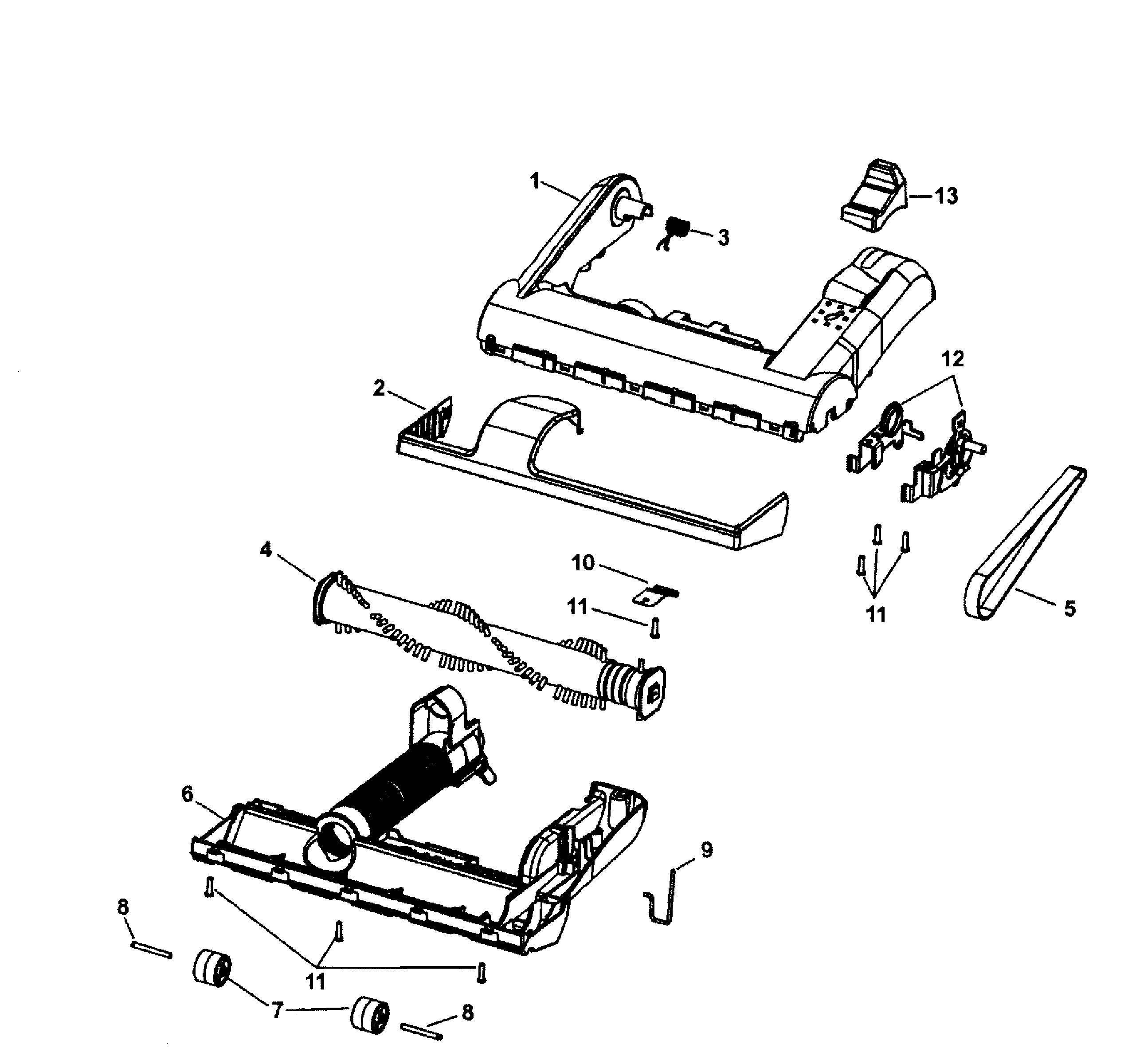

    Nozzle assy Diagram

    Vacuum beater bar

    Part #AC84RDRZZ000
    $31.24

    In Stock

    Power Cord

    #19

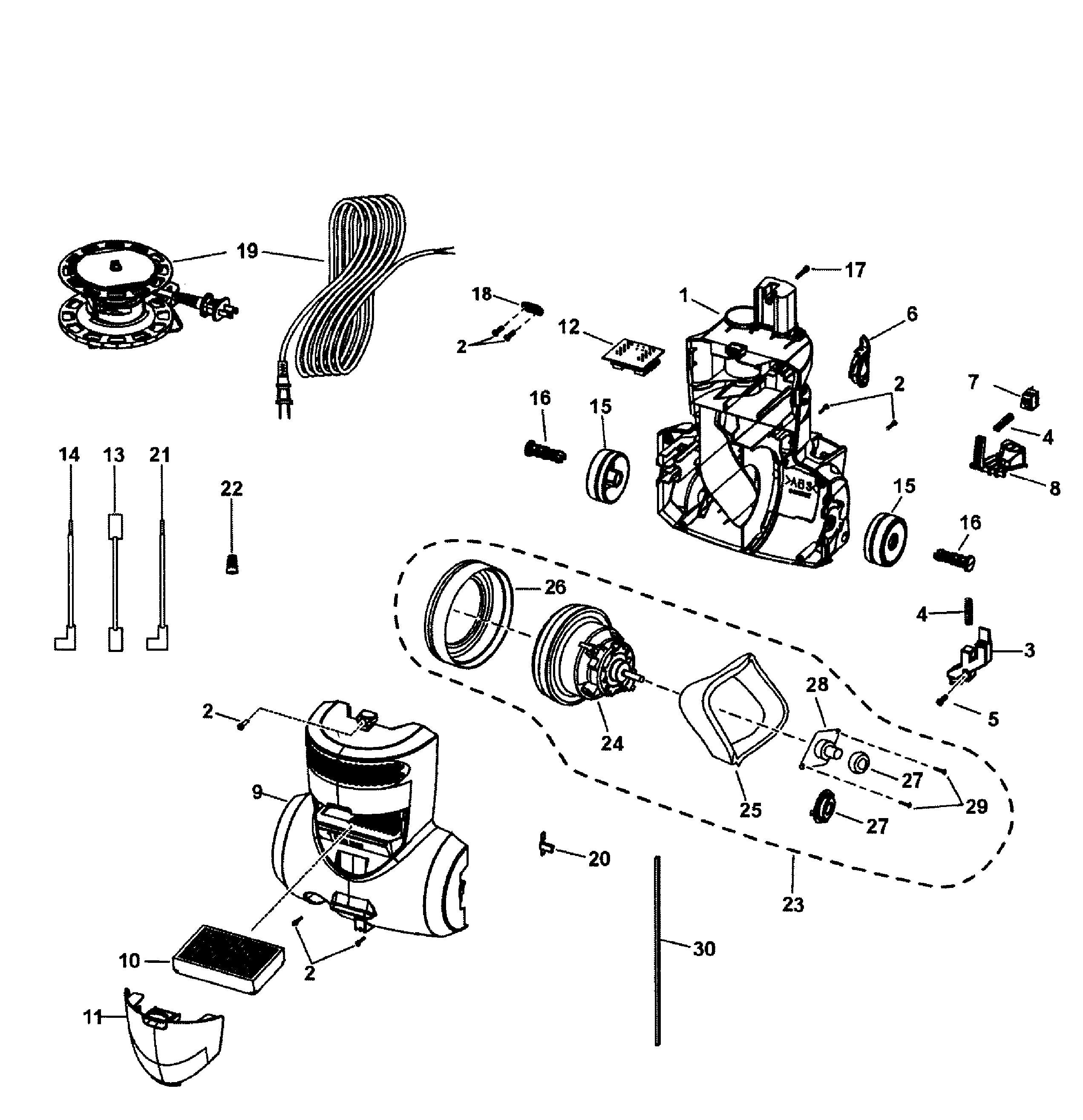

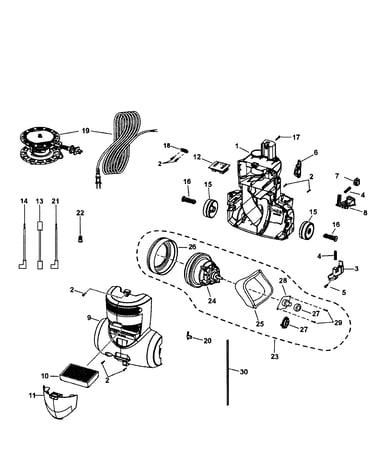

    Lower body Diagram

    Power cord

    Part #AC97EDRZZ000
    $55.49

    In Stock

    Wheel

    #7

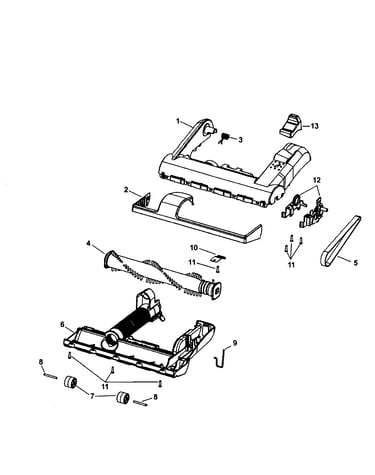

    Nozzle assy Diagram

    Wheel

    Part #AC99QCYBZV06
    $7.99

    In Stock

    Fastener Guide

    #3

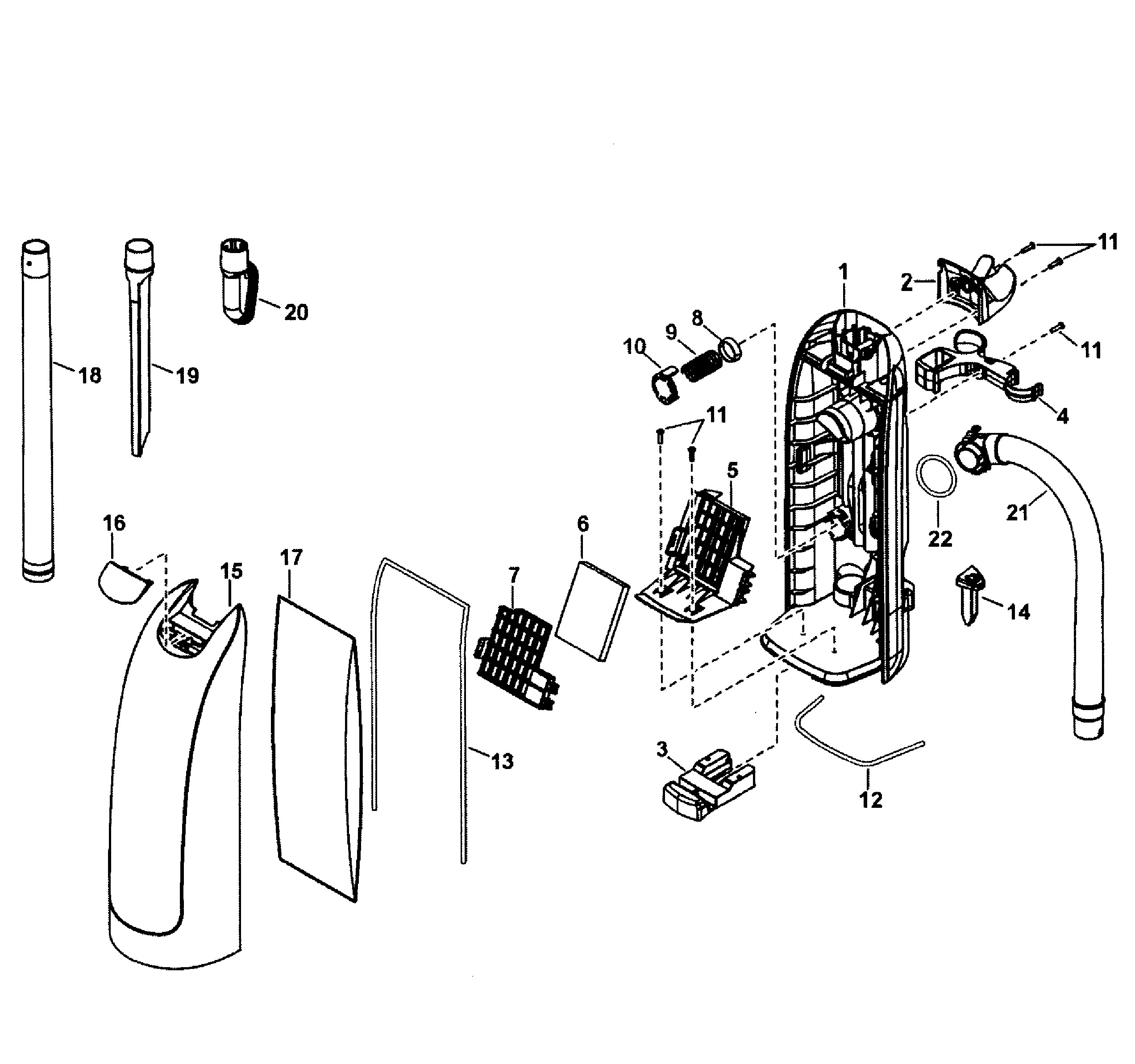

    Upper body Diagram

    Fastener guide

    Part #AC21KDTGZV07
    This item is not returnable
    $5.49

    In Stock

    Vacuum Extension Wand

    #18

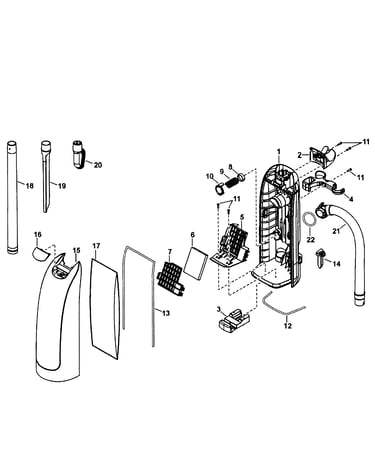

    Upper body Diagram

    Vacuum extension wand

    Part #AC40PJPZV07
    $24.49

    In Stock

    Packing

    #22

    Upper body Diagram

    Packing

    Part #AC64HDHKZ000
    This item is not returnable
    $2.99

    In Stock

    Protector Cover

    #10

    Upper body Diagram

    Protector cover

    Part #AC68KAJDZV07
    $40.99

    In Stock

    Cord Stopp

    #18

    Lower body Diagram

    Cord stopp

    Part #AC62ECWZZ000
    This item is not returnable
    $5.99

    In Stock

    Owner's Manual

    #NI

    Upper body Diagram

    Owner's manual

    Part #AC01ZDTGZ000
    $32.49

    In Stock

    Wire,white

    #21

    Lower body Diagram

    Wire,white

    Part #AC85WDRZZ000
    This item is not returnable
    $3.99

    In Stock
