Kenmore
Canister Vacuum

Model # 1165401190 Official Kenmore powermate vacuum attachment

Here are the diagrams and repair parts for Official Kenmore 1165401190 powermate vacuum attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |

Gasket 742968
#51

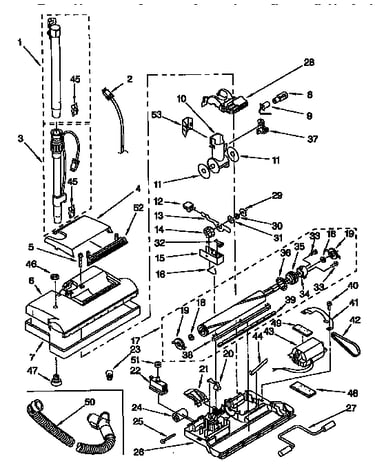

Power mate diagram

Gasket

Part #742968

The manufacturer no longer makes this part, and there's no substitute part

Washer, 12 X 5 681424
#18

Power mate diagram

Washer, 12 x 5

Part #681424

The manufacturer no longer makes this part, and there's no substitute part

(not Serviced, Use Old ) Screw, Motor  Brush N/P
#50

Power mate diagram

(not serviced, use old ) screw, motor brush

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Screw (silver) 681605
#33

Power mate diagram

Screw (silver)

Part #681605

The manufacturer no longer makes this part, and there's no substitute part

Swivel 4156162
#10

Power mate diagram

Swivel

Part #4156162

The manufacturer no longer makes this part, and there's no substitute part

Roller Shaft 742006
#25

Power mate diagram

Roller shaft

Part #742006

The manufacturer no longer makes this part, and there's no substitute part

Swivel Seal (white) 742019
#11

Power mate diagram

Swivel seal (white)

Part #742019

The manufacturer no longer makes this part, and there's no substitute part

Bezel 741261
#46

Power mate diagram

Bezel

Part #741261

The manufacturer no longer makes this part, and there's no substitute part

Release 4148391
#21

Power mate diagram

Release

Part #4148391

The manufacturer no longer makes this part, and there's no substitute part

Housng-blb 4369601
#4

Power mate diagram

Housng-blb

Part #4369601

The manufacturer no longer makes this part, and there's no substitute part
