Admiral ADE20L1A dryer Parts
Here are the diagrams and repair parts for Admiral ADE20L1A dryer, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part

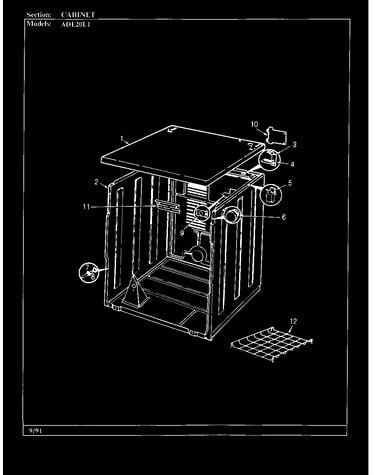

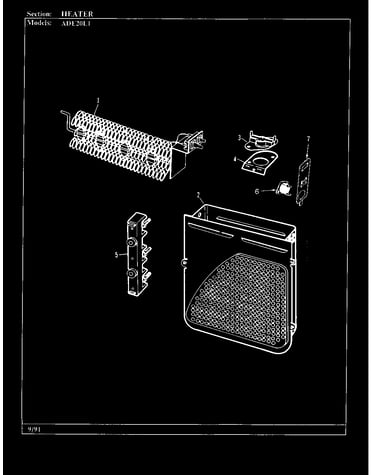

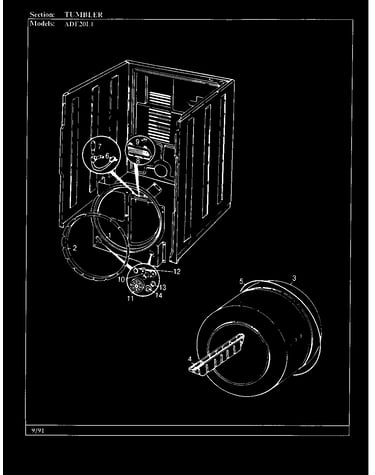

SELECT DIAGRAM
Browse Parts for ADE20L1A Dryer
Door (rev. a-c) diagram
Door Seal
Part #53-0112Replaced by #WP31001529
Manufacturer substitutionThis part replaces 53-0112. Substitute parts can look different from the original.In Stock$51.3130% OFF Was : $73.49
Qty
Door (rev. a-c) diagram
Clip Switch
Part #63-5990Replaced by #WP31001319
Manufacturer substitutionThis part replaces 63-5990. Substitute parts can look different from the original.In Stock$24.61QtyMotor & drive (rev. a-c) diagram
Idler Pulley
Part #53-1628Replaced by #WP31001344
Manufacturer substitutionThis part replaces 53-1628. Substitute parts can look different from the original.This item is not returnableIn Stock$42.0912% OFF Phone Price : $48.09QtyControl panel (rev. a-c) diagram
Timer
Part #53-1803
The manufacturer no longer makes this part, and there's no substitute part
Motor & drive (rev. a-c) diagram
Retaining Ring
Part #25-7855
The manufacturer no longer makes this part, and there's no substitute part
Door (rev. a-c) diagram
Twin Nut
Part #53-0121
The manufacturer no longer makes this part, and there's no substitute part
Control panel (rev. a-c) diagram
Buzzer Assembly
Part #53-1639
The manufacturer no longer makes this part, and there's no substitute part
Speedclip, E
Part #25-7702
The manufacturer no longer makes this part, and there's no substitute part
Motor & drive (rev. a-c) diagram
Motor Bracket
Part #53-0852
The manufacturer no longer makes this part, and there's no substitute part
Control panel (rev. a-c) diagram
Resistor
Part #63-6743
The manufacturer no longer makes this part, and there's no substitute part
