KitchenAid
Microwave/Hood Combo

Model #KMHC319EBS1 KitchenAid microwave/hood combo

Here are the diagrams and repair parts for KitchenAid KMHC319EBS1 microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

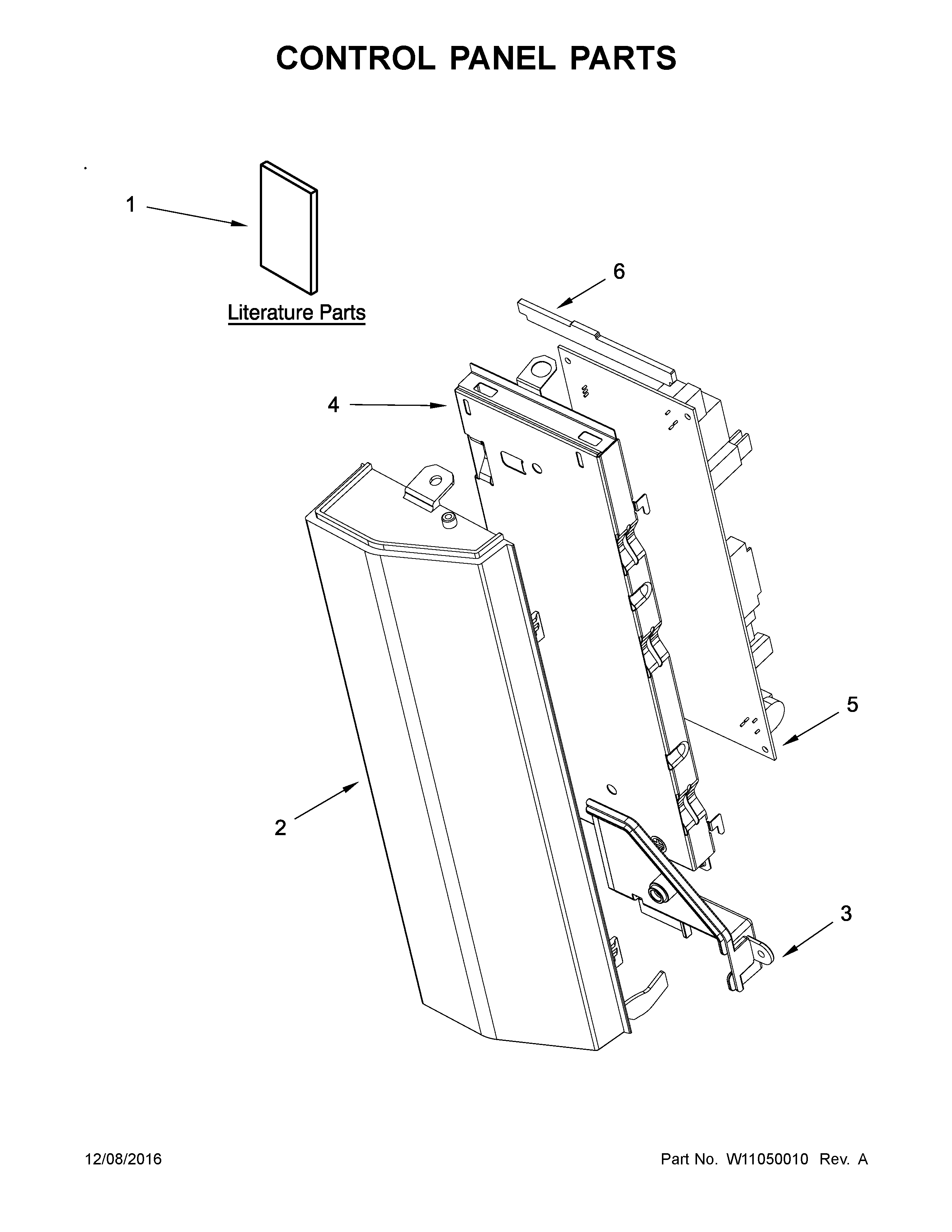

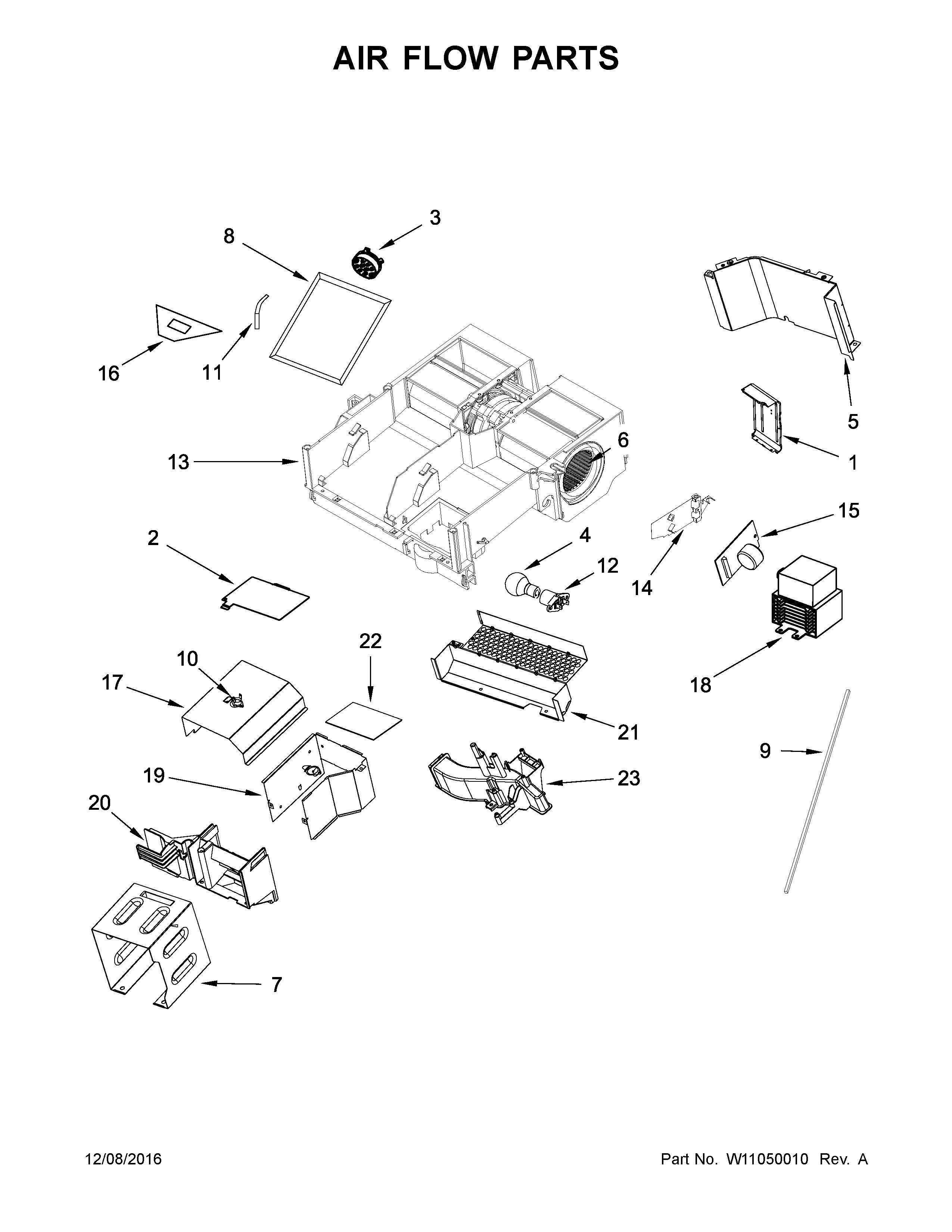

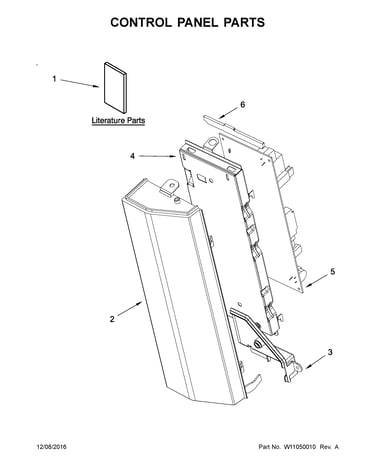

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 135 parts

    Microwave Installation Hardware Kit

    #NI

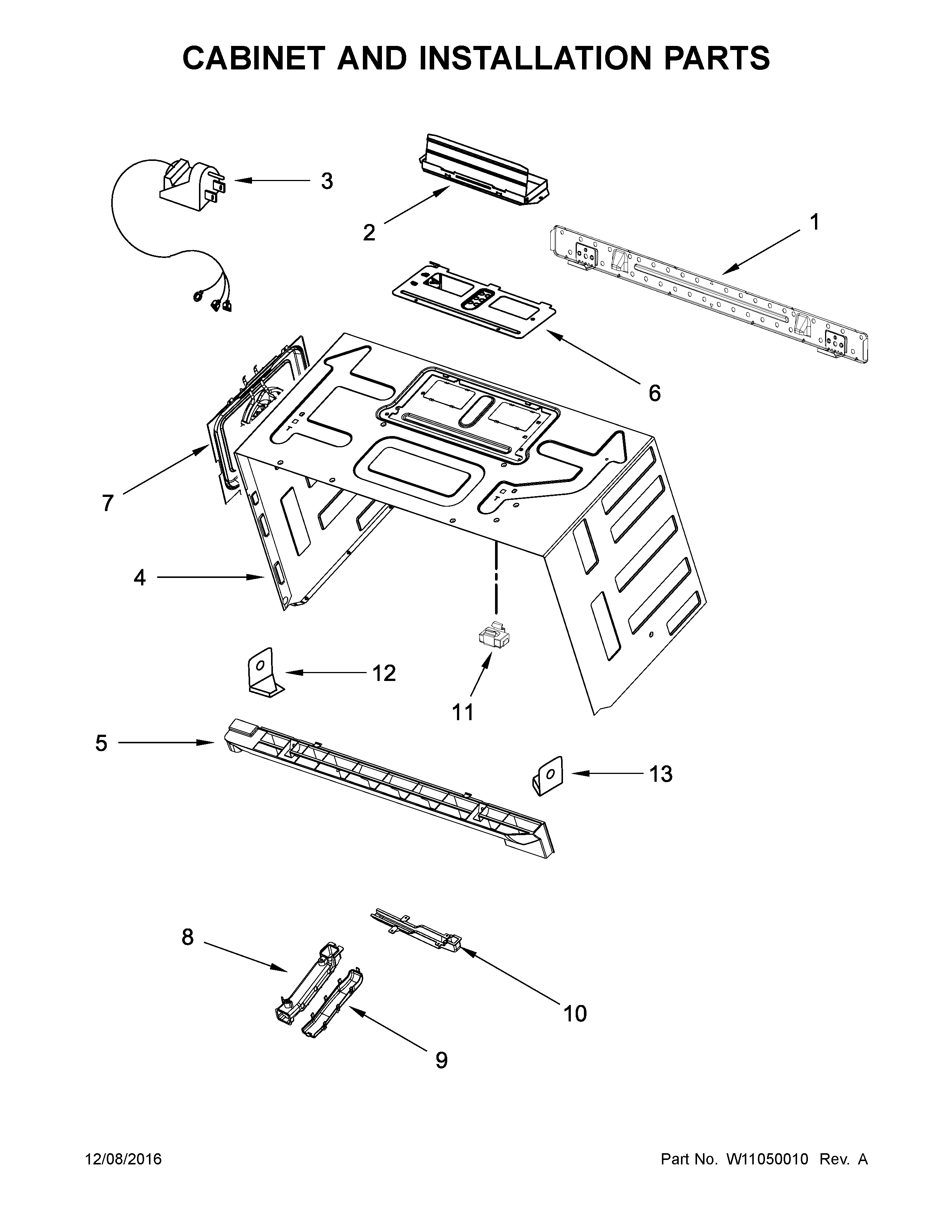

    Cabinet and installation parts Diagram

    $40.99

    In Stock

    Microwave Surface Light Bulb

    #2

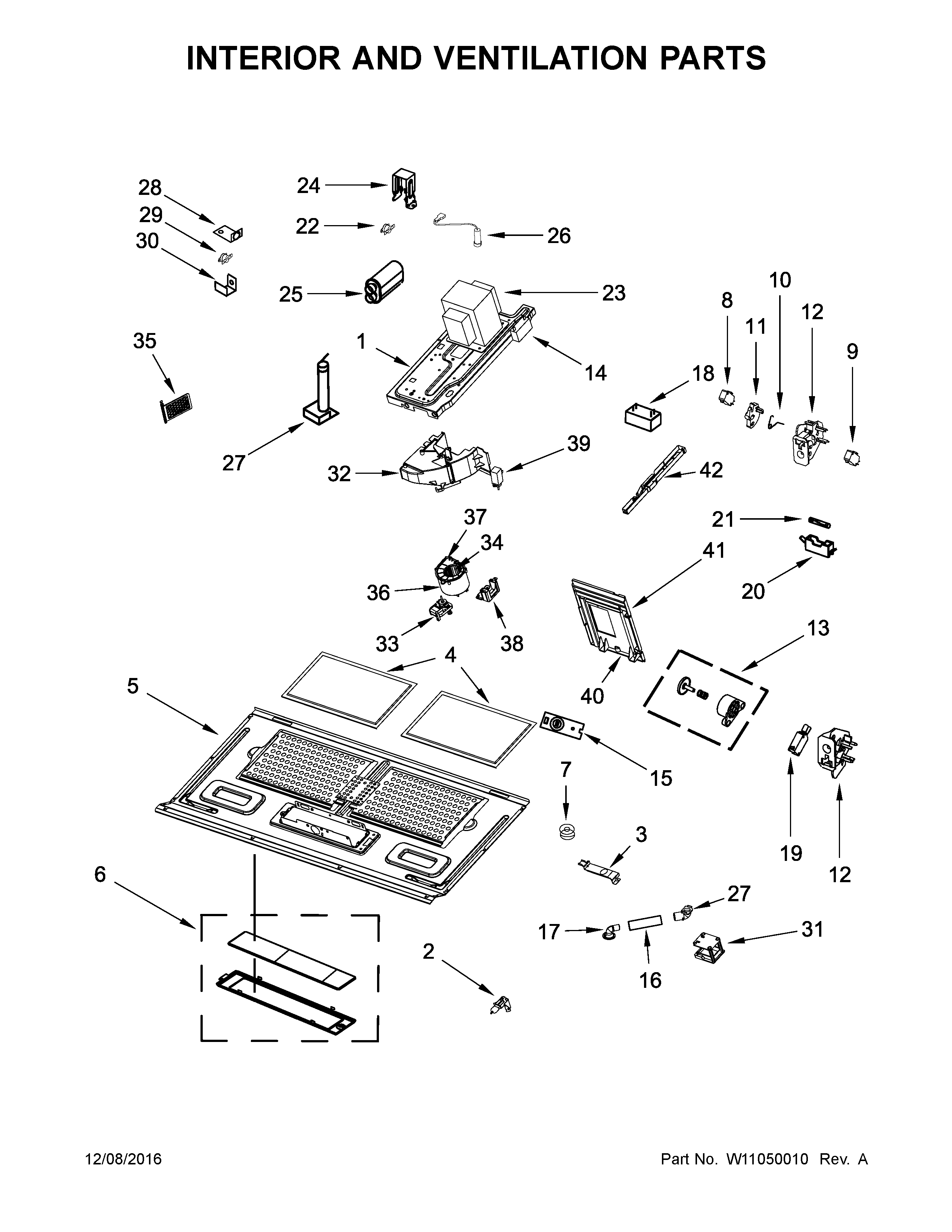

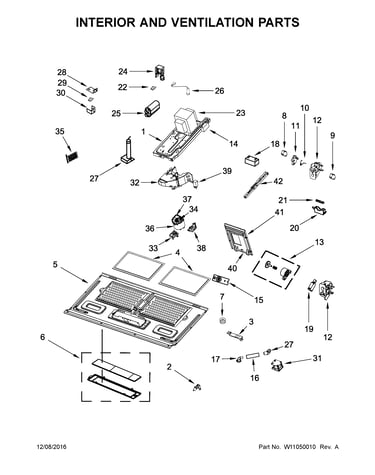

    Interior and ventilation parts Diagram

    $12.99

    In Stock

    Microwave Grease Filter

    #4

    Interior and ventilation parts Diagram

    Microwave grease filter

    Part #W10535950
    $21.99

    In Stock

    Microwave Fuse

    #21

    Interior and ventilation parts Diagram

    Microwave fuse

    Part #W10138793
    $10.99

    In Stock

    Microwave Door Interlock Switch

    #19

    Interior and ventilation parts Diagram

    $25.99 |
    13% OFF MSRP:$30.00

    In Stock

    Microwave Mounting Nut

    #11

    Cabinet and installation parts Diagram

    Microwave mounting nut

    Part #W10596040
    This item is not returnable
    $5.59

    In Stock

    Microwave Door Interlock Spring

    #10

    Interior and ventilation parts Diagram

    Microwave door interlock spring

    Part #W10156812
    This item is not returnable
    $6.69

    In Stock

    Microwave Cooking Rack

    #10

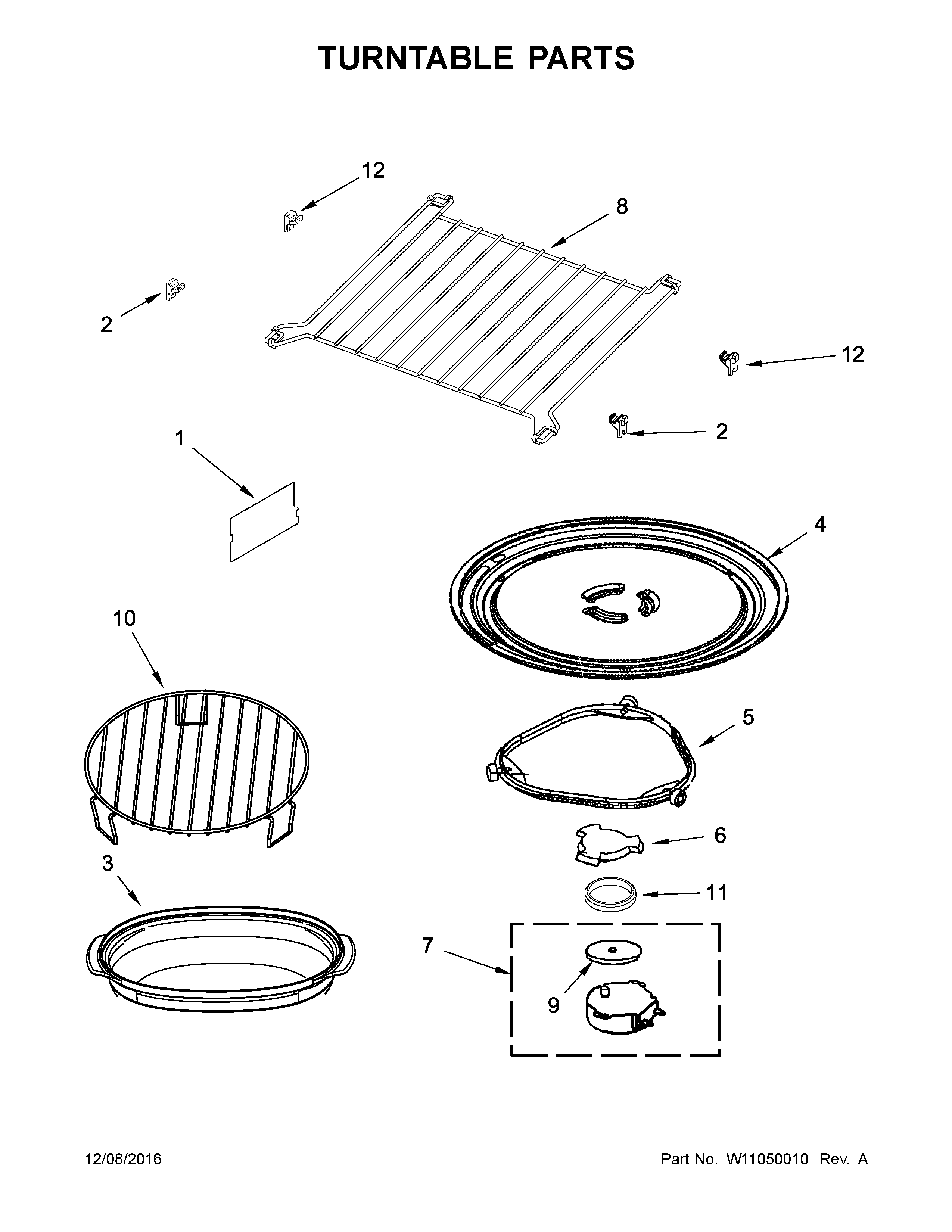

    Turntable parts Diagram

    Microwave cooking rack

    Part #W10440082
    $9.19

    In Stock

    Microwave Door Handle Mounting Bracket

    #8

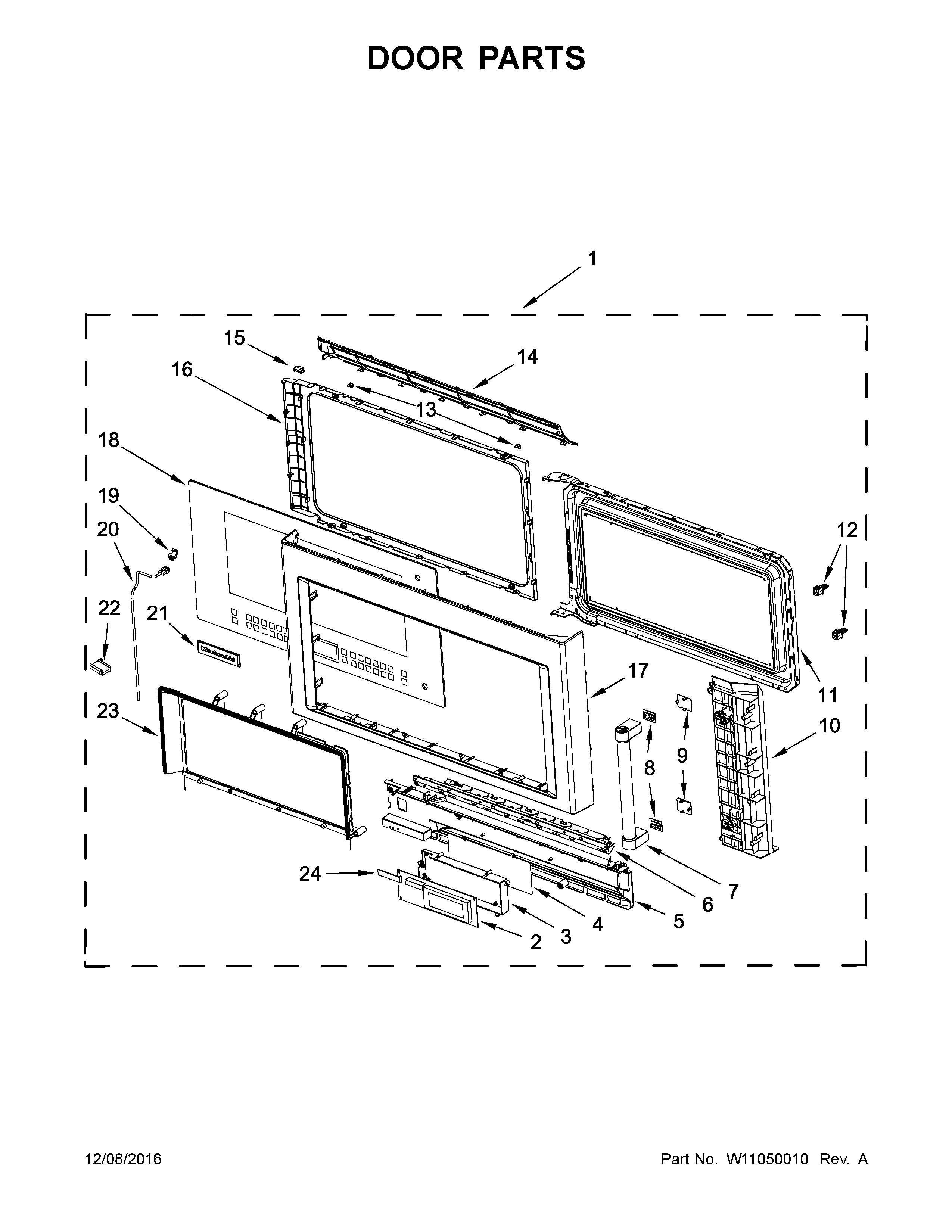

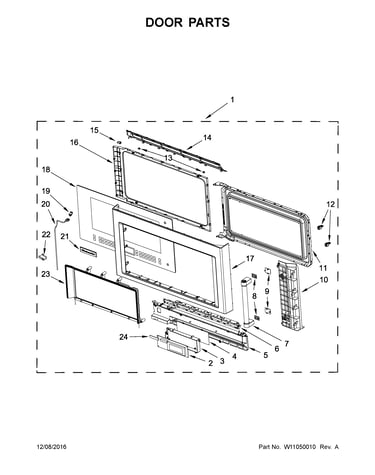

    Door parts Diagram

    $13.72

    In Stock

    Microwave Surface Light Lens

    #6

    Interior and ventilation parts Diagram

    Microwave surface light lens

    Part #W10240330
    This item is not returnable
    $4.79

    In Stock
