Model # 1163571090 Official Kenmore vacuum cleaner

Here are the diagrams and repair parts for Official Kenmore 1163571090 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 78 parts  |
Kenmore Vacuum Hepa Bag, Type O, 2-pack 50690
#13A

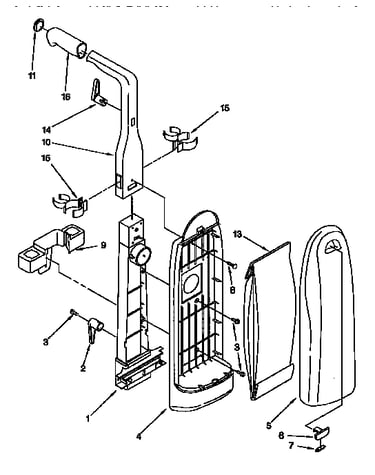

Bag housing and handle diagram

Kenmore vacuum hepa bag, type o, 2-pack

Part #50690

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Crevice Tool 4368684
#5

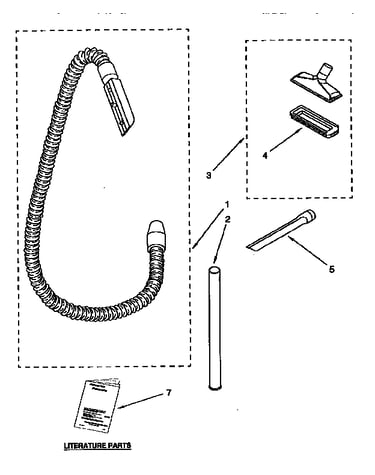

Hose and attachment diagram

Vacuum crevice tool

Part #4368684

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 4368563
Vacuum screw

Part #4368563

The manufacturer no longer makes this part, and there's no substitute part

Motor Plate 4368558
#19

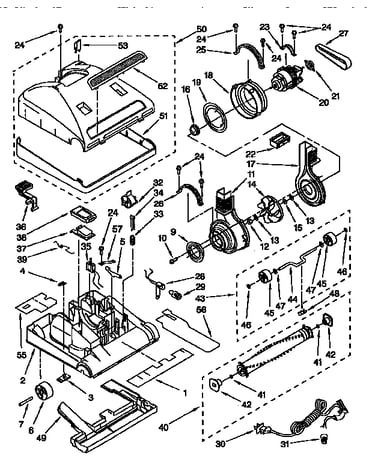

Nozzle and motor diagram

Motor plate

Part #4368558

The manufacturer no longer makes this part, and there's no substitute part

Cord Hook 4369044
#14

Bag housing and handle diagram

Cord hook

Part #4369044

The manufacturer no longer makes this part, and there's no substitute part

Dust Cover 4369477
#5

Bag housing and handle diagram

Dust cover

Part #4369477

The manufacturer no longer makes this part, and there's no substitute part

Wiring Diagram LIT4368826
#7A

Hose and attachment diagram

Wiring diagram

Part #LIT4368826

The manufacturer no longer makes this part, and there's no substitute part

Belt 723243
#27

Nozzle and motor diagram

Belt

Part #723243

The manufacturer no longer makes this part, and there's no substitute part

Roller Nozzle 4368580
#45

Nozzle and motor diagram

Roller nozzle

Part #4368580

The manufacturer no longer makes this part, and there's no substitute part

Lower Body 4369586
#2

Nozzle and motor diagram

Lower body

Part #4369586

The manufacturer no longer makes this part, and there's no substitute part
