Thermador
Range

Model # PRD366EHC/03 Official Thermador range

Here are the diagrams and repair parts for Official Thermador PRD366EHC-03 range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

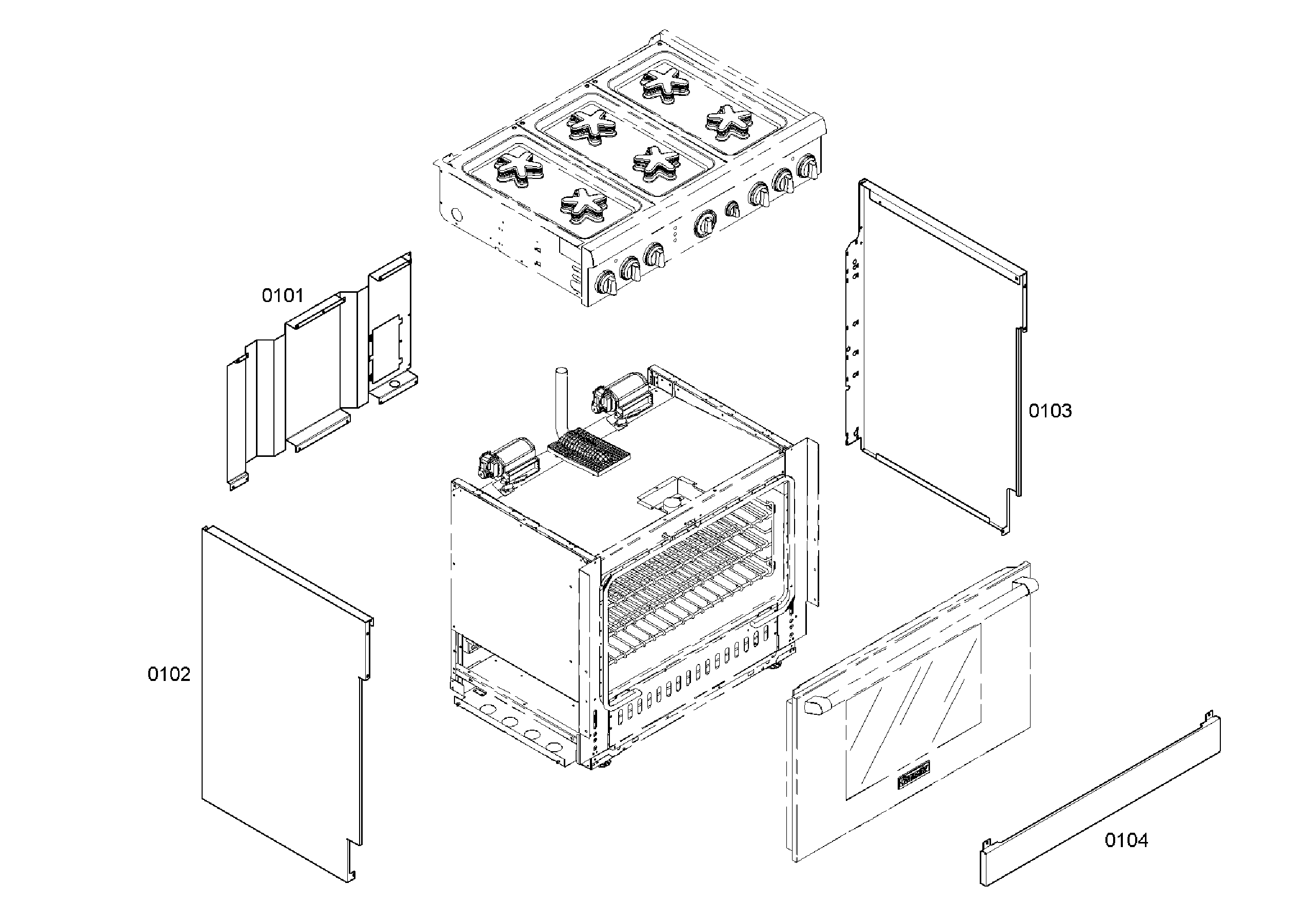

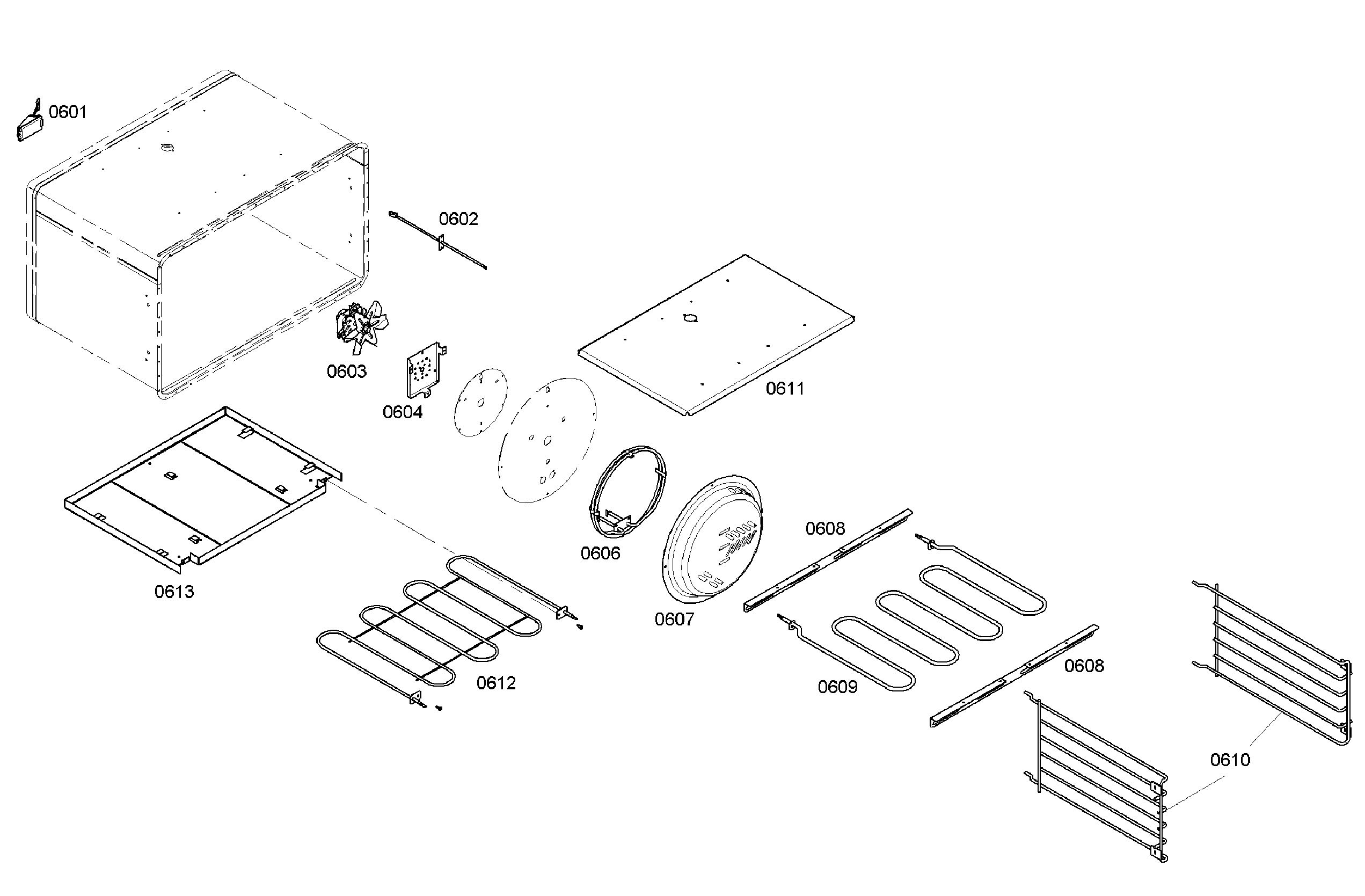

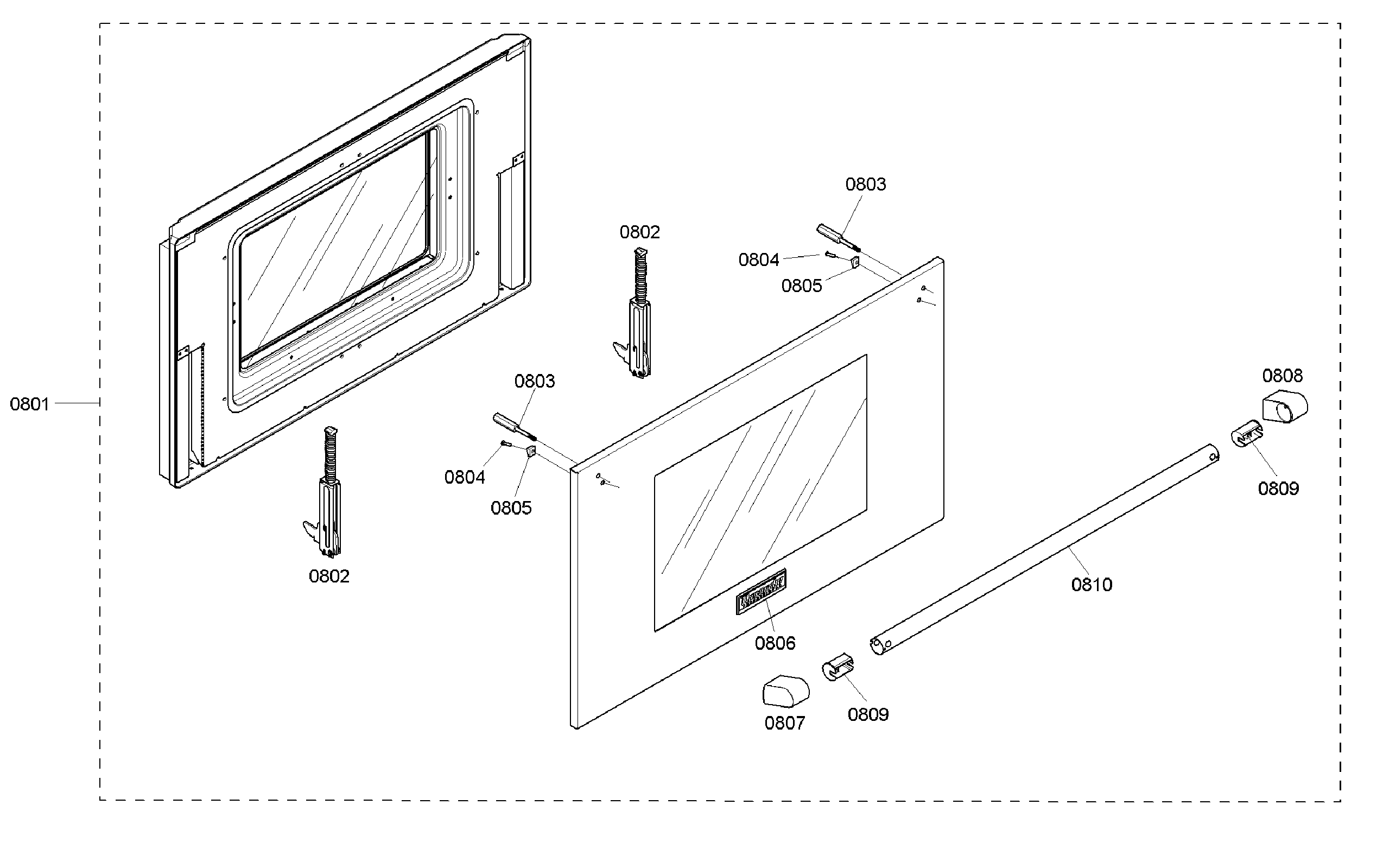

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 113 parts  |
Holder 600607
#310

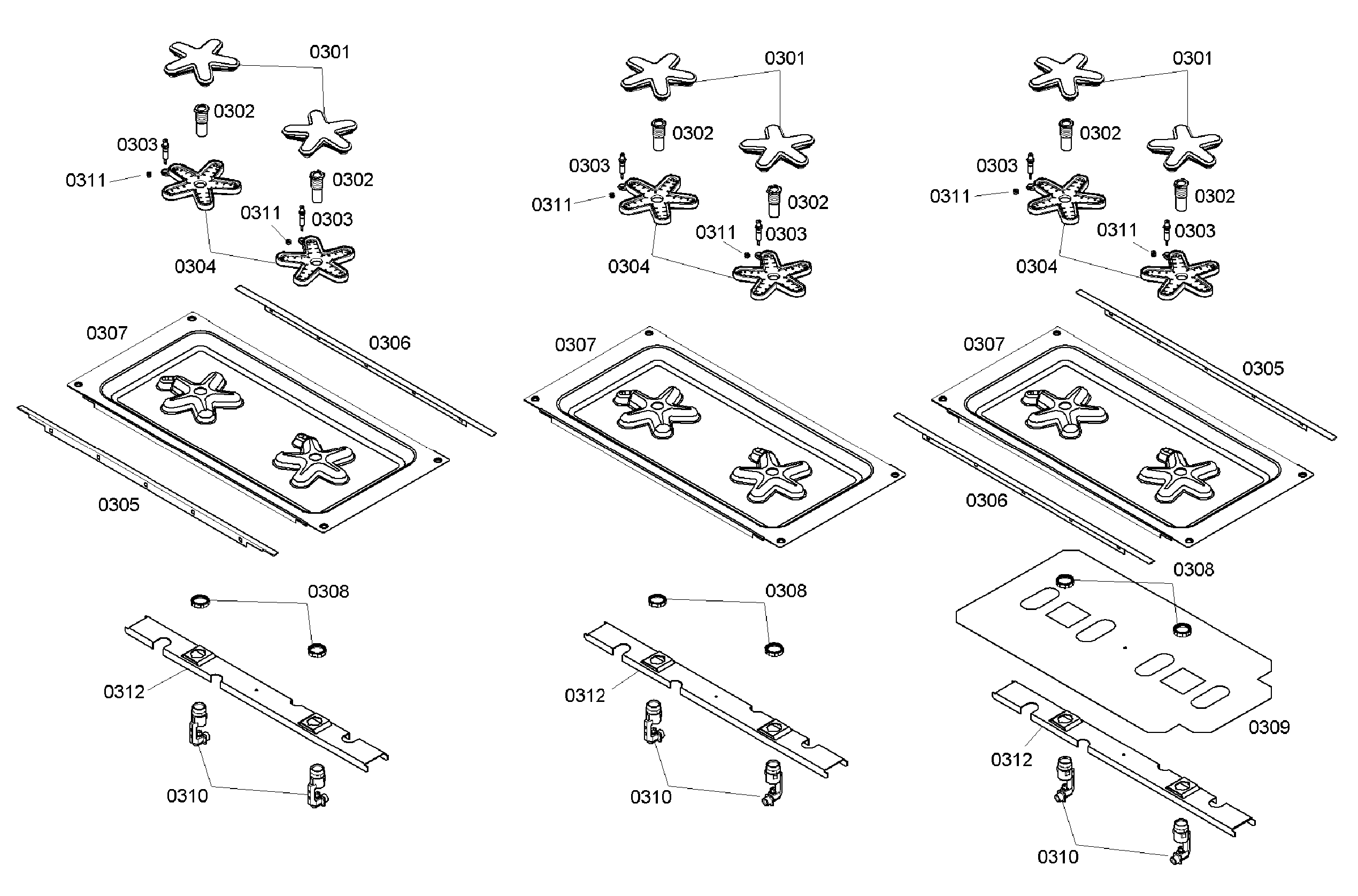

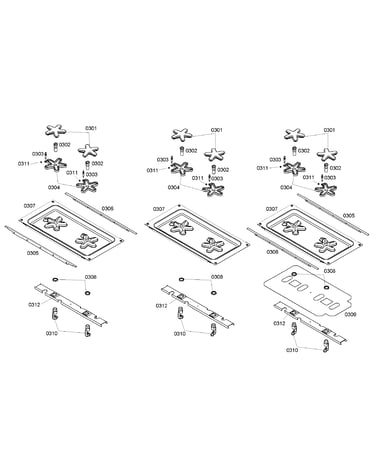

Burners assy diagram

Holder

Part #600607

Replaced by #00600607

?
Manufacturer substitution
This part replaces 600607. Substitute parts can look different from the original.
$25.49 |
19% OFF Phone Price : $31.49
Back Order
Range Surface Burner Grate Pad Set 413552
#NI

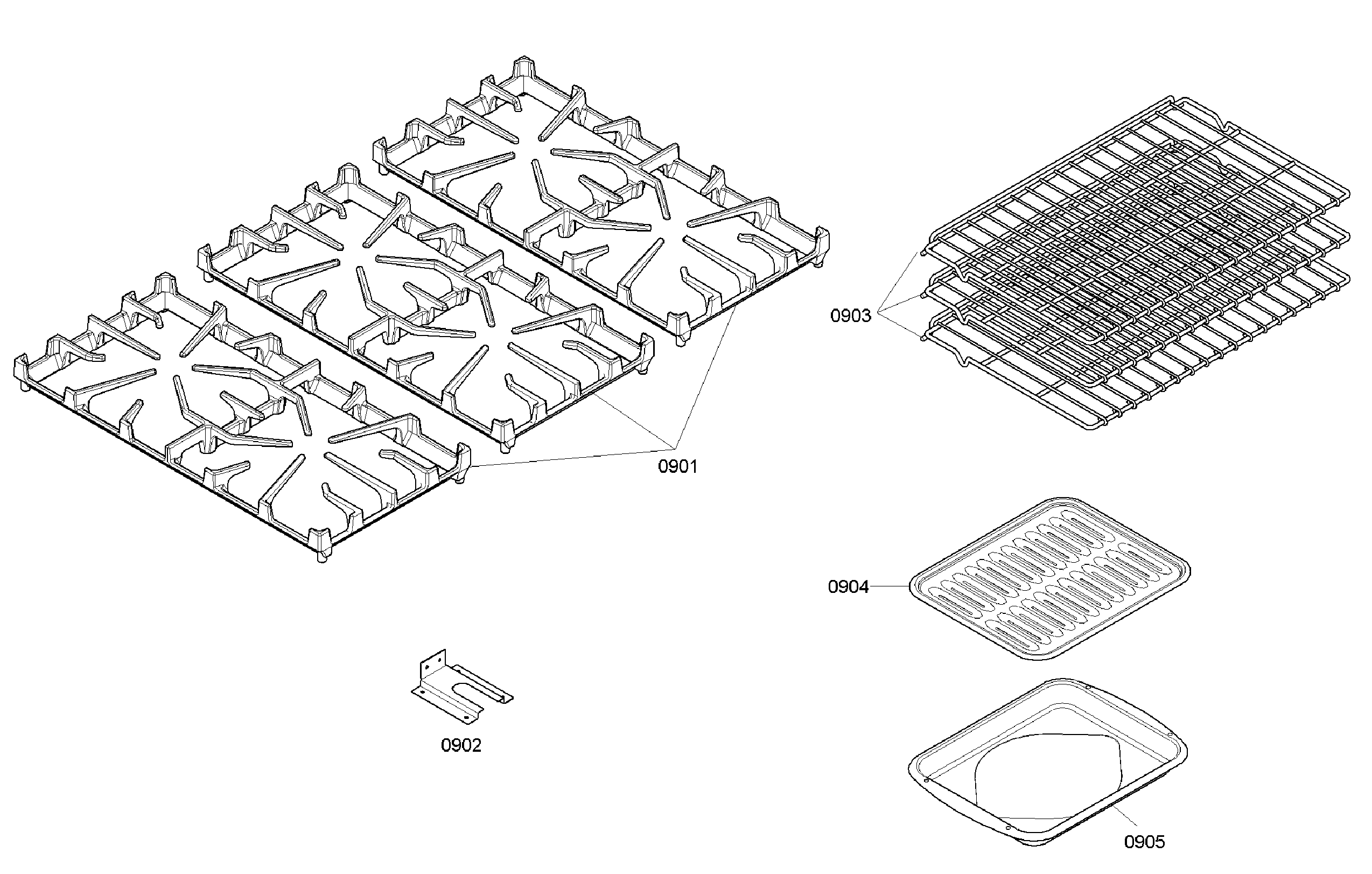

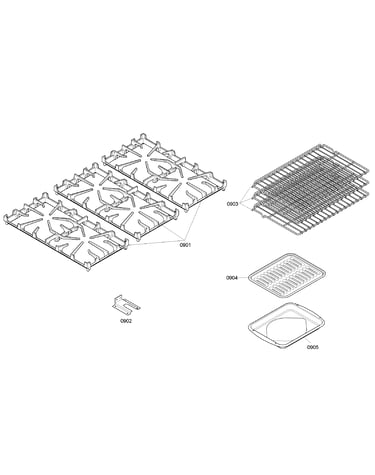

Grates/shelfs diagram

Range surface burner grate pad set

Part #413552

Replaced by #00413552

?
Manufacturer substitution
This part replaces 413552. Substitute parts can look different from the original.
This item is not returnable
$22.79 |
21% OFF Phone Price : $28.79
In Stock
Igniter Plug 603777
#303

Burners assy diagram

Igniter plug

Part #603777

Replaced by #00603777

?
Manufacturer substitution
This part replaces 603777. Substitute parts can look different from the original.
$27.36
In Stock
Range Surface Burner Cap 494133
#301

Burners assy diagram

Range surface burner cap

Part #494133

$68.24
In Stock
Drive Switch 489370
#705

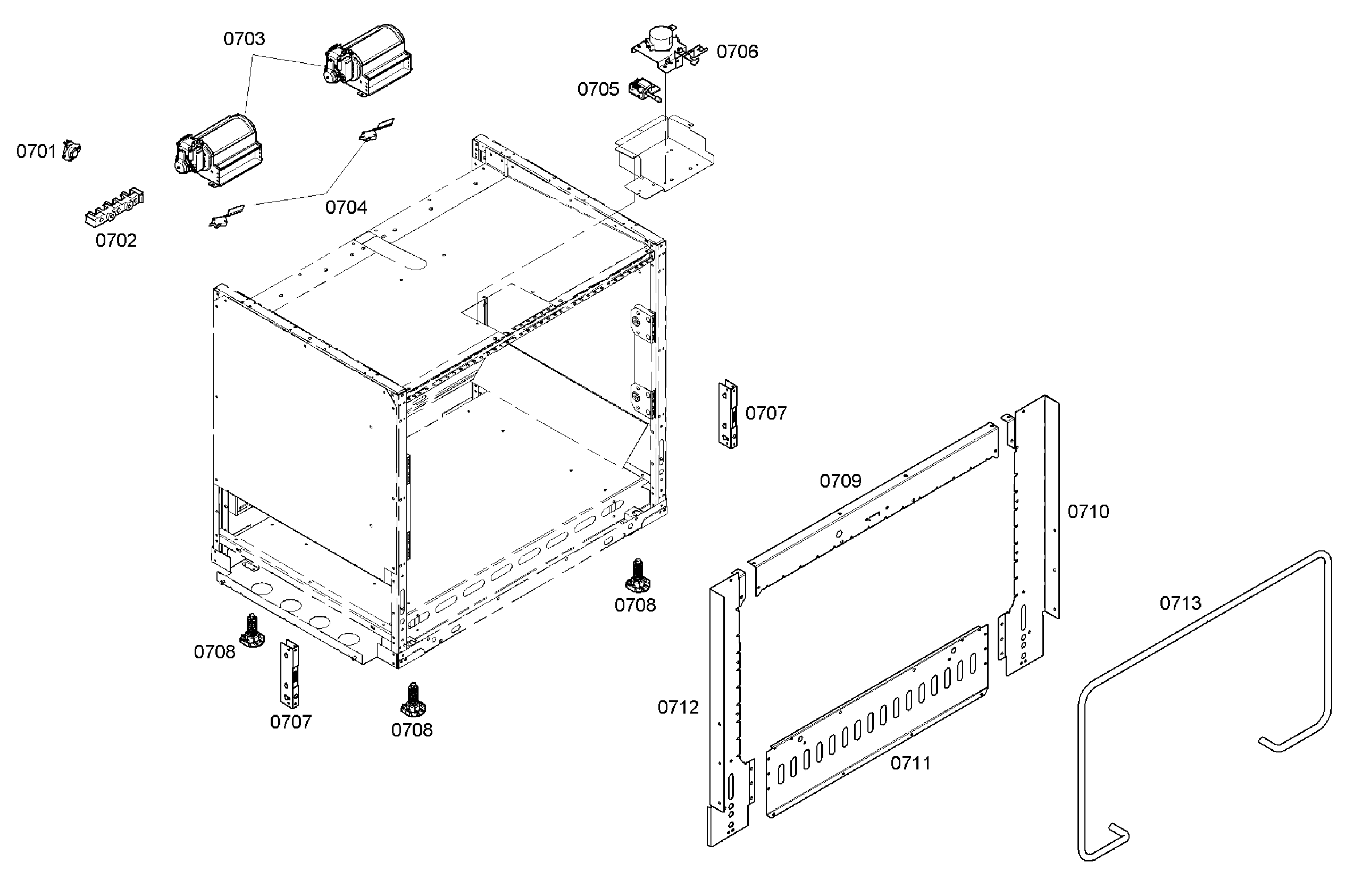

Cabinet assy diagram

Drive switch

Part #489370

$49.89
In Stock
Micro-switch 428049
#202

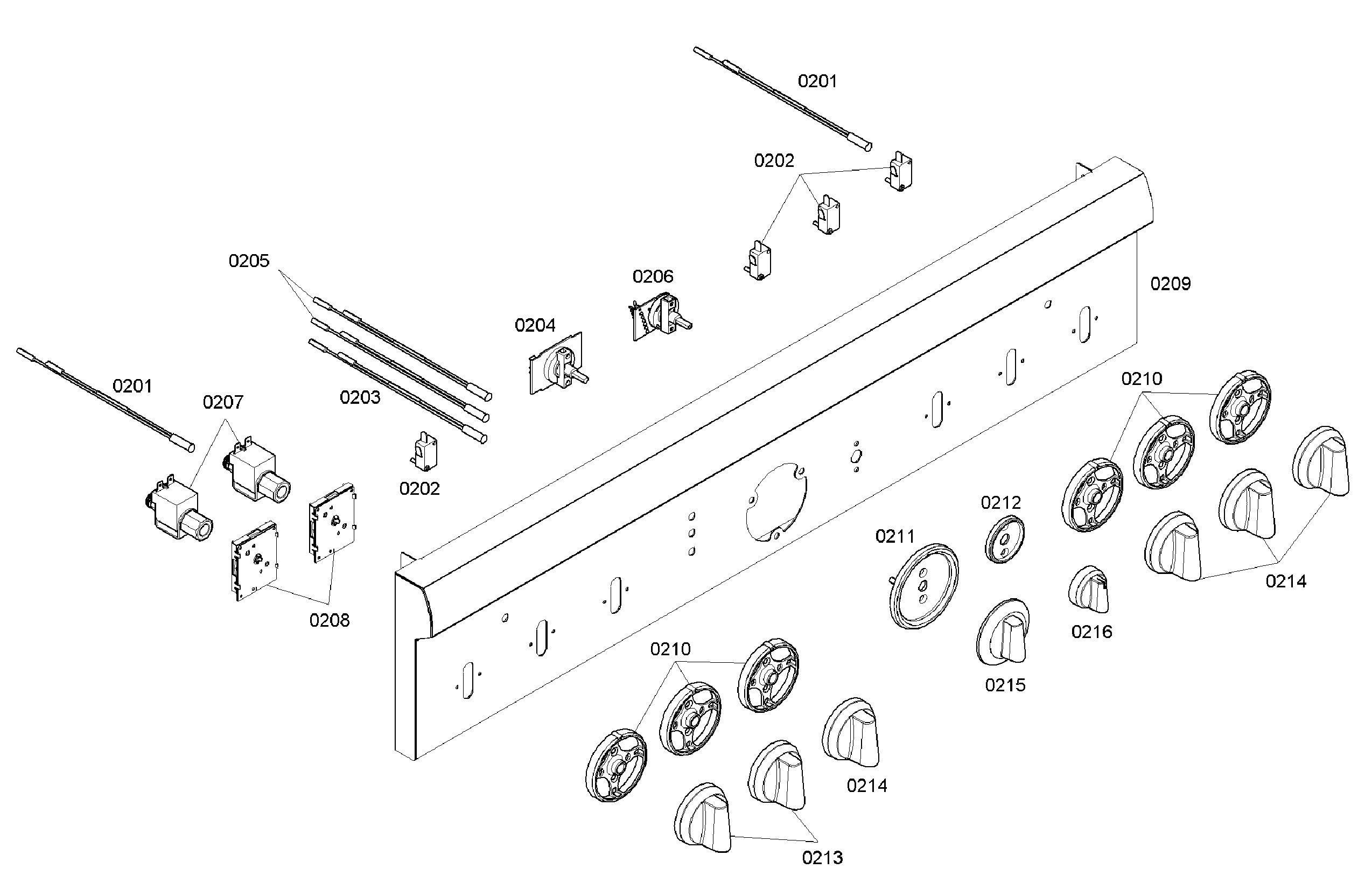

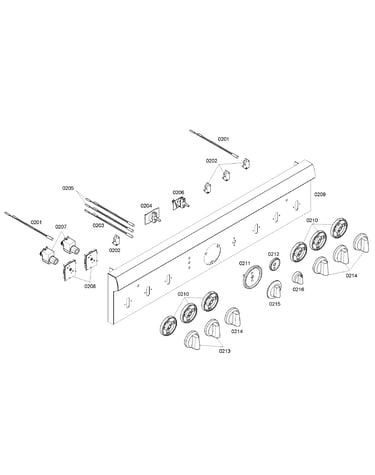

Control panel diagram

Micro-switch

Part #428049

The manufacturer no longer makes this part, and there's no substitute part

Power Control Board Assembly 499448
#504

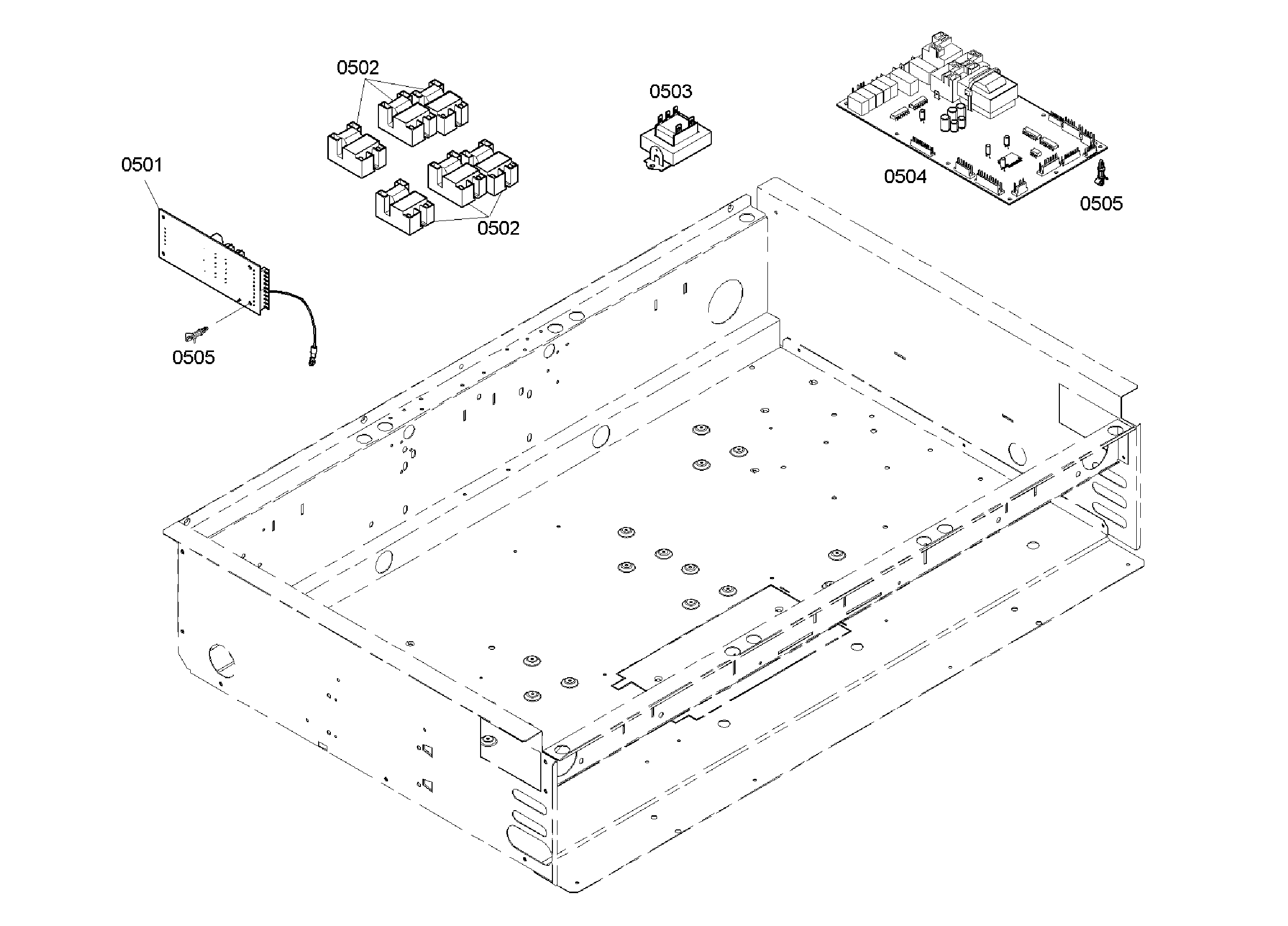

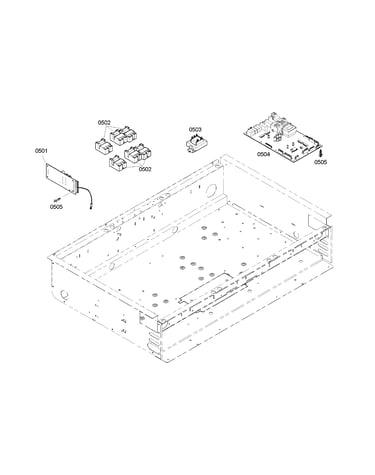

Pcb's assy diagram

Power control board assembly

Part #499448

Replaced by #00676192

?
Manufacturer substitution
This part replaces 499448. Substitute parts can look different from the original.
$663.43 |
$12.00 OFF Phone Price : $675.43
In Stock
Cooktop Burner Orifice Nut 188978
#308

Burners assy diagram

Cooktop burner orifice nut

Part #188978

Replaced by #00188978

?
Manufacturer substitution
This part replaces 188978. Substitute parts can look different from the original.
$20.59 |
23% OFF Phone Price : $26.59
Back Order
Screw 420807
#NI

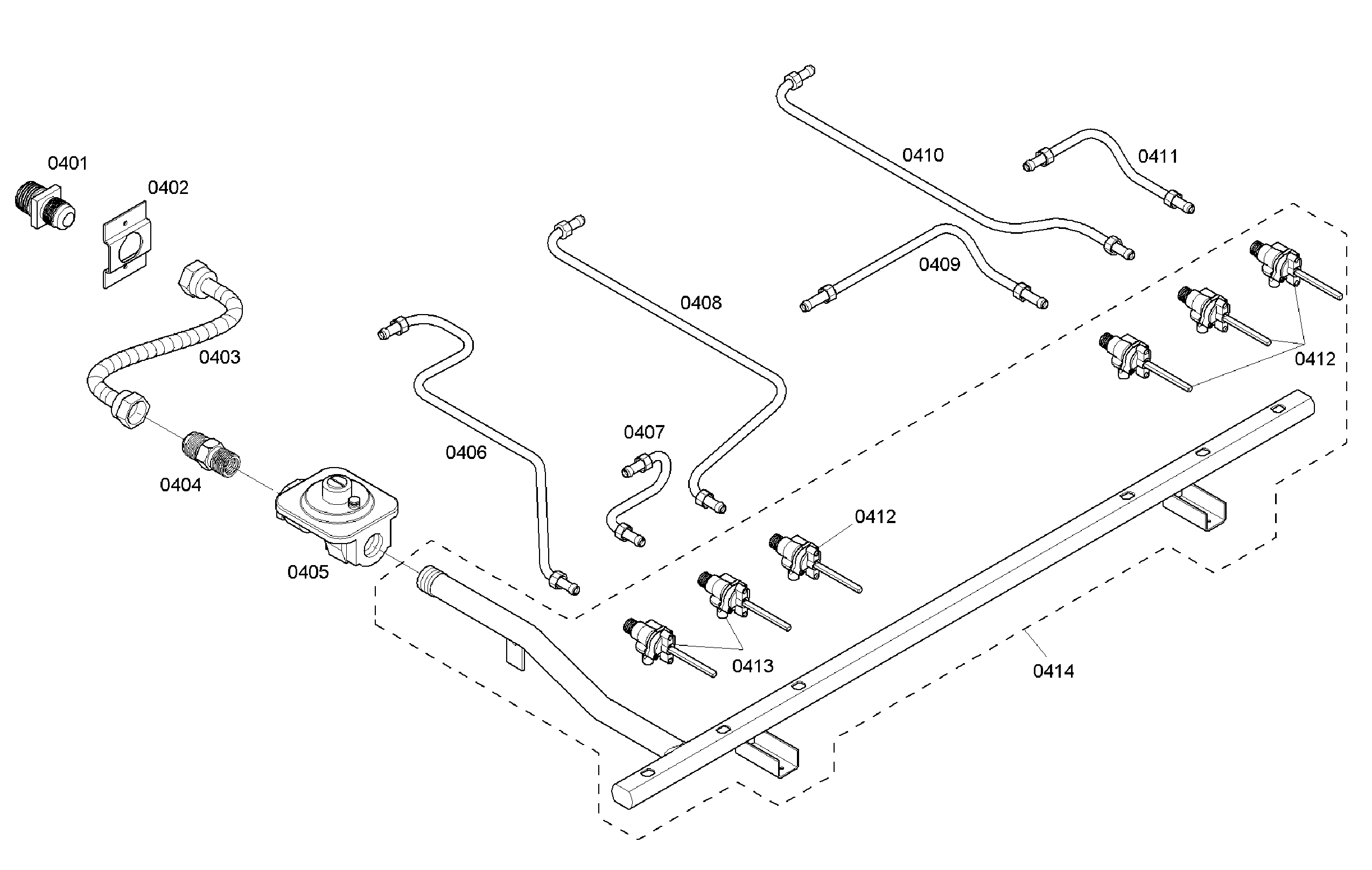

Manifold assy diagram

Screw

Part #420807

Replaced by #00420807

?
Manufacturer substitution
This part replaces 420807. Substitute parts can look different from the original.
This item is not returnable
$3.69
In Stock
Shelf 445571
#903

Grates/shelfs diagram

Shelf

Part #445571

Replaced by #00445571

?
Manufacturer substitution
This part replaces 445571. Substitute parts can look different from the original.
$139.82
In Stock
