GE FCM25DAAWH freezer - a series Parts

Here are the diagrams and repair parts for GE FCM25DAAWH freezer - a series, as well as links to manuals and error code tables, if available.

GE FCM25DAAWH freezer - a series
By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forFCM25DAAWH Freestanding Freezers

  • Refrigerator Filter Dryer for GE FCM25DAAWH - Part WR86X25269

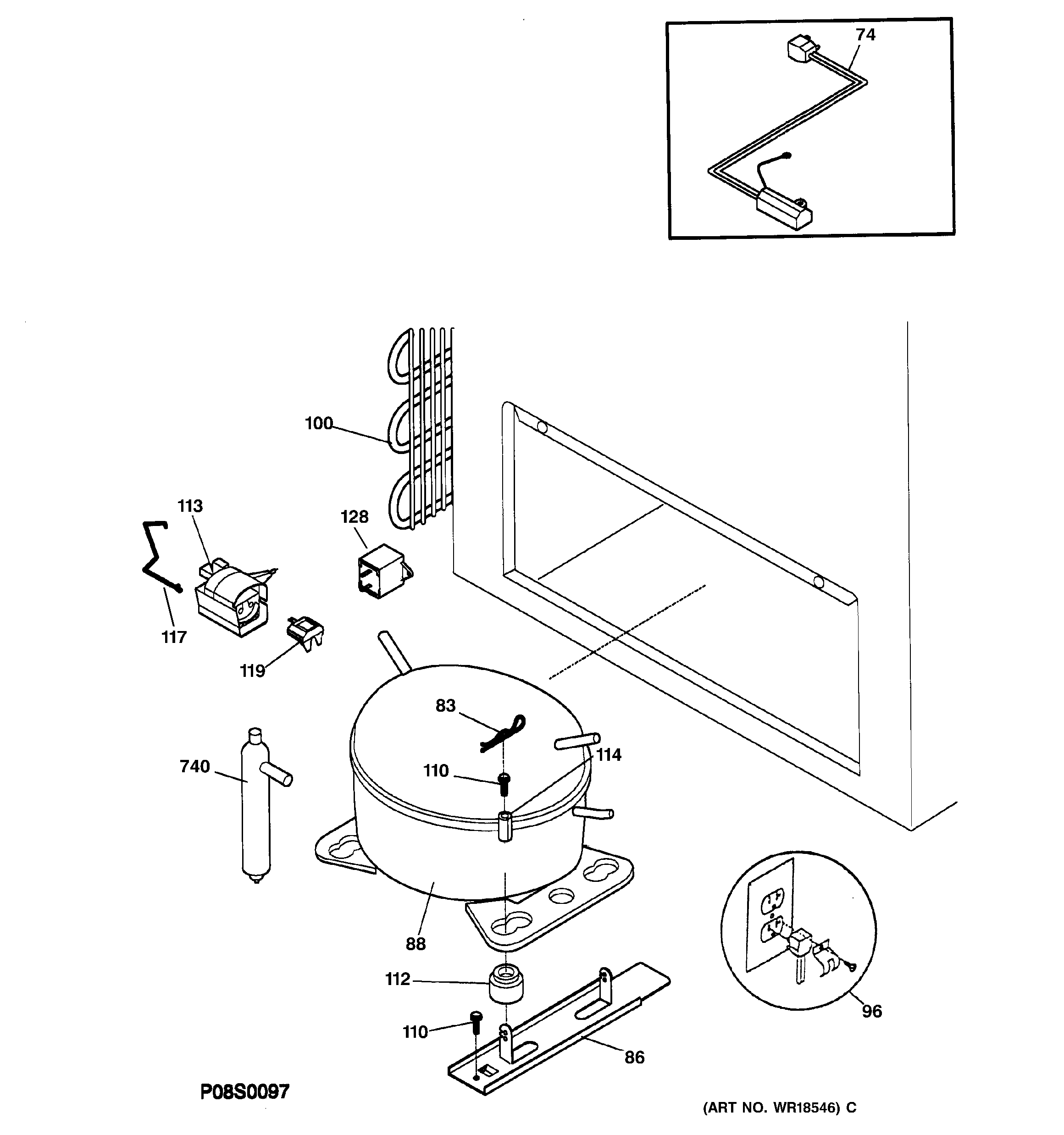

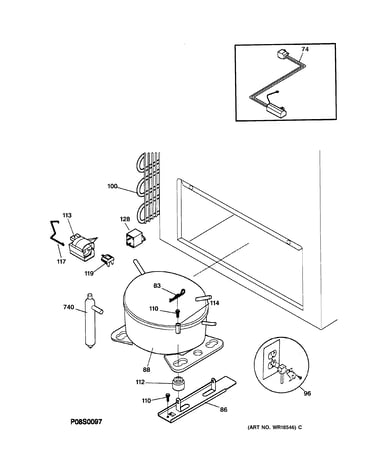

    System diagram

    Dryer Filter

    Part #WR86X0096

    Replaced by #WR86X25269

    Info Icon
    Manufacturer substitution
    This part replaces WR86X0096. Substitute parts can look different from the original.
    In Stock
    $81.44
    7% OFF Phone Price : $87.44Info Icon
    Minus Item
    Qty
    Plus Item
  • Nameplate for GE FCM25DAAWH - Part WR04X10016

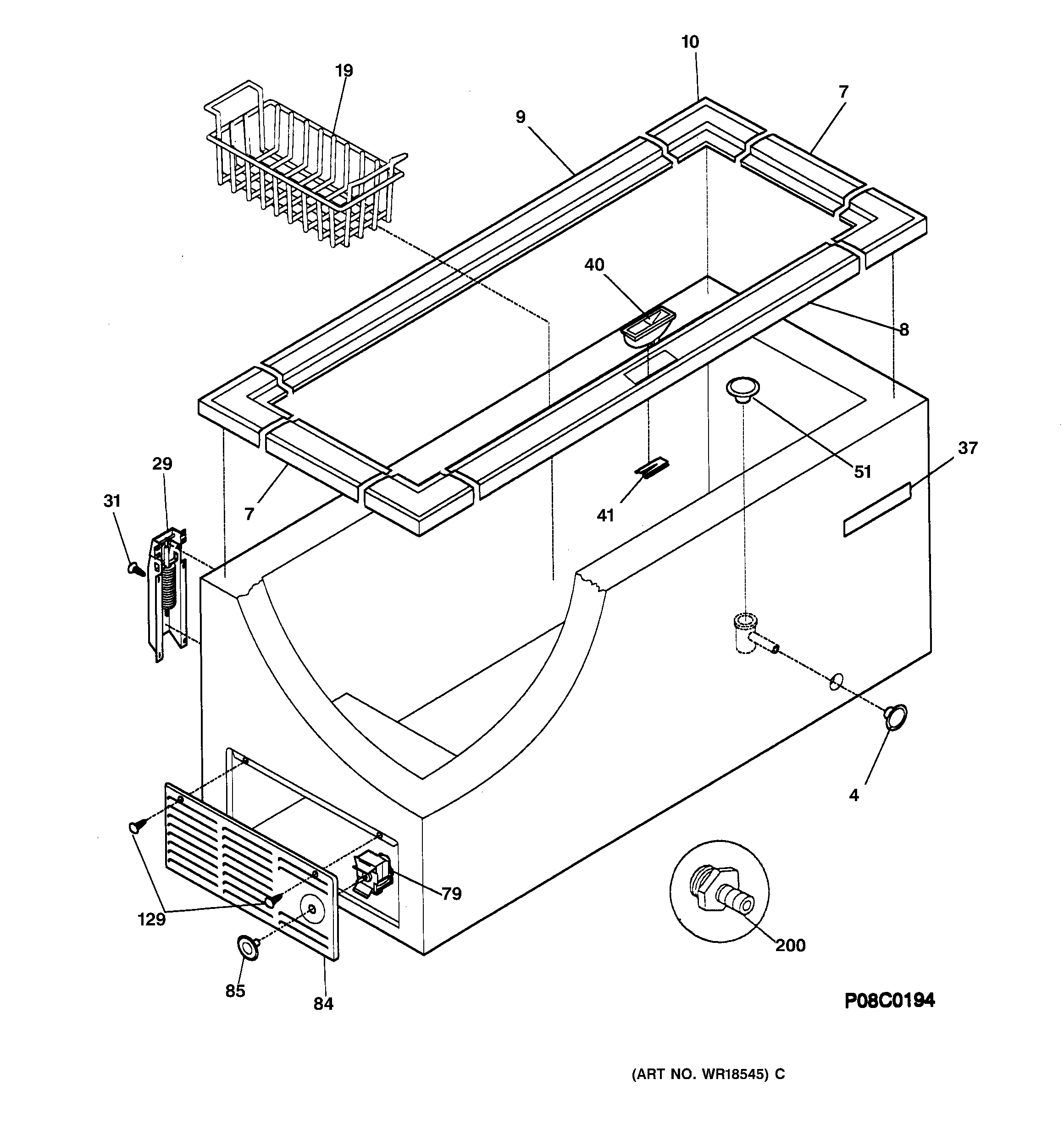

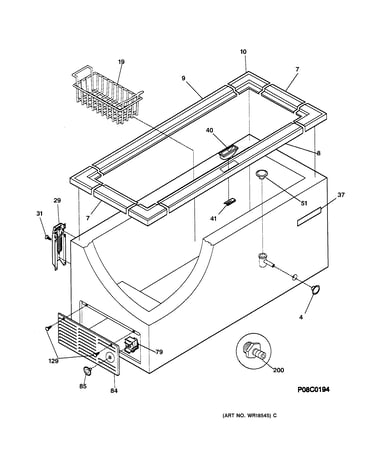

    Cabinet, controls & shelves diagram

    Nameplate

    Part #WR04X10016
    In Stock
    $142.36
    Minus Item
    Qty
    Plus Item
  • Signal Light for GE FCM25DAAWH - Part WR02X10075

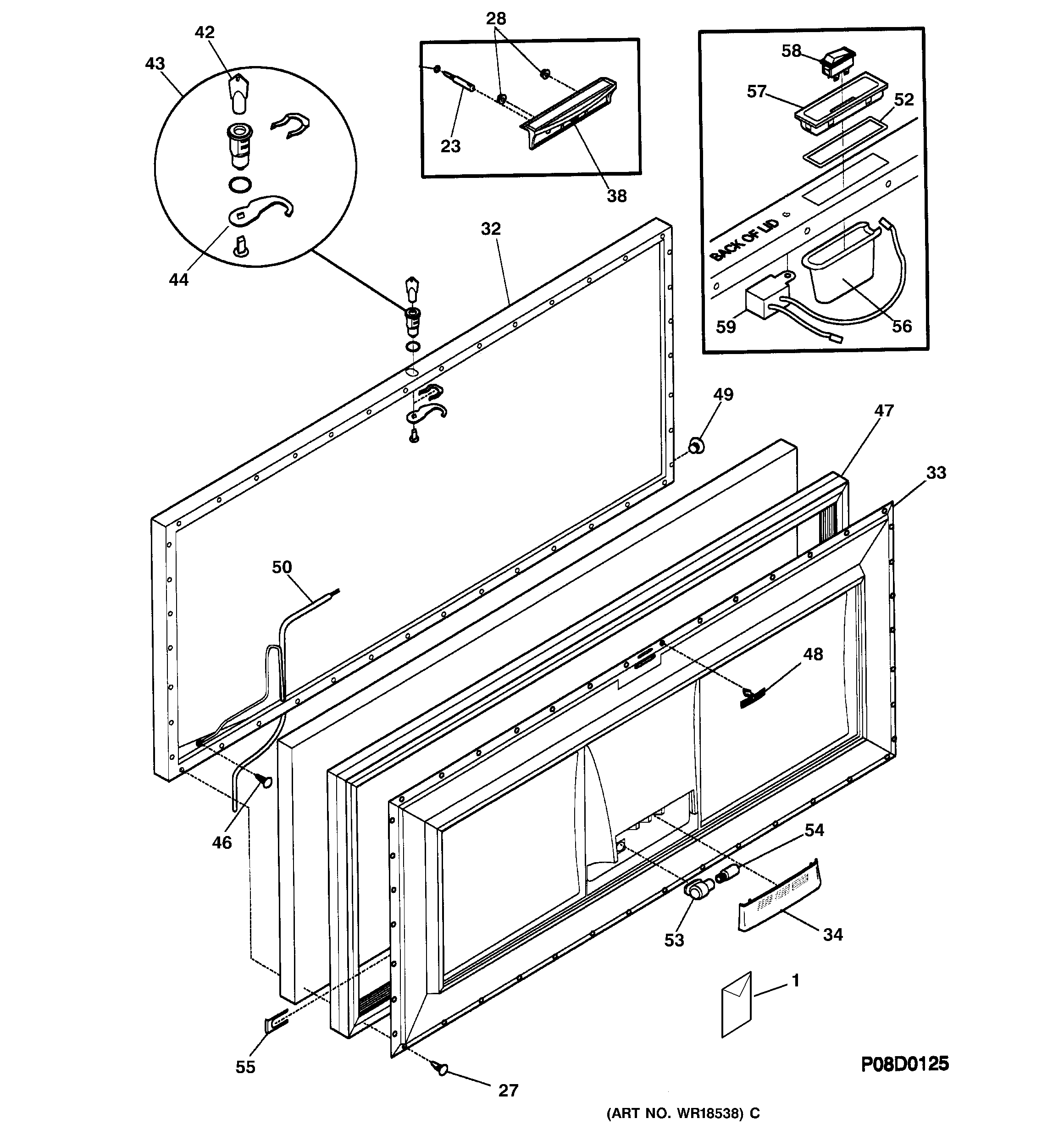

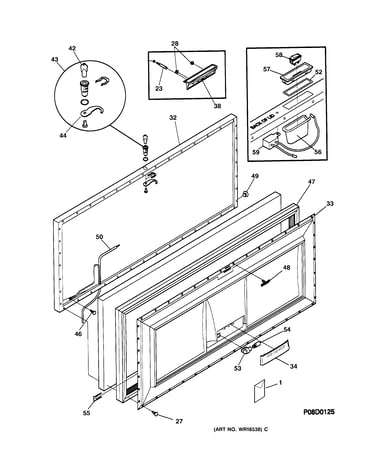

    Door diagram

    Signal Light

    Part #WR02X10075
    In Stock
    $152.42
    Minus Item
    Qty
    Plus Item
  • Wire Harness for GE FCM25DAAWH - Part WR23X10048

    Door diagram

    Wire Harness

    Part #WR23X10048
    In Stock
    $147.14
    Minus Item
    Qty
    Plus Item
  • Auxiliary Condenser for GE FCM25DAAWH - Part WR84X10001

    System diagram

    Auxiliary Condenser

    Part #WR84X10001
    In Stock
    $758.53
    Minus Item
    Qty
    Plus Item
  • Breaker Strip for GE FCM25DAAWH - Part WR40X10004

    Cabinet, controls & shelves diagram

    Breaker Strip

    Part #WR40X10004
    In Stock
    $113.42
    Minus Item
    Qty
    Plus Item
  • Breaker Strip for GE FCM25DAAWH - Part WR40X10055

    Cabinet, controls & shelves diagram

    Breaker Strip

    Part #WR40X10001

    Replaced by #WR40X10055

    Info Icon
    Manufacturer substitution
    This part replaces WR40X10001. Substitute parts can look different from the original.
    In Stock
    $50.77
    Minus Item
    Qty
    Plus Item
  • Light Shi for GE FCM25DAAWH - Part WR2X8854

    Door diagram

    Light Shield

    Part #WR02X9509

    Replaced by #WR2X8854

    Info Icon
    Manufacturer substitution
    This part replaces WR02X9509. Substitute parts can look different from the original.
    In Stock
    $59.16
    Minus Item
    Qty
    Plus Item
  • Retainer for GE FCM25DAAWH - Part WR1X1910

    System diagram

    Retainer Cor

    Part #WR01X1910

    Replaced by #WR1X1910

    Info Icon
    Manufacturer substitution
    This part replaces WR01X1910. Substitute parts can look different from the original.
    In Stock
    $35.99
    Minus Item
    Qty
    Plus Item
  • Access Panel for GE FCM25DAAWH - Part WR17X3069

    Cabinet, controls & shelves diagram

    Access Panel

    Part #WR17X10194

    Replaced by #WR17X3069

    Info Icon
    Manufacturer substitution
    This part replaces WR17X10194. Substitute parts can look different from the original.
    In Stock
    $205.37
    Minus Item
    Qty
    Plus Item
