Craftsman
Gas Walk-Behind Mower

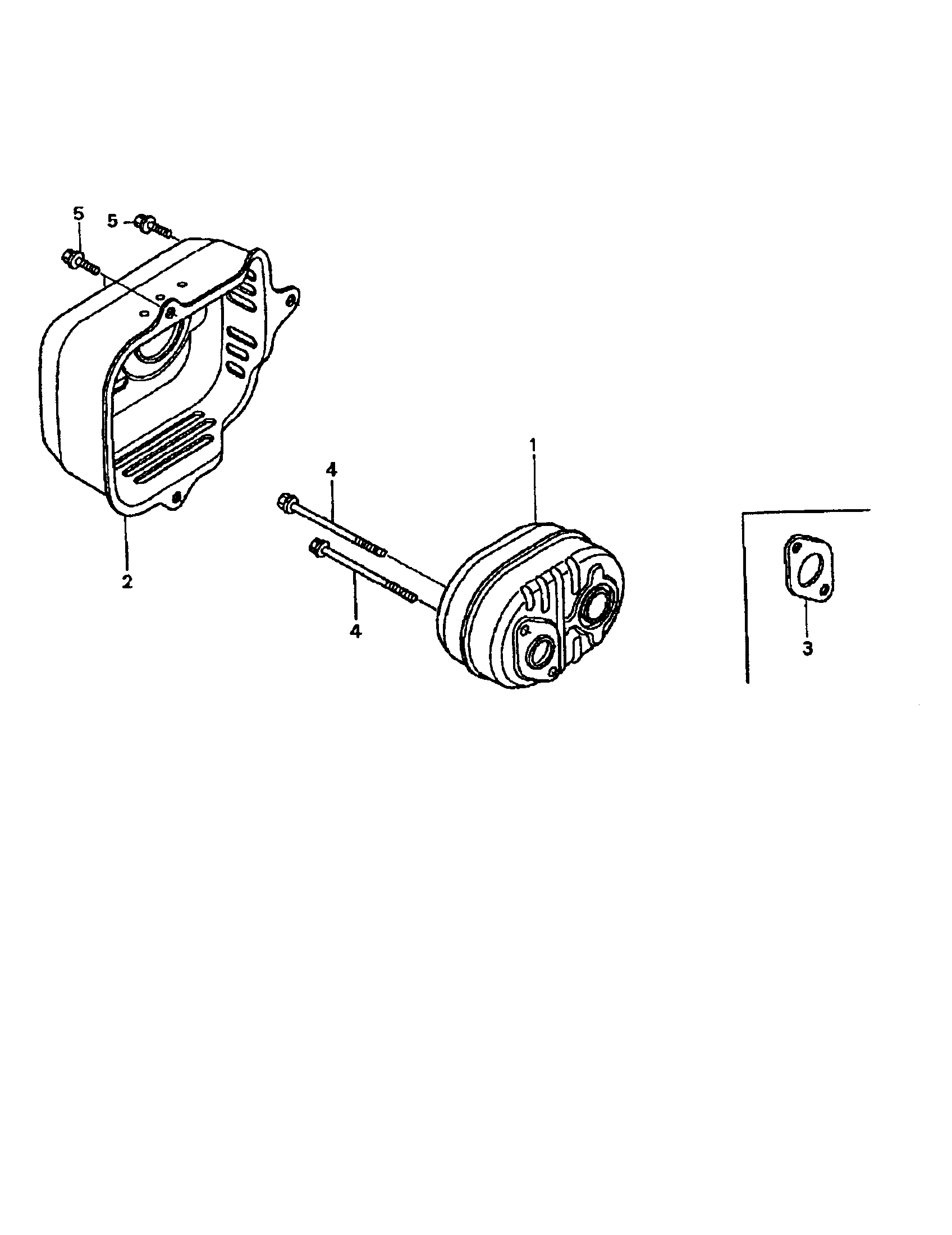

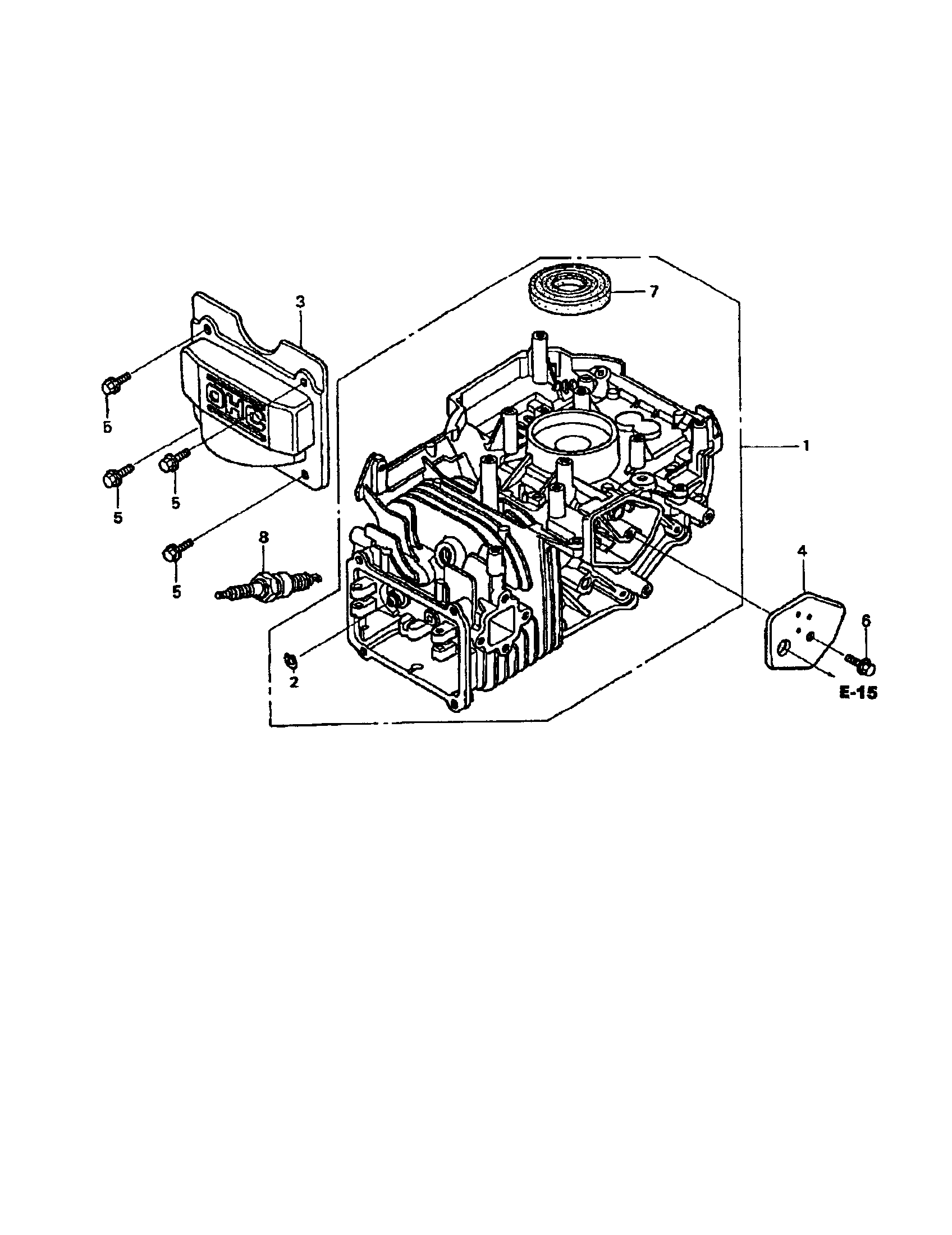

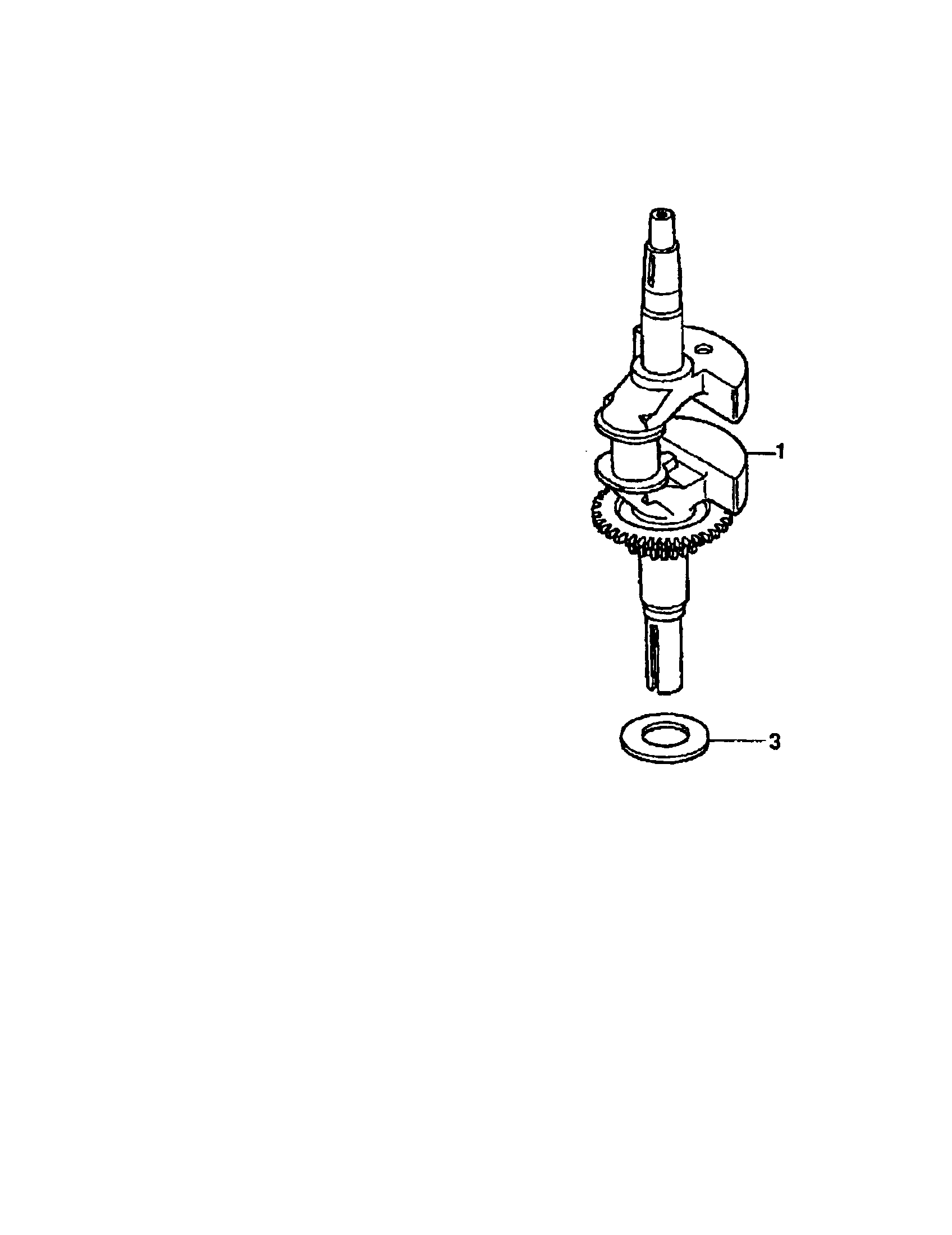

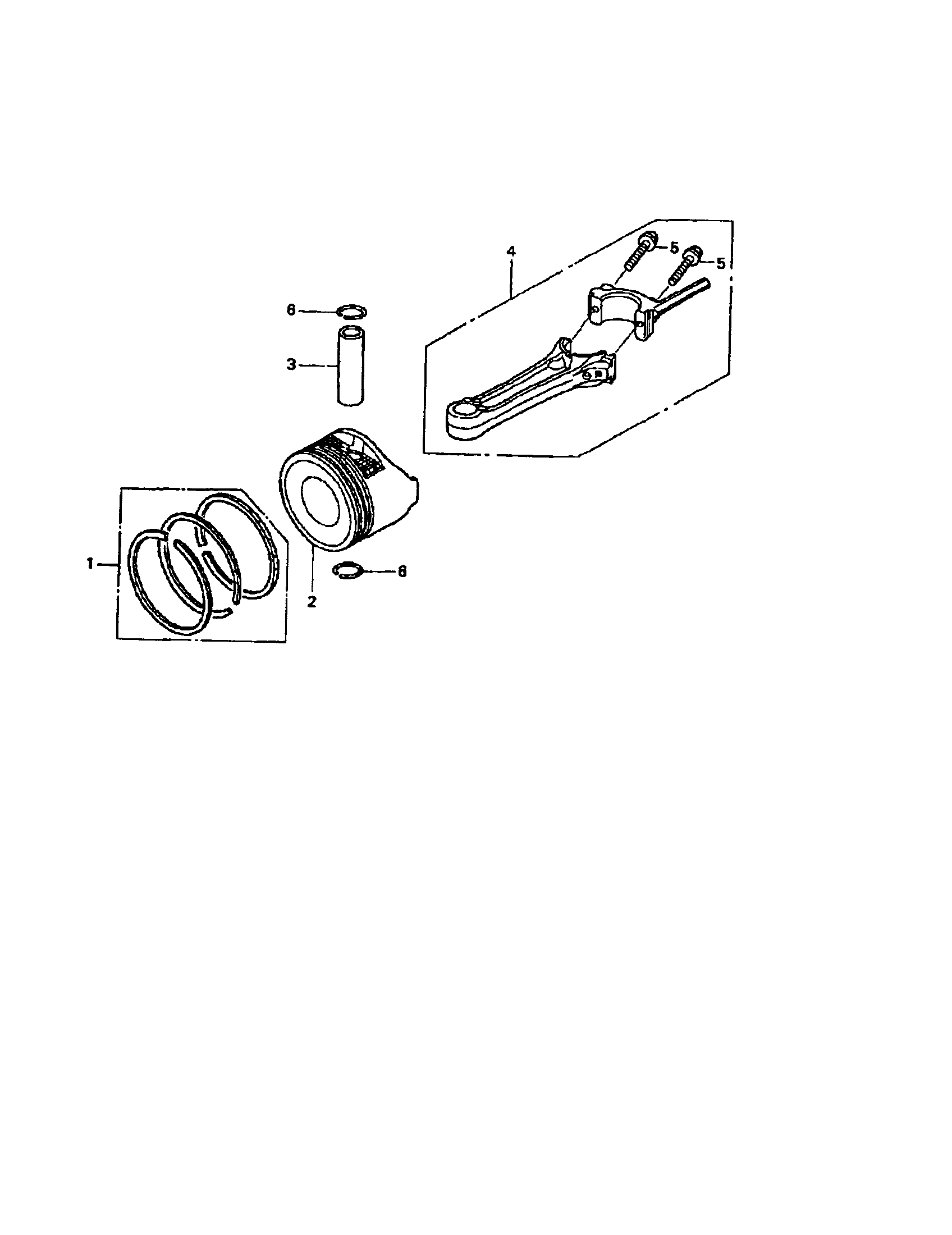

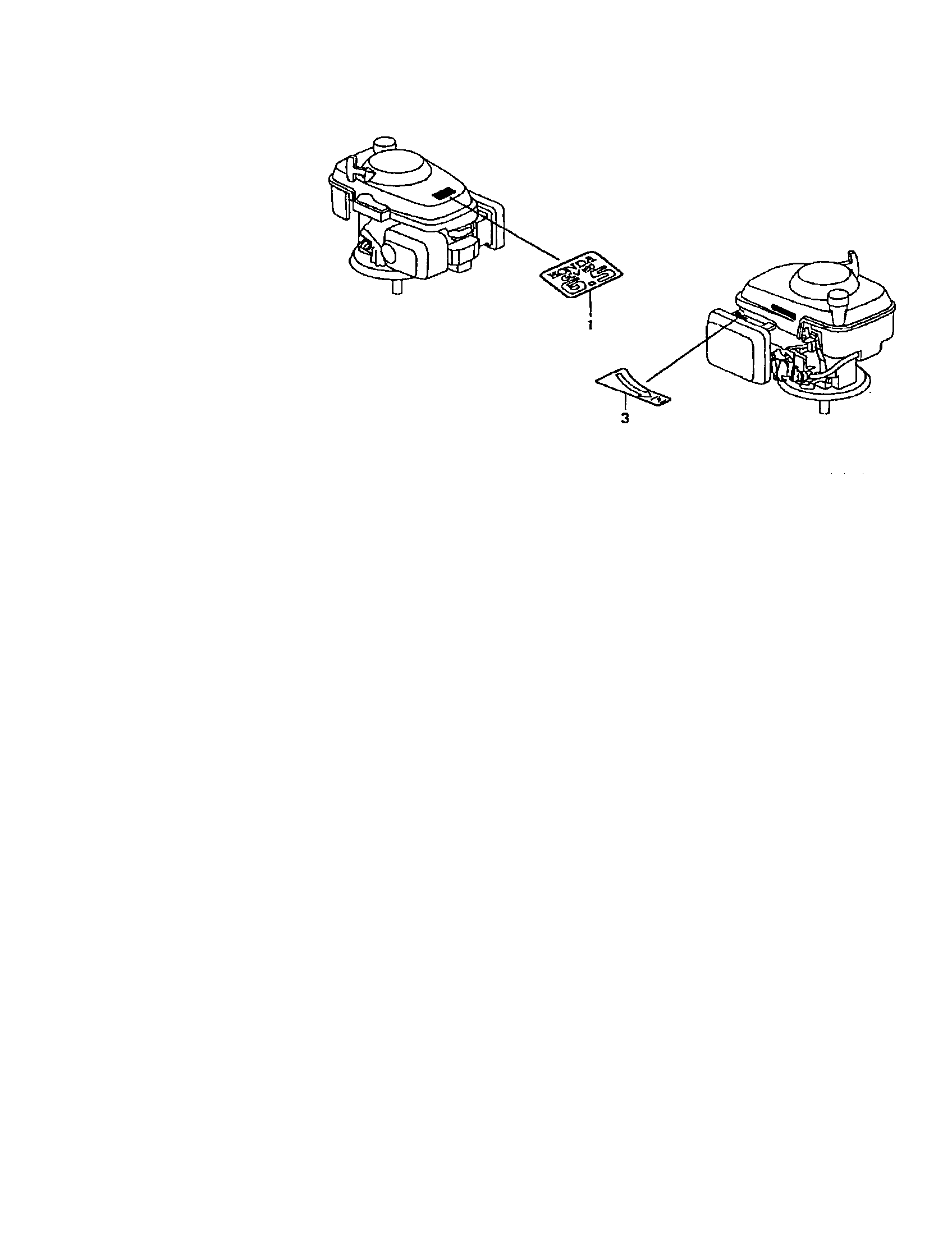

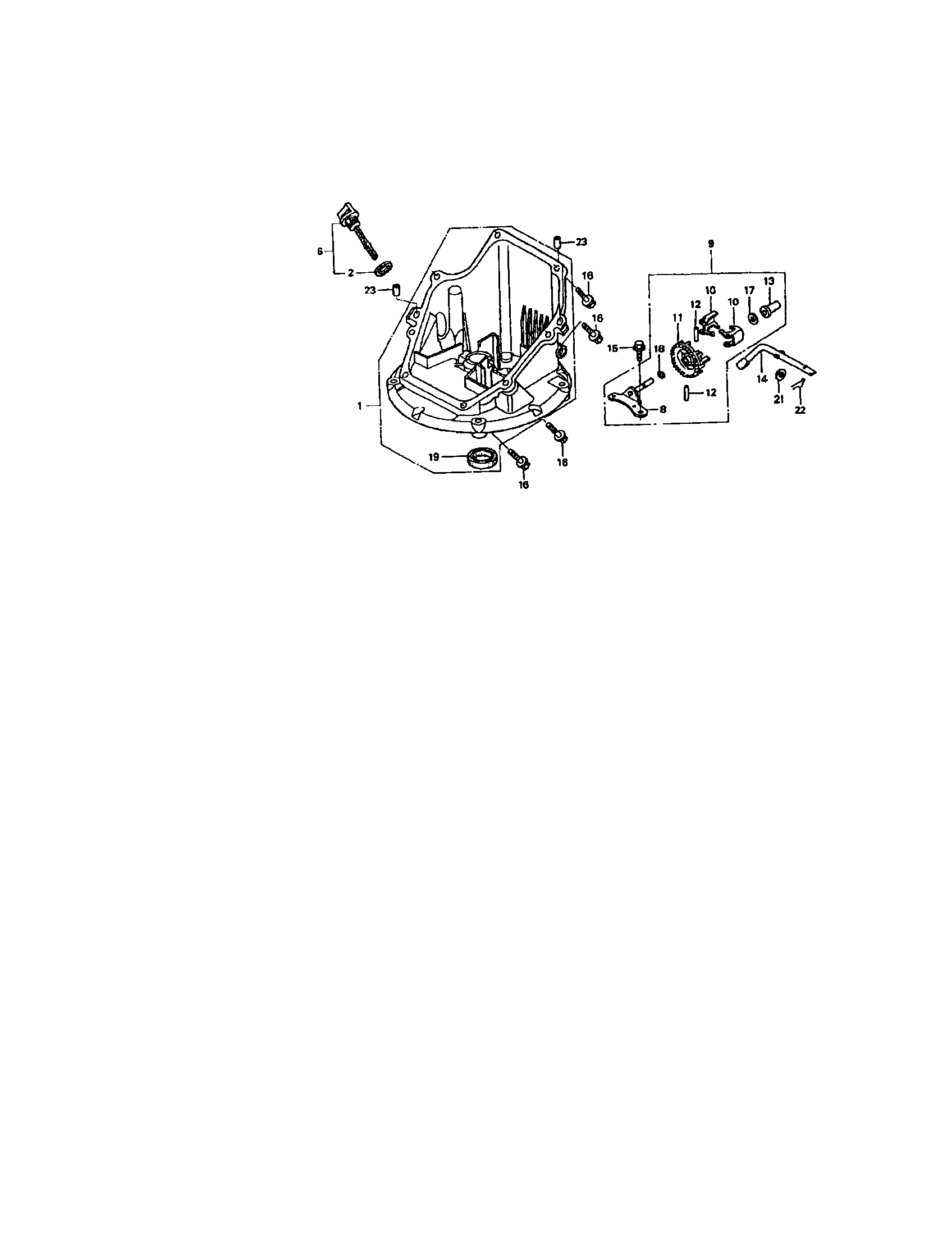

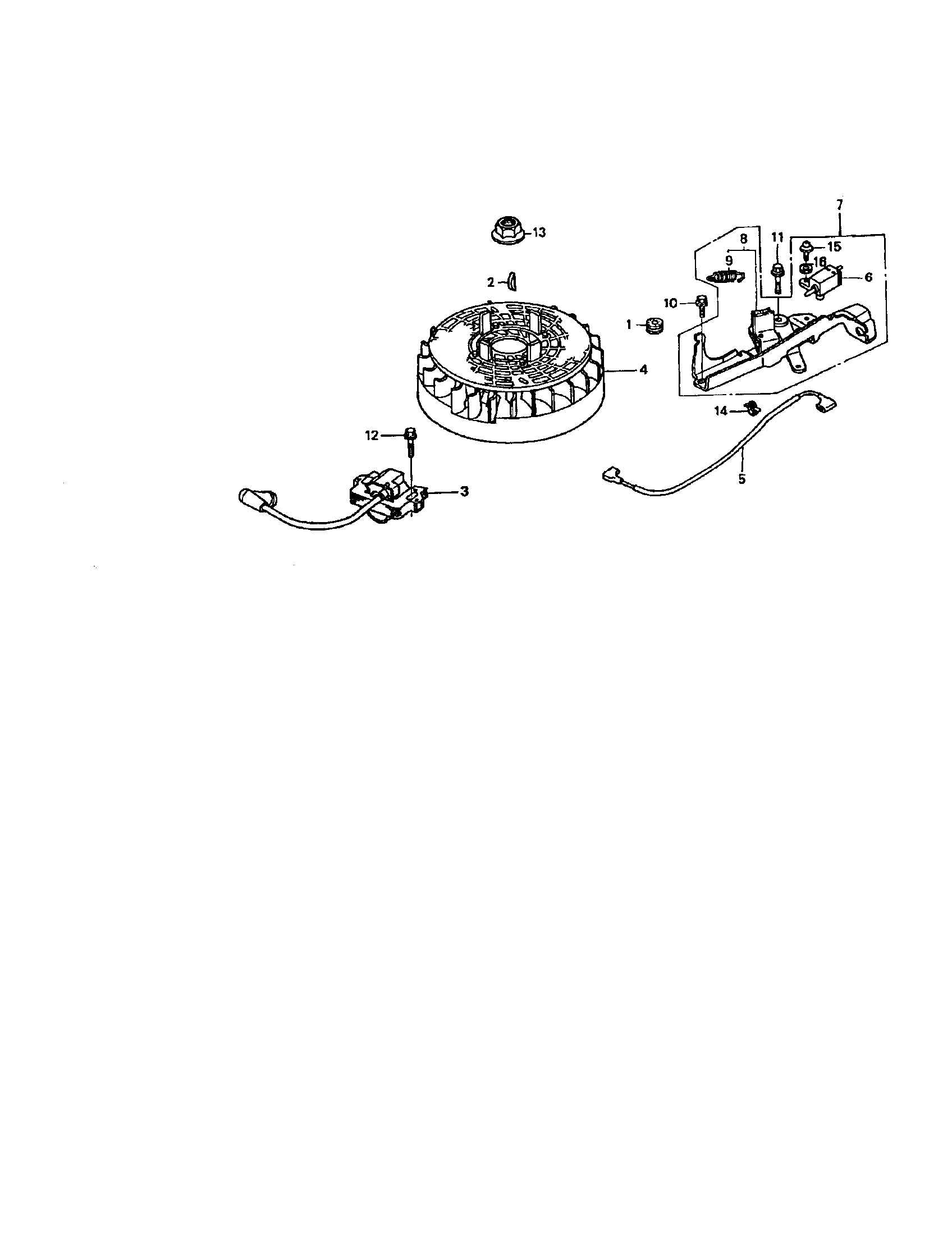

Model #917377842 Craftsman gas walk-behind lawn mower

Here are the diagrams and repair parts for Craftsman 917377842 gas walk-behind lawn mower, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

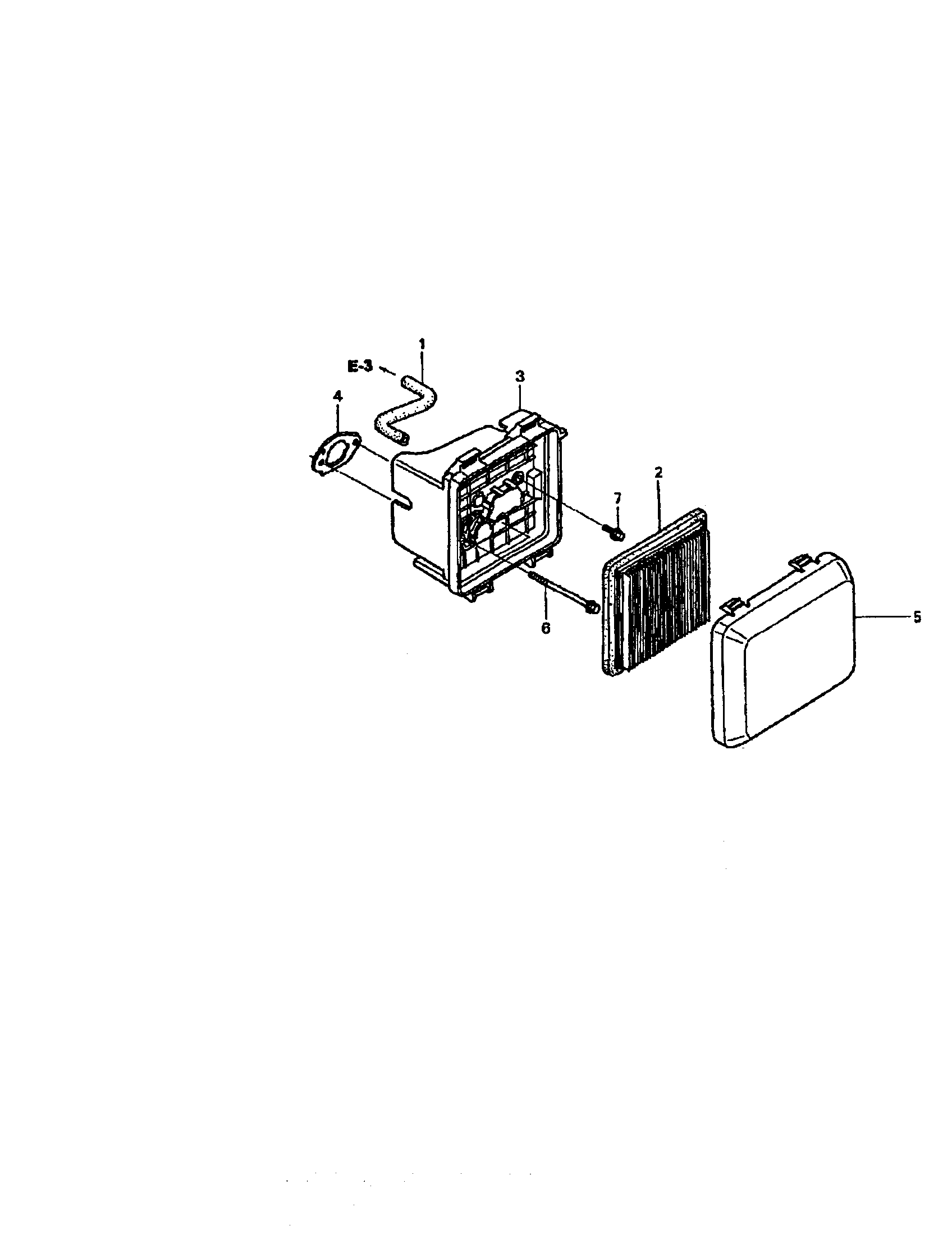

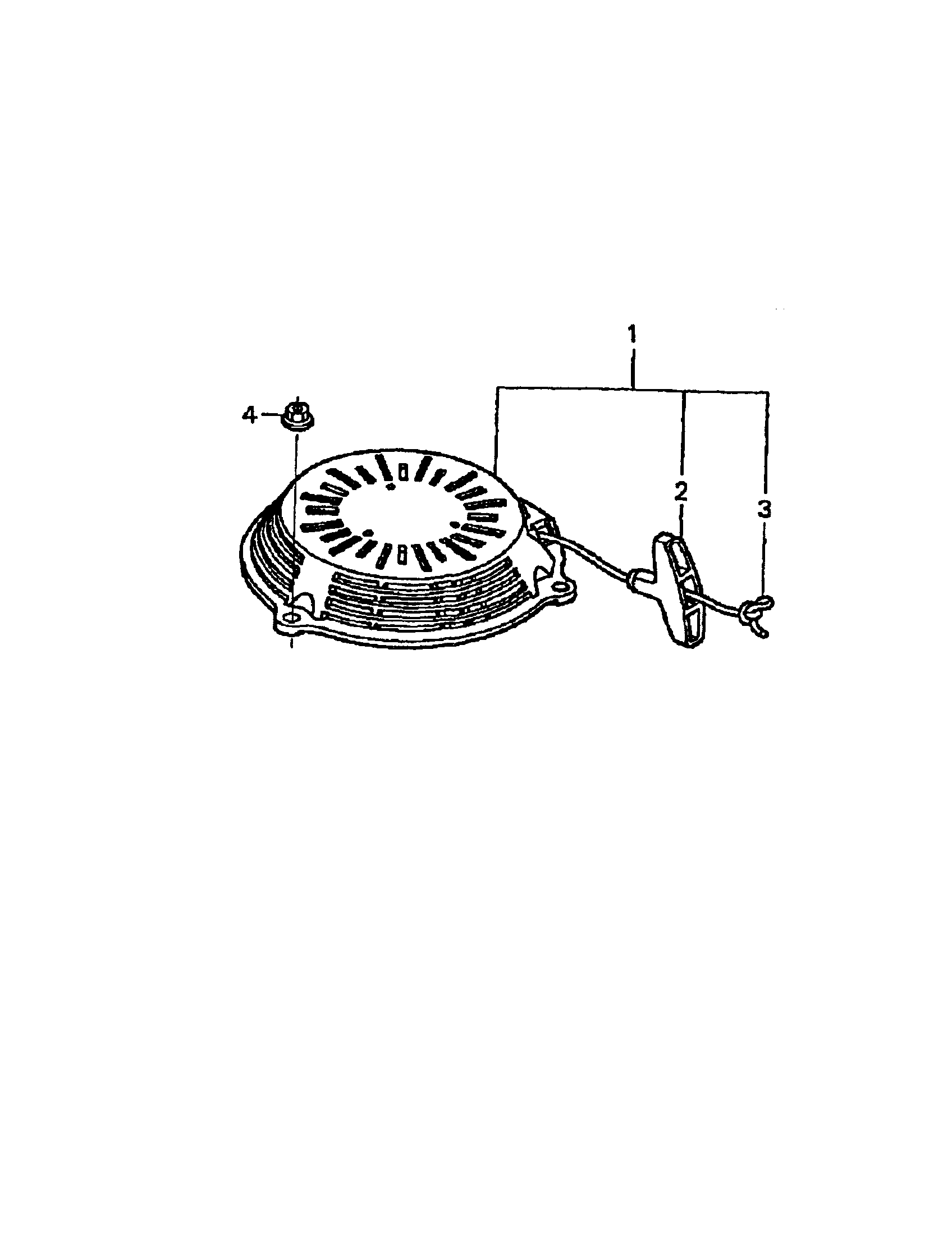

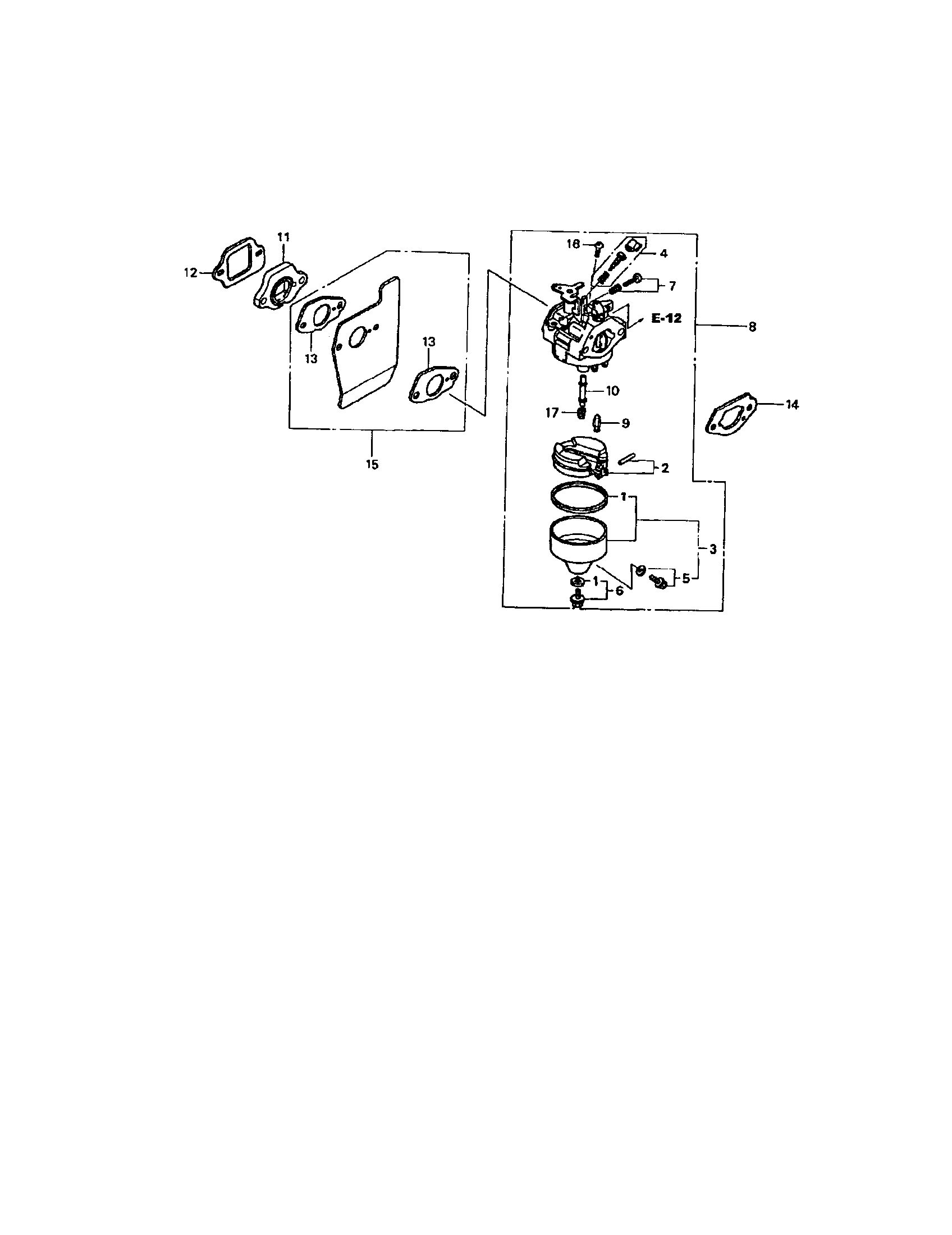

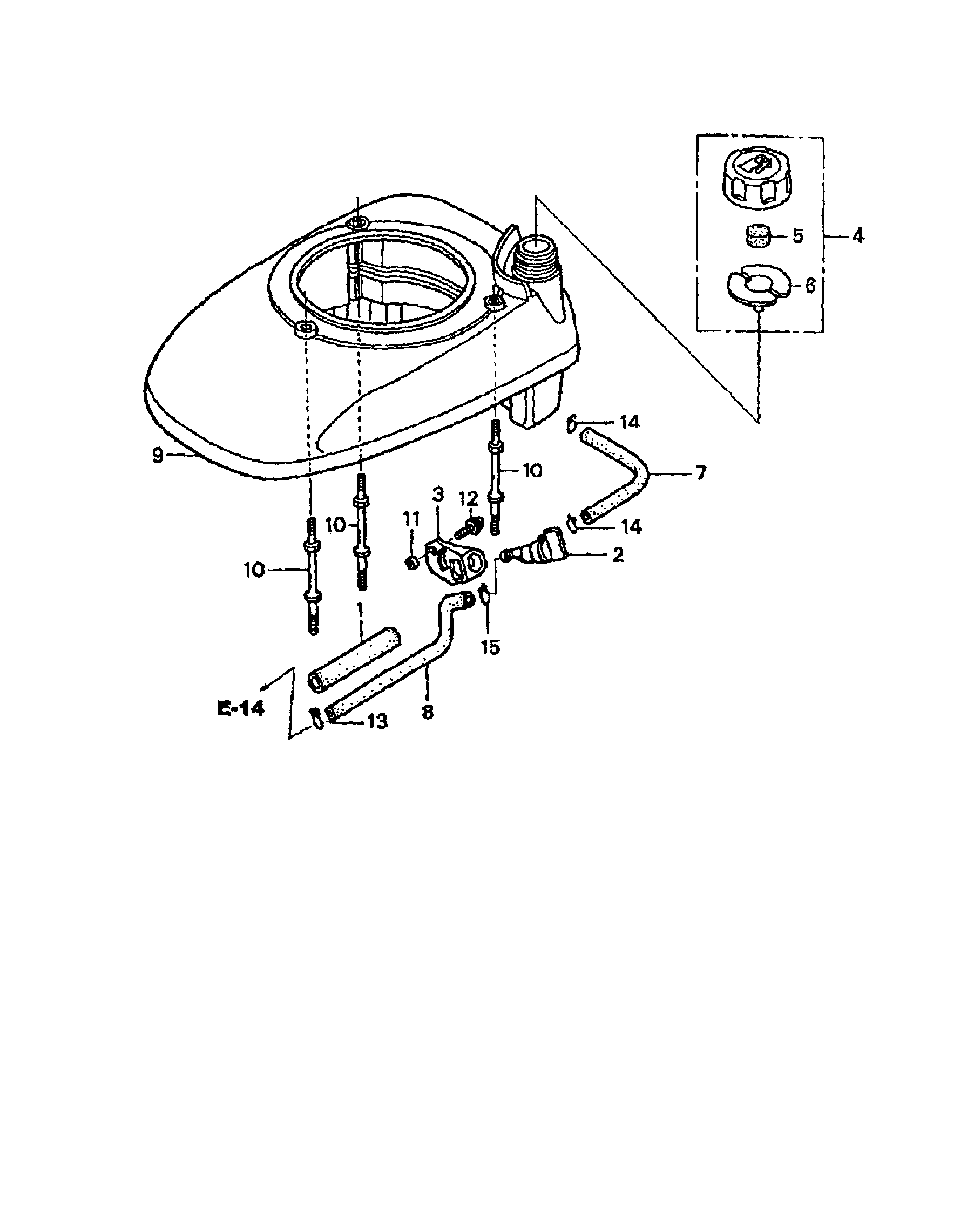

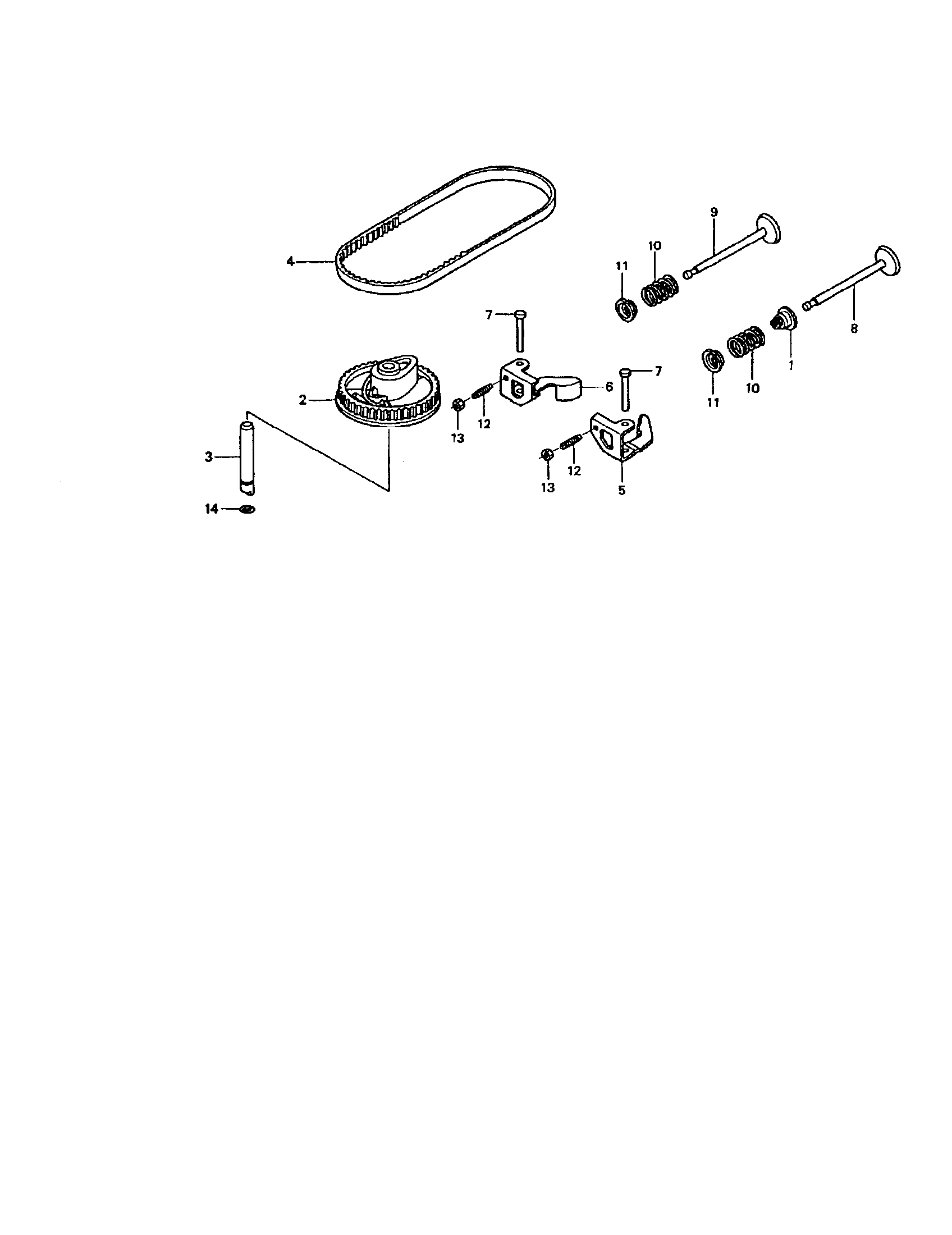

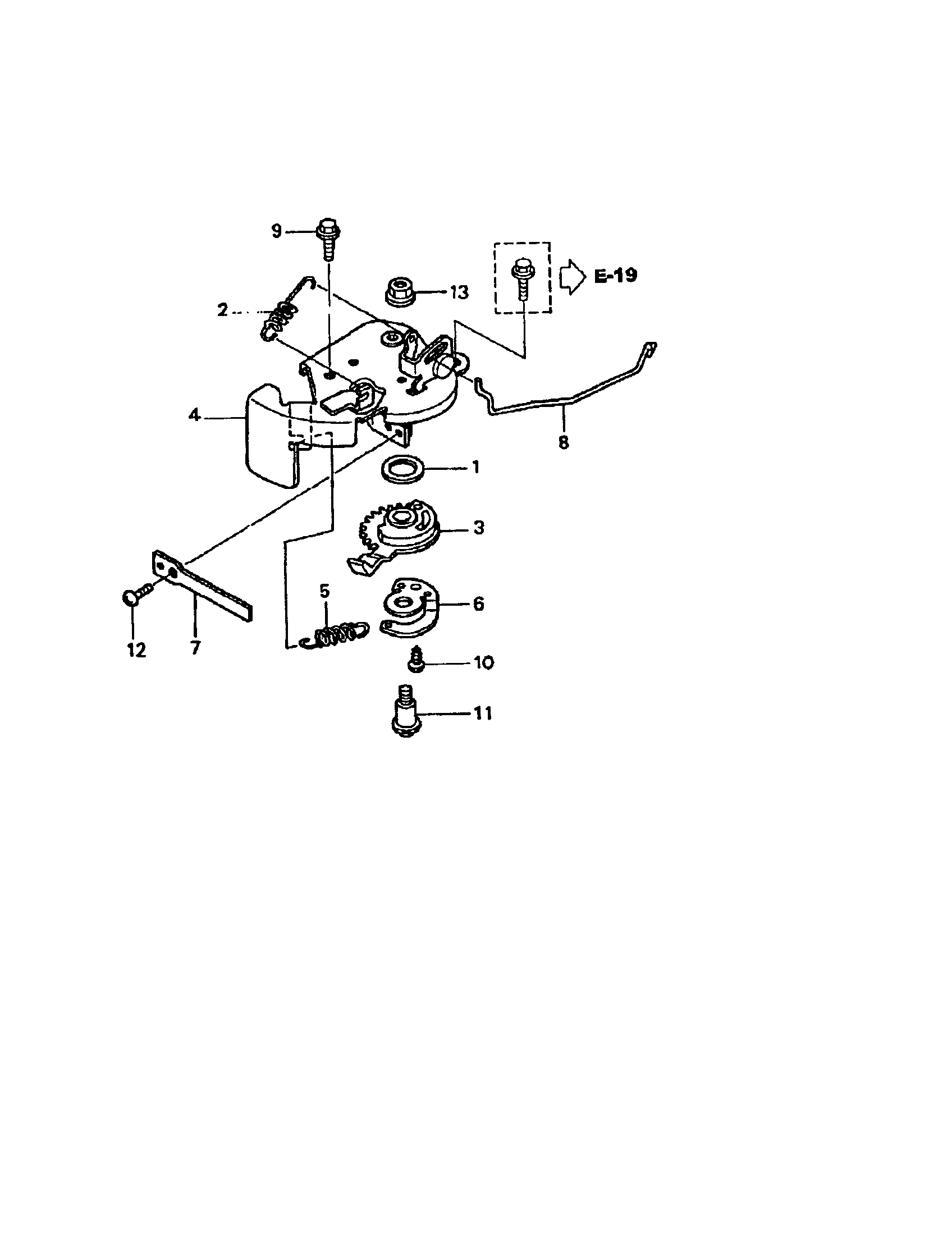

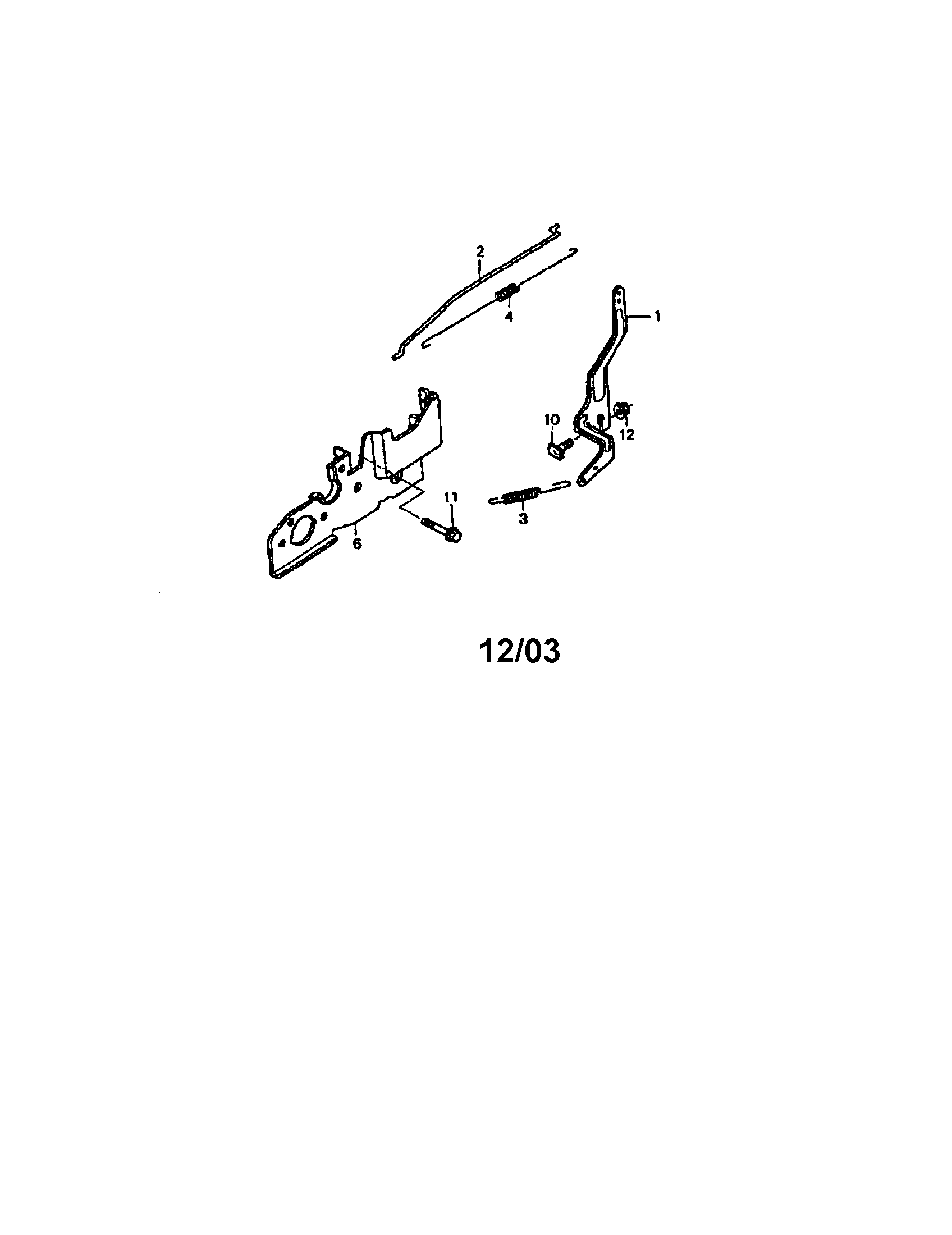

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 270 parts

Lawn Mower 21-in Deck 3-in-1 Blade

#16

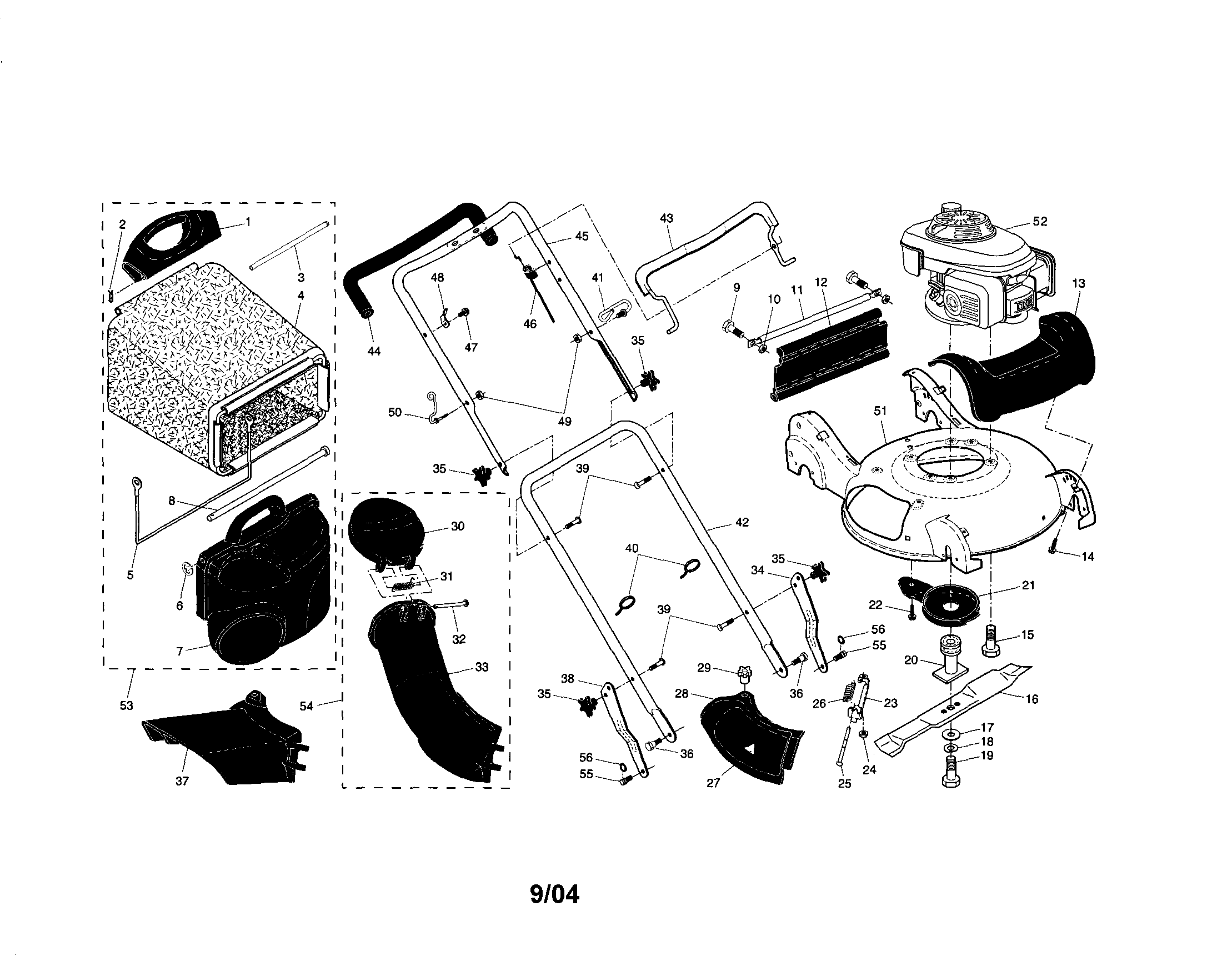

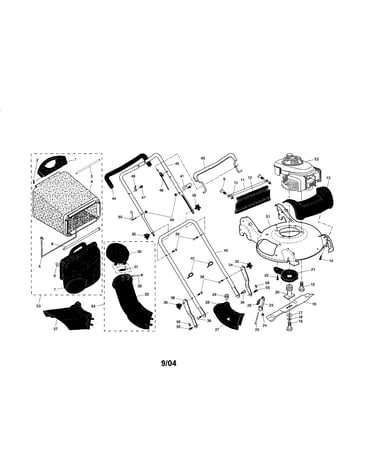

Engine/housing/handle/bag/blade Diagram

$11.46 |
43% OFF MSRP:$20.00

In Stock

Lawn & Garden Equipment Washer

#17

Engine/housing/handle/bag/blade Diagram

Lawn & garden equipment washer

Part #851074
This item is not returnable
$2.65 |
12% OFF MSRP:$3.00

In Stock

Lawn Mower E-Ring

#56

Engine/housing/handle/bag/blade Diagram

Lawn mower e-ring

Part #12000058
This item is not returnable
$3.30

In Stock

Lawn Mower Ground Drive Belt, 5/16 x 34-5/8-in

#50

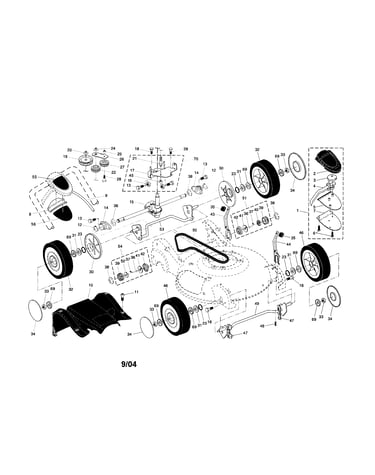

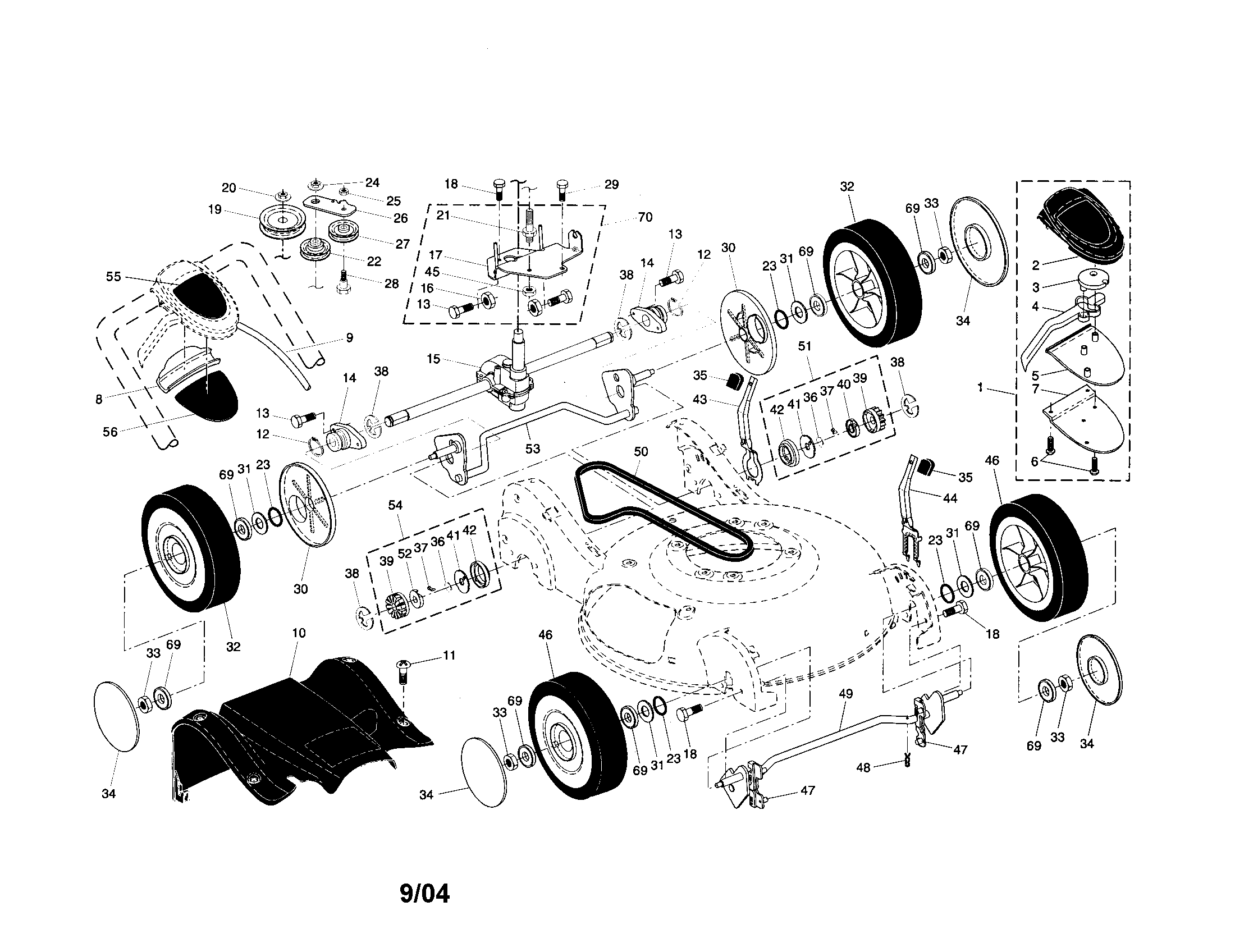

Wheels/tires/drive cover/belt Diagram

Lawn mower ground drive belt, 5/16 x 34-5/8-in

Part #183688

Get free shipping with Automatic Reorder

$22.32

In Stock

Lawn Mower Drive Pawl

#37

Wheels/tires/drive cover/belt Diagram

Lawn mower drive pawl

Part #175098
This item is not returnable
$3.81

In Stock

Lawn Mower Drive Gear

#39

Wheels/tires/drive cover/belt Diagram

$7.68 |
19% OFF MSRP:$9.50

In Stock

Lawn & Garden Equipment Bolt

#15

Engine/housing/handle/bag/blade Diagram

Lawn & garden equipment bolt

Part #150406
This item is not returnable
$4.29

In Stock

Lawn & Garden Equipment Washer

#31

Wheels/tires/drive cover/belt Diagram

Lawn & garden equipment washer

Part #88348
This item is not returnable
$4.94

In Stock

Lawn & Garden Equipment Pin

#48

Wheels/tires/drive cover/belt Diagram

Lawn & garden equipment pin

Part #169675
This item is not returnable
$4.96

In Stock

Lawn & Garden Equipment Lock Nut

#25

Wheels/tires/drive cover/belt Diagram

Lawn & garden equipment lock nut

Part #73930500
This item is not returnable
$3.76 |
10% OFF MSRP:$4.20

In Stock

Symptoms for gas walk-behind mowers

Choose a symptom to see related walk-behind mower repairs.

Main causes: drive control cable failure, worn or broken drive belt, bad transmission, broken drive wheel
Main causes: uneven wheel height settings, damaged wheel, dull or damaged cutting blade
Main causes: dirty carburetor, bad spark plug, clogged air filter, engine choke problems, clogged gas cap vent
Main causes: damaged cutting blade, loose cutting blade, damaged flywheel key, engine needs tune up
Main causes: engine needs tune up, dirty or clogged carburetor, damaged flywheel key
Main causes: stale gas, engine needs tune up, bad spark plug, dead battery, bad recoil starter, faulty safety switch, bad ignition coil
