Kenmore Elite 2534450960A refrigerator Parts

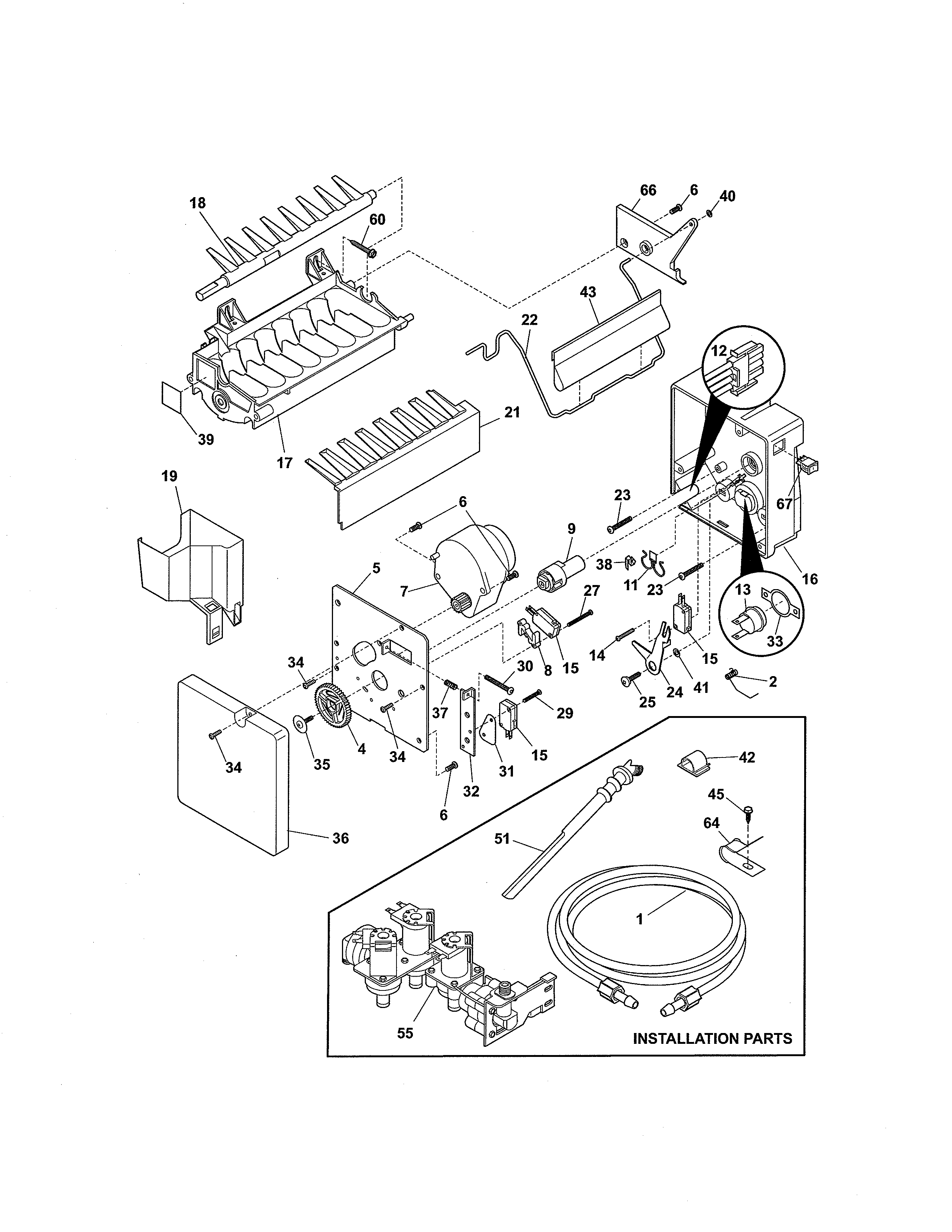

To replace the ice maker in your Kenmore Elite 2534450960A side-by-side refrigerator, we turn off power and the water supply, remove the ice bin and mounting screws, swap the ice maker assembly, then restore water and power and discard the first batches of ice.

Before you start (safety and prep)

• Unplug the refrigerator or switch off the circuit breaker.
• Turn the ice maker Off at its On/Off switch.
• Shut off the household water supply valve.
• Protect the floor with towels; a small amount of water can spill.
• Use basic tools (typically a Phillips screwdriver and an adjustable wrench).

For model-specific access points and fastener locations, follow the steps in the owner's manual.

Replacement steps (typical side-by-side procedure)

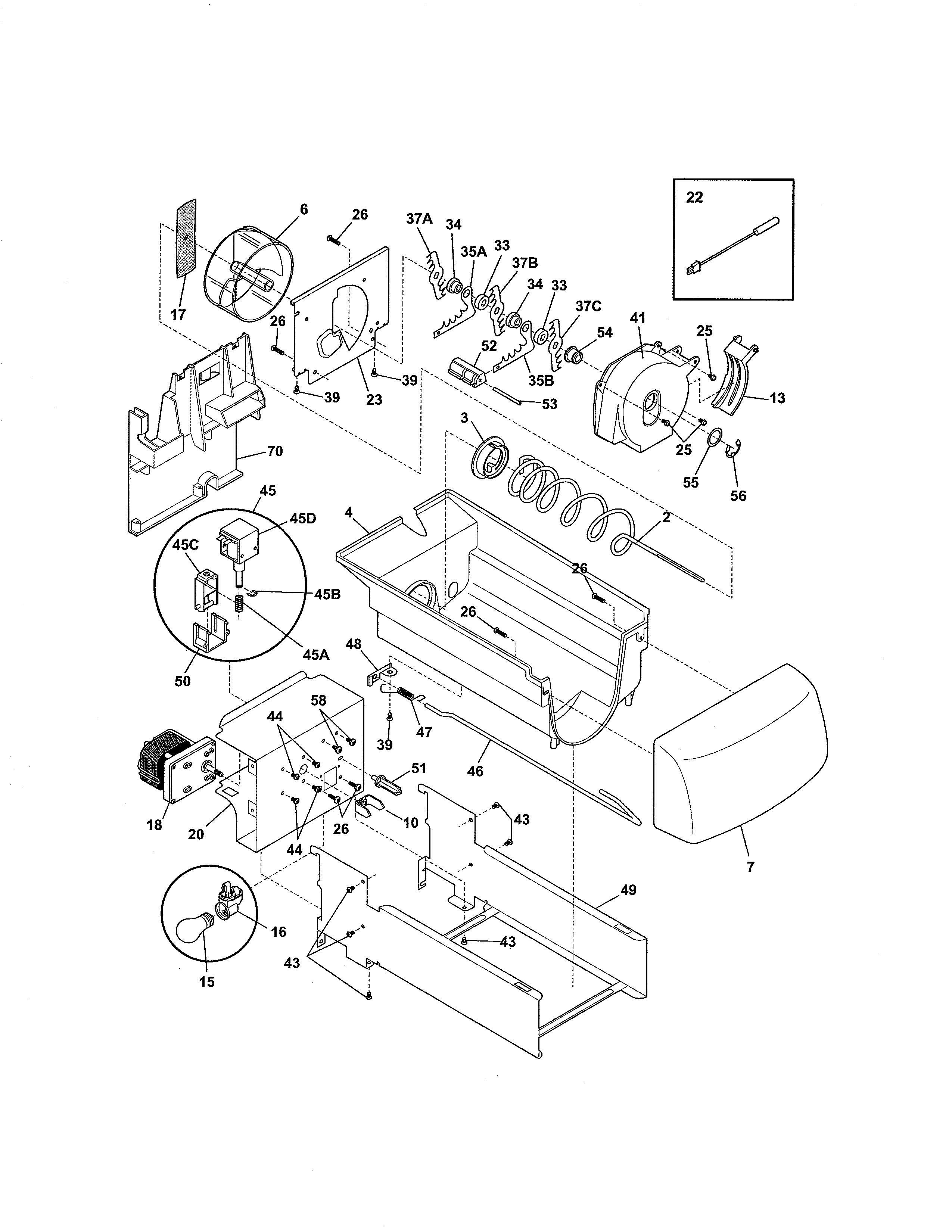

1. Remove the ice storage bin by lifting up and out.
2. Disconnect the ice maker wiring harness (usually a plug connector).
3. Remove the mounting screws holding the ice maker to the freezer wall.
4. If your ice maker uses a fill tube or inlet connection, carefully separate it.
5. Install the new ice maker in the same position and reinstall the screws.
6. Reconnect the wiring harness and reinstall the ice bin.
7. Turn the water supply back on, then restore power.
8. Turn the ice maker On.

After installation: what to expect

Because of new plumbing connections, the first ice may be discolored or taste odd. Discard the first full bin (or the first few batches) until ice looks and tastes normal.

Quick checks if it will not make ice

Symptom	Most common cause	What we do next
No ice, no sound	Ice maker switch is Off	Set switch to On
No ice, water dispenser weak	Low water pressure or supply valve not fully open	Confirm 30 to 100 psi supply and valve fully open
Ice clumps/jams	Ice stored too long	Empty bin and shake cubes loose
Loud buzzing from rear	Ice maker trying to fill without water	Verify water supply is on before leaving it On

Why it matters

Replacing the ice maker correctly prevents leaks, protects the dispenser/auger area from damage, and helps the new ice maker fill properly so you get consistent cube production.

Last updated: February 2026

Your Kenmore Elite refrigerator’s model number is printed on the serial plate inside the fresh food (refrigerator) compartment. For model 2534450960A, check inside the refrigerator section for the serial plate, then record both the model and serial number for parts lookup and service.

Where to find the model and serial plate

We typically see the serial plate in one of these spots on Kenmore side-by-side refrigerators:

• Inside the refrigerator compartment (fresh food section), on an interior wall
• On the wall behind the lower crisper drawer area
• Inside the door area (on some units)
• Near the front base behind the kick plate (varies by installation)

For the exact location and how it’s labeled on your unit, use the 2534450960A owner's manual.

How to read and record it correctly

Once you find the serial plate:

• Write the model number exactly as shown: 2534450960A
• Copy the serial number exactly (letters and numbers)
• Take a clear photo for future reference
• Clean the serial plate gently with soap and water only

Quick checklist

Item	What to capture	Why it matters
Model number	2534450960A	Ensures the parts list matches your exact refrigerator
Serial number	As printed on the plate	Helps identify production details when troubleshooting

Why it matters

Kenmore model numbers can look similar across the 253 series, but small differences affect fit and compatibility for parts like a water filter, ice maker components, and electronic control boards. Using the serial plate information helps us match the correct replacement parts the first time.

Last updated: February 2026

Yes. The Kenmore Elite 2534450960A is positioned as a higher-end Kenmore refrigerator line, typically offering upgraded features and performance compared with standard Kenmore models. For model-specific operation, features, and care details, use the 2534450960A owner's manual.

What “high end” means for this model

In practical terms, “high end” usually shows up as better convenience features and stronger day-to-day usability, such as filtration, dispensing, and ice-making systems.

Common higher-end traits you’ll often see in Kenmore Elite side-by-side refrigerators include:

• Built-in ice and water dispensing features
• A dedicated water filtration system for taste and clarity
• More advanced temperature management and controls
• More premium fit-and-finish (handles, door bins, lighting)
• More serviceable modular components (valves, sensors, fans)

Model-specific example: water filtration and dispenser support

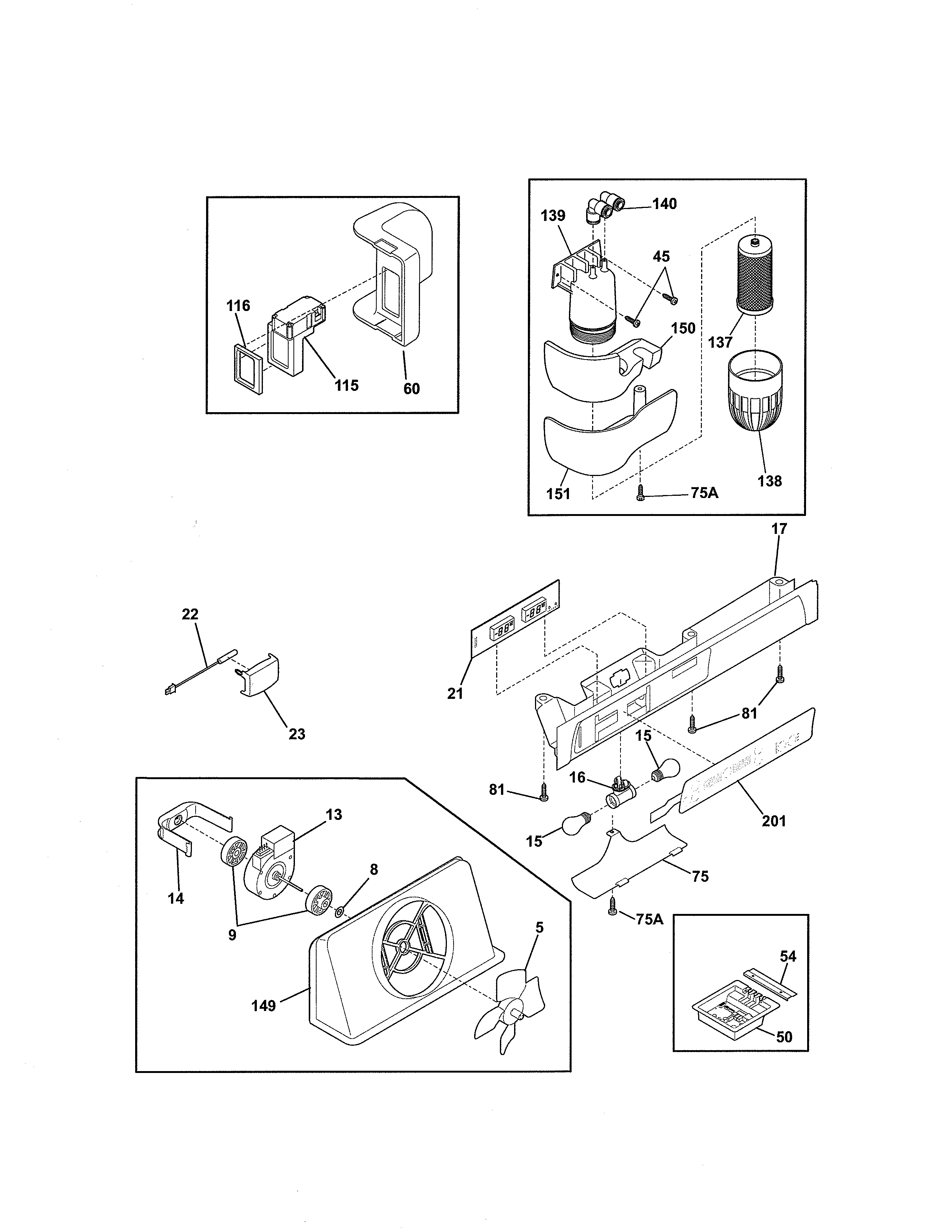

Your 2534450960A documentation describes a Kenmore ice and water filter system located in the fresh food compartment (upper right rear area on applicable configurations). It also provides typical filter maintenance guidance (replacement intervals vary by water conditions). For replacement, the matching filter on this model’s parts list is the genuine Kenmore refrigerator water filter WFCB.

Quick reference table

Feature area	What you get	Why it feels “higher end”
Water filtration	Cartridge-style filter system	Better-tasting water and ice, easier routine maintenance
Ice and water dispensing	Dispenser and ice storage system	Convenience without opening the door repeatedly
Service parts availability	Common wear parts are replaceable	Repairs are often targeted (part replacement vs. full unit)

Why it matters

If you’re deciding whether it’s “worth fixing,” higher-end models like the Kenmore Elite line often justify repair when the issue is isolated to a common component (water filter, inlet valve, temperature sensor, fan blade) rather than a major sealed-system problem.

Helpful next steps

• Confirm your exact feature set and control settings in the 2534450960A owner's manual.
• If water taste/flow is poor, replace the filter first (a clogged filter is a common cause).
• If the ice maker or dispenser is acting up, check for ice jams and avoid using sharp tools to clear ice.

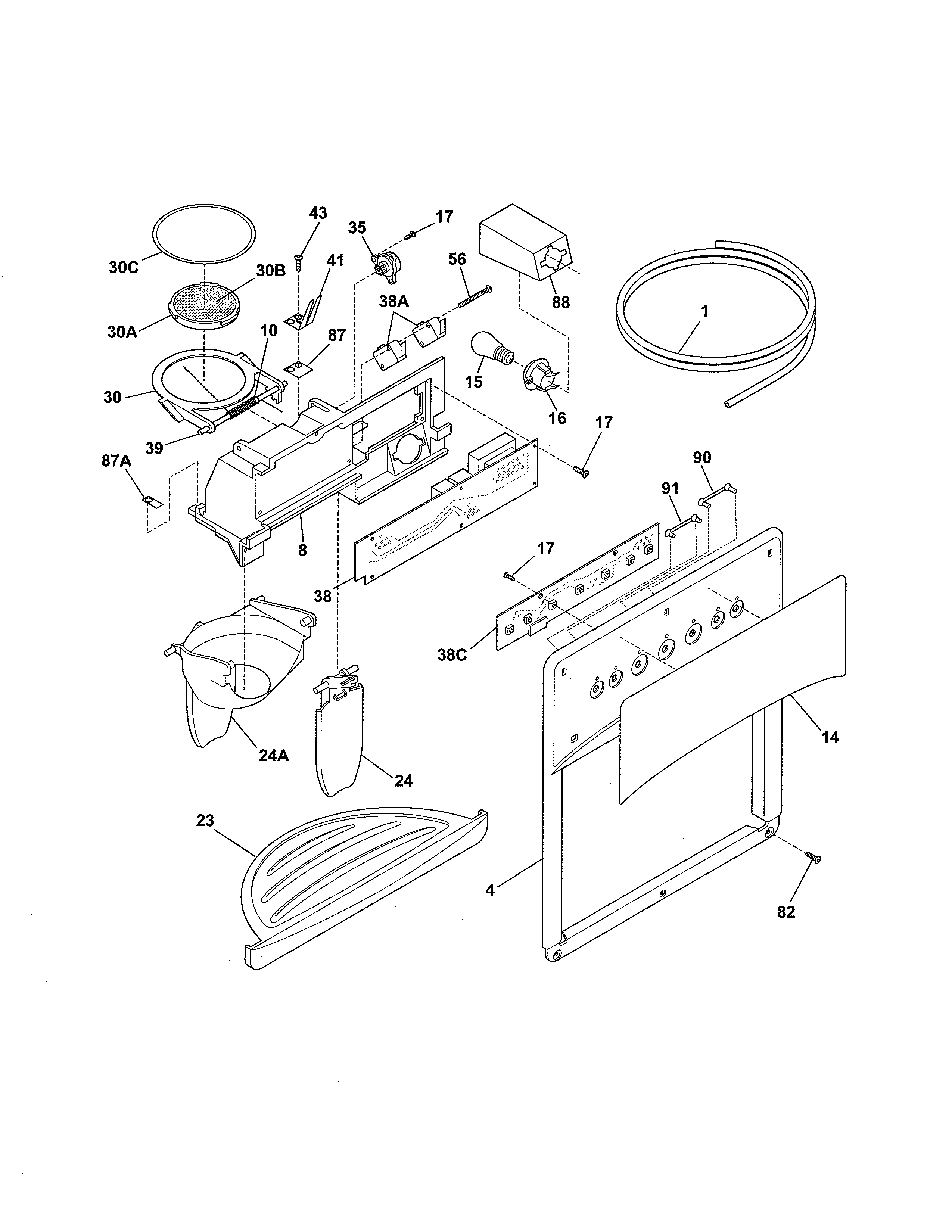

• If you’re troubleshooting dispenser components, follow a guided teardown process like how to disassemble a Kenmore refrigerator dispenser.

Last updated: February 2026

On a Kenmore Elite 2534450960A side-by-side refrigerator, the ER IF code points to an ice fan (ice room fan) airflow problem. That fan moves freezer air through the door ducting to keep the ice maker area cold; when airflow is blocked or the fan is not running, the control detects the issue.

What to check first (quick, safe steps)

• Power-cycle the refrigerator: unplug for 5 minutes, then restore power.
• Make sure the freezer door closes fully and nothing is blocking the air vents.
• Look for frost or ice buildup around the rear freezer panel (airflow restriction).
• Listen for the freezer fan running when the compressor is on (a steady fan sound).
• If the ice bin is jammed, never use sharp tools to break ice; that can damage the bin and dispenser mechanism (see the owner's manual).

Common causes and the most likely fixes

What’s happening	What it usually means	Typical fix

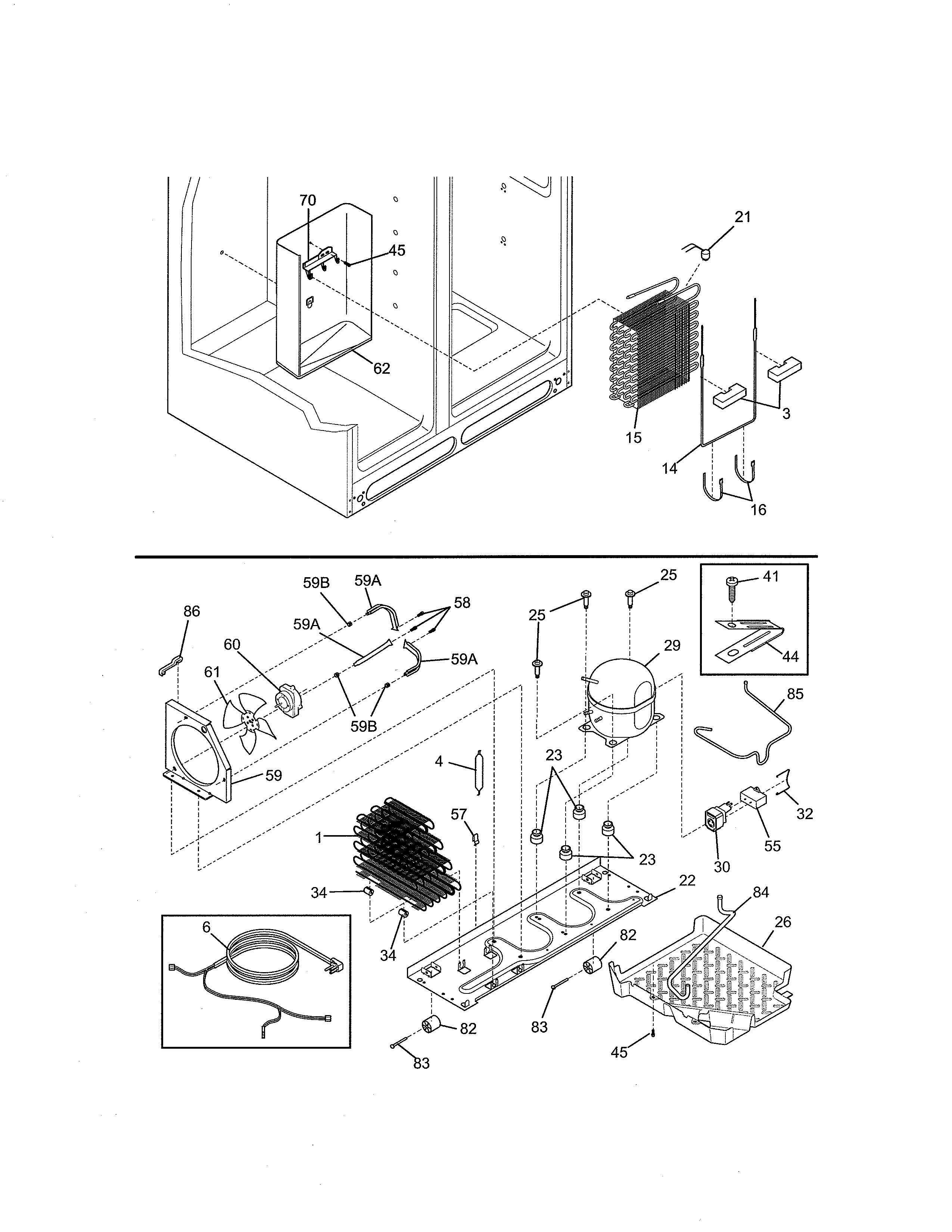

Heavy frost on freezer back wall	Defrost system not clearing ice	Diagnose defrost heater/thermostat; defrost the unit to restore airflow temporarily
Fan noise is absent or intermittent	Fan motor issue or ice obstruction	Clear ice obstruction; inspect fan area for ice and damage
Ice maker area warm, dispenser slow	Restricted air duct to door/ice room	Clear vents, check for ice blockage in ducting
Error returns after reset	Control not seeing expected fan feedback	Further diagnosis of fan circuit or control board

Parts that are often involved

If you confirm a defrost-related ice buildup, these model-compatible parts are commonly involved:

• Refrigerator defrost heater 242044113
• Refrigerator defrost bi-metal thermostat 5303918214

If the issue is tied to water and ice production (not the fan itself), also check for restricted water flow and leaks:

• Refrigerator water inlet valve assembly 242252702
• Genuine Kenmore refrigerator water filter WFCB

Why it matters

The ice fan is part of the refrigerator’s airflow system. When airflow is restricted, temperatures in the ice maker area rise, ice production drops, and frost can spread, which can lead to longer run times and inconsistent cooling.

Last updated: February 2026

Common problems we see with the Kenmore 2534450960A side-by-side refrigerator are warm temperatures from airflow or control settings, frost buildup from defrost system failures, water and ice dispenser issues (filter or inlet valve), and interior lights not working (bulb or door switch behavior). Use the owner's manual troubleshooting tables to match symptoms to likely causes.

Most common symptoms and likely causes

• Refrigerator or freezer too warm: doors opened often, door not sealing, controls set too warm, vents blocked by food
• Items freezing or temps too cold: controls set too cold; allow 24 hours after changes to stabilize
• Both temperature displays flashing: control system detected a performance problem
• No ice or weak water flow: clogged filter, air in the line after filter change, or a failing inlet valve
• Frost buildup and poor cooling: defrost heater, defrost thermostat, or restricted evaporator airflow
• Lights not working: burned-out bulb, stuck light switch, doors left open too long (lights disabled)

Quick checks we recommend first

• Confirm doors close fully and shelves or bins are not preventing a seal.
• Keep food from blocking cold air vents for proper circulation.
• Adjust temperatures one step at a time; wait 24 hours to judge results.
• After a filter change, flush water for about 3 minutes to purge air.
• If lights are out, close and reopen the door(s) to re-enable lights; then test the bulb.

Parts that commonly fix these issues

Symptom	Common part involved	Example part for this model
Weak water flow, no ice, leaking at dispenser	Water filter or inlet valve	Genuine Kenmore refrigerator water filter WFCB, refrigerator water inlet valve assembly 242252702
Frost buildup, warm fridge	Defrost system components	Refrigerator defrost heater 242044113, refrigerator defrost bi-metal thermostat 5303918214
Interior light out	Light bulb	Refrigerator light bulb 316538904

Why it matters

On side-by-side refrigerators, airflow and defrost performance control both temperatures and run time. A blocked vent, poor door seal, or defrost failure quickly leads to warming, frost, and dispenser complaints.

Last updated: February 2026
