Chest Freezer

Model # EH221FXMQ01 Official Whirlpool chest freezer

Here are the diagrams and repair parts for Official Whirlpool EH221FXMQ01 chest freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 54 parts  |
Drier Tube 4357299
#4

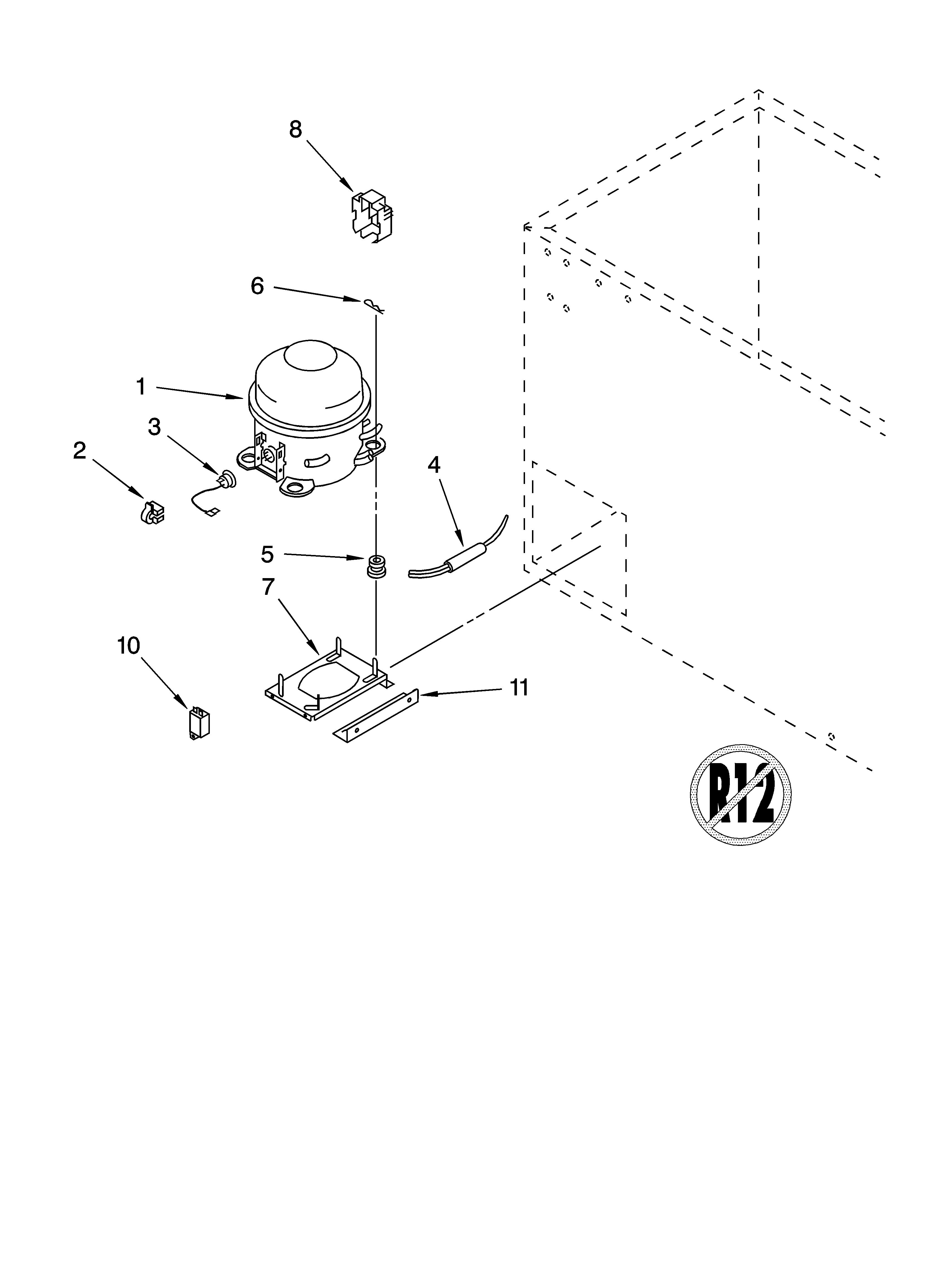

Unit parts diagram

Drier tube

Part #4357299

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 4357299. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
31% OFF MSRP : $46.00
In Stock
Upright Freezer Compressor 4356775
#1

Unit parts diagram

Upright freezer compressor

Part #4356775

Replaced by #W10309994

?
Manufacturer substitution
This part replaces 4356775. Substitute parts can look different from the original.
BEST SELLER
$475.80 |
$10.00 OFF Phone Price : $485.80
In Stock
Screw 4356609
#15

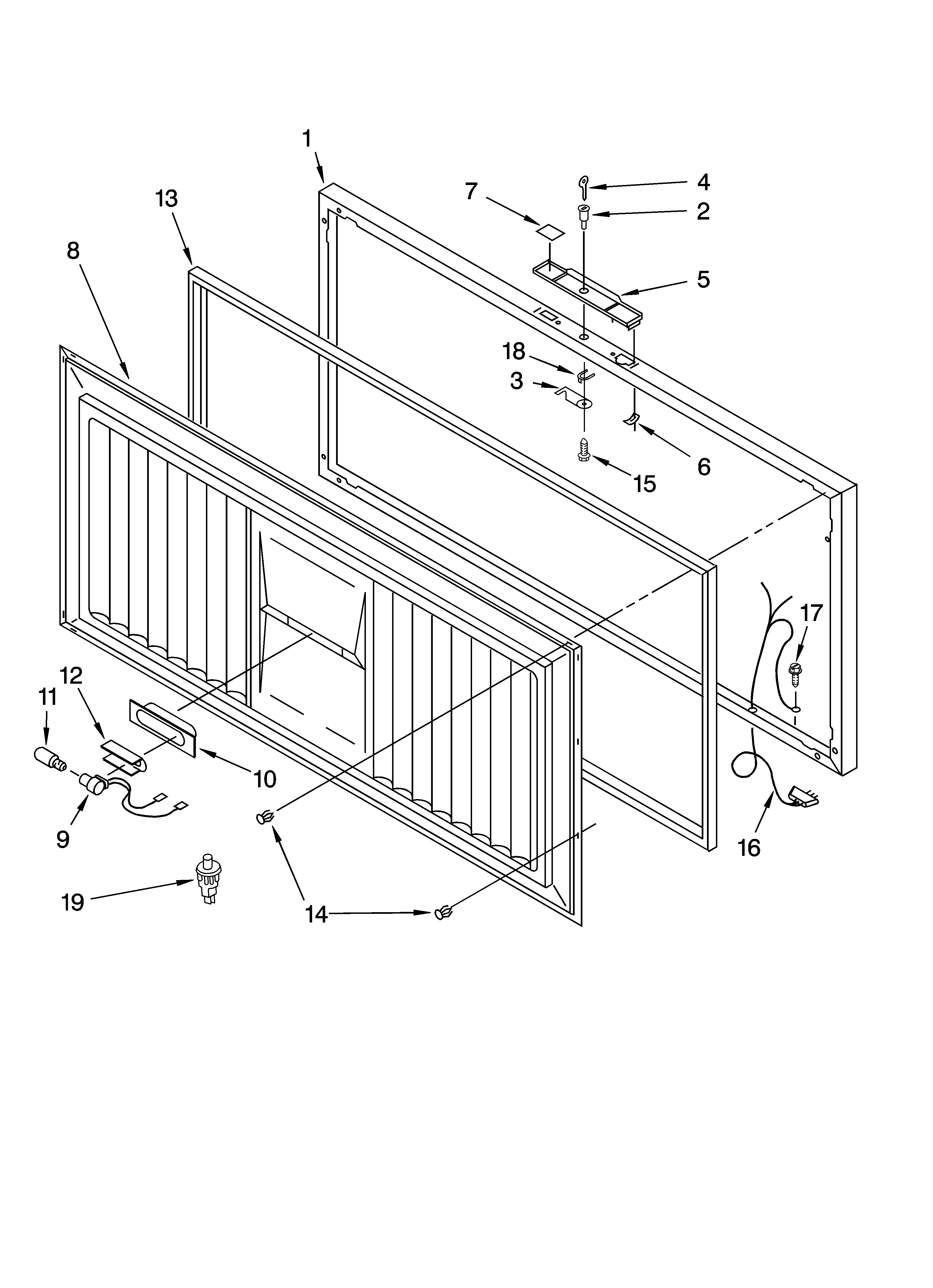

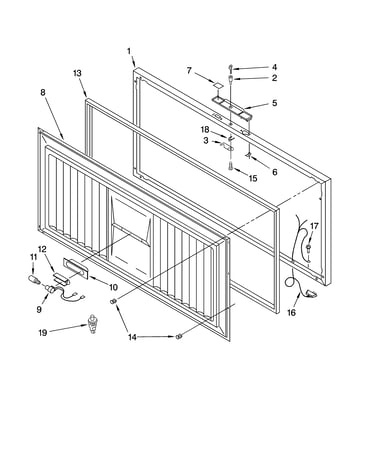

Door parts diagram

Screw

Part #4356609

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 4356609. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Freezer Lid Hinge And Spring 4356504
#2

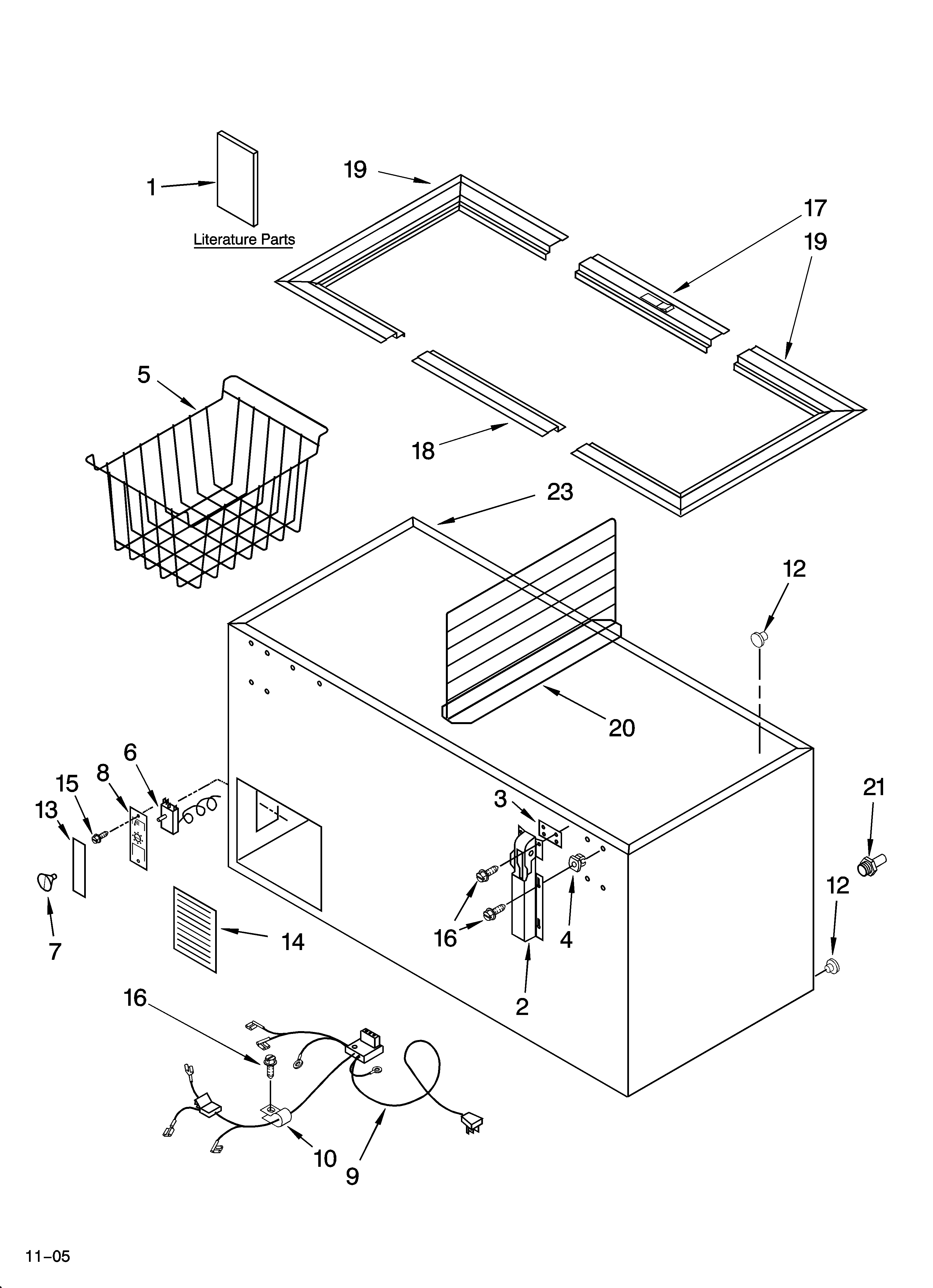

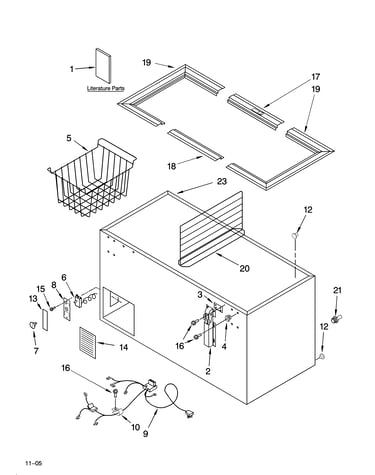

Cabinet parts diagram

Freezer lid hinge and spring

Part #4356504

Replaced by #W11192185

?
Manufacturer substitution
This part replaces 4356504. Substitute parts can look different from the original.
$87.16 |
21% OFF MSRP : $110.00
In Stock
Basket 4356771
#5

Cabinet parts diagram

Basket

Part #4356771

Replaced by #W11553315

?
Manufacturer substitution
This part replaces 4356771. Substitute parts can look different from the original.
$60.09
In Stock
Grommet 4356321
#4

Cabinet parts diagram

Grommet

Part #4356321

$15.29 |
12% OFF Phone Price : $17.29
In Stock
Terminal Cover 4356777
#8

Unit parts diagram

Terminal cover

Part #4356777

$55.91
In Stock
Screw 4356491
#16

Cabinet parts diagram

Screw

Part #4356491

$11.59
In Stock
Trim Breaker 4356641
#17

Cabinet parts diagram

Trim breaker

Part #4356641

$62.60
In Stock
Extension Panel 4390903
#1

Door parts diagram

Extension panel

Part #4390903

$479.88 |
$10.00 OFF Phone Price : $489.88
In Stock
