KitchenAid KPED890T vent system Parts
Here are the diagrams and repair parts for KitchenAid KPED890T vent system, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for KPED890T Vent System

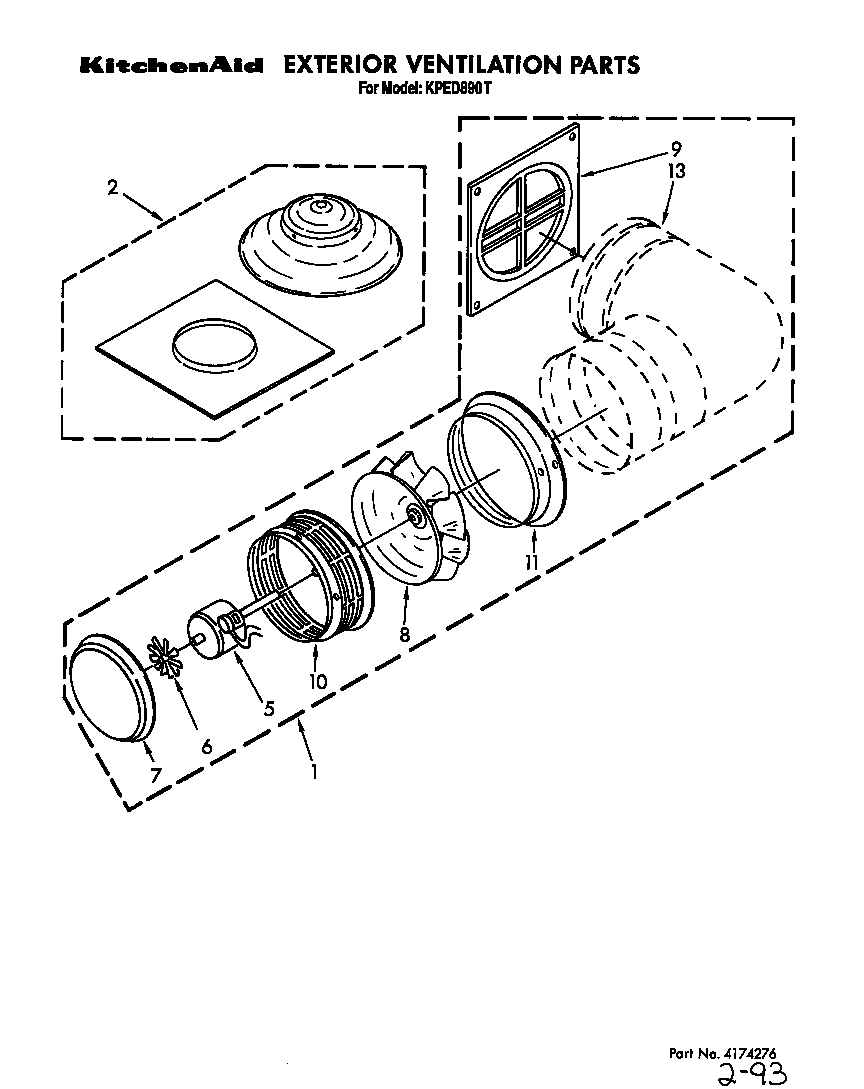

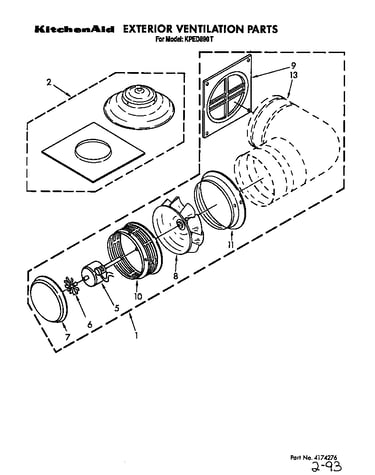

Exterior ventilation parts diagram
Motor Cover
Part #4173417
The manufacturer no longer makes this part, and there's no substitute part
Exterior ventilation parts diagram
Fan Blade
Part #4173415
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Installation Instructions
Part #LIT3177298
The manufacturer no longer makes this part, and there's no substitute part
Exterior ventilation parts diagram
Impeller
Part #4173416
The manufacturer no longer makes this part, and there's no substitute part
Exterior ventilation parts diagram
Motor Capacitor
Part #4173414
The manufacturer no longer makes this part, and there's no substitute part
Exterior ventilation parts diagram
Mount-roof
Part #4173296
The manufacturer no longer makes this part, and there's no substitute part
Exterior ventilation parts diagram
Plate-adpt
Part #4173456
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Parts List
Part #LIT4174276
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your downdraft ventilation systems
Choose a symptom to see related downdraft vent repairs.
Main causes: lack of electrical power, up/down activation switch failure, bad vent gear motor…
Main causes: clogged grease filters, air duct problems, fan motor failure, broken blower wheel…
Main causes: electrical power failure, up/down activation switch problems, vent gear motor failure…
Main causes: fan control switch failure, bad blower fan motor, broken blower wheel, wiring failure…
Main causes: problems with the vent limit switches, up/down activation switch failure…
Most common repair guides to help fix your downdraft ventilation systems
These step-by-step repair guides will help you safely fix what’s broken on your downdraft vent.
How to replace a downdraft vent up/down switch
The up/down switch starts the gear motor to raise and lower the air vent. Replace the up/down switch if defective.…
Repair time and Difficulty
15 minutes or less
How to replace a downdraft vent gear motor
The gear motor raises and lowers the air vent when you push the activating switch. Replace the gear motor if defective.…
Repair time and Difficulty
15 minutes or less
How to replace a downdraft vent fan control switch
The fan control switch activates the blower motor and controls the fan speed. Replace the fan control switch if it's not…
Repair time and Difficulty
15 minutes or less
Effective articles & videos to help repair your downdraft ventilation systems
Use the advice and tips in these articles to get the most out of your downdraft vent.
Learn about all the convenient features on our Sears PartsDirect website that make your parts purchases easier.…
Learn some of the most common symbols found in a wiring diagram and what they mean.…
Learn how to use a multimeter to check for wiring problems in an appliance that's not working…
