Jenn-Air JMW8530DAW electric wall oven Parts
Here are the diagrams and repair parts for Jenn-Air JMW8530DAW electric wall oven, as well as links to manuals and error code tables, if available.
Error Codes

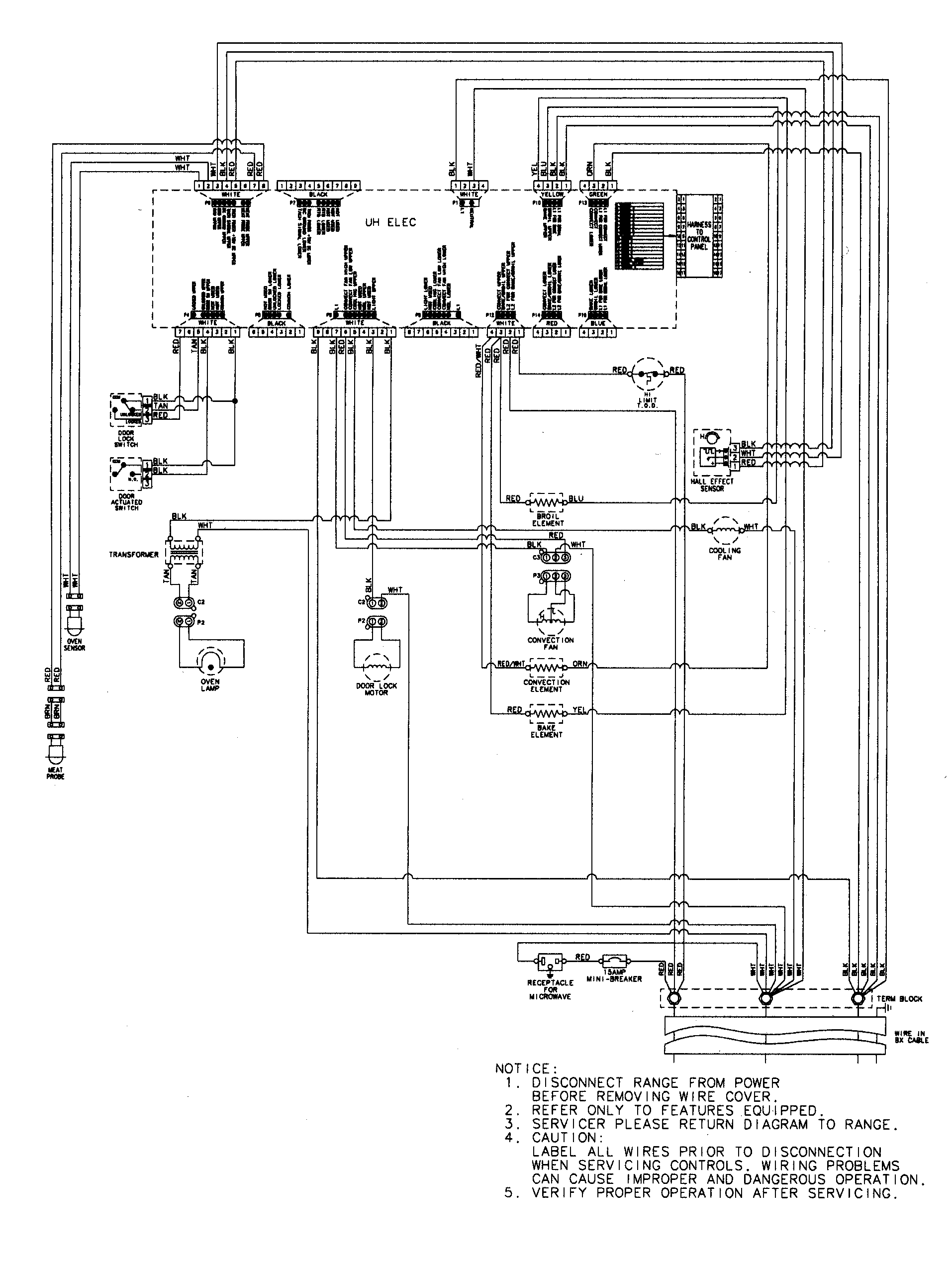

By Schematic
By Part
SELECT DIAGRAM
Browse Parts for JMW8530DAW Wall Ovens

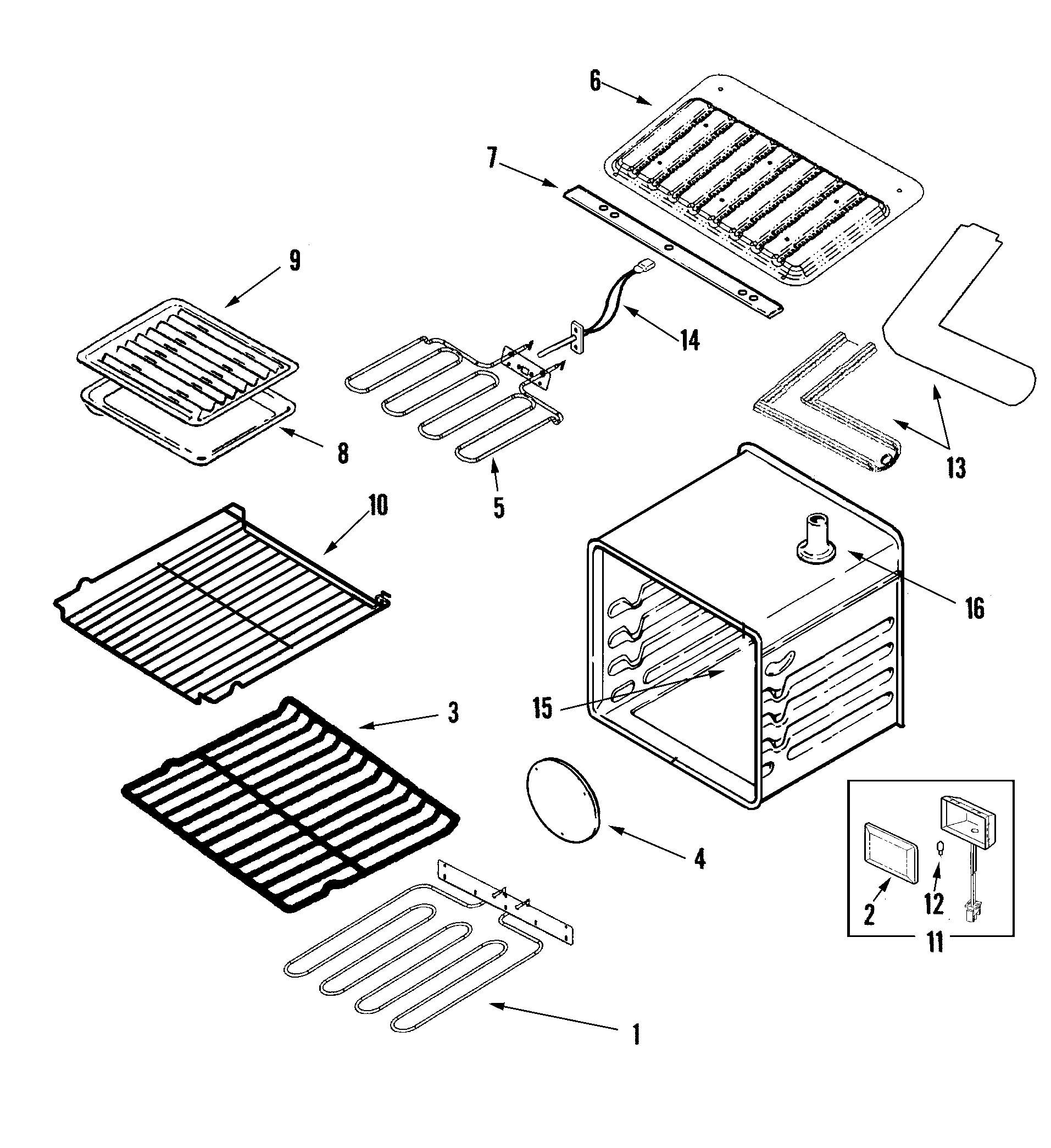

Oven diagram
Lens Cover
Part #74004607Replaced by #WP74004607
Manufacturer substitutionThis part replaces 74004607. Substitute parts can look different from the original.This item is not returnableIn Stock$39.07
Qty

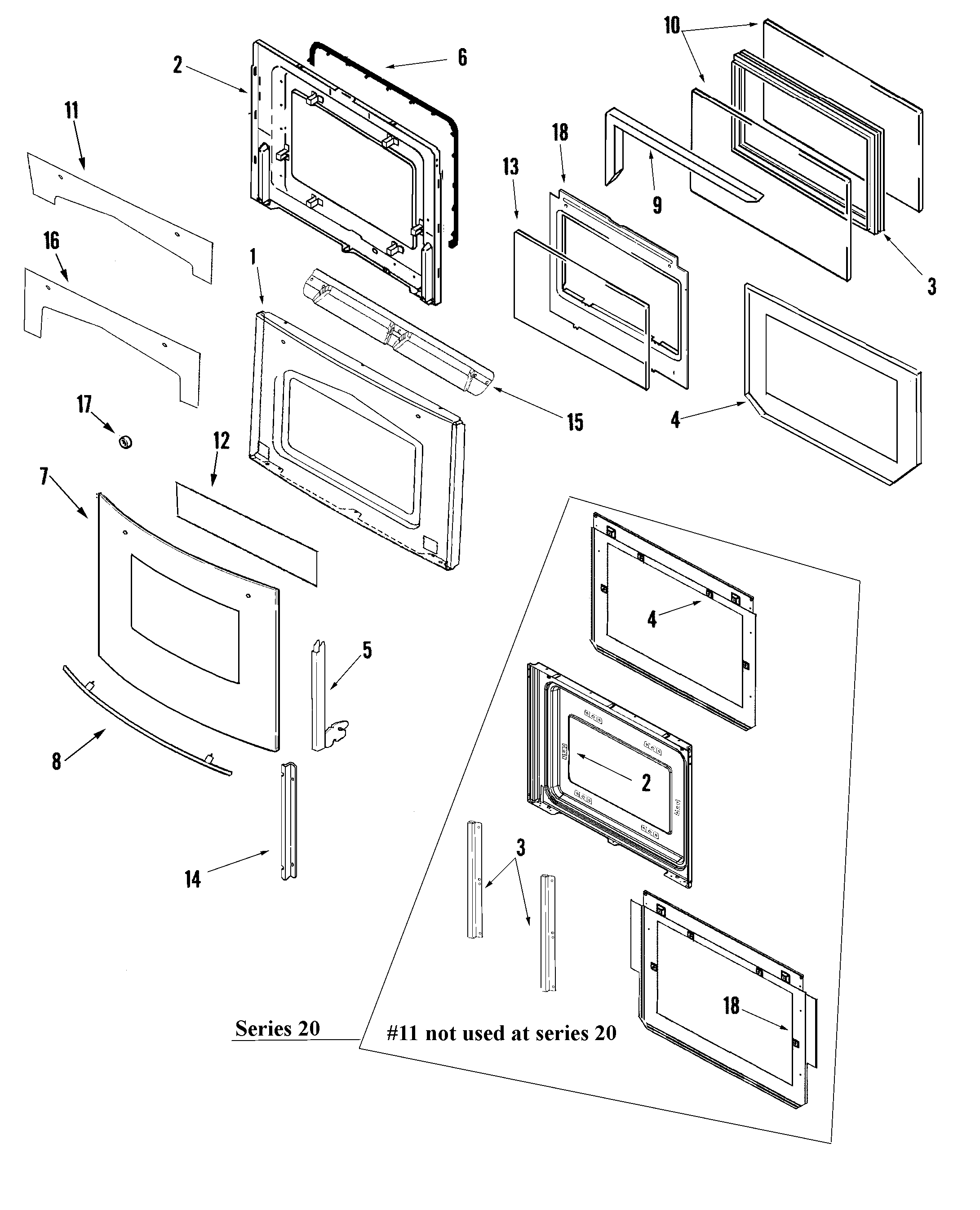

Door diagram
Screw Element
Part #74002979Replaced by #W11233072
Manufacturer substitutionThis part replaces 74002979. Substitute parts can look different from the original.In Stock$17.63QtyScrew
Part #71001394Replaced by #WP7101P434-60
Manufacturer substitutionThis part replaces 71001394. Substitute parts can look different from the original.In Stock$28.50QtyDoor diagram
Inner Bracket
Part #74011458Replaced by #3801F886-51
Manufacturer substitutionThis part replaces 74011458. Substitute parts can look different from the original.In Stock$27.9818% OFF Phone Price : $33.98
QtyOven diagram
Bake Element
Part #74008371Replaced by #WP7406P322-60

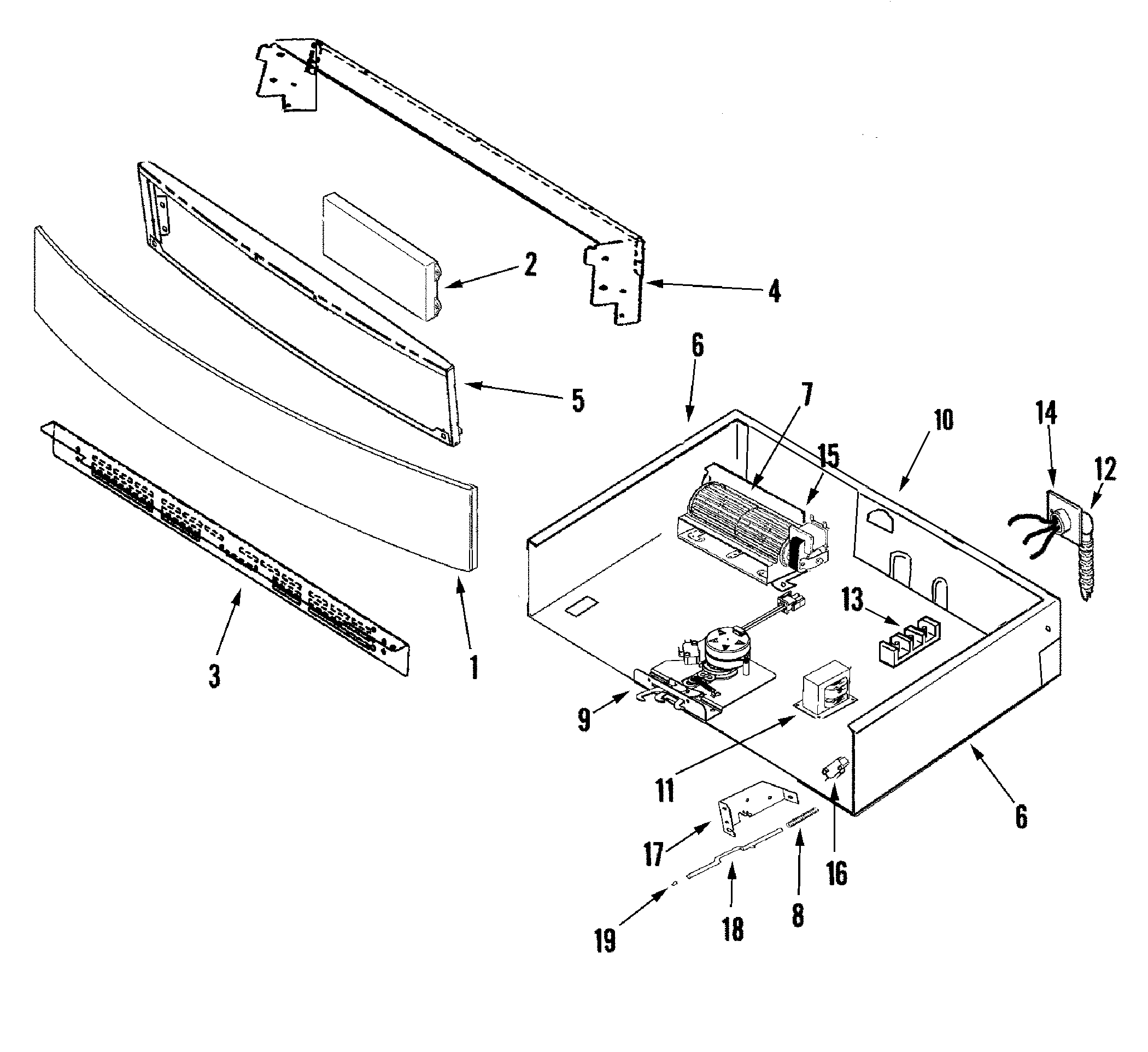

Manufacturer substitutionThis part replaces 74008371. Substitute parts can look different from the original.In Stock$133.388% OFF Phone Price : $145.38QtyControl panel and internal controls diagram
Terminal Block
Part #7401P039-60Replaced by #WPW10245259

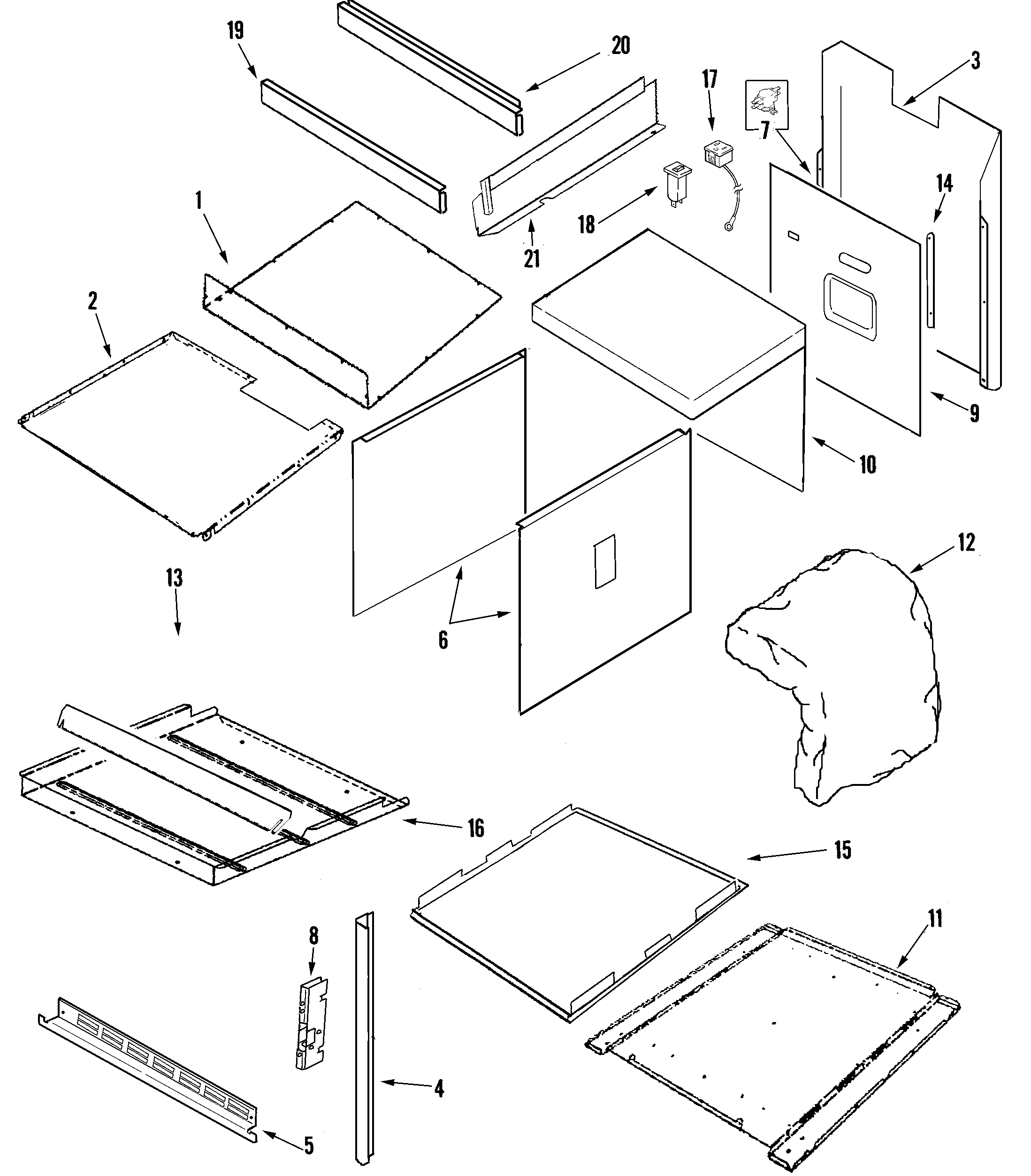

Manufacturer substitutionThis part replaces 7401P039-60. Substitute parts can look different from the original.In Stock$28.7517% OFF Phone Price : $34.75QtyBody diagram
Panel, Top R
Part #74011385
The manufacturer no longer makes this part, and there's no substitute part
Door diagram
Range Oven Door Glass Frame
Part #74003644
The manufacturer no longer makes this part, and there's no substitute part
Door diagram
Oven Baffle
Part #74011461
The manufacturer no longer makes this part, and there's no substitute part
Door diagram
Outer Glass
Part #74008417
The manufacturer no longer makes this part, and there's no substitute part
