Frigidaire
Chest Freezer

Model # AFFC1466DW0 Official Frigidaire freezer

Here are the diagrams and repair parts for Official Frigidaire AFFC1466DW0 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |
Filter Drier 216938600
#4

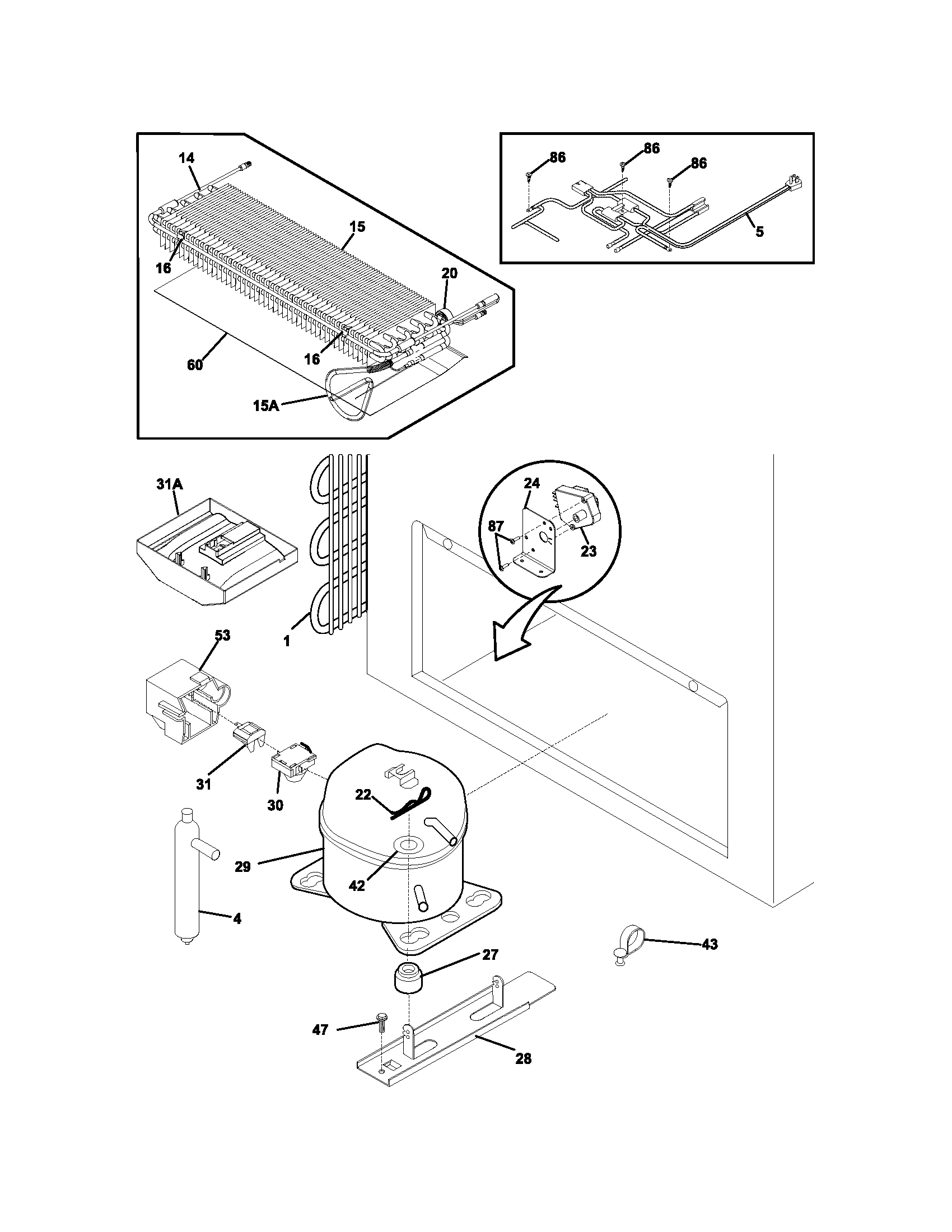

System diagram

Filter drier

Part #216938600

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 216938600. Substitute parts can look different from the original.
BEST SELLER
$10.30 |
37% OFF MSRP : $16.34
In Stock
Freezer Door Key 216702900
#5

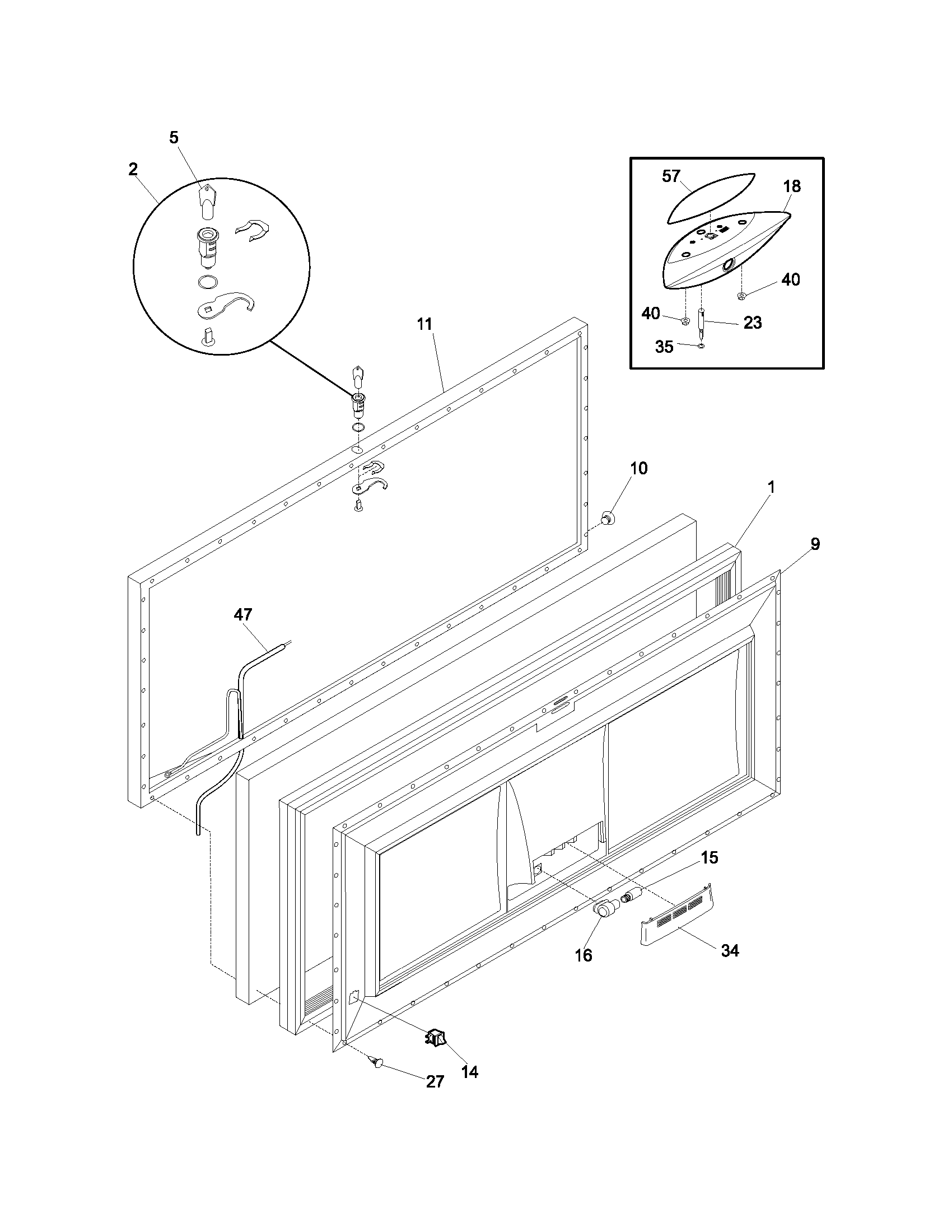

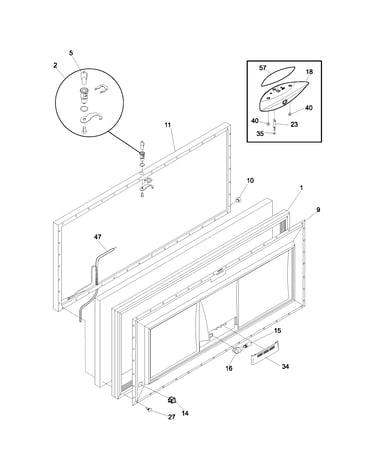

Door diagram

Freezer door key

Part #216702900

Replaced by #297147700

?
Manufacturer substitution
This part replaces 216702900. Substitute parts can look different from the original.
BEST SELLER
$9.40 |
10% OFF Phone Price : $10.40
In Stock
Blade 216325600
#5

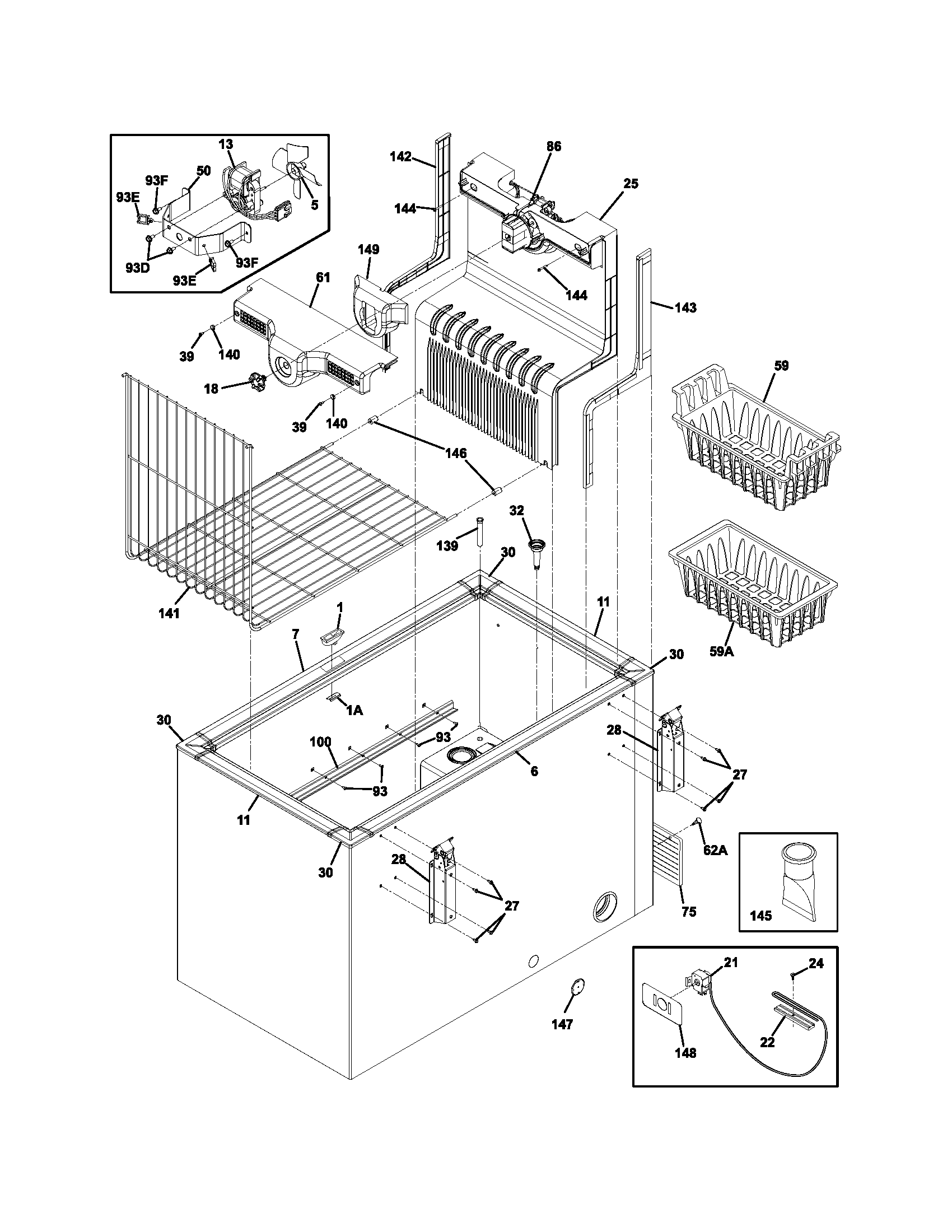

Cabinet diagram

Blade

Part #216325600

Replaced by #5308000010

?
Manufacturer substitution
This part replaces 216325600. Substitute parts can look different from the original.
BEST SELLER
$38.21 |
12% OFF Phone Price : $43.21
In Stock
Defrost Timer 216744500
#23

System diagram

Defrost timer

Part #216744500

Replaced by #5304518034

?
Manufacturer substitution
This part replaces 216744500. Substitute parts can look different from the original.
BEST SELLER
$44.30 |
10% OFF Phone Price : $49.30
In Stock
Thermostat 216731000
#20

System diagram

Thermostat

Part #216731000

Replaced by #297216600

?
Manufacturer substitution
This part replaces 216731000. Substitute parts can look different from the original.
BEST SELLER
$19.60 |
9% OFF Phone Price : $21.60
In Stock
Compressor 216966800
#29

System diagram

Compressor

Part #216966800

Replaced by #5304507765

?
Manufacturer substitution
This part replaces 216966800. Substitute parts can look different from the original.
BEST SELLER
$488.61 |
$10.00 OFF Phone Price : $498.61
In Stock
Freezer Door Switch (replaces 216998000, 7216822900) 216822900
#14

Door diagram

Freezer door switch (replaces 216998000, 7216822900)

Part #216822900

BEST SELLER
$55.91 |
8% OFF Phone Price : $60.91
In Stock
Refrigerator Strap 5308000110
#16

System diagram

Refrigerator strap

Part #5308000110

$52.30 |
9% OFF Phone Price : $57.30
In Stock
Light Socket 216817600
#16

Door diagram

Light socket

Part #216817600

Replaced by #297139501

?
Manufacturer substitution
This part replaces 216817600. Substitute parts can look different from the original.
This item is not returnable
$19.99 |
9% OFF Phone Price : $21.99
In Stock
Ptc Starter 216596800
#30

System diagram

Ptc starter

Part #216596800

Replaced by #5304493950

?
Manufacturer substitution
This part replaces 216596800. Substitute parts can look different from the original.
$84.79 |
6% OFF Phone Price : $89.79
In Stock
