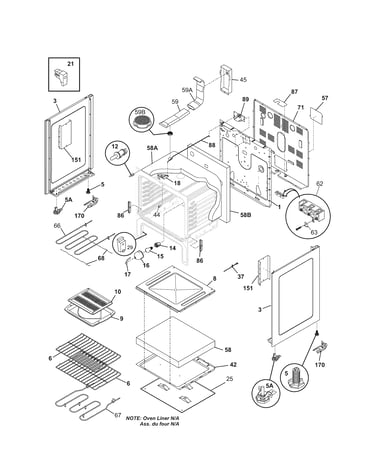

On the Kenmore 7909612340A electric range, the “fuse” people mean is usually a thermal cut-off (thermal fuse) mounted on the back of the range near the oven wiring and heating-element connections. You typically access it by pulling the range out and removing the rear access panel; use the installation guide for safe power shutoff and access steps.

What you will see when you get to it

On most Kenmore electric ranges like model 7909612340A, the thermal fuse is a small, flat safety device with two wires attached. It is commonly positioned close to high-heat areas such as:

• Near the bake element terminals
• Near the broil element terminals
• Along the rear oven wiring harness path
• Close to the oven temperature-sensing and safety circuit wiring

Safe access checklist (before removing panels)

• Turn OFF the range breaker (240V) at the main electrical panel
• Confirm the cooktop and oven are cool
• Pull the range forward carefully to avoid damaging the power cord

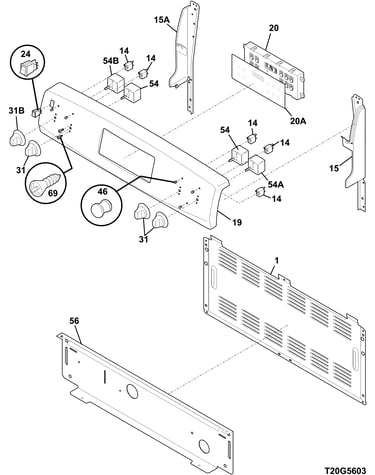

• Remove the rear access panel screws and lift the panel off
• Take a photo of wire locations before disconnecting anything

Quick diagnosis: fuse vs. sensor vs. element

If the oven will not heat, the issue is often one of these parts or circuits.

Symptom	Most likely area	Common next check
Oven completely dead (no heat functions)	Thermal fuse or power supply	Check breaker, then test thermal fuse for continuity
Oven heats but temperature is inaccurate	Temperature sensing circuit	Test/replace frigidaire range oven temperature sensor 316490000
Broil does not work but bake does	Broil circuit	Inspect broil element and wiring
Bake does not work but broil does	Bake circuit	Inspect bake element and wiring

Why it matters

The thermal fuse is a safety device designed to open the circuit if temperatures get unsafe. Replacing parts without finding the overheating cause (blocked vents, failed cooling fan, damaged wiring) can lead to repeat failures.

Last updated: February 2026

To reset your Kenmore 7909612340A electric range oven, we recommend a power reset first: turn the range off, switch the circuit breaker off (or unplug) for 1 minute, then restore power and reset the clock and any oven settings. See the owner's manual for control-specific steps.

Quick reset options (start here)

• Power cycle reset: breaker OFF for 1 minute, then ON.
• Clear the current function: press STOP/CLEAR to stop cooking and clear most active settings.
• After a power outage: turn the range OFF; when power returns, reset the clock and oven function.
• If the control is locked: press and hold STOP/CLEAR for 3 seconds to toggle Oven Lockout ("Loc" shows when locked).

What to expect on the display

Situation	What you’ll see	What to do
Normal cancel	Feature stops	Press STOP/CLEAR
Control lockout active	"Loc"	Hold STOP/CLEAR 3 seconds
Power interruption	Time incorrect or flashing	Reset clock and reselect oven function

If the oven still will not heat after resetting

These checks solve most “won’t bake” complaints on an electric range:

• Confirm the range has full power (a tripped breaker can leave the oven with partial power).
• Try BAKE and verify the PREHEAT light behavior (cycling is normal).
• If temperatures seem consistently off, use the built-in oven temperature adjustment (calibration) procedure.
• If you get an error code, use our Kenmore 790 self-cleaning range error codes guide to match the code to the likely cause.
• If the oven overheats, underheats, or throws a sensor-related code, the frigidaire range oven temperature sensor 316490000 is a common fix for temperature-sensing failures.

Why it matters

A reset clears temporary electronic glitches and restores normal control logic after a power interruption. It also helps you quickly identify whether the issue is a setting (lockout, timed bake) or a component problem (sensor, element, control).

Last updated: February 2026

If your Kenmore electric range model 7909612340A isn’t getting hot, the most common causes are a failed bake or broil heating element, a bad oven temperature sensor, or a control problem. Start with a quick power check, then test heating in Bake and Broil to narrow it down.

Quick checks first (no tools)

• Confirm the range has full power; electric ovens typically need 240 volts (a tripped breaker can leave lights working but no heat).
• Make sure you are using the correct oven mode (Bake vs. Broil) and the temperature is actually set.

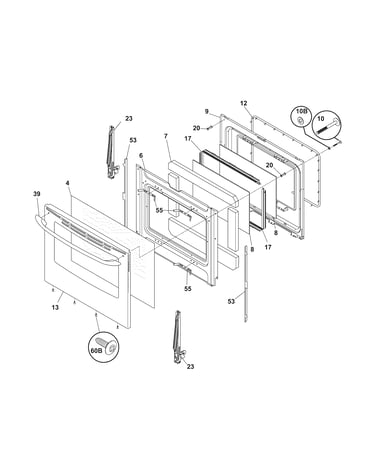

• Preheat for 10 to 15 minutes; open the door briefly and look for a red glow from the element.
• If the control is beeping and showing an F code, clear it with Stop/Clear and retry.
• If the oven recently ran Self-Clean, let it cool completely and try again.

What the symptoms usually mean

Symptom	Most likely cause	What to check next
No heat in Bake, Broil works	Bake element issue	Inspect element for blisters or breaks; check wiring at the element
No heat in Broil, Bake works	Broil element issue	Inspect broil element; check connections
Both Bake and Broil weak or inaccurate	Sensor or control issue	Check sensor resistance and harness; consider control diagnosis
Control beeps, shows F code	Electronic control fault	Use the error code guidance and follow the reset steps

Parts that commonly fix “oven not heating”

If your troubleshooting points to a failed component, these parts are commonly involved on this model:

• Element 316407501 (bake element)
• Frigidaire range broil element 316203301 (broil element)
• Frigidaire range oven temperature sensor 316490000 (temperature sensor)

Safety and access tips

The bake and broil elements can stay hot after you turn the oven off. If you need to access the oven bottom for inspection, follow the guidance in the owner's manual; some versions allow carefully tilting the bake element up a few inches for cleaning and access.

Why it matters

An oven that will not heat is often a simple power or element failure, but a sensor or control issue can cause underheating, long preheat times, and inconsistent baking. Narrowing the symptom (Bake only, Broil only, or both) prevents buying the wrong part.

Last updated: February 2026

If your Kenmore 7909612340A electric range is not working at all, the most common cause is a power problem (tripped breaker, loose cord/plug, or a home power outage). If the control is beeping and showing an F-code, the electronic control detected a fault; clear it and retest. See the owner's manual for model-specific checks.

Quick checks (start here)

• Confirm the range has power; check house lights and the range outlet.
• Reset the circuit breaker (electric ranges typically use a 240V double breaker).
• Make sure the cord/plug is fully seated (if your installation uses a cord).
• If the display is on but nothing heats, verify you are using the correct control setting.
• If the control beeps and shows an F code (example: F11), press STOP/CLEAR to stop beeping and clear the display.

If the oven control shows an F-code

An F-code usually points to a control, keypad, wiring, or sensor related issue. If the code returns after clearing it, record the exact code and focus troubleshooting on the circuit involved.

Helpful next steps:

• Power the range off at the breaker for 1 minute, then restore power.
• Retry a simple bake test (for example, 350°F) and watch for the code returning.
• If you suspect temperature problems (overheating, underheating, or error codes tied to sensing), check the frigidaire range oven temperature sensor 316490000.

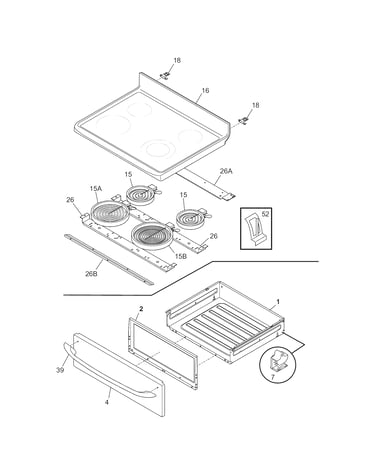

Surface element not heating (but the range has power)

• Confirm the correct knob/control is being used for that element.
• Try a different pan; warped or lightweight cookware can make heating seem wrong.
• If one element stays cold, the element or its control switch can be the cause.

Common symptoms and likely areas

Symptom	Most likely area to check	Example part on this model page
Entire appliance dead	Power supply, breaker, cord/terminal connections	Kelvinator range terminal block 5304409888
Beeping with F-code	Electronic control system, sensor, wiring	Frigidaire range oven temperature sensor 316490000
Oven light out only	Bulb or socket	Range oven light bulb 316538904

Why it matters

An electric range that is completely dead is usually a power delivery issue, while a beeping control with an F-code is the range telling you it detected a specific fault. Separating those two paths prevents unnecessary parts replacement.
