Model # B20CS80SNW/01 Official Bosch refrigerator
Here are the diagrams and repair parts for Official Bosch B20CS80SNW/01 refrigerator, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part

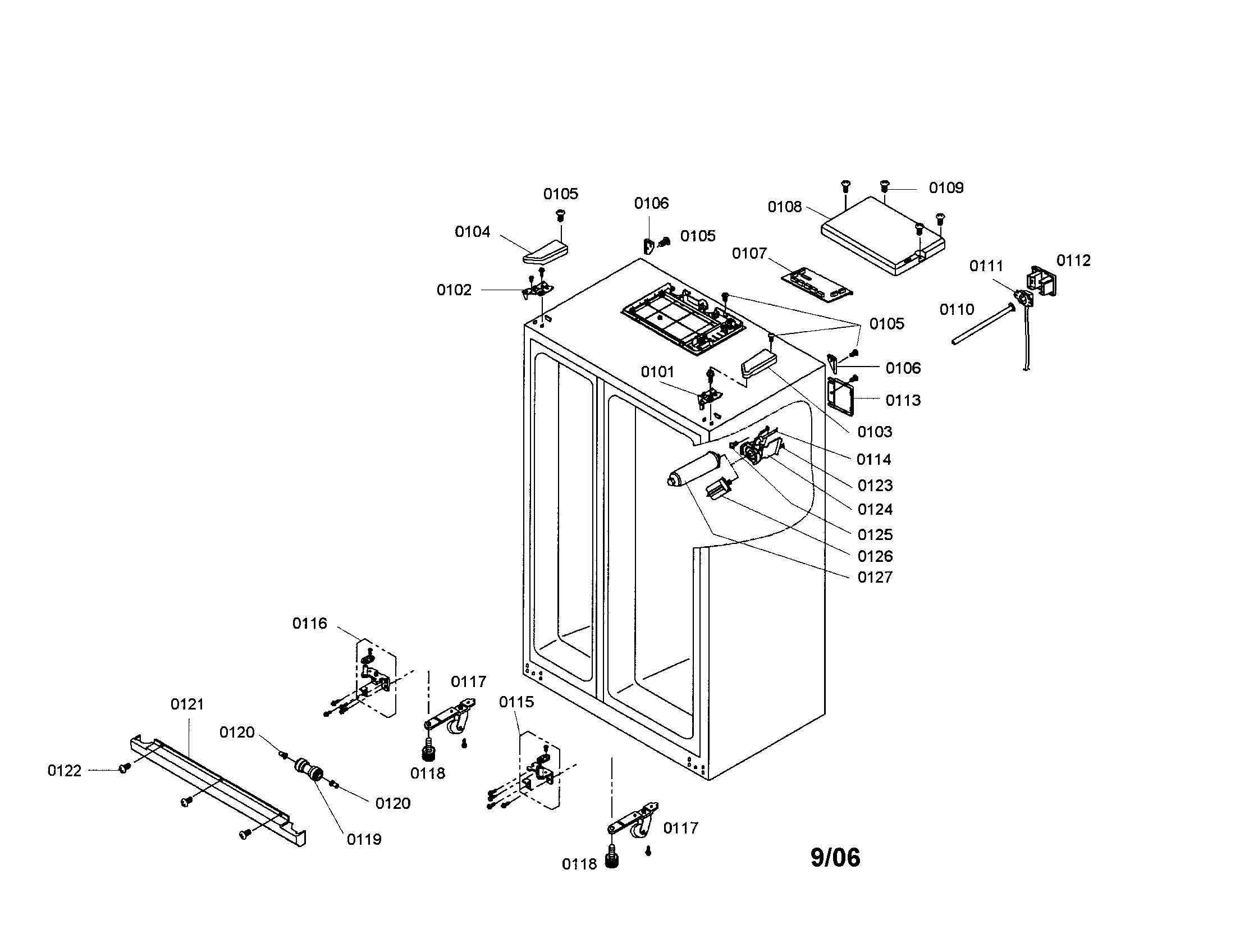

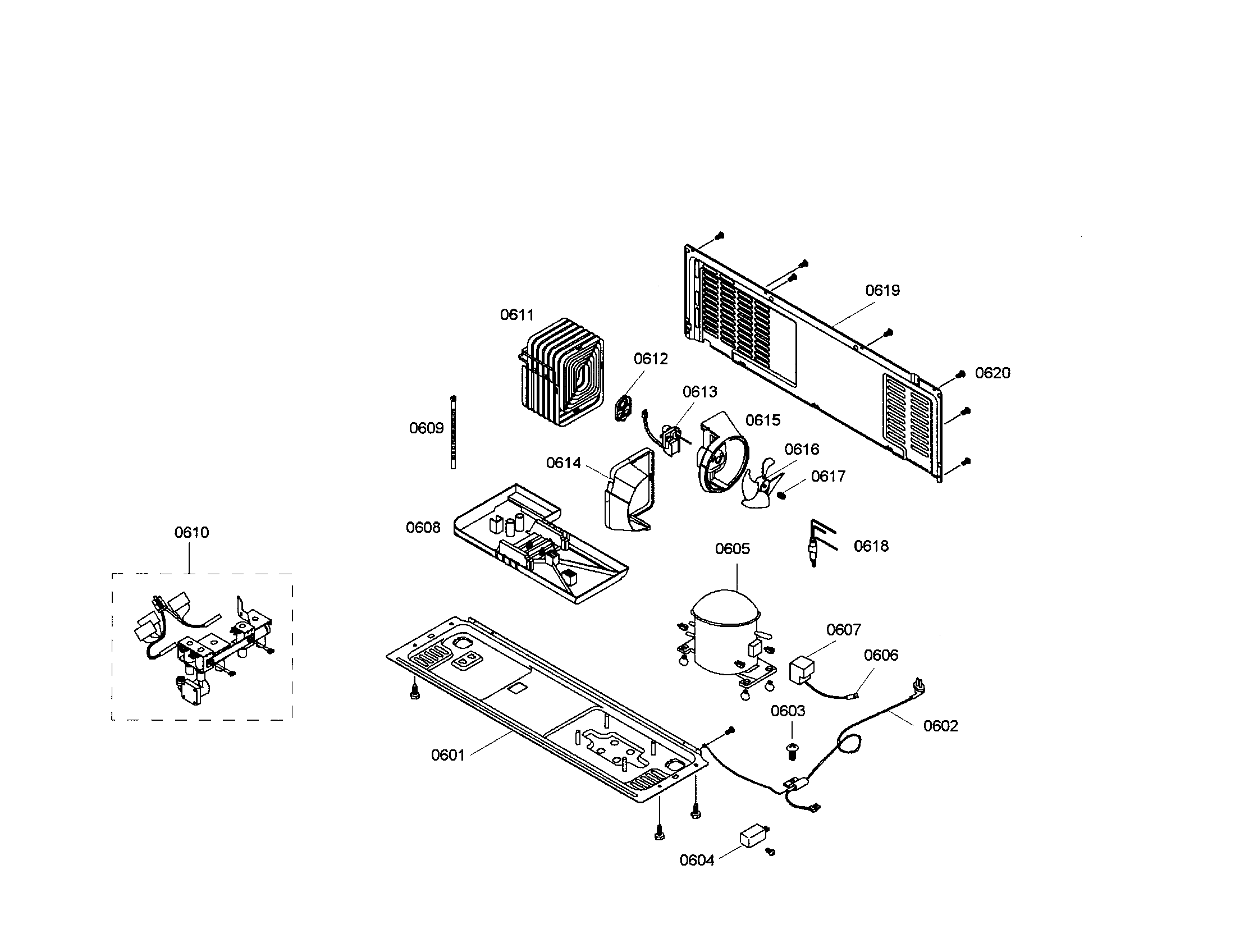

SELECT DIAGRAM
Browse Parts for
B20CS80SNW/01 Refrigerators
#307
All parts diagram

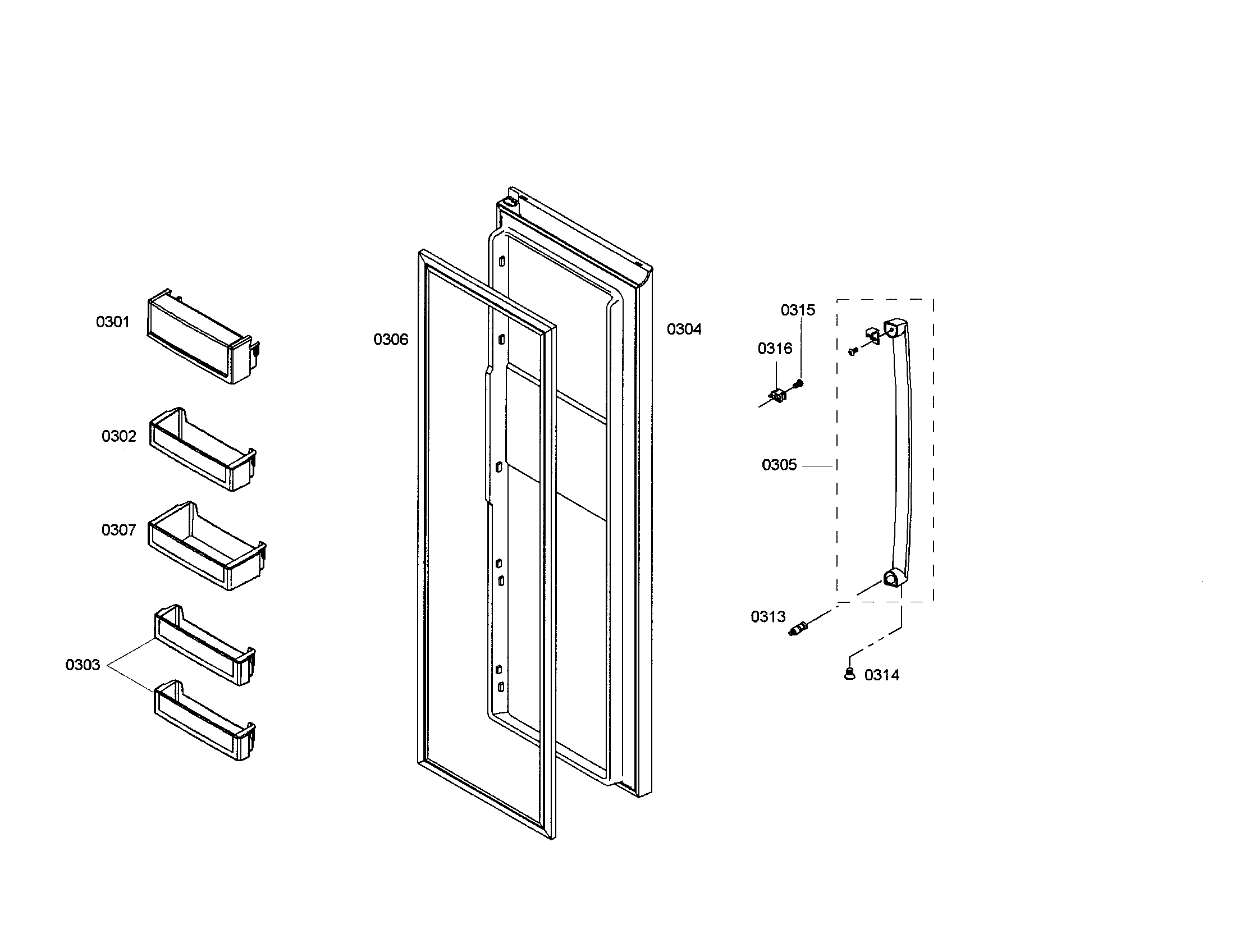

Refrigerator door bin
Part #660362
Replaced by #00660362
?
Manufacturer substitution
This part replaces 660362. Substitute parts can look different from the original.
$46.39 |
11% OFF Phone Price : $52.39
Back Order
#127
All parts diagram
Refrigerator water filter
Part #640565
Replaced by #00640565
?
Manufacturer substitution
This part replaces 640565. Substitute parts can look different from the original.
Get free shipping with Automatic Reorder
$97.98
In Stock

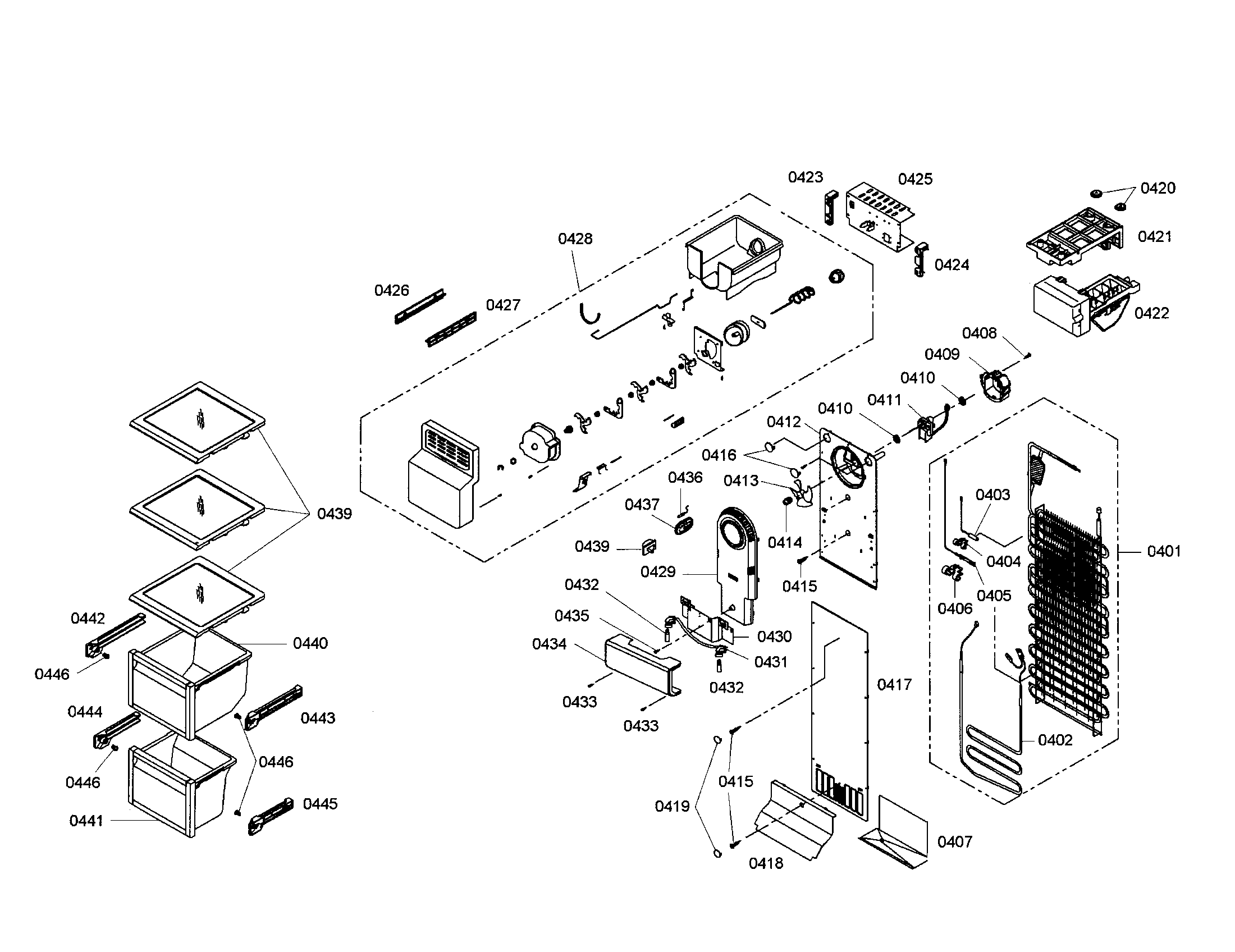

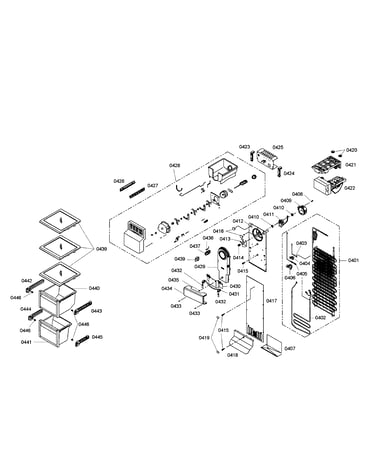

#411
All parts diagram
Refrigerator evaporator fan motor
Part #601067
The manufacturer no longer makes this part, and there's no substitute part
#439
All parts diagram
Refrigerator glass plate
Part #446034
Replaced by #00446034
?
Manufacturer substitution
This part replaces 446034. Substitute parts can look different from the original.
$75.19 |
7% OFF Phone Price : $81.19
In Stock

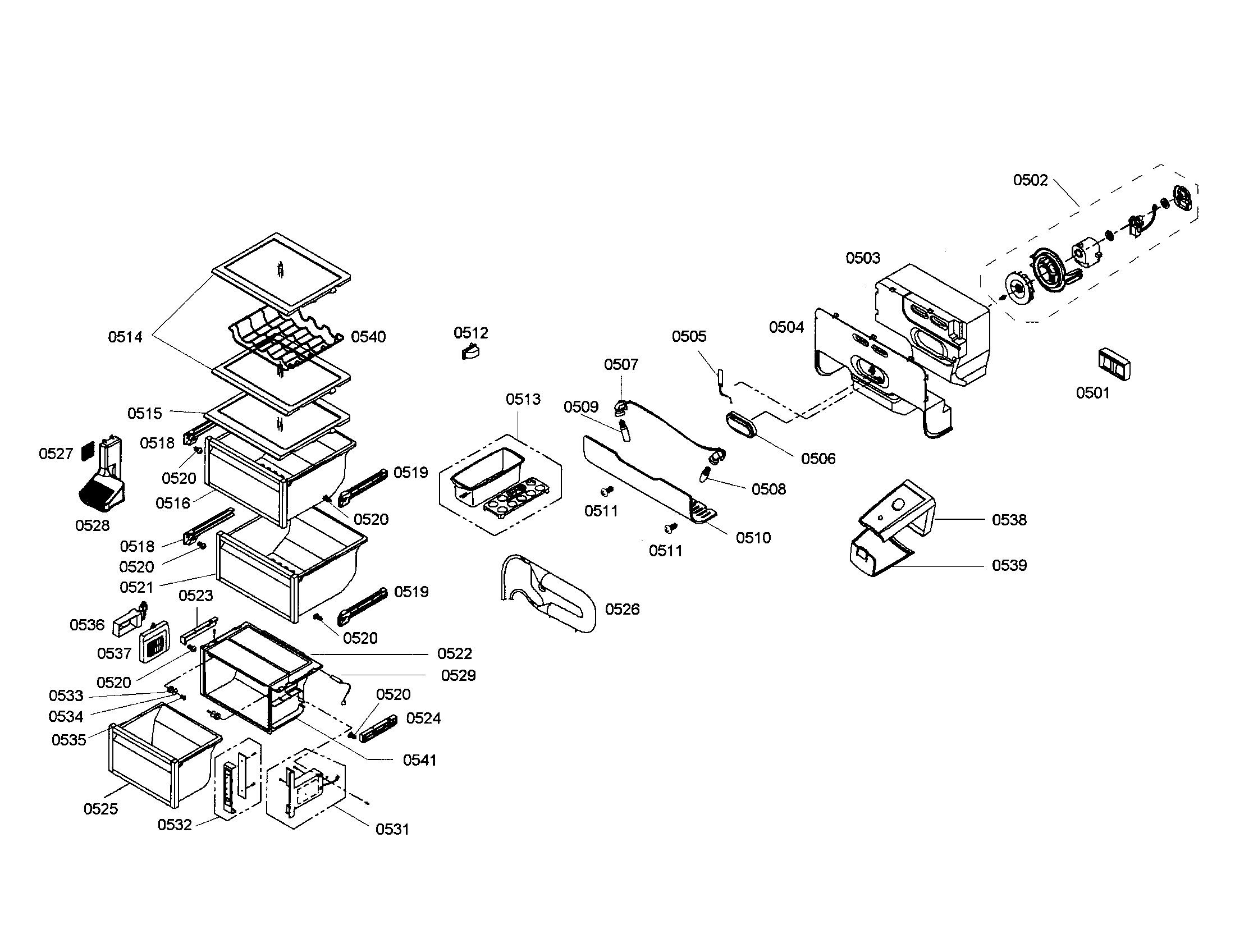

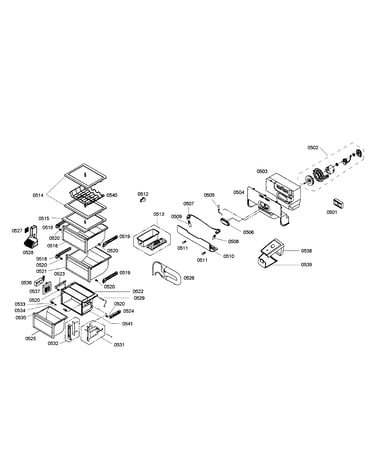

#503
All parts diagram
Air channel
Part #497849
Replaced by #00497849
?
Manufacturer substitution
This part replaces 497849. Substitute parts can look different from the original.
$168.49 |
7% OFF Phone Price : $180.49
In Stock

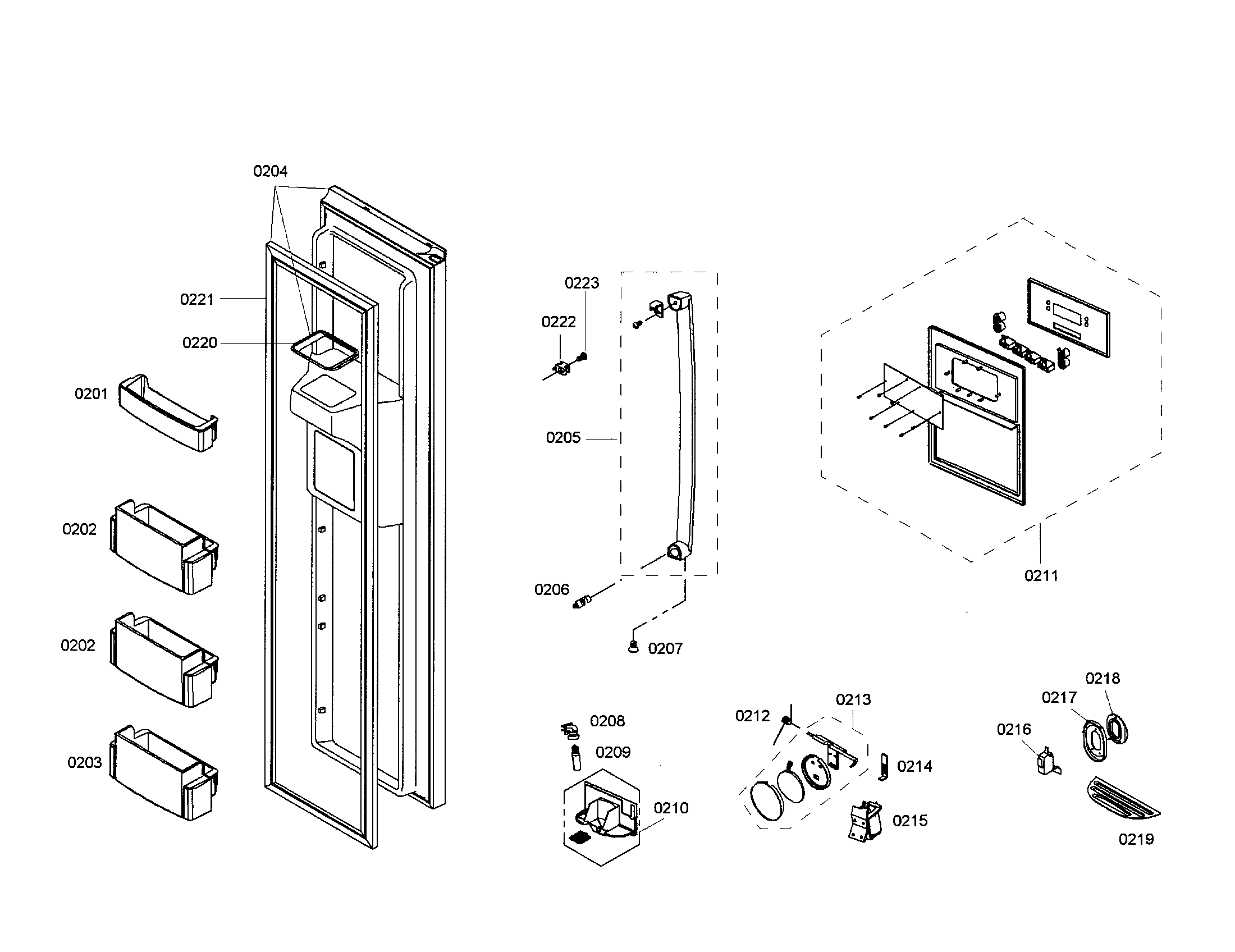

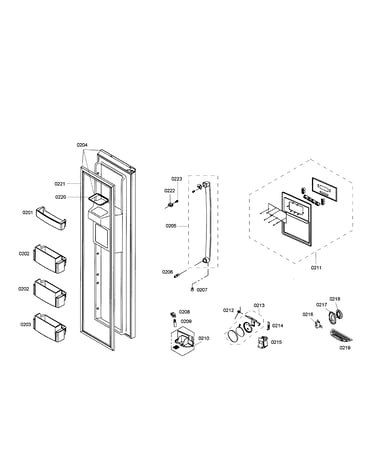

Refrigerator door handle
Part #660333
Replaced by #00660333
?
Manufacturer substitution
This part replaces 660333. Substitute parts can look different from the original.
$151.02
In Stock
#436
All parts diagram
Refrigerator freezer temperature sensor
Part #601087
Replaced by #00601087
?
Manufacturer substitution
This part replaces 601087. Substitute parts can look different from the original.
$38.24
In Stock
#444
All parts diagram
Refrigerator drawer slide rail
Part #445996
Replaced by #00445996
?
Manufacturer substitution
This part replaces 445996. Substitute parts can look different from the original.
$18.06
In Stock
Refrigerator freezer evaporator sensor
Part #601059
Replaced by #00601059
?
Manufacturer substitution
This part replaces 601059. Substitute parts can look different from the original.
$32.67
Back Order
#533
All parts diagram
Refrigerator reel
Part #601747
Replaced by #00445996
?
Manufacturer substitution
This part replaces 601747. Substitute parts can look different from the original.
$18.06
In Stock
