Model # 084600 Official Dirt Devil vacuum

Here are the diagrams and repair parts for Official Dirt Devil 084600 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 22 parts  |
Vacuum Brush 2-SN0275-000
#15

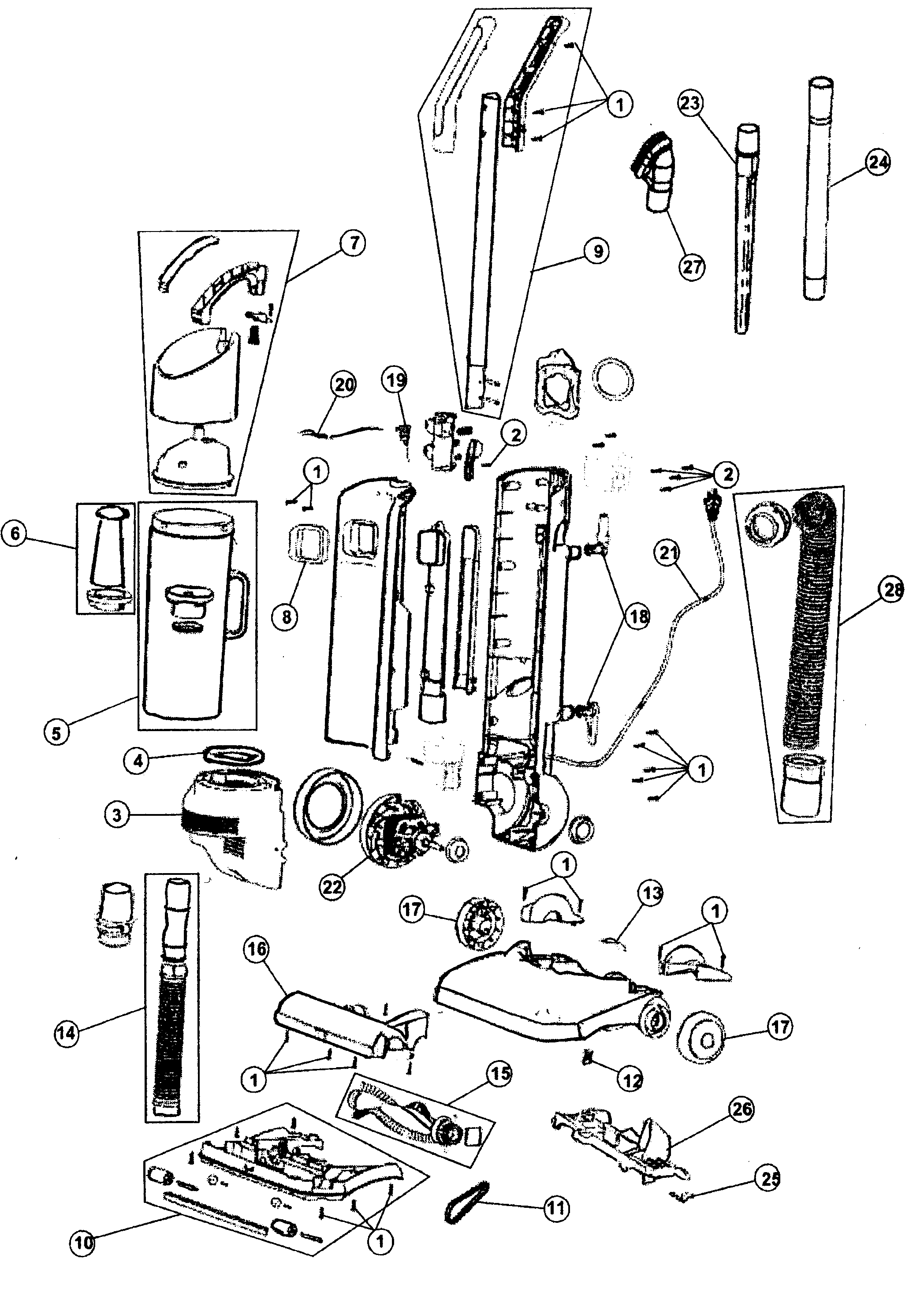

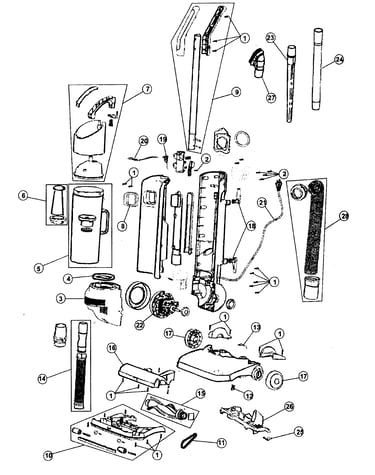

Cabinet parts diagram

Vacuum brush

Part #2-SN0275-000

The manufacturer no longer makes this part, and there's no substitute part

Screw 1-SN0075-000
#2

Cabinet parts diagram

Screw

Part #1-SN0075-000

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Belt 1-SN0220-001
#11

Cabinet parts diagram

Vacuum beater bar belt

Part #1-SN0220-001

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Filter 3-SFA115-00X
#6

Cabinet parts diagram

Vacuum filter

Part #3-SFA115-00X

The manufacturer no longer makes this part, and there's no substitute part

Rocker Switch 1-SN0100-000
#19

Cabinet parts diagram

Rocker switch

Part #1-SN0100-000

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 1-720430-000
#1

Cabinet parts diagram

Vacuum screw

Part #1-720430-000

The manufacturer no longer makes this part, and there's no substitute part

Handle Assembly 1-SN0170-000
#9

Cabinet parts diagram

Handle assembly

Part #1-SN0170-000

The manufacturer no longer makes this part, and there's no substitute part

Ac Cord, 30' 1-SN0105-000
#21

Cabinet parts diagram

Ac cord, 30'

Part #1-SN0105-000

The manufacturer no longer makes this part, and there's no substitute part

Cover 1-SN0255-600
#16

Cabinet parts diagram

Cover

Part #1-SN0255-600

The manufacturer no longer makes this part, and there's no substitute part

Gasket 1-SN0045-600
#4

Cabinet parts diagram

Gasket

Part #1-SN0045-600

The manufacturer no longer makes this part, and there's no substitute part
